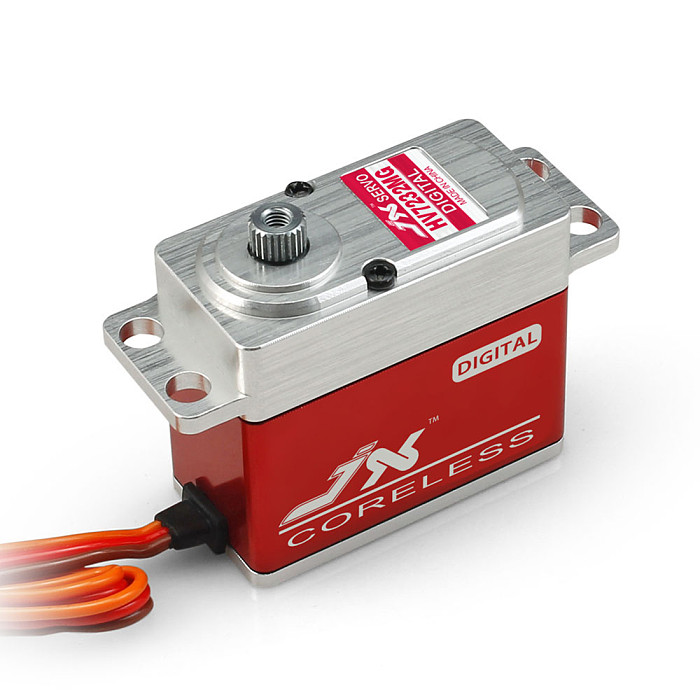

JX Servo PDI-HV7232MG 32KG High Torque Full Metal Tooth Housing High Pressure Digital Servo + Steering Arm

JX Servo PDI-HV7232MG 32KG High Torque Full Metal Tooth Housing High Pressure Digital Servo + Steering Arm Item NO.: F29327/F29327-A/F29327-B

Write a Review
US$ 36.28
US$ 42.68 Save US$ 6.40 (15% Off)
Version
1pc Servo 1pc Servo + Red Arm 1pc Servo + Titanium Arm
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • High performance digital high voltage coreless standard servo
  • High precision aluminum gear hard anodizing
  • Full CNC aluminium Shell structure
  • Dual ball bearings
  • With Waterproof Ring
Product Name JX Servo PDI-HV7232MG 32KG High Torque Full Metal Tooth Housing High Pressure Digital Servo + Steering Arm
Item NO. F29327/F29327-A/F29327-B
Weight 0.129 kg = 0.2844 lb = 4.5503 oz
Category DIY RC Drone Accessories > Servo
Brand JX
Creation Time 2019-06-14

JX Servo PDI-HV7232MG 32KG High Torque Full Metal Tooth Housing High Pressure Digital Servo + Steering Arm

FEATURE:
High performance digital high voltage coreless standard servo
High precision aluminum gear hard anodizing
Full CNC aluminium Shell structure
Dual ball bearings
With Waterproof Ring

SPECIFICATIONS:
Working Frequency?1520?s / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 26.2 kg.cm (363.83oz/in)
Stall Torque (8.4V): 31.5kg-cm 437.43 oz/in)

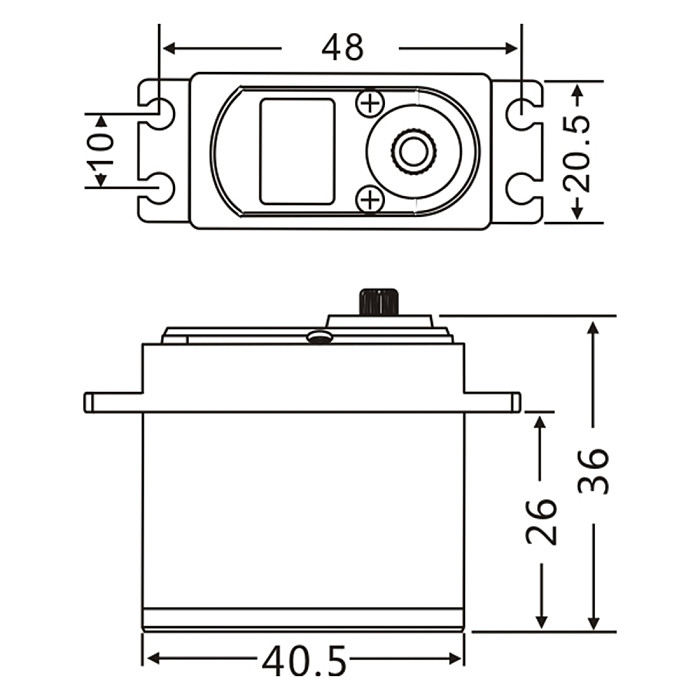

Dimensions:40.5X20.5X36mm/1.59X0.80X1.43in
Weight:  72g (2.54oz)
Connector Wire Length: JR  265 mm (10.43in)

Bearing: 2BB
