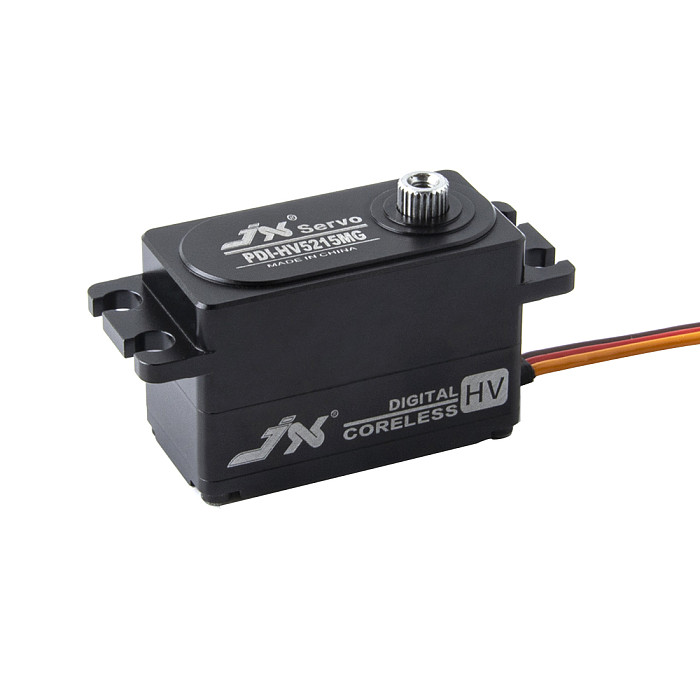

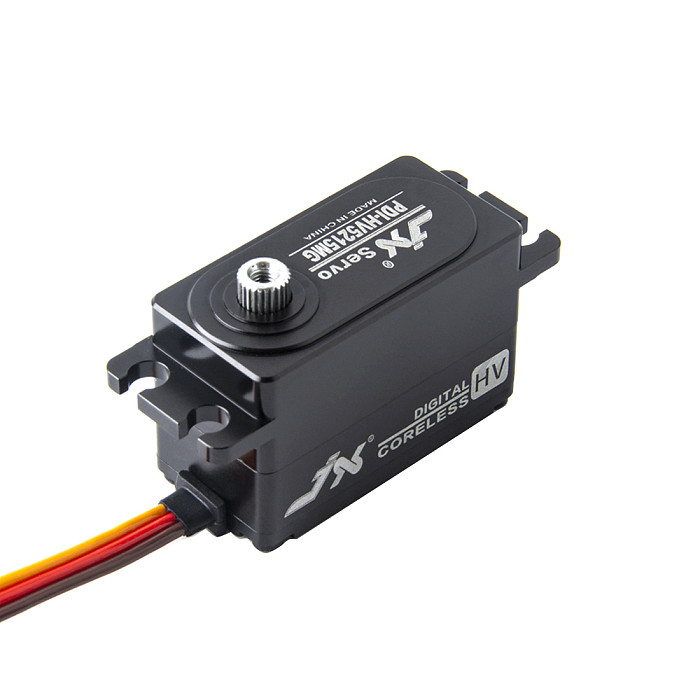

JX  PDI-HV5215MG 15kg High Torque Metal Gear Digital Coreless Servo For Remote Control Car

JX PDI-HV5215MG 15kg High Torque Metal Gear Digital Coreless Servo For Remote Control Car Item NO.: F45413

Write a Review
US$ 38.05
US$ 44.77 Save US$ 6.72 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • JX Servo PDI-HV5215MG 15kg High Torque Metal Gear Digital Coreless Servo For Remote Control
Product Name JX PDI-HV5215MG 15kg High Torque Metal Gear Digital Coreless Servo For Remote Control Car
Item NO. F45413
Weight 0.065 kg = 0.1433 lb = 2.2928 oz
Category DIY RC Drone Accessories > Servo
Brand JX
Creation Time 2021-11-23

JX Servo PDI-HV5215MG 15kg High Torque Metal Gear Digital Coreless Servo For Remote Control

Dead band: 2μs
Control System:  +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage:  DC6~8.4V
Motor: coreless motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6V): 13.6kg.cm (118.9oz/in)
Stall Torque (8.4V): 15.6kg.cm (164.14oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.5X20.5X26.8mm /1.59 X0.80X1.05 in
Weight:52 g (1.67oz)
Connector Wire Length: JR  220 mm
Bearing: 2BB
