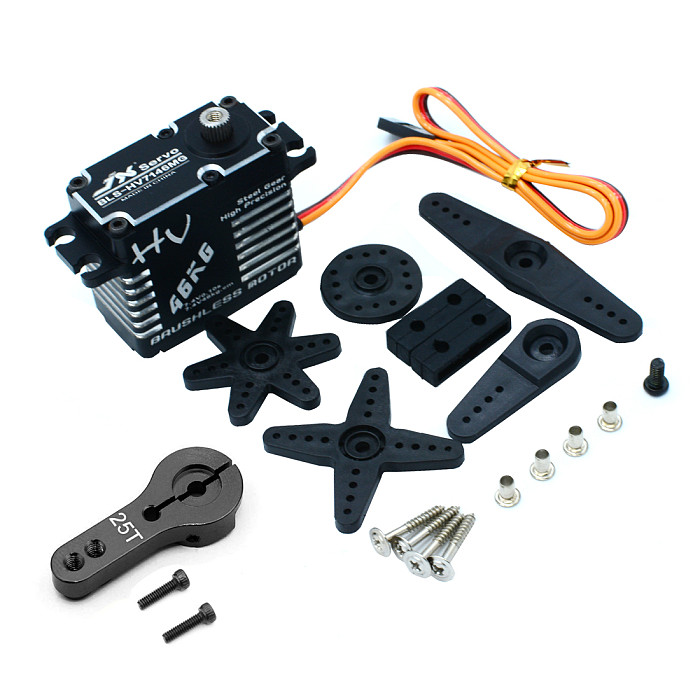

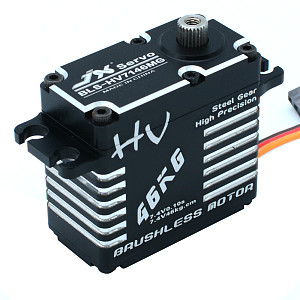

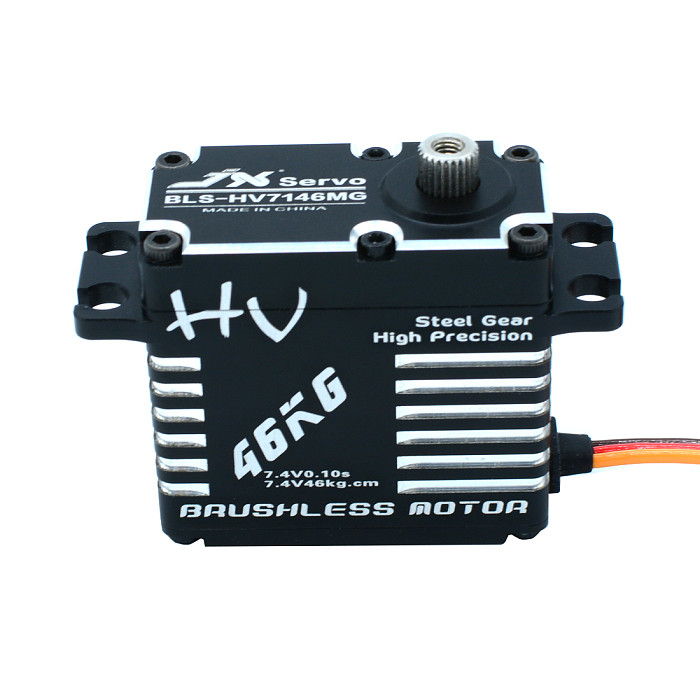

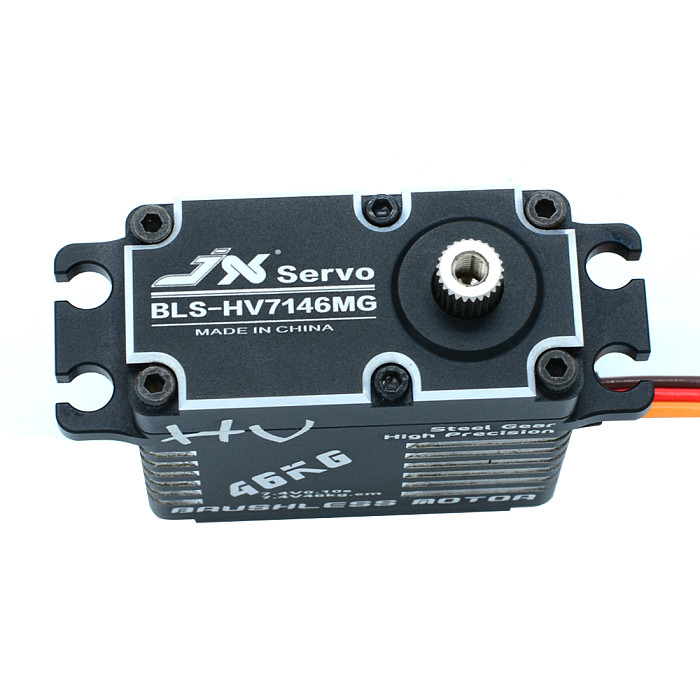

JX Servo BLS-HV7146MG 46KG Large Torque Metal Gear Rudder & Steering Arm Robot Industrial Equipment 180 Degrees Item NO.: F29322/F29322-A/F29322-B

Name: JX Servo BLS-HV7146MG 46KG Large Torque Metal Gear Rudder & Steering Arm Robot Industrial Equipment 180 Degrees
SKU: F29322/F29322-A/F29322-B
Price: 48.44 USD
Availability: InStock

Write a Review Sold (6)

US$ 48.44

US$ 56.99 Save US$ 8.55 (15% Off)

Version: 1pc Servo 1pc Servo + Black Arm 1pc Servo + Titanium Arm

Quantity: Stock ( 29999997 )

Estimate Shipping Cost

Add to Cart

High Voltage BLS-HV7146MG 46KG Large Torque Servo
High performance programmable digital brushless standard servo
Full CNC aluminium Shell structure
Dual ball bearings
Bearing: 2BB

Product Name	JX Servo BLS-HV7146MG 46KG Large Torque Metal Gear Rudder & Steering Arm Robot Industrial Equipment 180 Degrees
Item NO.	F29322/F29322-A/F29322-B
Weight	0.133 kg = 0.2932 lb = 4.6914 oz
Category	DIY RC Drone Accessories > Servo
Creation Time	2019-06-13

JX Servo BLS-HV7146MG 46KG Large Torque Metal Gear Rudder & Steering Arm Robot Industrial Equipment 180 Degrees

FEATURE:

-- High Voltage BLS-HV7146MG 46KG Large Torque Servo
-- High performance programmable digital brushless standard servo
-- Full CNC aluminium Shell structure
-- Dual ball bearings

SPECIFICATIONS:
Working frequence: 1520?s / 330hz
Motor: brushless motor
Operating Speed (6V): 0.12 sec/60°
Operating Speed (7.4V): 0.10 sec/60°
Stall Torque (6V): 37.6kg.cm
Stall Torque (7.4V): 47.8kg.cm
Dimensions: 40.5X20.5X36mm
Weight: 71 g
Connector Wire Length: JR 265 mm

Bearing: 2BB
