Features:
High-voltage digital hollow cup standard steering gear
Taiwan high precision gear
Double ball bearing
CNC aluminum inner shell
PDI-HV5932MG-360° continuous transfer detailed specifications:
Dead zone: 1μs
Maximum pulse width: 500-2500us, pulse width is stopped at 1500us (suitable for remote control, MCU control board)
Angle range: 360° continuous turn
Motor: Hollow cup
Speed (6.0V): 73 rpm
Speed (8.4V): 102 rpm
Size: 40.5X20.5X36mm
Weight: 59g
Cable: JR 265 mm (10.43in)
Bearing: 2BB
Output teeth: 25T (Futaba universal)
Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

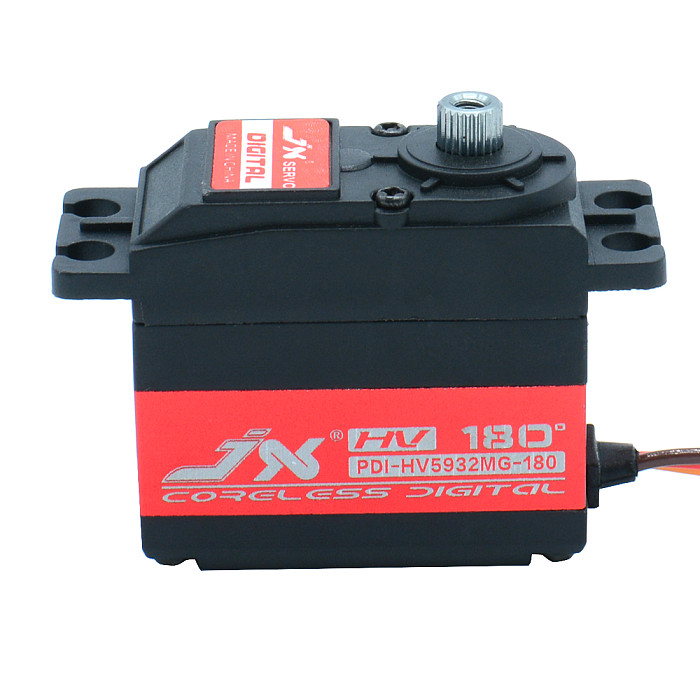

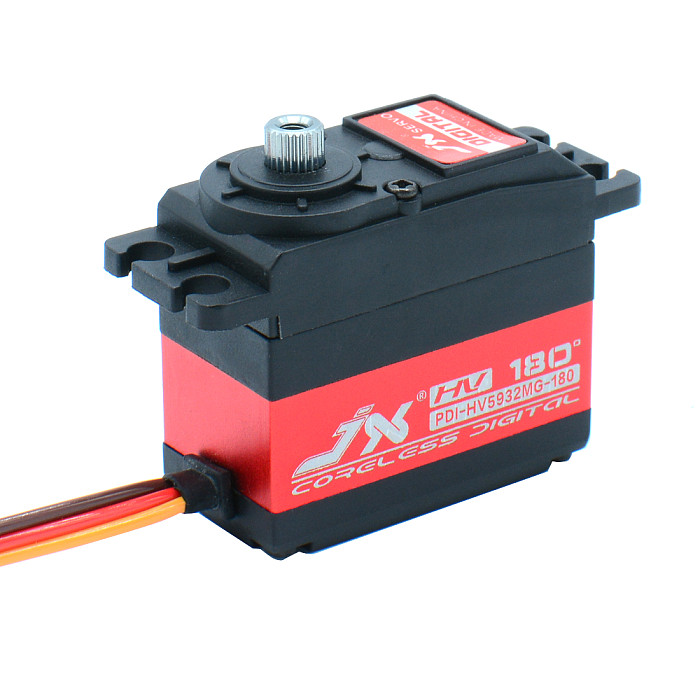

PDI-HV5932MG-180°Detailed specifications:
Dead zone: 1μs
Maximum pulse width: 500-2500us (suitable for single-chip control board)
Angle range: actual angle 172 ± 2 °
Motor: Hollow cup
Speed (6.0V): 0.12sec/85°
Speed (8.4V): 0.1sec/85°
Torque (6.0V): 25.2 kg.cm
Torque (8.4V): 32.3kg.cm
Size: 40.5X20.5X36mm
Weight: 59g
Cable: JR 265 mm (10.43in)
Bearing: 2BB
Output teeth: 25T (Futaba universal)
Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

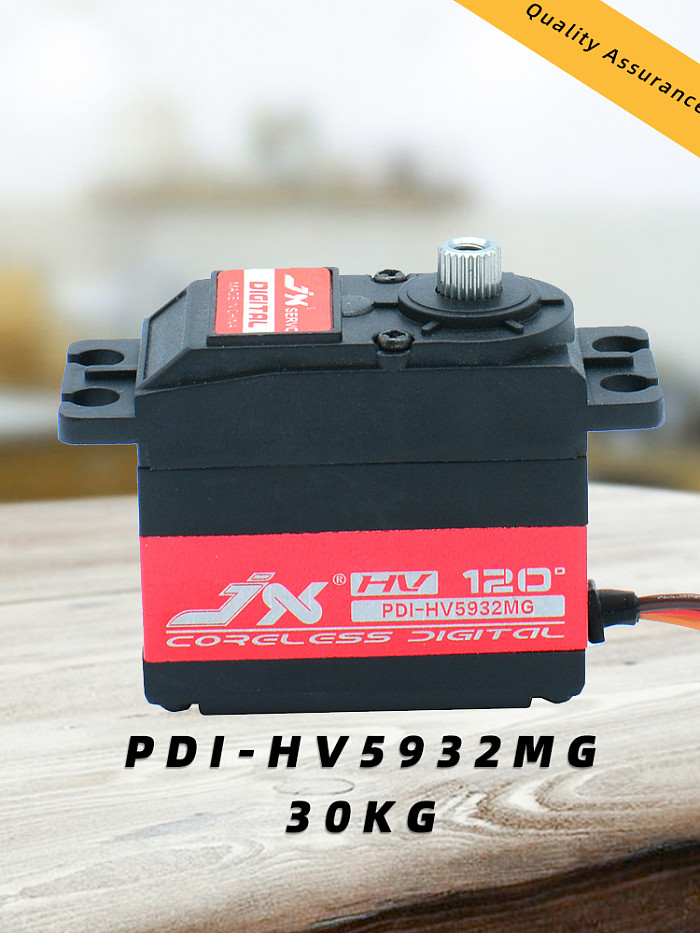

PDI-HV5932MG-120° Detailed specifications:
Dead zone: 1μs
Maximum pulse width: 900-2100us (suitable for remote control)
Maximum angle: 120°
Motor: Hollow cup
Speed (6.0V): 0.12sec/60°
Speed (8.4V): 0.1sec/60°
Torque (6.0V): 25.2 kg.cm
Torque (8.4V): 32.3kg.cm
Size: 40.5X20.5X36mm
Weight: 59g
Cable: JR 265 mm (10.43in)
Bearing: 2BB
Output teeth: 25T (Futaba universal)
Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws
