Home>DIY RC Drone Accessories>Servo>JX 4Pcs Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear

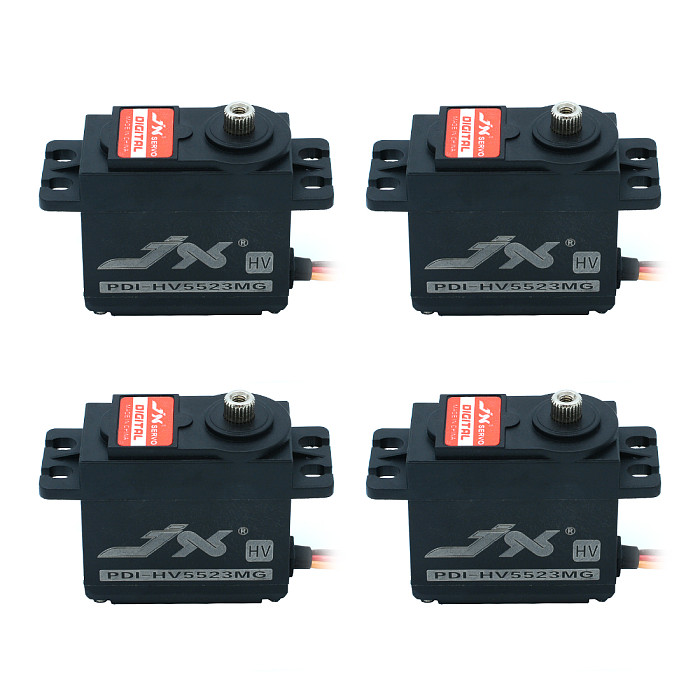

JX 4Pcs Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear Item NO.: F29329-4

Name: JX 4Pcs Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear
Brand: XT-XINTE
SKU: F29329-4
Price: 25.23 USD
Availability: InStock

Write a Review Sold (8)

US$ 25.23

US$ 29.68 Save US$ 4.45 (15% Off)

Quantity: Stock ( 9999994 )

Estimate Shipping Cost

Add to Cart

High Performance 23KG High Torque High Voltage Digital Servo
High Precision Gear
High Quality Brush Motor
Double Ball Bearing
Maximum Angle: 120°

Product Name	JX 4Pcs Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear
Item NO.	F29329-4
Weight	0.98 kg = 2.1605 lb = 34.5685 oz
Category	DIY RC Drone Accessories > Servo
Brand	XT-XINTE
Creation Time	2019-06-14

JX Servo PDI-HV5523MG 23KG High Torque Metal Gear Digital Servo High Pressure Standard Steering Gear

Features:
-- High performance 23KG high torque high voltage digital servo
-- High precision gear
-- High quality brush motor
-- Double ball bearing

SPECIFICATIONS:
Maximum angle: 120°
Motor: iron core
Operating Speed (6.0V): 0.18sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V): 23 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 55.6 g
Connector Wire Length: JR 265 mm

Bearing: 2BB

Parcel include:
4Pcs
