JMT 20KG Digital Servo Large Torque Metal Shell Servo Waterproof For Car Model / Multi-rotor Aircraft / Helicopter / Robot / RC Toy

JMT 20KG Digital Servo Large Torque Metal Shell Servo Waterproof For Car Model / Multi-rotor Aircraft / Helicopter / Robot / RC Toy Item NO.: F35595 F35596 F35597 F35598 F35599 F35600

Write a Review
US$ 5.33
US$ 6.27 Save US$ 0.94 (15% Off)
Angle
90-180° 270° 360°
Version
Standard Version Metal Arm Vesion
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT 20KG Digital Servo Large Torque Metal Shell Servo Waterproof For Car Model / Multi-rotor Aircraft / Helicopter / Robot / RC Toy
Item NO. F35595 F35596 F35597 F35598 F35599 F35600
Weight 0.091 kg = 0.2006 lb = 3.2099 oz
Category DIY RC Drone Accessories > Servo
Brand JMT
Creation Time 2020-01-11

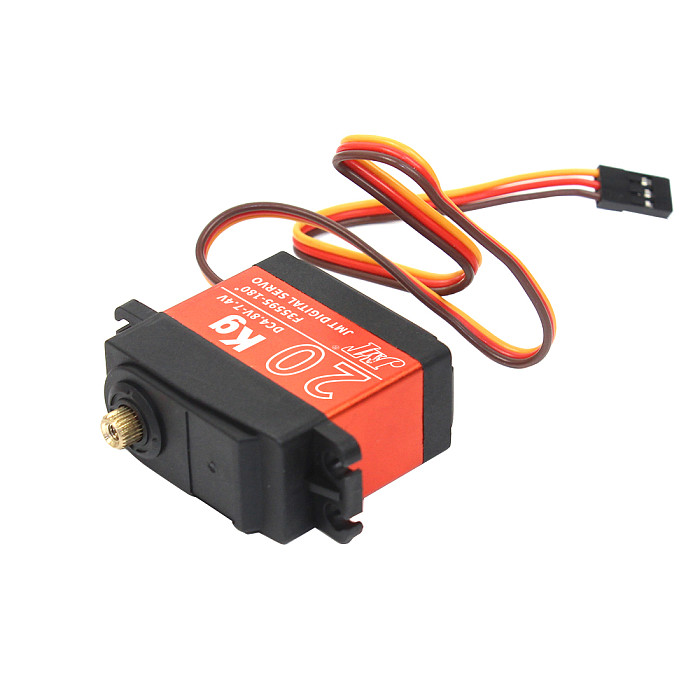

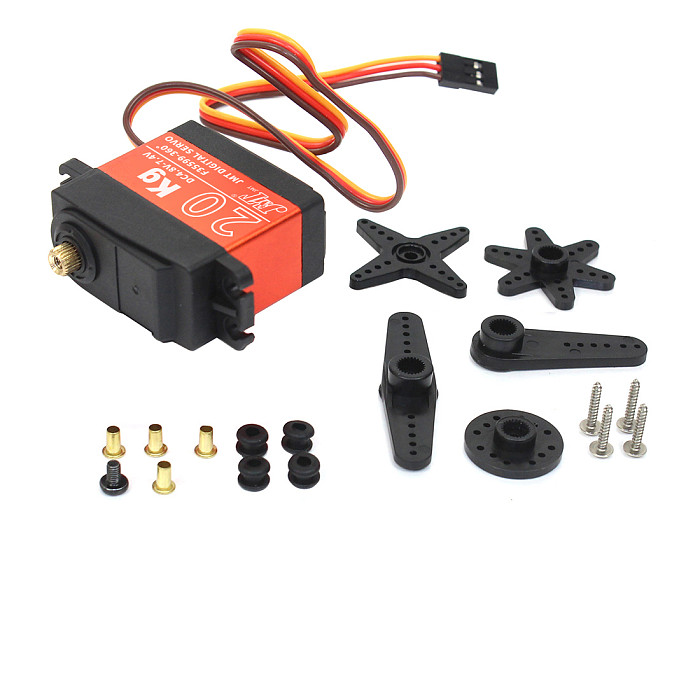

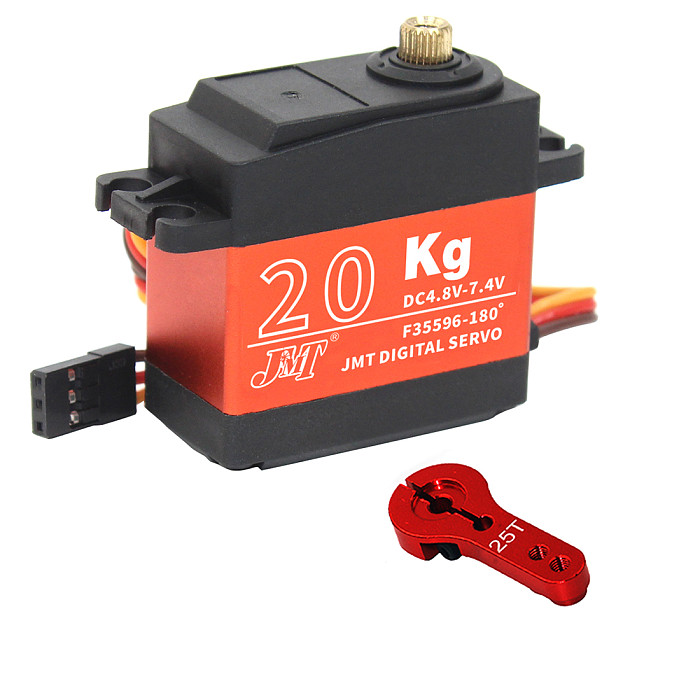

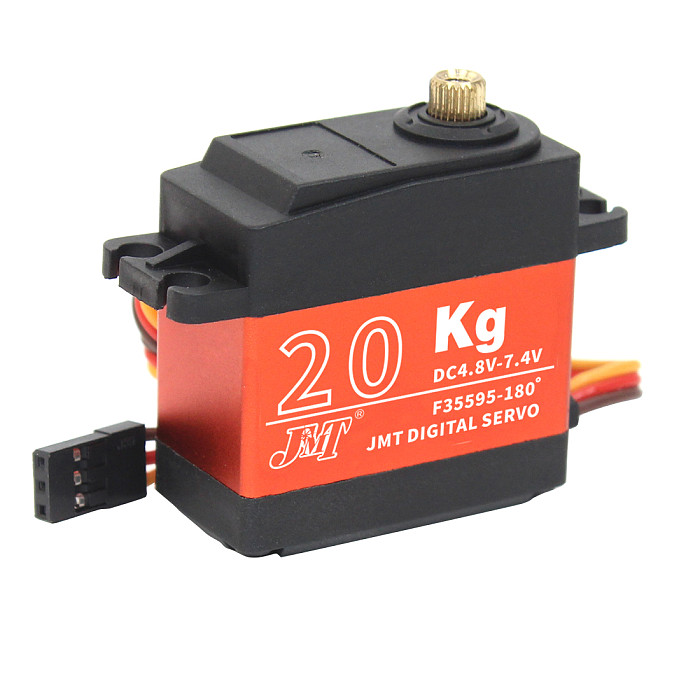

JMT 20KG Digital Servo Large Torque Metal Shell Servo Waterproof For Car Model / Multi-rotor Aircraft / Helicopter / Robot / RC Toy

20KG digital servo
Large torque metal shell servo

Features:

1, multiple waterproof design, to meet the application of different occasions, the use of imported ball bearings, imported metal gears, high accuracy and low noise, smooth rotation

2. The middle shell is made by CNC machining of aluminum alloy. The surface is anodized, which helps the motor to dissipate heat, improve the strength of the servo housing, and has a stylish appearance.

3. Built-in imported potentiometer (more than 1 million rotation life), accurate positioning. The main control IC uses the most advanced ASIC to process signals, has higher resolution, fast response time, large torque, and smooth and smooth rotation



- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
 Idle speed :4.8V/0.15sec / 60 deg
                    6.0V/0.13sec / 60 deg
Steering angle: 0-180 degree ;
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
