| Product Name |
JMT 4PCS 20KG Digital Servo 180° / 270° / 360° Large Torque Metal Shell Servo Waterproof with 4Pcs 25T Metal Servo Arm for Car Model / Multi-Rotor Aircraft / Helicopter / Robot / RC Toy |
| Item NO. |
F35599-A F35597-A F35595-A |
| Weight |
0.345 kg = 0.7606 lb = 12.1695 oz |
| Category |
DIY RC Drone Accessories
> Servo
|
| Brand |
JMT |
| Creation Time |
2020-05-13 |

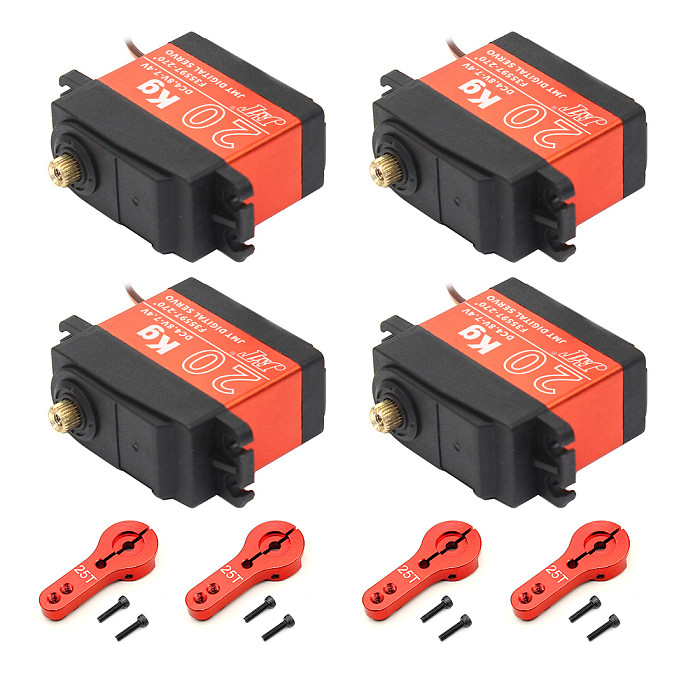

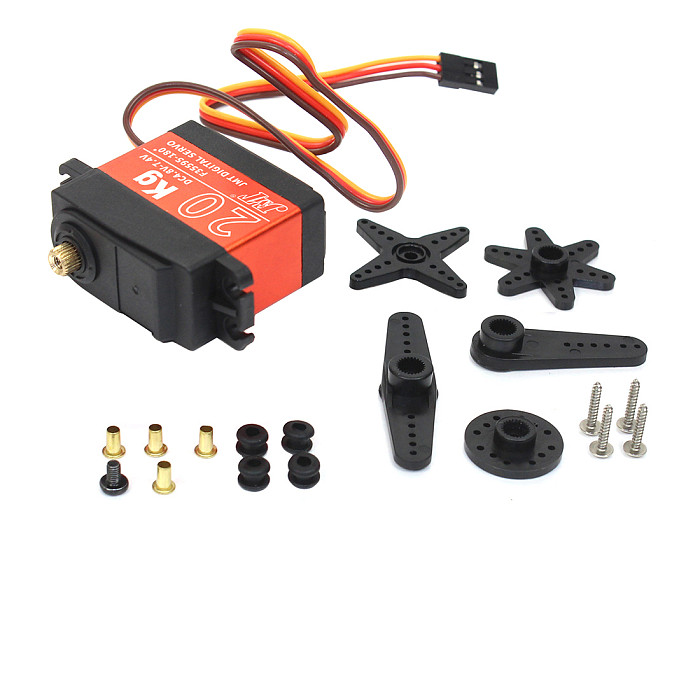

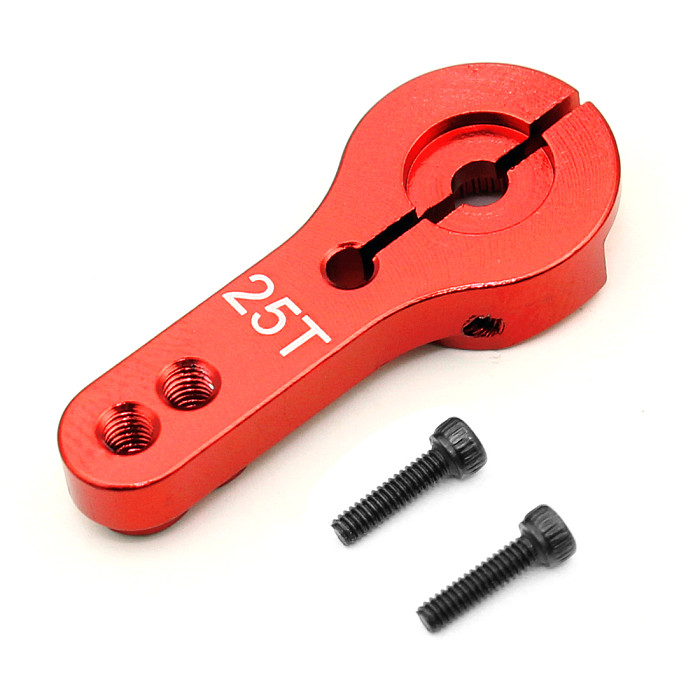

JMT 4Pcs 20KG Digital Servo 180° / 270° / 360° Large Torque Metal Shell Servo Waterproof with 4Pcs 25T Metal Servo Arm For Car Model / Multi-rotor Aircraft / Helicopter / Robot / RC Toy
JMT 20KG Digital Servo Features:
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control ?1500 u-sec is the central point?
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 0-180 degree ;
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG?JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
