Tarot 470 main rotor blade holder Set / 7075 Aluminum alloy TL47A18 Item NO.: F22391

Name: Tarot 470 main rotor blade holder Set / 7075 Aluminum alloy TL47A18
Brand: Tarot
SKU: F22391
Price: 12.3 USD
Availability: InStock

Write a Review Sold (1)

US$ 12.30

US$ 14.47 Save US$ 2.17 (15% Off)

Quantity: Stock ( 100 )

Estimate Shipping Cost

Add to Cart

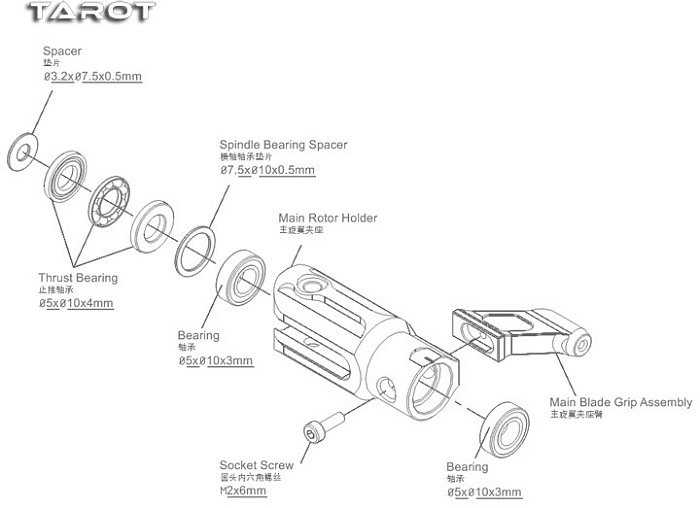

Product Specifications:
470 metal main rotor seat (37.5 × 16.5MM) 8.3G × 2
470 main rotor seat arm (15 × 23 × 5MM) 1.5G × 2
M2.5 × 5MM step ball 0.2G × 2
M2 × 6MM cup head hexagonal screws 0.3G × 2
Flat bearing (Φ5.0xΦ10x3.0mm) 1.2G × 4
Thrust bearing (Φ5.0xΦ10x4.0mm) 1.35G × 2
Bearing gasket (Φ7.5xΦ10x0.5mm) × 2
Horizontal shaft gasket (Φ3.2xΦ7.5x0.5mm) × 2
Cup head hexagonal sleeve screw × 2 (M3 × 18MM)
M3 only slip nut × 2

Product Name	Tarot 470 main rotor blade holder Set / 7075 Aluminum alloy TL47A18
Item NO.	F22391
Weight	0.044 kg = 0.0970 lb = 1.5521 oz
Category	DIY RC Drone Accessories > Tarot
Tag
Brand	Tarot
Creation Time	2017-07-31

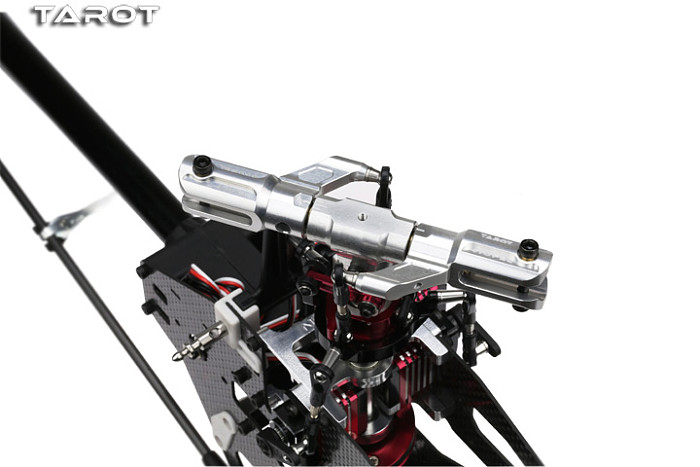

Using 7075-T65 super-hard aluminum alloy full CNC forming processing, suitable for 470 modified to upgrade the use of split-seat arm, modified thrust bearing in the middle of the extension of the bearing side of the swing arm, reducing the virtual swing The Can withstand a stronger pull to meet the current mainstream models of the big power requirements.
Product Specifications:
470 metal main rotor seat (37.5 × 16.5MM) 8.3G × 2
470 main rotor seat arm (15 × 23 × 5MM) 1.5G × 2
M2.5 × 5MM step ball 0.2G × 2
M2 × 6MM cup head hexagonal screws 0.3G × 2
Flat bearing (Φ5.0xΦ10x3.0mm) 1.2G × 4
Thrust bearing (Φ5.0xΦ10x4.0mm) 1.35G × 2
Bearing gasket (Φ7.5xΦ10x0.5mm) × 2
Horizontal shaft gasket (Φ3.2xΦ7.5x0.5mm) × 2
Cup head hexagonal sleeve screw × 2 (M3 × 18MM)

M3 only slip nut × 2
