ITHOO M.2 NVME to USB3.1 Type-C GEN2 10Gbps HDD Enclosure M.2 PCI-E SSD Hard Disk External Drive Box M.2 M-Key SSD to USB-C Adapter ASMedia ASM2362

US$ 15.26

Color: White

Estimate Shipping Cost

Detail
- Product Name: ITHOO M.2 NVME to USB3.1 Type-C GEN2 10Gbps HDD Enclosure M.2 PCI-E SSD Hard Disk External Drive Box M.2 M-Key SSD to USB-C Adapter ASMedia ASM2362
- Item NO.: F31912
- Weight: 0.165 kg = 0.3638 lb = 5.8202 oz
- Category: Consumer Electronics > Driving Recorder
- Brand: ITHOO
- Creation Time: 2019-09-24
ITHOO M.2 NVME to USB3.1 Type-C GEN2 10Gbps HDD Enclosure M.2 PCI-E SSD Hard Disk External Drive Box M.2 M-Key SSD to USB-C Adapter ASMedia ASM2362

Product Name: USB3.1 TO NVME HDD Enclosure
Product brand: ITHOO
Product model: ENCNVME-A01
Adopt master: ASMedia ASM2362
Material: Aluminum-magnesium alloy
Product packaging: color box
Support interface: USB3.1 TO M.2 KEY-M
Support capacity: 3T
Transmission speed: 10Gbps
Transfer interface: TYPE-C
Support system: WinXP/Vista/Win7/Win8/WIN10 32-bit/64-bit MAC10.8 or higher

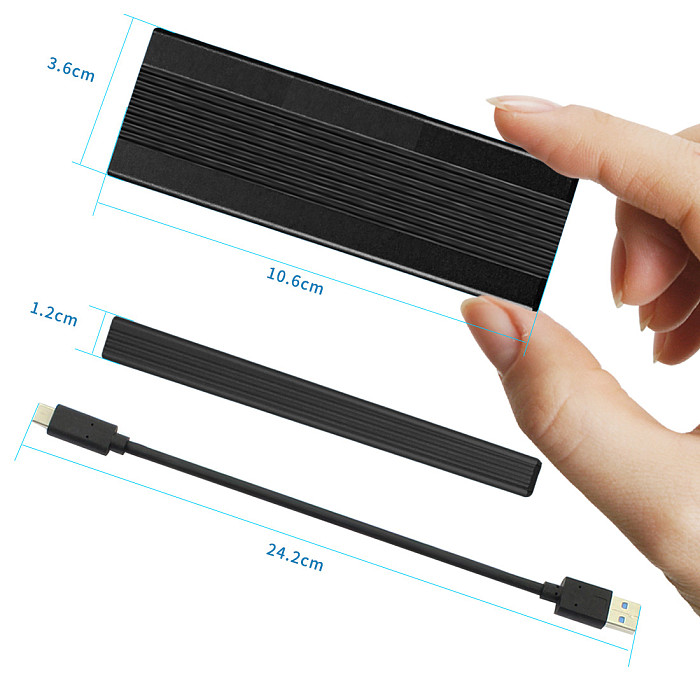

Hard disk box size: 106mm*36mm*12mm

Features:
The chip adapt TYPE-C GEN2 10G version: ASMedia ASM2362
Matte metal casing, vertical grain combination, bumpy and well-defined
Born for speed, refused to heat: 1050MB / S high-speed transmission, 5 minutes without reading and writing automatic sleep, save power and reduce heat.
Support 2230 2242 2260 2280 SSD
Supports most NVME M2.SSD, does not support the old SATA standard M2.SSD, does not support PCISATA standard M2.SSD!
Only this M Key interface is supported: 5 pins on the front and 4 pins on the reverse side. Please confirm whether the M.2 hard disk is the M Key interface before purchase, to avoid mis-purchase, please contact customer service for other interfaces!

Installation and use method:
1. Remove the 2 screws of the back cover and open the back cover.
2. Use a screwdriver to pull the board out with the yellow screws on the board.
3. Remove the yellow screws from the board and then install the M.2 (NGFF) SSD into the yellow screw base.

4. Tighten the yellow screw seat, push the board into the external box, and lock the back cover.
