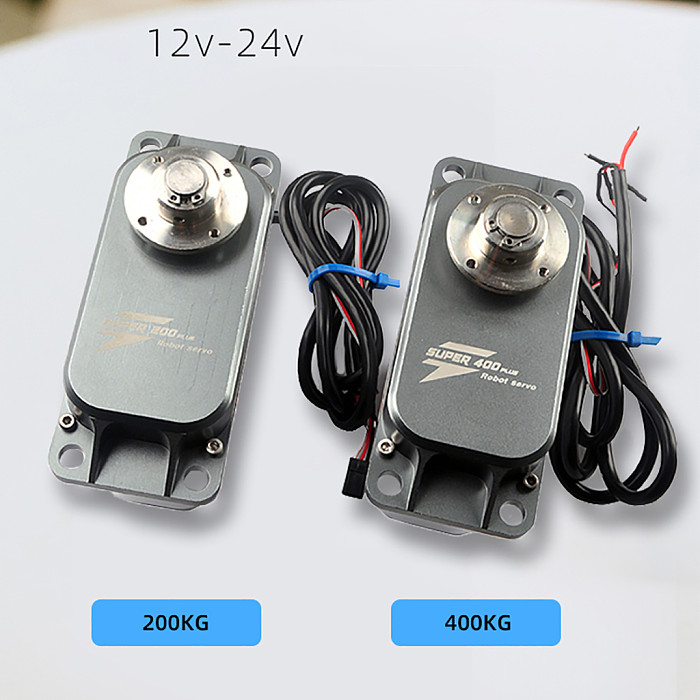

JMT 200kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models

JMT 200kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models Item NO.: F28656

Write a Review
US$ 70.00
US$ 82.35 Save US$ 12.35 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • JMT 200kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models
Product Name JMT 200kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models
Item NO. F28656
Weight 1 kg = 2.2046 lb = 35.2740 oz
Category DIY RC Drone Accessories > Servo
Brand JMT
Creation Time 2019-04-29

JMT 200kg High Torque Metal Servo Steering Gear Suitable for 12V-24V Large Robot Arm DIY Models

Brand: JMT
Voltage: 12V-24V (recommended battery power, can be customized if high voltage is required)
Speed (no load): 24v about 0.46s/60°
Maximum torque: 200kg.cm
Rated torque: 70kg.cm
No-load current: <0.15A
Stall current: 24v: <11A
Input signal: PWM: 800us ~ 2200us, 50-400Hz
Operating angle range: adjustable: minimum ± about 60 °, up to about ± 300 °
Weight: 759g
Length, width and height: 132*55*116mm


Application: Industrial robot arm

Product included;
200kg high torque metal steering gear *1
Accessories Kit*1
