JMT Whoop Lite Silverware F3 Brushed Flight Controller Bayang Protocol for Blade Inductrix E010 TinyWhoop FPV Racing Toy DIY Drones

JMT Whoop Lite Silverware F3 Brushed Flight Controller Bayang Protocol for Blade Inductrix E010 TinyWhoop FPV Racing Toy DIY Drones Item NO.: F44107

Write a Review
US$ 6.63
US$ 7.29 Save US$ 0.66 (9% Off)
Sold Out

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT Whoop Lite Silverware F3 Brushed Flight Controller Bayang Protocol for Blade Inductrix E010 TinyWhoop FPV Racing Toy DIY Drones
Item NO. F44107
Weight 0.04 kg = 0.0882 lb = 1.4110 oz
Category DIY RC Drone Accessories > Flight Control
Brand JMT
Creation Time 2021-06-16

JMT Whoop Lite Silverware F3 Brushed Flight Controller Bayang Protocol for Blade Inductrix E010 TinyWhoop FPV Racing Toy DIY Drones


Specifications:

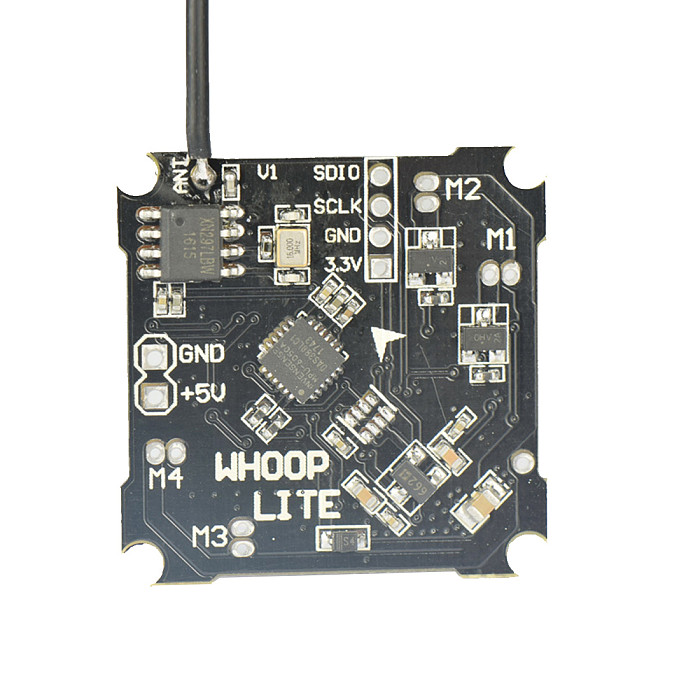

Item Name: WHOOP  Lite Silverware Brushed Flight Controller
CPU: STM32F030
Six-Axis: MPU6050
ESC: All FETs are rated at 12A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
Firmware : Silverware (BoldClash-BWHOOP-B-03)
Receiver Module: XN297LBW
Receiver Protocol: Bayang protocol
Power Cable: 60mm, with JST-PH 2.0 connector
Weight: 2.7g

Features:
Support level mode and acro mode. Also it has the ability to change settings for custom builds, or to adapt to personal preferences by stick gestures.
Designed to work with current Tiny Whoop or Blade Inductrix frames
Built in Bayang protocol native receiver, compatible with almost radio transmitter with deviation firmware or deviation compatible transmitter module
The flight controller board comes pre-flashed with Silverware firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.

Compatible Radio Transmitter:
BETAFPV TX01 radio transmitter
Radio transmitter of toy drone like JJRC H67, Eachine E011 etc, that using the Bayang protocol
Jumper T8SG radio transmitter
MTX9D multiprotocol module (Suit for Frsky Tanaris QX7 X9D X9D Plus X12S, Flysky TH9X, Turnigy 9XR/9XR PRO)
MTXI6 multiprotocol module(Suit for Flysky i6, i6S, I6X, I10)
Other 4-in-1 multiprotocol module that support the Bayang protocol.

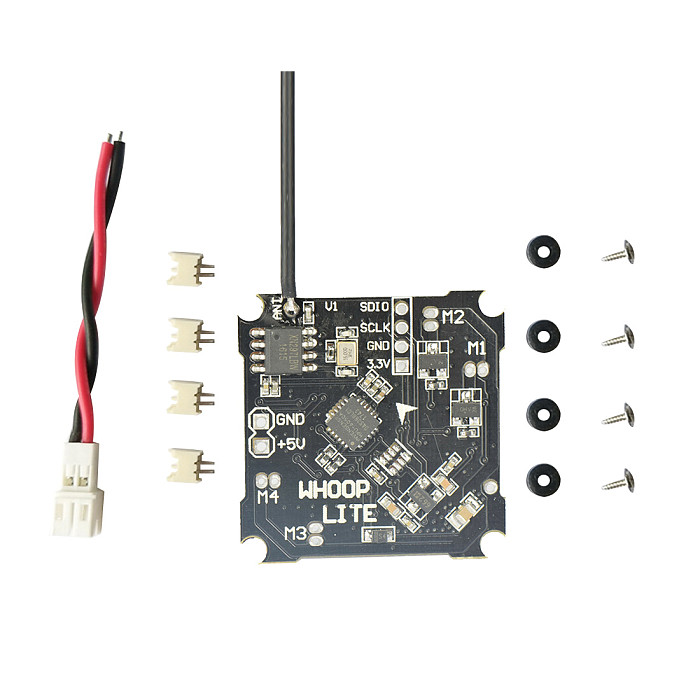

Package contains:
1* WHOOP LITE flight control
2P*1.25MM socket four
2P*2.0MM plug line one
4* M1.2*4mm screws

4* shock-absorbing balls
