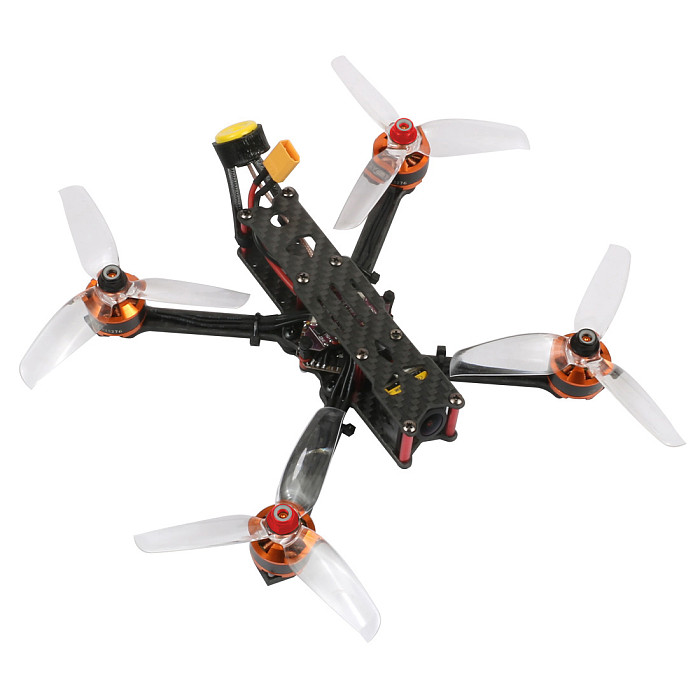

JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flight Controller Flysky Remote Controller
-
Detail
- Product Name: JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flight Controller Flysky Remote Controller
- Item NO.: F37458-D
- Weight: 1.89 kg = 4.1667 lb = 66.6678 oz
- Category: DIY RC Drone Accessories > DIY RC Drone Kit
- Brand: JMT
- Creation Time: 2020-04-17
JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flight Controller Flysky Remote Controller
FLYSKY version with FPV Goggles
Flysky i6 AFHDS-2A remote control, Fli14 + receiver 14 channels with PA amplifier and OSD

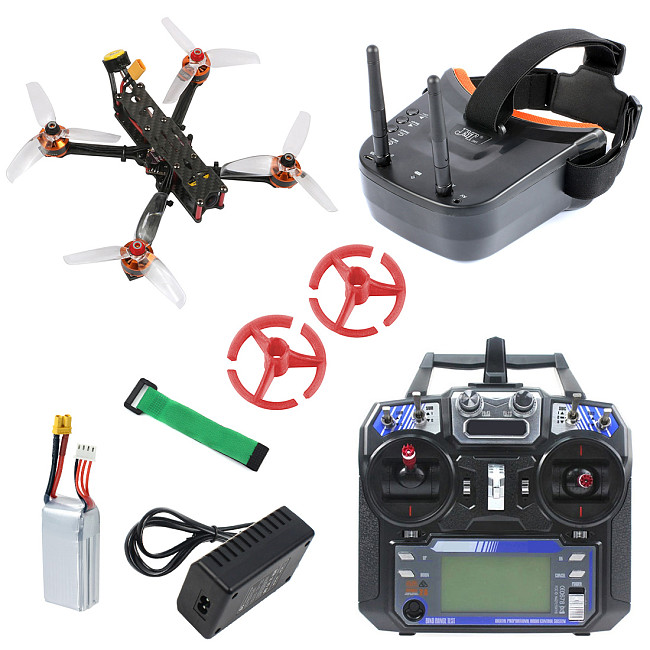

Package include:
1x JMT F4 X1 Frame Kit
4x JMT Motors (2CW+2CCW)
1x M5 self-locking nut
1x JMT GHF411AIO Flight Controller Built-in 30A ESC
4x 4032 3-blade Props (4Pairs)
1x Caddx.us Ratel 2.1mm+ND filter FPV Camera
1x JMT Supra-VTX 25-100-200MW VTX
1x JMT NAZE32 Buzzer
1x RunCam Speedy Bee Antenna RHCP+UFL
1x Antenna tailstock
1x Flysky 2.4G Fli14+ Receiver
1x GNB 750mAh 3S 11.1V 80C XT30 Battery
1x IMAXRC B3 pro Charger
1x FS I6 Transmitter
1x Transmitter Rocker Mount
1x 5.8G FPV LST-009 FPV Goggles
Rack
Wheelbase: 175mm
Weight: 56g
Material: carbon fiber
Color: Matte Twill
Arm thickness: 3.5mm
Upper plate thickness: 2mm
Floor thickness: 2.5mm
Thickness of other boards: 2mm
Applicable camera size: 19mm
Flight control installation size: 20 * 20mm, 25.5 * 25.5mm
Propellers
Product name: 4032
Size: 4 inches
Pitch: 3.2 inches
Hub size: 5mm
Weight: 3.09g
Material: PC
Color: transparent
Center thickness: 6.5 mm
Paddle diameter: 102.2 mm
Maximum blade width: 14.25 mm
Motor
KV: 2400
Stator diameter: Φ18
Motor weight: 16g (without cable)
Power supply voltage: 2-3s
Maximum current: 6.5A
Maximum power: 70W
Flight control + ESC
Flight control parameters • CPU: STM32F411CEU6 (100MHZ) • Six axes: MPU6000 (SPI connection) • Size: 32.5 * 32.5mm (25.5mm mounting hole) • Firmware version: Betaflight MATEKF411 (MK41) • OSD: Built-in BetaFlight OSD (OSD chip : AT7456E)
• Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
• Built-in current sensor
• Weight: 6.3g
ESC parameters
• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 30A
• Firmware: BLHELI_S
Image transmission
Project name: 5.8G 40CH 25mW 100mW 200mW switchable FPV transmitter
Input voltage: 4.5-5.2V (DC)
Input current: 500mA @ 200mW
Power: 25mW / 100mW / 200mW (switchable)
Channel: 40CH
Antenna connector: IPEX
Dimensions: 37x24x5mm
Mounting hole: 25.5x25.5mm
Weight: 2g
FPV camera
Lens: 2.1mm + ND filter
Image sensor: 1 / 1.8 "inch starlight HDR sensor
Horizontal resolution: 1200TVL
FOV: 180 degrees
Minimum delay: 8 ms
TV system: NTSC and PAL (can be changed)
Image: 16: 9 and 4: 3 (can be changed)
WDR: Super WDR (HDR)
Minimum illumination: starlight
Synchronization: internal
Electronic shutter: PAL: 1/50 ~ 100,000; NTSC: 1 /
SNR of 60 ~ 100,000:> 60dB (AGC off)
Video output: CVBS
Camera OSD: separate OSD
DNR: 3-DNR
Language: ENG / FRANCE / RUS / SPA / PU / KOREA / China / Japan
Day / Night: Auto / Color / Black and White / External
Size: 19mm * 19mm * 19mm
Wide power input: DC 5-40V
Working temperature: -20 ℃ ~ + 60 ℃
Working humidity: 20% ~ 80% "
