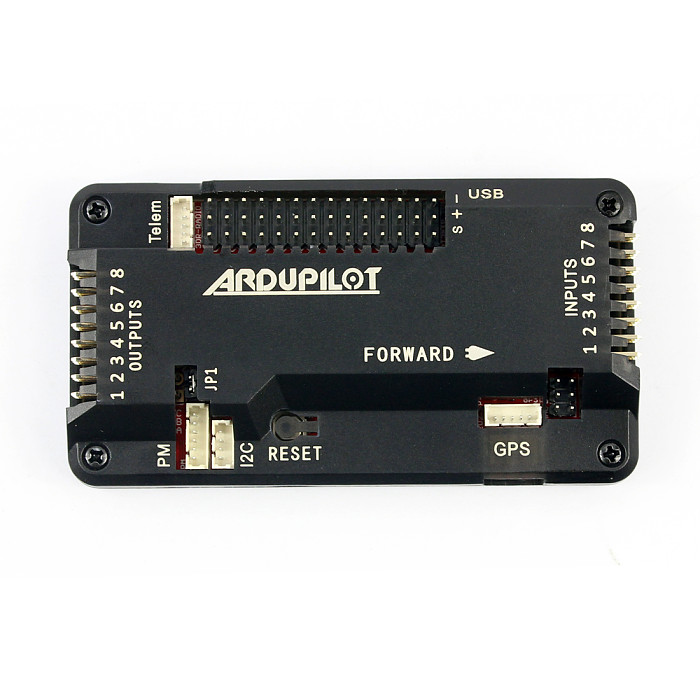

Full Kit DIY GPS Drone RC Fiberglass Frame Multicopter FPV APM2.8 1400KV Motor 20A ESC flysky 2.4GFS-i6 Transmitter
The Hobby kit is New upgrade version ,welcome to purcase .
Please Note :
Thanks for all always support for us , this kit have NOT instruction ,BUT ,If you need assembly vedio ,please feel free to contact us ,or you can search "YouTube " ,thank you .
Specifications:
frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 grams
general configuration 5"-10" propeller (Not inclued)
Personality Across Design
,Material:Fiberglass Frame kit
Frame reference:
Motor: MT2204 or MT2206 (Not included)
Propellers: (Not included)
2204 motor use FC 5"-6" blade
2206 motor use FC 5" 6" 8" blade
ESC: 15A-20A (Not included)
Voltage: 11.V-11.8V (Not included)
Weight about: 200g
Motor:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g
ESC:
Features:
1.1 Rotor dedicated program, fast throttle response, beyond the various types of open source software;
1.2 Specifically optimized firmware disc motor, the motor has a very good compatibility;
1.3 Highly intelligent, adaptive ability, extremely easy to use;
1.4 Throttle signal line is a twisted pair, copper wire to reduce crosstalk signal generated within the transmission, so that more stable flight;
1.5 Supports up to 621Hz refresh rates up to the throttle signal, compatible with a variety of flight control (Note: More than 500Hz signal of the throttle throttle are all non-standard signal)
1.6 Use MOSFET special driver chip, performance and stability far beyond the driving circuit with discrete components built
1.7 Ultra-low resistance MOSFET, strong resistance to current capacity;
1.8 Exquisite plastic case back with high brightness LED navigation lights
1.9 Power transfer comes on the back of the micro DIP switch for setting LED navigation lights on / off, LED light color, into the steering angle and the motor.
Transmitter Specfications:
Channels: 6
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
