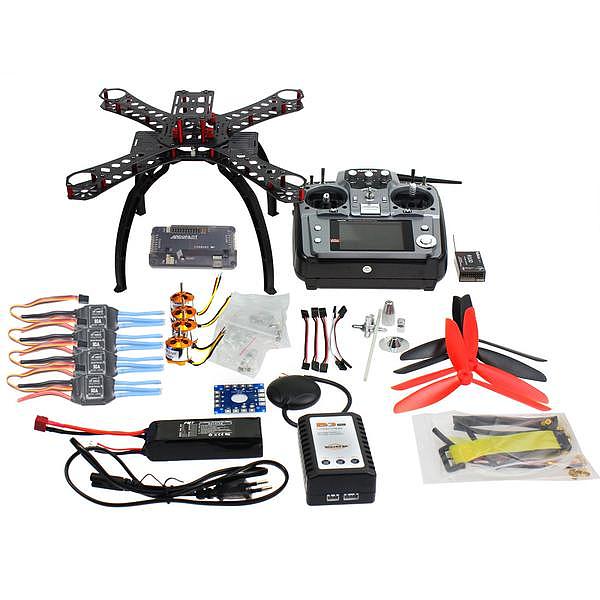

310 mm Fiberglass Frame DIY GPS Drone FPV Multicopter Kit Radiolink AT10 2.4G Transmitter APM2.8 1400KV Motor 30A ESC
Specifications:
frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 grams
general configuration 5"-10" propeller (Not inclued)
Personality Across Design
,Material:Carbon Fiber Frame kit
Frame reference:
Motor: MT2204 or MT2206 (Not included)
Propellers: (Not included)
2204 motor use FC 5"-6" blade
2206 motor use FC 5" 6" 8" blade
ESC: 15A-20A (Not included)
Voltage: 11.V-11.8V (Not included)
Weight about: 200g
RadioLink AT10 2.4Ghz 10CH RC Transmitter with R10D Receiver features:
Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
Great control distance: 1.1km on the ground,2km in the sky.
Expansion feedback module,users can get plane details in real time.
Make very setting clear and exactly output result.
Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.
Motor:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g
ESC:
1 Specification
1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.
2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: reset all the programmable items to their default settings.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
3 Advantages
3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.
