RC 4 Axis Multi QuadCopter UFO ARF/Kit No TX&RX:KK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flame wheel
-
Detail
- Product Name: RC 4 Axis Multi QuadCopter UFO ARF/Kit No TX&RX:KK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flame wheel
- Item NO.: F02192-B
- Weight: 1.65 kg = 3.6376 lb = 58.2020 oz
- Category: DIY RC Drone Accessories > DIY RC Drone Kit
- Brand: XT-XINTE
- Creation Time: 2017-07-25
RC Quadcopter 4 axle Drone ARF Kit No TX RX : KK V2.3 Flight Control A2212 1000KV Motor 30A ESC Lipo F450 Flamewheel
Notice: the newest motor set without the rubber bands.
(Need assembly by yourself for the whole set)

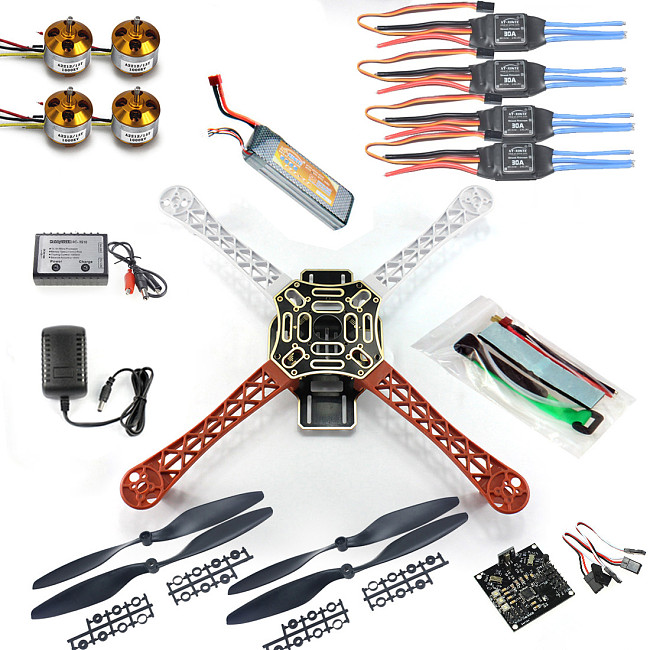

Total items include:
HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit
The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again
- Support KK MWC by new disign PCB board(Not Included)
Speicifications:
Color: Red + White + Black
Shaft distance: 17.7in/450mm
- Net weight: 0.65lb/282g - by advanced engineering material,super strong & smooth
- Kit(need you assemble yourself)

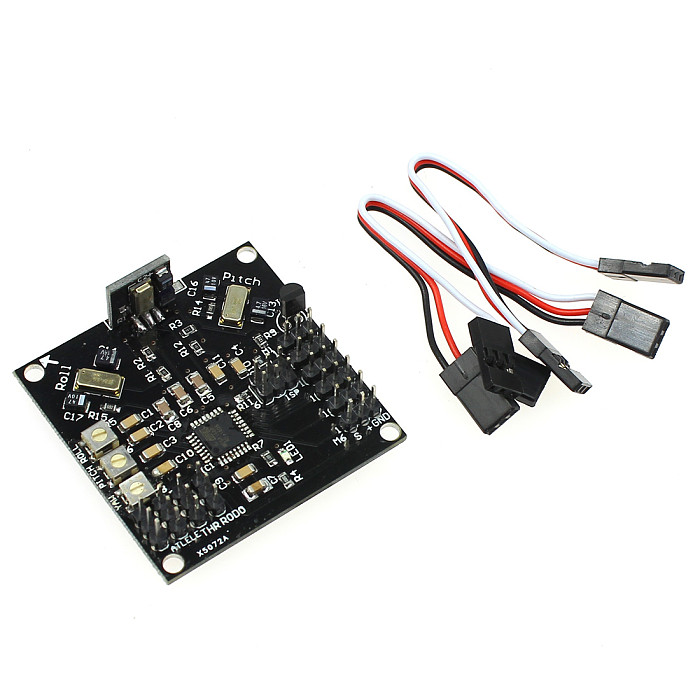

KKMulticopter v5.5 Circuit board V2.3

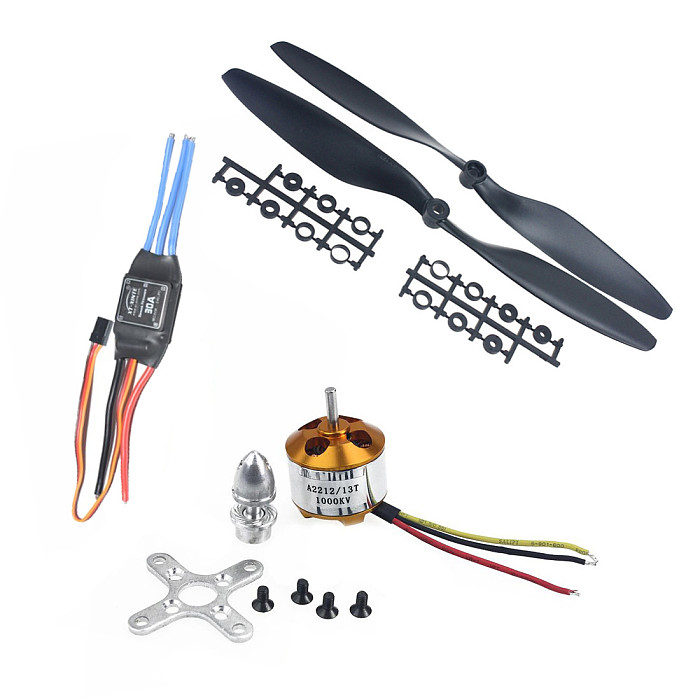

A 2212 A2212 1000KV Brushless Outrunner Motor W/ Mount *4pcs
1. Simple structure, Easy to Maintain and Debug Control
2. Relying on potentiometer adjust gyro sensitivity.
3. Full servo signal output, support normal ESC / analog servo
4. Support for single-axle / UFO, Y3 3-axle, Y4-type 3-axle, 4 axle, 6 axle, V22 flight mode
5. Supports 4-axle "+" and "X" flight mode, support for six-axle "HEXA6" and "Y6" flight mode.
FlyCam MultiCopter Controller Blackboard(kkMultiCopter)
FMT 30A ESC Speed Controller *4 pcs
Specification:
1.1 Output: Continuous 30A, Burst 35A up to 10 Secs.
1.2Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3BEC:2A / 5V (Linear mode).
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 24mm (W) * 11mm (H).
1.6 Weight:22g.
11.1V 20C 2200Mah Lipo Battery *1 pcs
