DIY 2.4GHz 4-Aixs Quadcopter RC Drone ARF 630mm Frame Kit Radiolink MINI PIX+GPS Brushless Motor ESC Altitude Hold
-
Detail
- Product Name: DIY 2.4GHz 4-Aixs Quadcopter RC Drone ARF 630mm Frame Kit Radiolink MINI PIX+GPS Brushless Motor ESC Altitude Hold
- Item NO.: KF23340-E
- Weight: 2.0405 kg = 4.4985 lb = 71.9765 oz
- Category: DIY RC Drone Accessories > DIY RC Drone Kit
- Brand: JMT
- Creation Time: 2018-01-16
- DIY 2.4GHz 4-Aixs Quadcopter RC Drone ARF 630mm Frame Kit Radiolink MINI PIX+GPS Brushless Motor ESC Altitude Hold

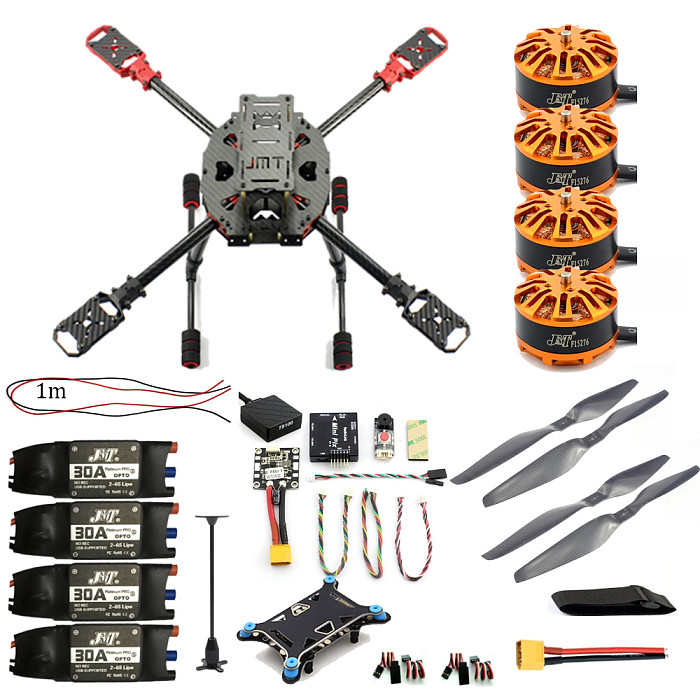

- Package Include :
- Frame kit *1
- 700KV Brushless Motor *4
- 30A Brushless ESC *4
- 1555Propellers *2 pairs
- Flight Control GPS Set *1
- Accessories kit *1
DIY 2.4GHz 4-Aixs Quadcopter RC Drone ARF 630mm Frame Kit Radiolink MINI PIX+GPS Brushless Motor ESC Altitude Hold
Does not include Remote Controller and Battery
Spacifications:
Wheelbase:630mm
Size(L*W*H):510*510*255mm
Power Supply: 700KV Brushless Motor 3508 / 30A ESC No BEC
Propellers: 1555 Carbon Fiber Propellers
Flight Control/GPS:
Radiolink Mini PIX M8N GPS Flight Control
Battery recommend(does not include): 11.1V 4400MAH 30C ,XT60 Plug
Flight Time : 11 mins-15mins ( Depends on Enviromental )
Software：Mission Planner
Official website address ：http://ardupilot.org/planner/index.html
APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.
Functions :
1. The aircraft in the air has a rise, fall, hover, forward, backward, turn left, turn right, left fly, right fly, self-stability, set high, a key return, headless mode, fixed point, a key landing , Rate control Acro novice with caution), automatic mode (AUTO), around the circle, guidance, follow the model, open source flight control flight stability, can be prepared
2. Aircraft body pure carbon cover the overall use of CNC precision machining.
3. MINI PIX with M8NGPS, 50cm positioning accuracy, beyond the u-box M8 chip, to achieve 1M positioning accuracy, open 20 seconds to search within 6 seconds, very strong valley positioning capabilities, support for a variety of positioning systems GPS, GLONASS L10F, QZSS L1 C / A, BeiDou b1, you can dual-mode work at the same time.
4. Simple operation With manual, as long as you are not the first contact, completely independent.
5. When using the charger, please do not charge the 3S and 4S batteries at the same time.
6. If you Do not understand the flight control and remote control, please do not modify any parameters and wiring.
Please Note : 1.When you charging ,please don't connect charger with 3S and 4S battery at the same time ,
2. Please don't change parameter and wires randomly , any questions ,please contact us , thank you .
.
Package Include :
Frame kit *1
700KV Brushless Motor *4
30A Brushless ESC *4
1555Propellers *2 pairs
Flight Control GPS Set *1
Accessories kit *1
Radiolink Mini PIX M8N GPS Flight Control Vibration Damping by Software Atitude Hold for RC Racer Drone Multicopter Quadcopter
Note: The Mini M8N GPS Dedicated for Radiolink Mini PIX Flight Controller. Sm6b-ghs-tb 6pin Socket without Bracket
