Full Set DIY 2.4GHz 4-Aixs Quadcopter RC Drone 630mm Frame Kit APM2.8 Flight Controller with FS-i6X TX RX Brushless Motor ESC Altitude Hold

Full Set DIY 2.4GHz 4-Aixs Quadcopter RC Drone 630mm Frame Kit APM2.8 Flight Controller with FS-i6X TX RX Brushless Motor ESC Altitude Hold Item NO.: KF23340-C

Write a Review
US$ 236.47
US$ 278.20 Save US$ 41.73 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • Full Set DIY 2.4GHz 4-Aixs Quadcopter RC Drone 630mm Frame Kit APM2.8 Flight Controller with FS-i6X TX RX Brushless Motor ESC Altitude Hold
  • Package Include :
  • Frame kit *1
  • 700KV Brushless Motor *4
  • 30A Brushless ESC *4
  • 1555Propellers *2 pairs
  • Flight Control GPS Set *1
  • Flysky FS-I6X Transmitter with Receiver *1
  • Accessories kit *1
  • HobbyTiger BC-4S15D 4S Lithium Balance Charger*1
  • 11.1V 4400MAH 30C 3S1P xt60 plug lithium battery*1
Product Name Full Set DIY 2.4GHz 4-Aixs Quadcopter RC Drone 630mm Frame Kit APM2.8 Flight Controller with FS-i6X TX RX Brushless Motor ESC Altitude Hold
Item NO. KF23340-C
Weight 3.531 kg = 7.7845 lb = 124.5524 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Tag
Brand JMT
Creation Time 2018-01-16

Full Set DIY 2.4GHz 4-Aixs Quadcopter RC Drone 630mm Frame Kit APM2.8 Flight Controller with FS-i6X TX RX Brushless Motor ESC Altitude Hold



Spacifications:

Wheelbase:630mm

Size(L*W*H):510*510*255mm

Power Supply: 700KV Brushless Motor 3508 / 30A ESC No BEC

Propellers:  1555 Carbon Fiber Propellers

Flight Control/GPS: APM 2.8 / M7N GPS

Remote Distance :About 3000M ( Depends on Enviromental ,outdoor fly)

Remote controller:  6CH Flysky FS-I6X Transmitter

Battery : 11.1V 4400MAH 30C ,XT60 Plug

Flight Time : 12 mins-15mins ( Depends on Enviromental )



Functions :

1. Up/Down , Return/Back , Left/Right ,Altitude Hold , One Key Return ,On key take off , Headless Mode etc.(AUTO, Circle, guidance, follow , open-source flight control  is stability, can be prepared )

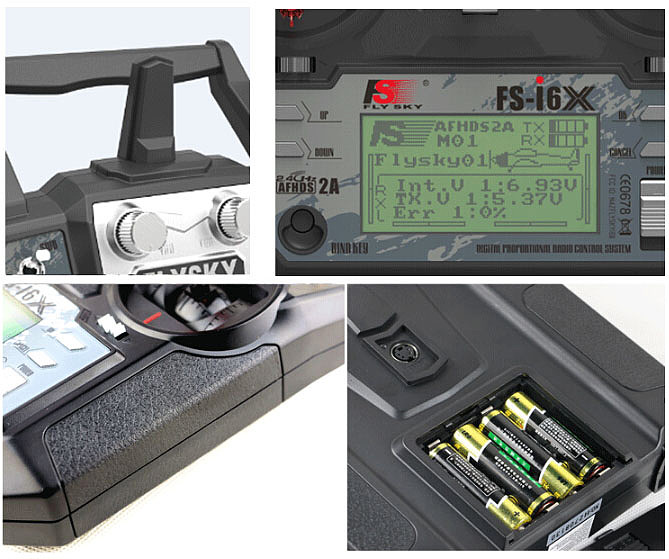

2. Flysky FS-I6X The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

3.pure carbon cover, CNC precision machining.

4.APM2.8 with M7N GPS , cold start speed twice than 6M, 6H . Positioning accuracy of 2.5M, built-in high-precision electronic compass, 56-channel U-blox 7 engine. C / A, BeiDou b1, can be dual-mode at the same time.

Please Note : 1.When you charging ,please don't connect charger with 3S and 4S battery at the same time ,

                      2. Please don't change parameter and wires randomly , any questions ,please contact us , thank you .


SoftWare :

Software:Mission Planner

Official website address : http://ardupilot.org/planner/index.html

APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.



Package Include :

Frame kit *1

700KV Brushless Motor *4

30A Brushless ESC *4

1555Propellers *2 pairs

Flight Control GPS Set  *1

Flysky FS-I6X Transmitter with Receiver *1

Accessories kit *1

HobbyTiger BC-4S15D 4S Lithium Balance Charger*1

11.1V 4400MAH 30C 3S1P xt60 plug lithium battery*1





-5


APM2.8 Flight Controller (NO Compass ):
