F550 Drone FlameWheel Kit With KK 2.3 HY ESC Motor Carbon Fiber Propellers + RadioLink 6CH TX RX

F550 Drone FlameWheel Kit With KK 2.3 HY ESC Motor Carbon Fiber Propellers + RadioLink 6CH TX RX Item NO.: F05114-S

Write a Review
US$ 127.54
US$ 150.04 Save US$ 22.51 (15% Off)
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name F550 Drone FlameWheel Kit With KK 2.3 HY ESC Motor Carbon Fiber Propellers + RadioLink 6CH TX RX
Item NO. F05114-S
Weight 2.7375 kg = 6.0352 lb = 96.5625 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Brand RadioLink
Creation Time 2017-07-25

Note ,  the goods do disassembled , that need you assemble , if you are a new buyer , please take a second thought, for the easy shipping ,the goods do not including the charger or the battery , you need buy by seperate




packing including :



1*  F550 Hexa-Rotor Air Frame FlameWheel Kit

6*A2212 1000KV Brushless Outrunner Motor W/ Mount

6*HOBBYWING Platinum-30A-Pro 2-6S 30A Speed Controller ESC OPTO



3*10x4.5 3K Carbon Fiber Propeller CW CCW 1045 1045R CF Props Blade

1*RadioLink 6CH 2.4G Radio Control System Transmitter Receiver

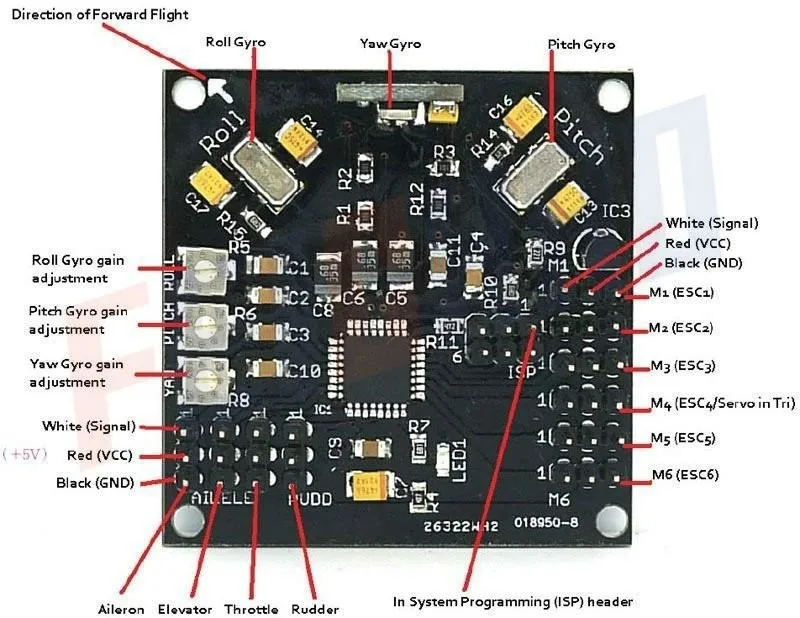

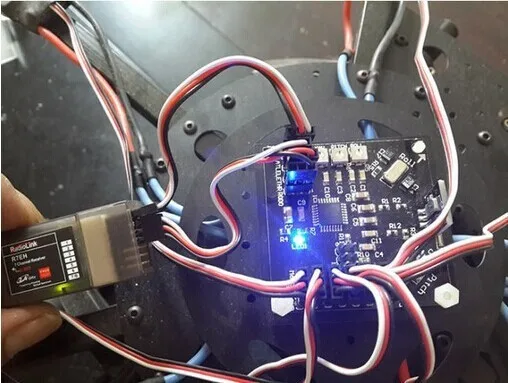

1*KKMulticopter V2.3 Circuit board Flight Controller V5.5






 Details:

F550 Hexa-Rotor Air Frame FlameWheel Kit

(The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again)

aeProduct.getSubject()aeProduct.getSubject()



aeProduct.getSubject()


aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()

A2212 1000KV Brushless Outrunner Motor W/ Mount

aeProduct.getSubject()

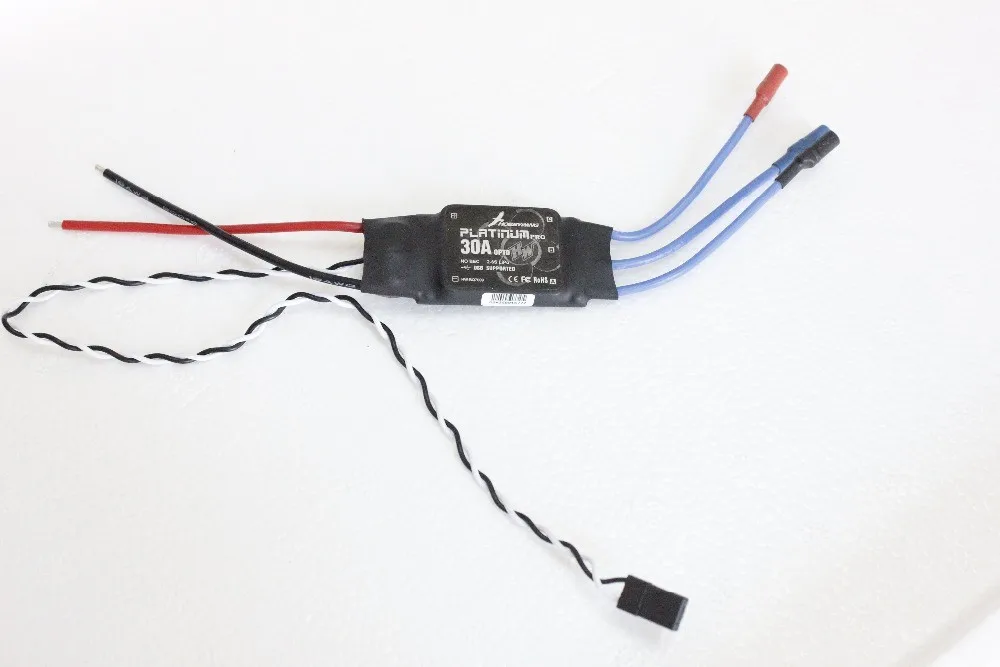

HOBBYWING Platinum-30A-Pro 2-6S 30A Speed Controller ESC OPTO

aeProduct.getSubject()




RadioLink T6EHP-E 2.4G 6Ch 6 channel RC Transmitter

Digital 2.4GHz 6-Channel RC system T6EHP adopted FHSS 2.4GHz technology, it is applied for 3D helicopter. Owing to the most advanced 2.4GHz radio control technology, it is needless to fit crystals for both transmitter and receiver, meanwhile RC system can avoid the interaction problem best up to the advanced code matching mechanism.
Standard Programming Functions :
Model Select six model memory.
Model Type helicopter programming. (for airplane is another version)
Servo Reversing on all six channels.
Dual Rate/Exponential for ailerons, elevator and rudder.
End Point Adjustment fine-tunes servo throws on all six channels.
Digital Trim stores trim settings for each model for aileron, elevator, rudder and throttle.
Fail Safe a safety throttle setting in case of loss of transmitter signal.
Battery Fail Safe moves the throttle to a preset position when the airborne pack reaches 3.8V.
Stick Mode choose from Mode 1 through 4.
Range Checking Power Down reduces transmitter output power for up to one minute, allowing range checking from 50 paces away.
Changeable Throttle Stick select ratchet for airplanes or smooth for helis.
Adjustable Stick Length choose the length that suits your flying style.
Helicopter-Specific Programming Functions:
5-Point Normal and Idle Up Throttle/Pitch Curves.
Throttle Hold for autorotation.
Revo (Revolution Mixing) mixes rudder and pitch together.
Gyro Mixing two gyro gain settings can be programmed and selected during flight.
Swash to Throttle Mixing corrects slowing of the engine's speed caused by the swashplate.
Swashplate Types choose from 1S (independent aileron, pitch and elevator servos linked to the swashplate), 3S (120° CCPM), or 3E (90° CCPM).
Swash AFR Adjustable Function Rate, for use with 1S, 3S or 3E swash types


Radiolink R7EH 2.4G 7Channel 7CH Receiver
1. FOR: Radio link T6EHP-E T6EHP
2 Product details:
Size: 50mm*24mm*15.3mm
Weight: about 11.7g
2.4G 7CH receiver.
aeProduct.getSubject()




10x4.5 3K Carbon Fiber Propeller CW CCW 1045 1045R CF Props Blade For RC Quadcopter Hexacopter Multi Rotor UFO

aeProduct.getSubject()



aeProduct.getSubject()

1 The shipment is free shipping via china post air mail, if the package weight is more than 2kg or the package size is larger than 90CM, we will use EMS etc or Ship with two parcels by China post air mail.
2
Instruction:the weight and size we marked in the package details is not the actual weight and size of the goods, if you need to know the actual weight and size, you just need to contact us.

3 Delivery time:


Parcels to Russia,Adopt to E-EMS(7-10 Working days);E-Packet (7-15 Working days);Special Line-YW(10-35Days); DHL Globle Mail(15-35Days);Paypal Package(10-35Days)

Parcels to Brazil,Adopt to E-EMS(7-10 Working days);Special Line-YW(15-50Days);China Post Air Mail(15-60Days) ;DHL Globle Mail(15-50Days);Paypal Package(15-50Days)

Parcels to US/UK/FR/CA/AU,Adopt to E-EMS(5-7 Working days);E-Packet(7-15 Working days);China Post Air Mail(10-35Days);DHL Globle Mail(7-35Days);Paypal Post(7-35Days);

Parcels to Worldwide (Not Remote Area),Adopt to E-EMS(4-7 Working days);China Post Air Mail(7-35Days);DHL Globle Mail(7-35Days);Paypal Post(7-35Days)


4 If buyer want to use more faster shipping method, like EMS, DHL etc, please communicate with us about the increase shipping.
5 Instruction:The shipping time is depends on the buyer's customs clearance time or Force Majeure. If buyer does not receive the goods in a long time, we hope buyer can contact your customs or local post office, in order to get goods soon.

aeProduct.getSubject()

Radio Control Toy & Model; Sport Camera Accessories; Lovely Watches; Consumer Electronic Product and so on.Any request,please massage us,we will give you our lowest quotation.Your satisfaction is our top priority (wholesale or dropshipping, please contact Trademanager & Email to quote)




Company Name:Shenzhen Feichao Technology Co., Ltd.



Telephone:86-755-23062401Mobile Phone:86-13580446431



Website:http://www.aliexpress.com/store/100989

Please add me to your list of favorite sellers and visit often.


Packaging Details
  • Unit Type: Set
  • Package Weight: 2.5kg (5.51lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
