Tarot Power Distribution Management Module 12S 480A High Current Distribution Board TL2996 for Professional Agricultural Drone

Tarot Power Distribution Management Module 12S 480A High Current Distribution Board TL2996 for Professional Agricultural Drone Item NO.: F23364

Write a Review
US$ 22.41
US$ 26.36 Save US$ 3.95 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Tarot Power Distribution Management Module 12S 480A High Current Distribution Board TL2996 for Professional Agricultural Drone
Item NO. F23364
Weight 0.385 kg = 0.8488 lb = 13.5805 oz
Category DIY RC Drone Accessories > Tarot
Tag
Brand Tarot
Creation Time 2017-12-04

Tarot Power Distribution Management Module 12S 480A High Current Distribution Board TL2996 for Professional Quadcopter Agricultural Drone

Product manual:

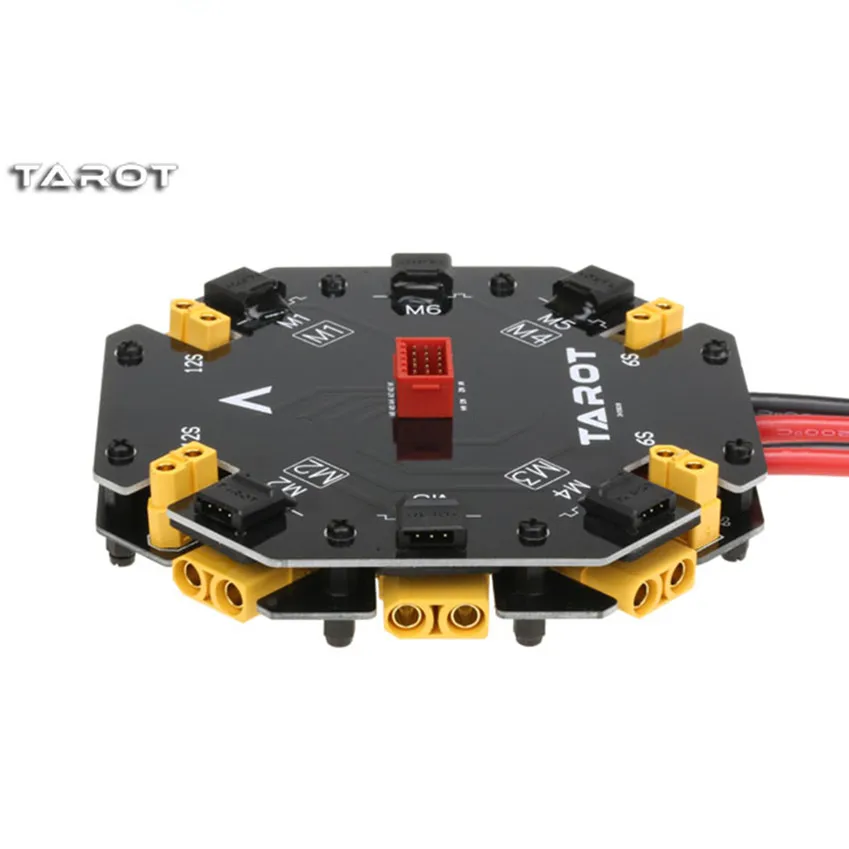

    The power distribution management module is suitable for large-scale unmanned aerial vehicles such as plant protection machines. Support four-axis / six-axis two UAV installation, support 12S power supply, the total current reaches 480A. The main power cord recommended welding AS150 spark plug and XT150 plug cross with the use (optional), to prevent mistaken insertion.

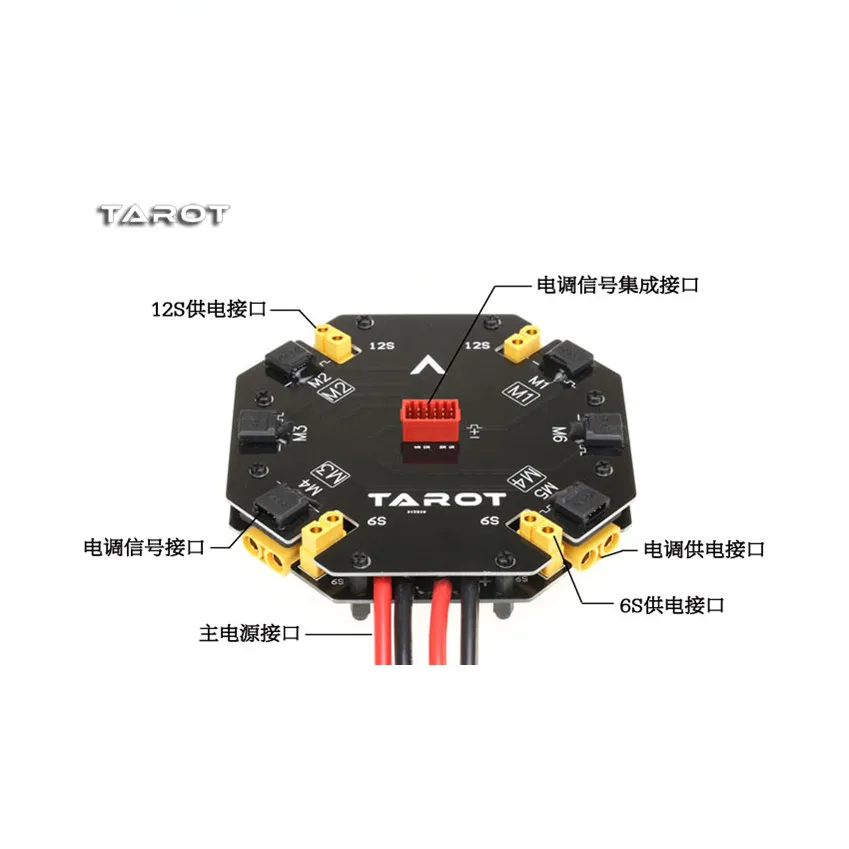

   Attention to the installation of arrows forward and UAV consistent, according to different models according to the logo wiring. The overall set of two 6SXT60 device power and two 12SXT60 device power (Note: here 12SXT60 reserved power can not be used as electric power supply interface, you can support support 12S voltage equipment)
    (Note: power distribution management module 12A power supply is composed of two 6S battery in series, so the need for two batteries plug in order to provide power supply.If only 6S power supply, only the left side of the red positive and right black negative, the middle Two red and black lines are short - circuit in series, do not have access.
Related Product Code:
Plant protection power distribution management module TL2996
Four-axis signal / power integrator TL4X004
Six - axis signal / power integrator
Octal Signal / Power Integrator TL8X018
Octal hub TL100B07
Six-in-one hub TL68B15
Four in one hub TL65B07
The six - in - one hub group
Four-in-one hub / male TL65B08
Six-in-one hub / male TL68B21
Eight-in-one hub / male TL100B13
Four-in-one hub group TL65B09
Eight-in-one hub group TL100B14
Four-axis hub TL2905
Six - axis hub
Octal hub TL2910
High current four - axis hub TL8X010

Product parameters:

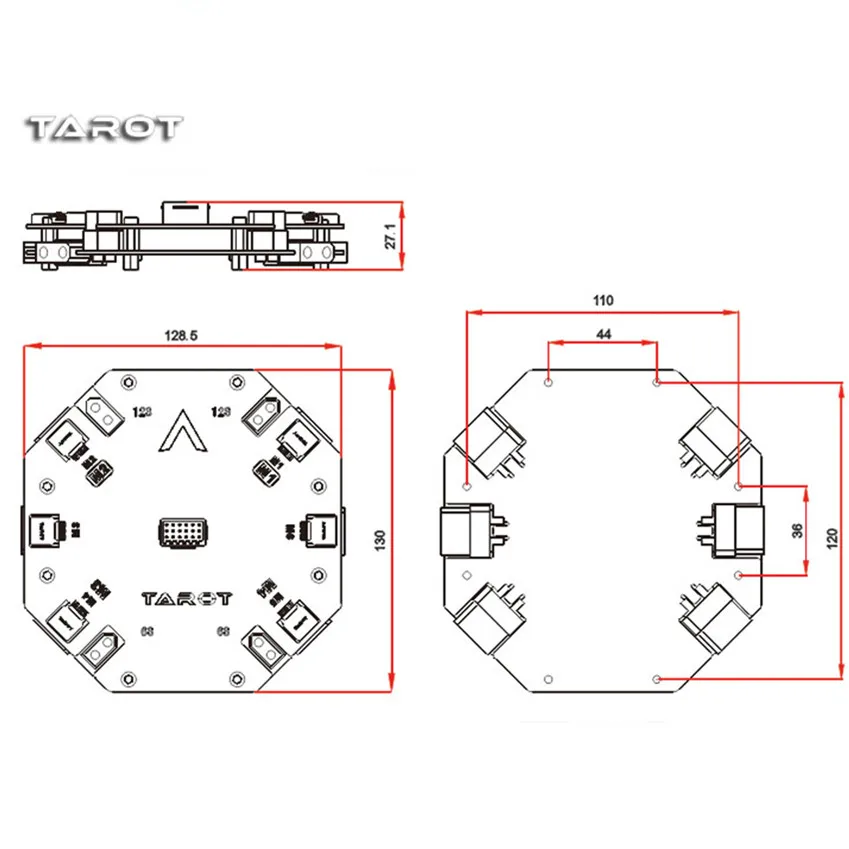

Plant protection power distribution management module × 1 (130 × 130 × 27MM) 227G
4100314060_1316418770.400x400__54100314060_1316418770.400x400__64100314060_1316418770.400x400__74100314060_1316418770.400x400__84100314060_1316418770.400x400__9
