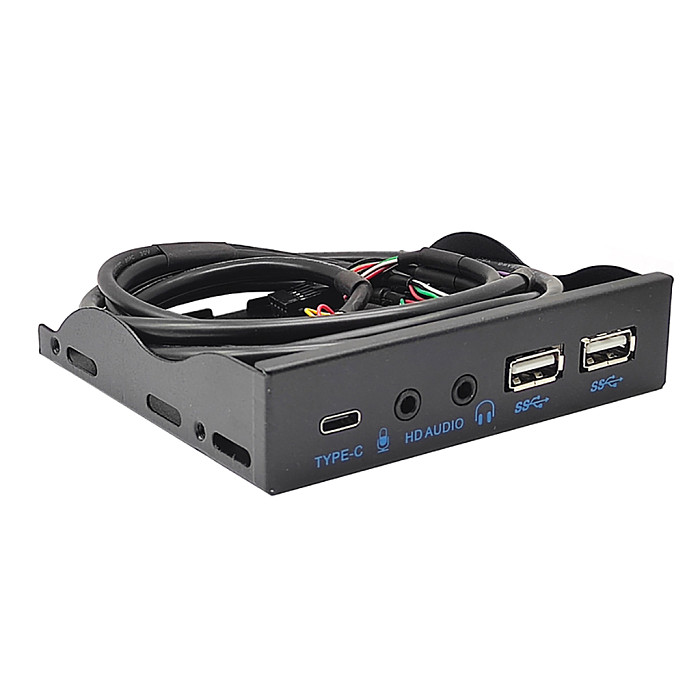

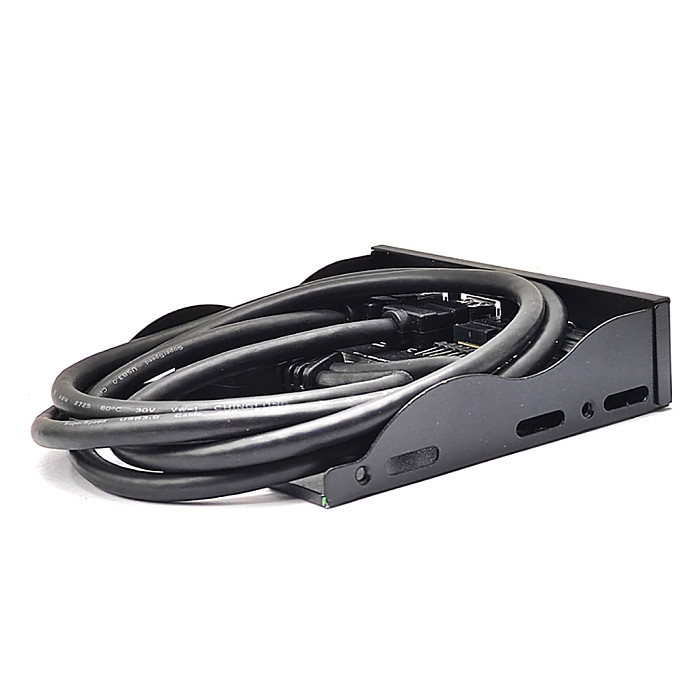

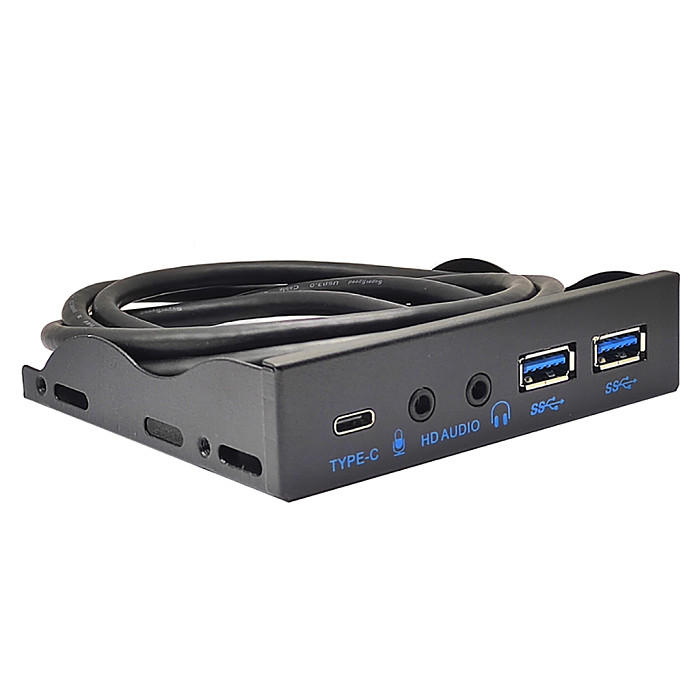

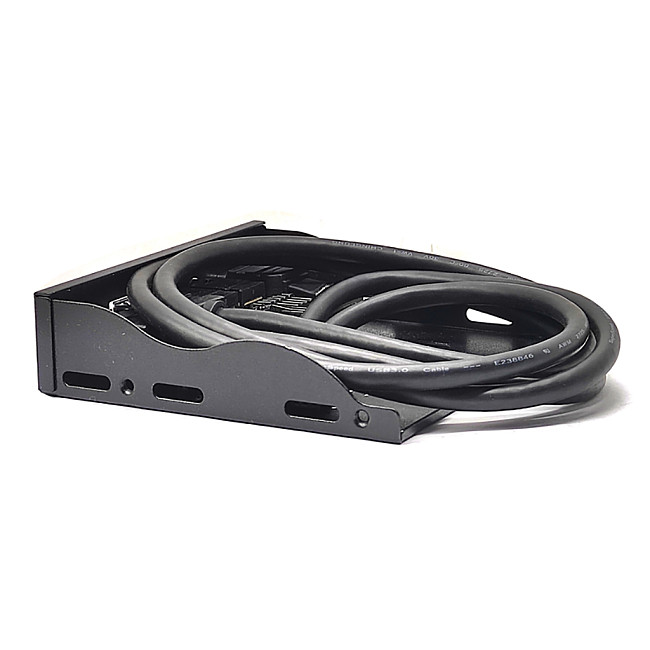

JMT 3.5in USB3.2 Gen2 Floppy Drive Front Panel 10Gbps with Audio Port USB-C Port 19Pin/9Pin Suitable for Type-E Interface 3.5in Floppy Disk Bay Item NO.: F48995 F48996

Extension Usage: This Front Panel is used to Convert your Floppy Disk Bay into 1 USB C, two front USB3.0/USB2.0 interface, MIC and SPEAK port, So as to provide the front of the ultra-high-speed scalability of desktop computers, very convenient!

Support System: Compatible with Win7/8/10/11 32/64BIT/Linux.

Super Speed: The USB3.2 Gen2 Floppy Drive Front Panel uses the latest USB 3.0 chip with a maximum transmission speed of 10Gbps to provide the front of the ultra-high-speed USB-C USB3.0 interface or USB2.0 and audio interface.

Output Interface: USB3.2 USB-C+2*USB2.0/2*USB3.0+MIC+SPEAK.(USB 2.0 9Pin or USB 3.0 19Pin Optional)

Hardware Requirements?With TYPE-E interface. With a free 3.5-inch floppy drive bit chassis. With a USB3.0 20Pin and USB2.0 9Pin interface motherboard or adapter card.

Product detail:

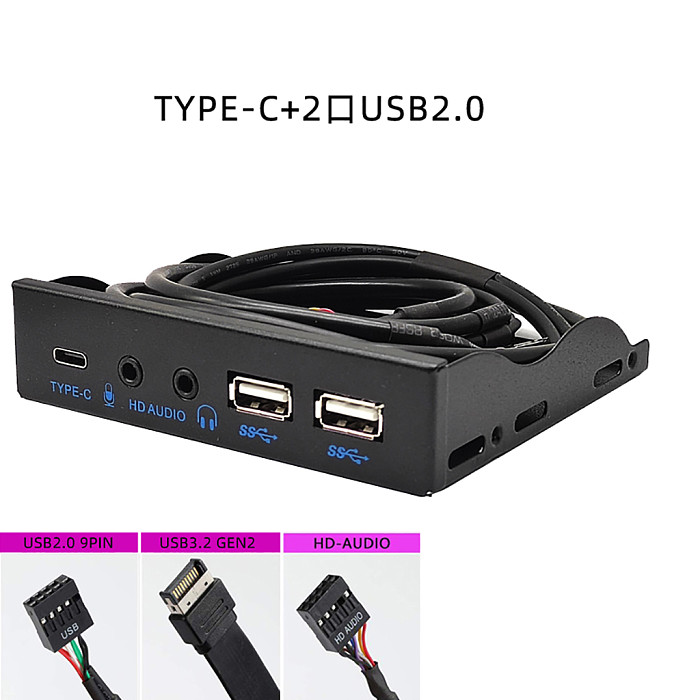

Product Interface:9PIN,TYPE-E,HD-AUDIO 9PIN.
Output Interface: USB3.2 USB-C+2*USB2.0/2*USB3.0+MIC+SPEAK.

Product Material: black face shell spray oil.
Support System: Compatible with Win7/8/10/11 32/64BIT/Linux.

Product Usage?
With the popularity of USB-C interface, more and more motherboards now have a USB3.2 USB-C front, USB3.0 19pin and USB2.0 9PIN socket, the chassis and not with the front port. So we can use this panel, through a TYPE-E, 19PIN and 9PIN socket on the panel plugged into the motherboard, leading to 1 USB C, two front USB3.0 interface or two USB2.0 installed in the idle floppy drive position, so as to provide the front of the ultra-high-speed USB-C USB3.0 interface or USB2.0 and audio interface, very convenient!

Hardware Requirements?
With TYPE-E interface.
A USB3.0 20Pin and USB2.0 9Pin interface motherboard or adapter card.
With a free 3.5-inch floppy drive bit chassis.
