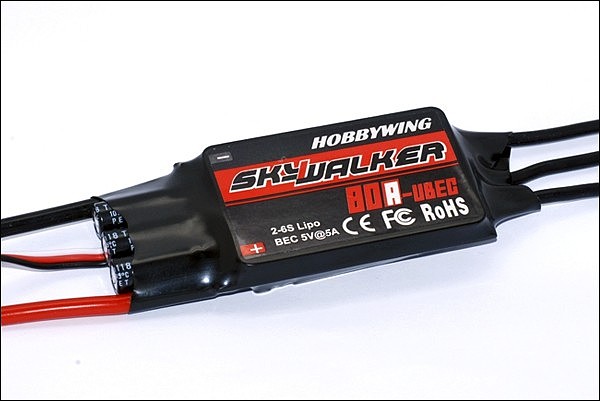

Hobbywing SkyWalker UBEC 80A BEC 2-6S Lipo Speed Controller Brushless ESC for RC Drone Helicopter Aircraft F17834
Specifications:
1.1 Output : Con.current 80A ; In.Current 100A ( No less 10s)
1.2 Input : 2-6S Lipo Or 5-118 NiMH / NiCd battery pack
1.3 BEC ; 5V@5A ( Built-in switch mode BEC Regulators )
1.4 Throttle signal refresh rate : 50Hz-432Hz
1.5 Maximum speed: 210000 2-pole motor rev / min, 6-pole motors 70,000 rev / min, 12 pole motors 35,000 rev / min
1.6 Size : 86 x 38 x 12 mm
1.7 Weight : 82g
Features
2.1 Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury;
2.2 Throttle range calibrated function: to adapt the throttle differences between different stroke, improve the linearity of throttle response;
2.3 programmed project (available throttle stick or card LED parameter settings):
(1) Brake setting: No brake / with brake;
(2)Battery type: Lithium battery / NiMH;
(3) Low Voltage Protection Mode: Soft Shutdown / hard off;
(4) Low Voltage Protection Threshold: low / medium / high;
(5)start mode: Normal / Soft / Super-soft and start;
(6) Timing: low / medium / high;
(7) Restore factory defaults;
2.4 Comprehensive protection features:
( 1) undervoltage protection: the program set by the user when the battery voltage is below the protection threshold, ESC automatically reduces the output power;
(2) Overvoltage Protection: input voltage exceeds the input range are not allowed to start, automatic protection, also issued a hasty "beep"
Warning ;
(3) Overheat protection: built-in temperature detection circuit that automatically reduces the output power ESC temperature is too high;
(4) remote signal loss protection: remote control signal is lost for 1 second to reduce the power, and then have two seconds to turn off without the remote control signal output
