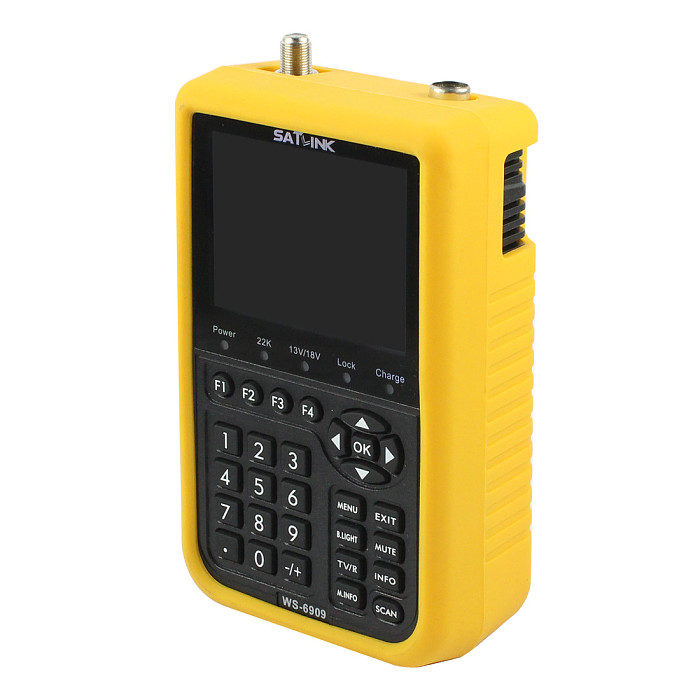

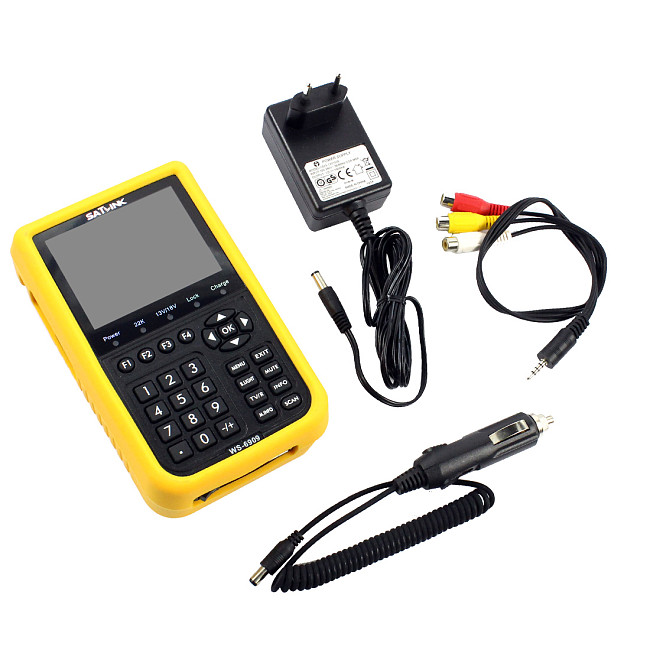

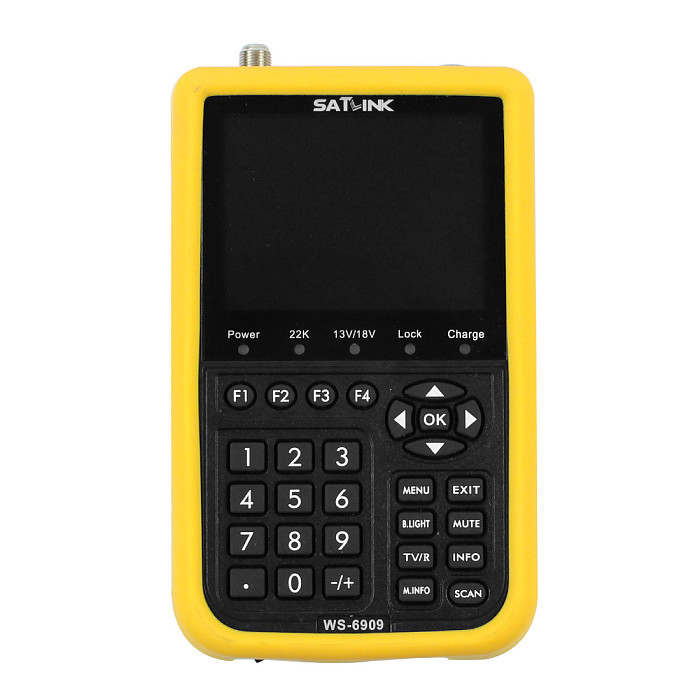

SATLINK WS-6909 satellite finder signal / satellite channel search instrument DVB-S.DVB-T

SATLINK WS-6909 satellite finder signal / satellite channel search instrument DVB-S.DVB-T Item NO.: F02134

Write a Review
US$ 148.27
US$ 174.43 Save US$ 26.17 (15% Off)
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name SATLINK WS-6909 satellite finder signal / satellite channel search instrument DVB-S.DVB-T
Item NO. F02134
Weight 1.419 kg = 3.1284 lb = 50.0538 oz
Category FOR SALE
Brand XT-XINTE
Creation Time 2017-07-25

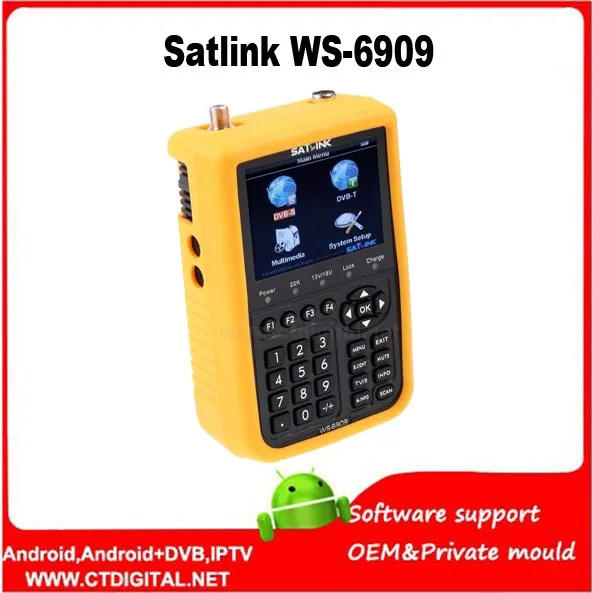

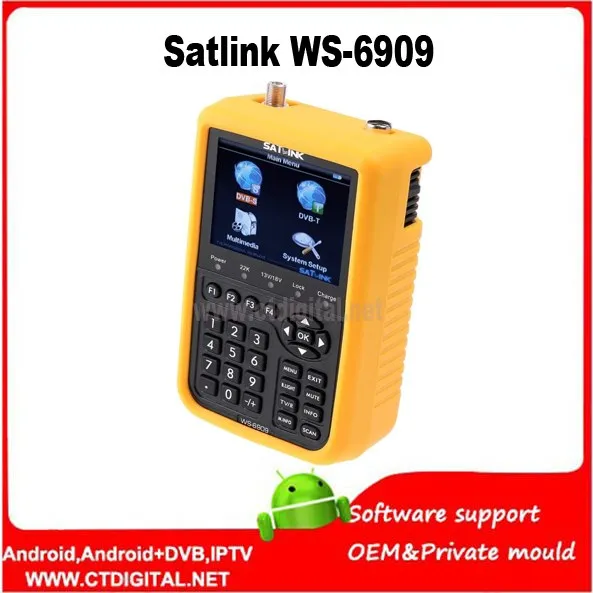

Satlink WS-6909 free shipping 3.5" LCD DVB-S&DVB-T satlink Combo satellite meter/ finder Combo Meter satlink 6909

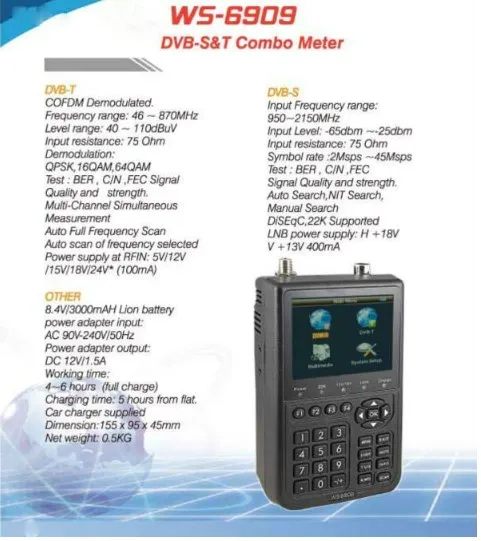

Satellite & Terrestrial Combo Meter



High quality and stable performance: it's with a microprocessor controller.
3.5" LCD color display, bigger menu window.
Channel picture, signal strength and signal quality can be showed on LCD Screen after you set up your local DVB-S & DVB-T Parameter.
It's with auto-protection for LNB short-circuit.
It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
It can at most show five channels' signal at the same menu which is very helpful for adjustment.
Supports both AV IN and AV OUT for camera, LCD, etc.

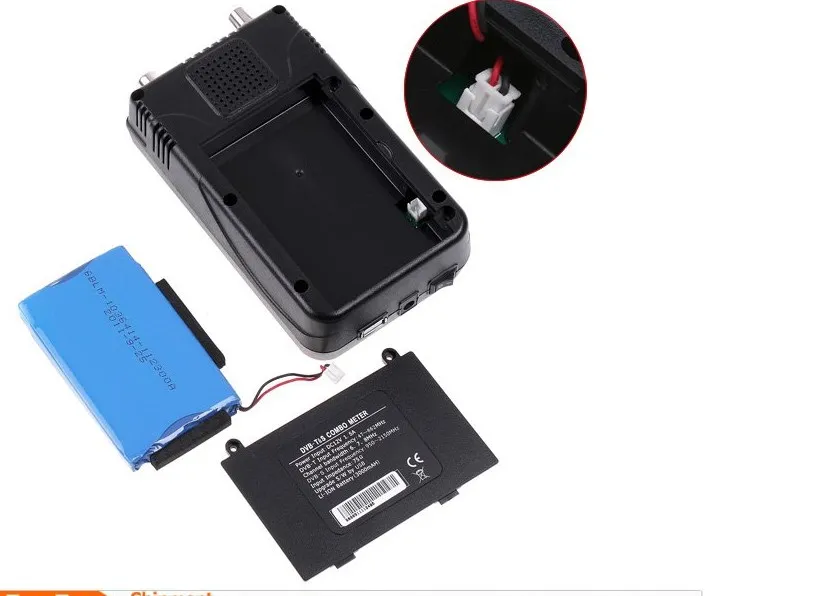

Built-in large capacity 3000mAH Li-ion battery.

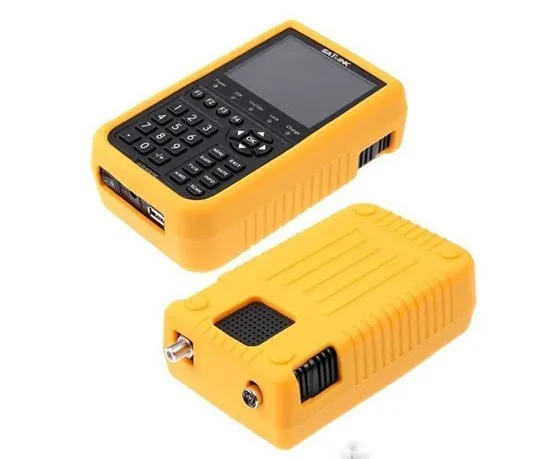

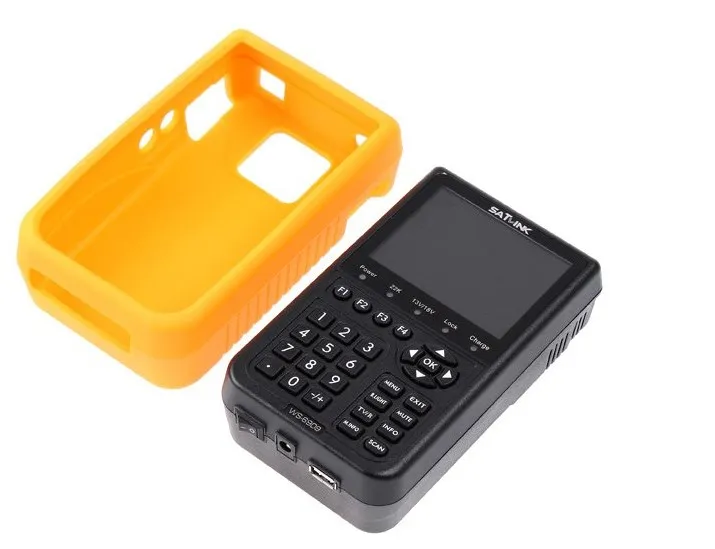

Matched with a high quality protective case.
Support language: English, German, French, Portuguese, Spanish, Italian, Czech, Greek.
English user manual is included in the CD disk.











12345HTB1UC9hNpXXXXa4XXXXq6xXFXXXm78

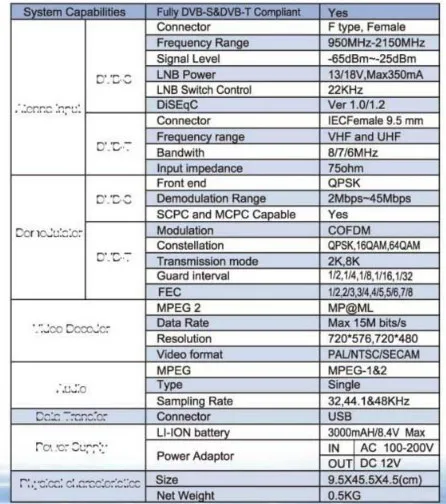

System Capabilities

Fully DVB-S  Compliant

Yes

LNB input

Connector

F type, Female

Frequency Range

950MHz-2150MHz

Signal Level

-65dBm~-25dBm

LNB Powewr

13/18V,Max350mA

LNB Switch Control

22KHz

DiSEqC

Ver 1.0/ 1.2

Demodulator

Front end

QPSK

Demodulation Range

2Mbps~45Mbps

SCPC and MCPC Capable

Yes

System Resources

Processor

32bit processor (133MHz)

FLASH

8Mbyte

SDRAM

4*16Mbyte

Video Decoder

MPEG 2

MP@ML

Data Rate

Max15M bits/s

Resolution

720*576,720*480

Video format

PAL/NTSC/SECAM

Audio

MPEG

MPEG-1&2

Type

Single

Sampling Rate

32,44.1 & 48KHz

Data Transfer

Connector

USB

Power Supply

LI-ION battery

3000 mAH/8.4V Max

Power Adaptor

In: AC 100-220

Out: DC 12V

Physical characteristics

Size

9.5x15.5x4.5 (cm)

Net Weight

0.5KG
