Flycolor X-Cross Blheli_32 20A/30A/40A/50A 3-6S ARM 32bit DSHOT1200 Brushless ESC for RC Racer FPV Racing Multicopter Quadcopter Parts Item NO.: F40549 F40550 F40551 F40552

Write a Review
US$ 11.92
Version:
20A 30A 40A 50A
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name Flycolor X-Cross Blheli_32 20A/30A/40A/50A 3-6S ARM 32bit DSHOT1200 Brushless ESC for RC Racer FPV Racing Multicopter Quadcopter Parts
Item NO. F40549 F40550 F40551 F40552
Weight 0.03 kg = 0.0661 lb = 1.0582 oz
Category DIY RC Drone Accessories > ESC
Brand Flycolor
Creation Time 2020-08-31

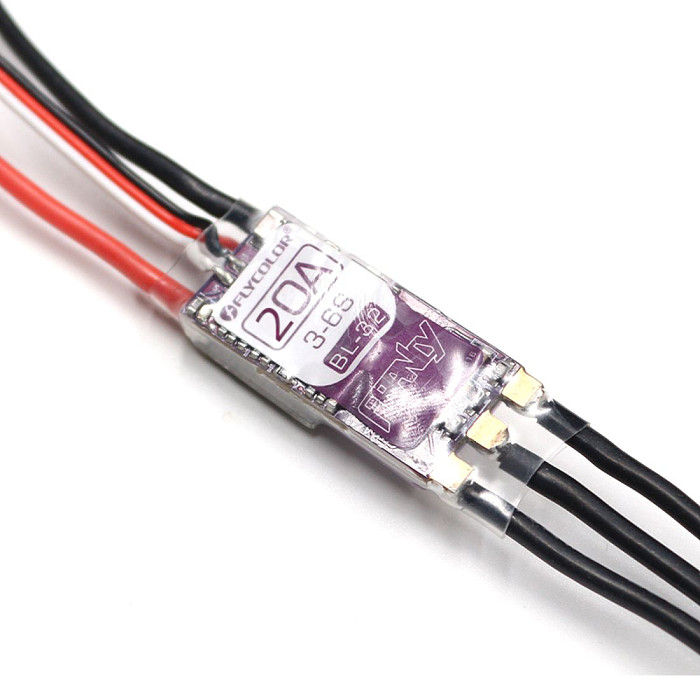

Flycolor X-Cross Blheli_32 20A/30A/40A/50A 3-6S ARM 32bit DSHOT1200 Brushless ESC for RC Racer FPV Racing Multicopter Quadcopter Parts


Specification:
Brand name: Flycolor
Item name: X-Cross Blheli_32 50A ESC
Con. Current: 20A 30A 40A 50A
Burst Current (10S): 60A
LiPo cells: 3-6S
Weight: 10g
Size: 33x16x6mm
Typical Applications:170-450mm Multi

Firmware:
40A/50A:Flycolor_X_Cross_BL_32
20A/30A:Flycolor_X_Cross_BL_32-35A

Feature:
- ARM 32-bit Cortex MCU, frequency up to 48 MHZ.
- BLHeli_32 firmware, which is designed for superior functionality and performance.
- Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and
  Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up.
- Dshot signal is supported at any rate up to at least Dshot1200.
- Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- Supports higher KV motor and more power load, more suitable for violent flight of racing drone .
- The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal transmission, and makes flight more stable.
- Aluminum heat sink effectively slow down the temperature rise.

Package Included:(Optional)
1 x X-Cross Blheli_32 ESC
