FEICHAO Simonk 30A ESC with A2212 1000kv 2200kv Motor Plastic Propeller for DIY RC Aircraft Quadcopter Hexacopter Multirotor

US$ 8.99

Version

Estimate Shipping Cost

Detail
- Product Name: FEICHAO Simonk 30A ESC with A2212 1000kv 2200kv Motor Plastic Propeller for DIY RC Aircraft Quadcopter Hexacopter Multirotor
- Item NO.: F18203-A F18203-B F32203-A F32203-C
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: FEICHAO
- Creation Time: 2020-07-20
FEICHAO Simonk 30A ESC with A2212 1000kv 2200kv Motor Plastic Propeller for DIY RC Aircraft Quadcopter Hexacopter Multirotor

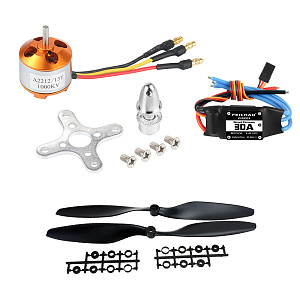

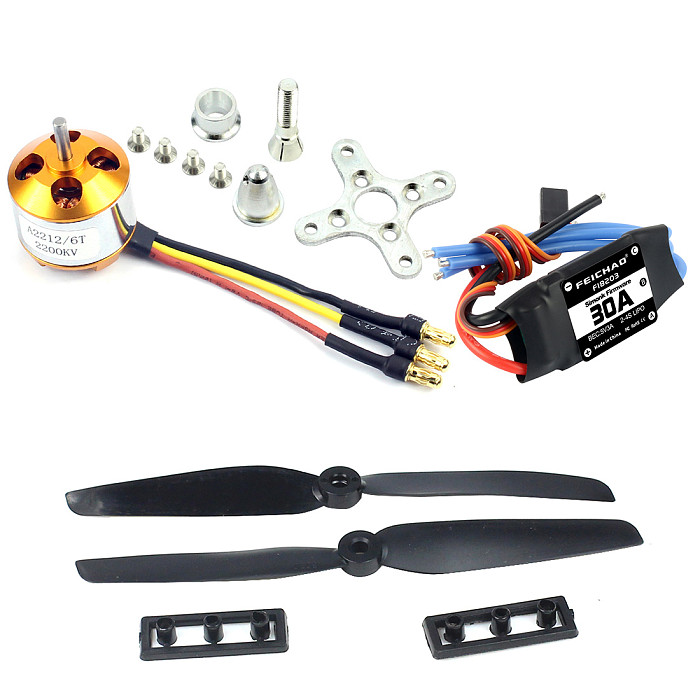

Packing list:

1 X 30A/40A ESC(optional)

1 X A2212 1000kv 2200kv /A2208 1400KV Motor (optional)

2 X 1045/8045/6030 Plastic Propeller (optional)

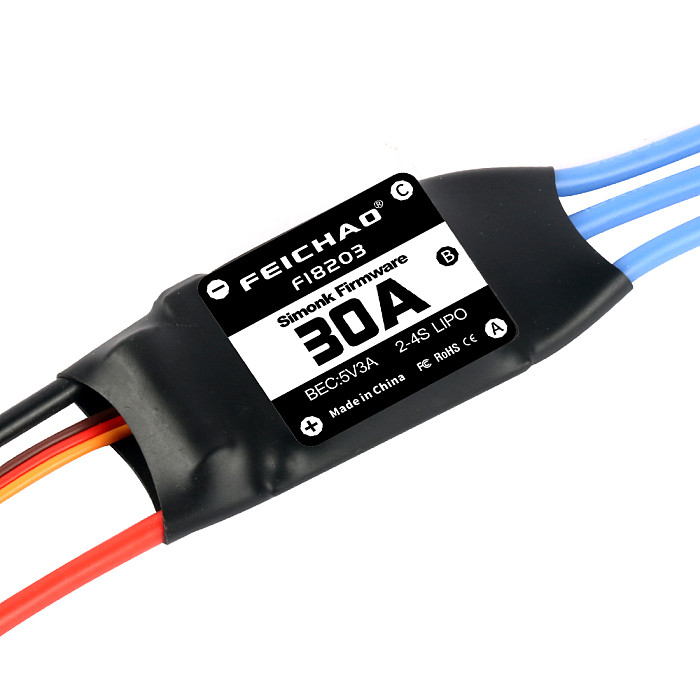

Simonk Firmware 30A ESC :

1.Specification:

weight: 25 g

Input voltage:2-4S

Working current:30A

BEC output: 5V 3A

Quantity: 1 pcs

2  Features

2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:

Brake Setting: brake enabled / brake disabled.

Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

Start Mode: normal / soft / very soft.

Timing: low / medium / high.

Reset: reset  all the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3   Advantages

3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.

3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.

3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

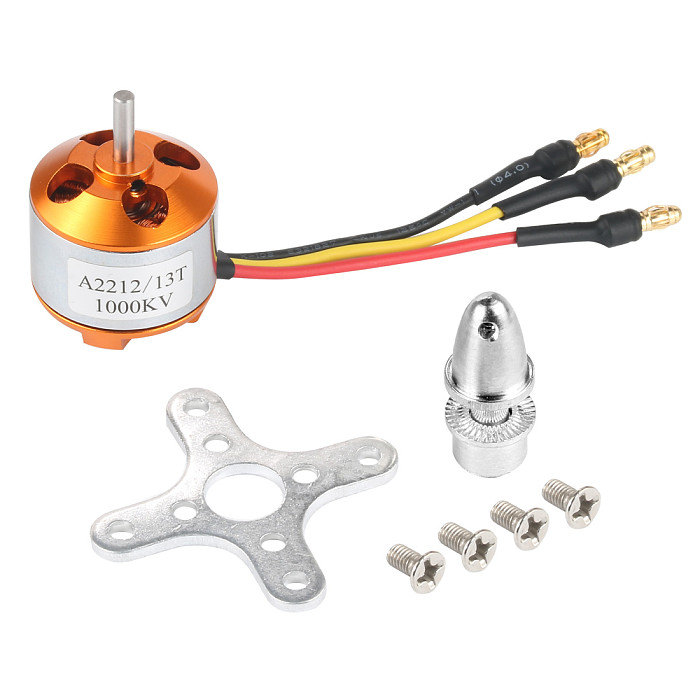

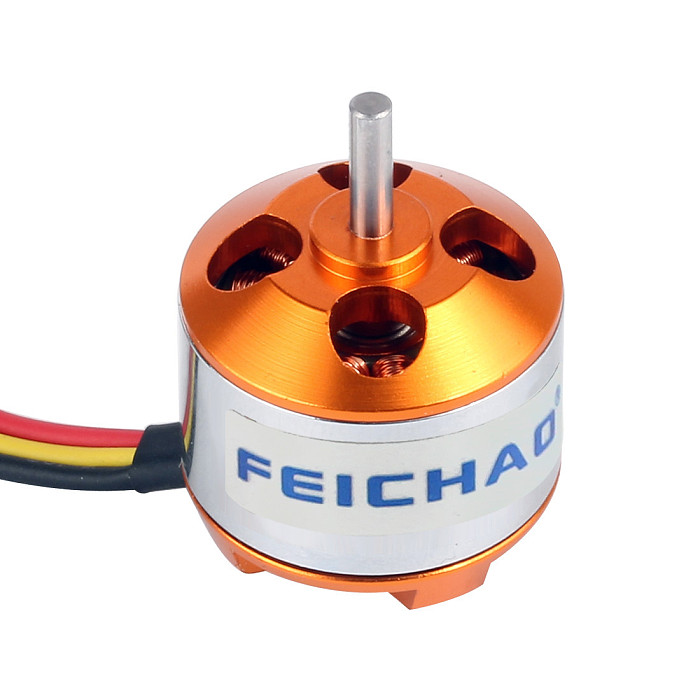

A2212 1000KV 2200KV /A2208 1400KVmotor:
- KV: 1000
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: Φ27.5 x 30mm
- Shaft Diameter: Φ3.17mm
- Weight: 47g
- KV: 2200
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: Φ27.5 x 30mm
- Shaft Diameter: Φ3.17mm
- Weight: 47g
Including: 1 set A2212 1000KV 2200KV/A2208 1400KV Brushless Outrunner Motor with Mounts(Optional)
