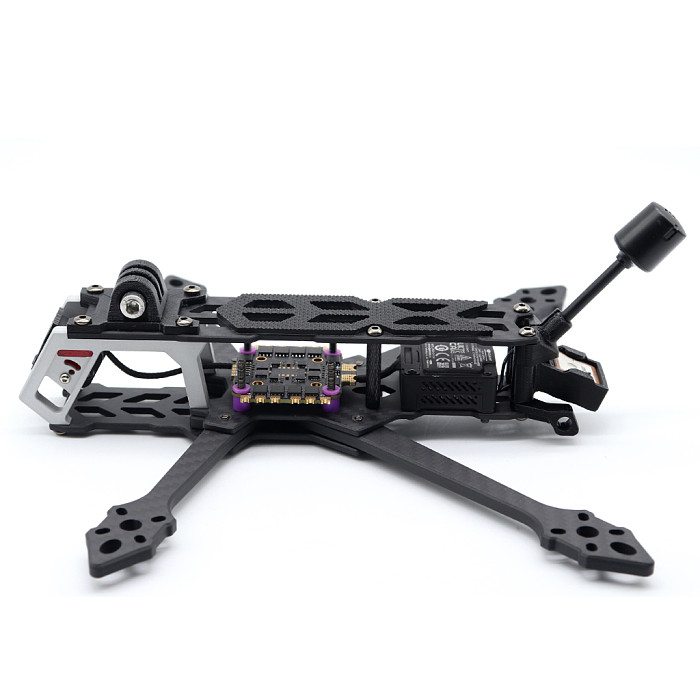

    LHCXRC CLOUD-225 225mm Wheelbase 5inch Drone Frame Kit 7075 Aluminum CNC Side Panel for DJI O3 Air Unit FPV Camera Spare Parts





    The LHCXRC CLOUD-225 rack arm adopts a wide X design, with a stable and flexible flight attitude, suitable for flexible aerial photography. The arm is designed with quick disassembly and easy replacement. The all-new 7075 aluminum alloy CNC side panel is perfect for adapting to the new high-definition digital image transmission lens of DJI O3 air unit. We provide TPU lens shock-absorbing prints on both sides of the lens, allowing for unobstructed viewing angles during flight and perfect recording of high-definition videos. We also specially designed the O3 image transmission module with CNC aluminum alloy heat dissipation fins, which can better provide timely and sufficient heat dissipation for your image transmission.

    LHCXRC CLOUD-225 rack parameters:
    Wheelbase size: 225mm
    Top plate thickness: 2.5mm
    Bottom plate thickness: 2.5 mm
    Arm thickness: 5mm
    Flight control installation hole position: 20mm X 20mm/30.5 mm x 30.5 mm
    Flight control installation height: 25mm
    Image transmission installation hole position: 20mm X 20mm/25.5 mm x25.5 mm
    Motor installation hole spacing: 16mm X 16mm/19mm X 19mm
    Camera installation size: 20mm X 20mm
    Suitable blade size: 5-inch spiral blade
    Size: 275mm X 225 mm X 40 mm
    Weight: 140g ± 5g (including 3D prints)
    Recommended motor: 2207/2306
    Recommended flight control: F4 flying tower/F7 flying tower
    Recommended battery: 6S-1300mah/1500mah
    Recommended blade: 5136/5226

    Product Features：
    The arm is designed with a width of X, ensuring stable and flexible flight posture, suitable for flexible aerial photography.
    The arm is designed with quick disassembly and easy replacement.
    16mm x 16mm and 19mm x 19mm motor holes can be installed
    Designed GOPRO camera base for perfect installation of GoPro Hero 8 Naked Camera and INSTA 360 GO 2 camera
    Specially designed for O3 image transmission module with CNC aluminum alloy heat sink
    Adopting 7075 aluminum alloy CNC side panel, it can perfectly adapt to the new high-definition digital image transmission lens of DJI O3 air unit

    Product List:
    1 x upper plate 2.5mm
    1 x front base plate 2.5mm
    1 x rear base plate 2.5mm
    2 x front boom 5.0mm
    2 x rear boom 5.0mm
    4 x mesh aluminum column M3x25
    12 x Round M3x6 Screw
    4 x Round head M3x9 screw
    4 x Round head M3x11 screw
    4 x Round head M3x14 screws
    4 x Round head M3x28 screws
    4 x Nylon hex nut M3x3
    8 x rivet nut M3 (already pressed)
    2 x CNC front aluminum parts
    1 x CNC aluminum image heat sink
    1 x Camera Shock Absorbing 3D Print Left
    1 x Camera Shock Absorbing 3D Print Right
    1 x 3D printing of image transmission antenna installation
    1 x GPS installation 3D printout
    1 x 3D printed installation of receiver T-shaped antenna
    1 x GPRO installation 3D printout (with screws, nuts, screwdriver)
    1 x battery rolling strip
    1 x Battery anti slip pad
    4 x Arm EVA Foot Mats
    Product Installation Manual
