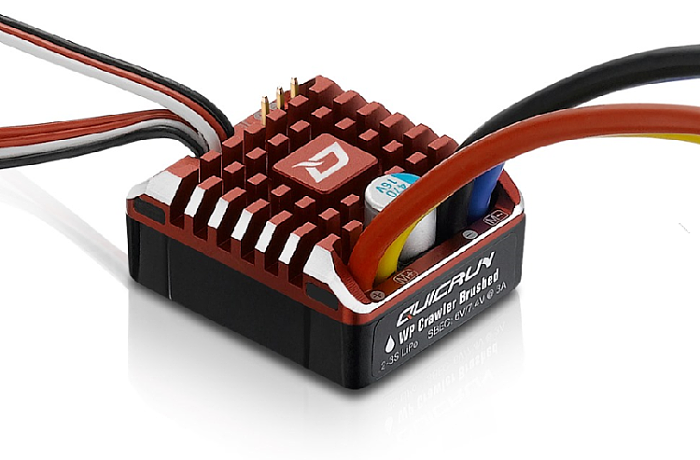

Hobbywing QuicRun 1/10 1/8 WaterProof Crawler Brushed 80A Electronic Speed Controller ESC With Program box BEC T Plug Item NO.: F19508

Name: Hobbywing QuicRun 1/10 1/8 WaterProof Crawler Brushed 80A Electronic Speed Controller ESC With Program box BEC T Plug
Brand: Hobbywing
SKU: F19508
Price: 40.3 USD
Availability: InStock

Write a Review Sold (2)

US$ 40.30

US$ 47.41 Save US$ 7.11 (15% Off)

Customized Requirements

Quantity: Stock ( 9999997 )

Estimate Shipping Cost

Add to Cart

Product Name	Hobbywing QuicRun 1/10 1/8 WaterProof Crawler Brushed 80A Electronic Speed Controller ESC With Program box BEC T Plug
Item NO.	F19508
Weight	0.2189 kg = 0.4826 lb = 7.7215 oz
Category	DIY RC Drone Accessories > ESC
Brand	Hobbywing
Creation Time	2017-07-25

Hobbywing QuicRun 1/10 1/8 WaterProof Crawler Brushed 80A Electronic Speed Controller ESC With Program box BEC LED T Plug

Product Description:

-Special Design for 1/10th, 1/8th Crawlers

-Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

-Applicable to All Weather Conditions

-Excellent Braking Performance

-Super Internal BEC

-15 Programmable Parameters.Separate Programming/Fan Port

-A LED Program Box is Included

Specifications:

-Cont./Peak Current:80A/400A

-Input Voltage:2-3S Lipo/5-9 Cell NiMH

-BEC Output:Switch Mode: 6V/7.4V, 3A

Wires & Connectors:

-Input Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1

-Output Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1

-Input Connectors:XT60 Connectors

-Output Connecotors:No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:

SET Button on ESC:Supported

LED Program Box:Supported

LCD Program Box: Not Supported

WiFi Module:Not Supported

Program Port: Separate Program Port

Firmware:

-Firmware Upgrade:Not Supported

Size & Weight:

Size:36.2x31.6x17.0mm

Weight:58.5g (w/Wires)

Applications:

-Motors:Brushed Motor (540/550/775 size motors)

-Vehicles:Brushed Motor (540/550/775 size motors)

-KV Rating/T Count:Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<30000, 7.4V Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<20000, 7.4V
