Waterproof High Voltage Speed Controller 80A HV Brushless ESC Support 5-12S for RC Drone Quadcopter Item NO.: F21262

US$ 69.95 ~ US$ 77.72

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 77.72	US$ 73.83	US$ 69.95

Customized Requirements

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	Waterproof High Voltage Speed Controller 80A HV Brushless ESC Support 5-12S for RC Drone Quadcopter
Item NO.	F21262
Weight	0.28 kg = 0.6173 lb = 9.8767 oz
Category	DIY RC Drone Accessories > ESC
Brand	XT-XINTE
Creation Time	2017-07-25

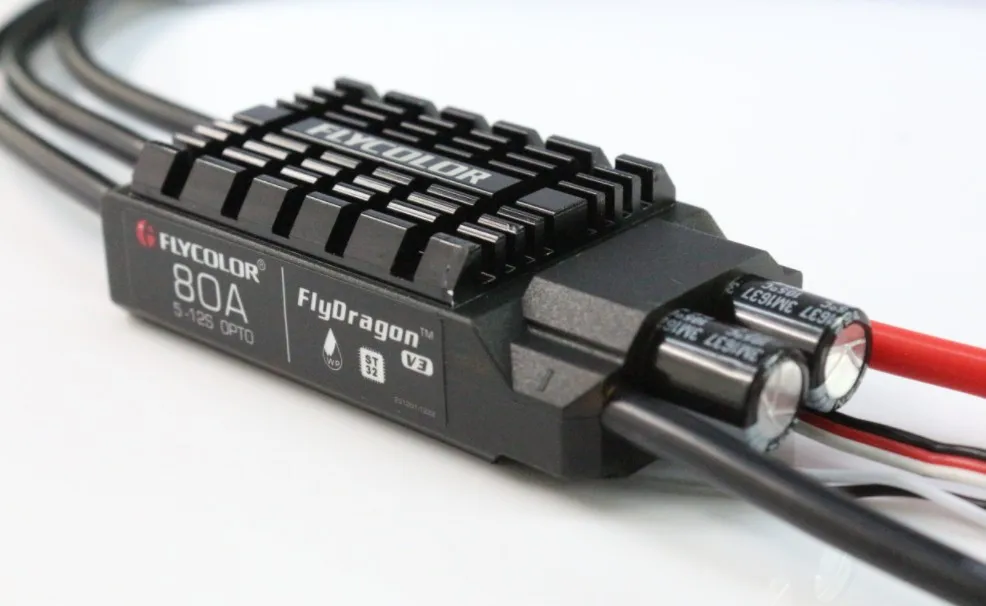

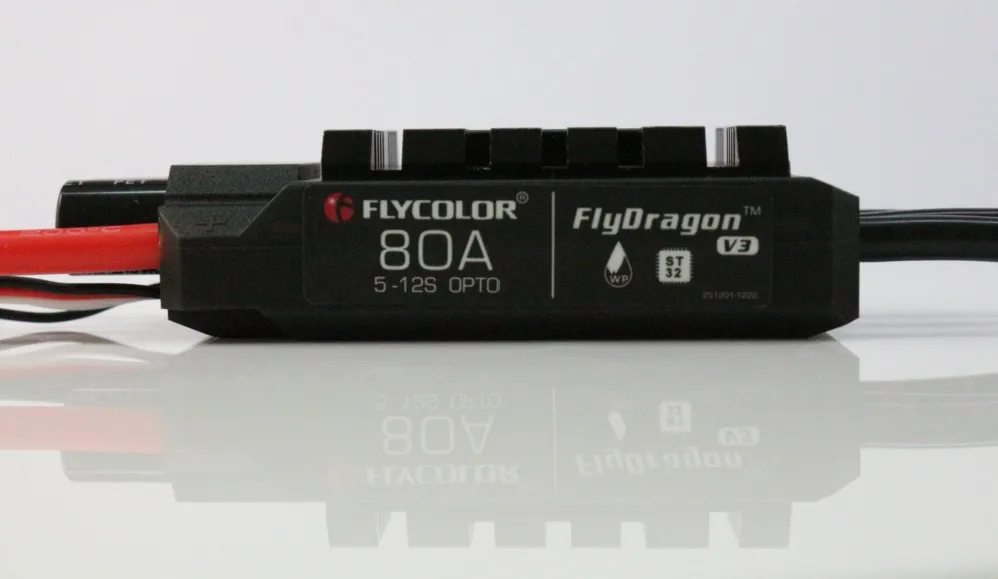

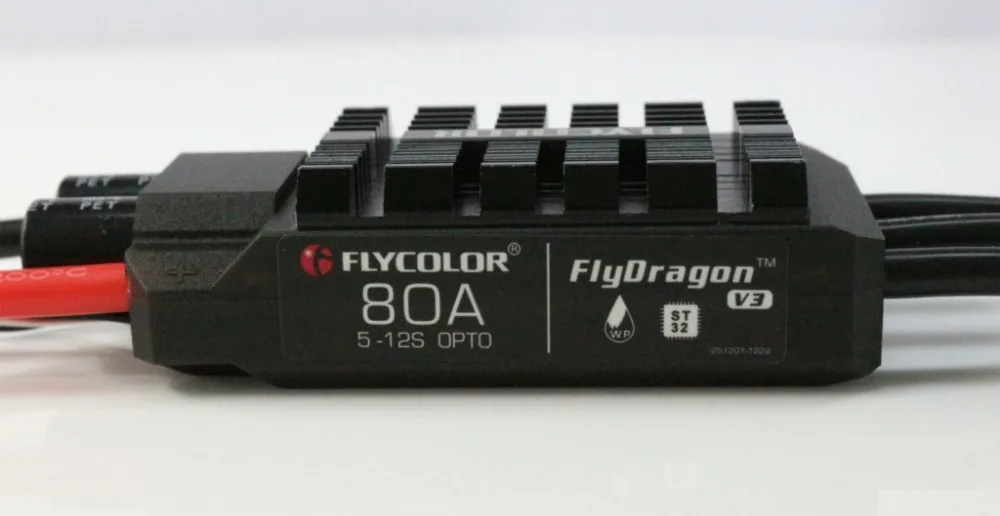

Waterproof High Voltage Speed Controller 80A HV Brushless ESC Support 5-12S for RC Drone Quadcopter

Note:There are two options: one is motor wire 900mm and power line 150mm, the other is motor wire 150mm and power line 900mm.

Product description:

Model: V3-80A WP

Continuous current：80A

Instantaneous Current：120A

BEC: NO

Number of lithium batteries: 5-12s

Weight: 103g

1.Using a powerful STM32F051 series MCU, ARM32 bit Cortex kernel, the operating frequency is 48MHz.

2.Specifically for the disc drive optimization of the firmware, compatibility is very good.

3.Specifically for multi-rotor design procedures, the use of active freewheeling ASCF technology, more efficient, significantly reduce the heat transfer.

4.Waterproof, corrosion-resistant, especially for agricultural plant protection machine operations applicable.

5.Firmware adaptability, only to retain the four kinds of angle settings, the application is extremely simple.

Supports throttle signals up to 500Hz, compatible with a variety of flight control (Note: ≥ 500Hz throttle signals are non-standard throttle signal).

6.The maximum support 12S lithium battery, support a single lithium battery voltage 4.35V.
