Hobbywing FlyFun V5 80A 60A Speed Controller Brushless ESC 3-6S Lipo with DEO Function for RC Aircraft Quadcopter Drone Item NO.: F20367/F20368

Sold (8)

US$ 38.66 ~ US$ 42.96

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 42.96	US$ 40.81	US$ 38.66

type: 80A 60A

Customized Requirements

Quantity: Stock ( 19999990 )

Estimate Shipping Cost

Product Name	Hobbywing FlyFun V5 80A 60A Speed Controller Brushless ESC 3-6S Lipo with DEO Function for RC Aircraft Quadcopter Drone
Item NO.	F20367/F20368
Weight	0.12 kg = 0.2646 lb = 4.2329 oz
Category	DIY RC Drone Accessories > ESC
Brand	Hobbywing
Creation Time	2017-07-25

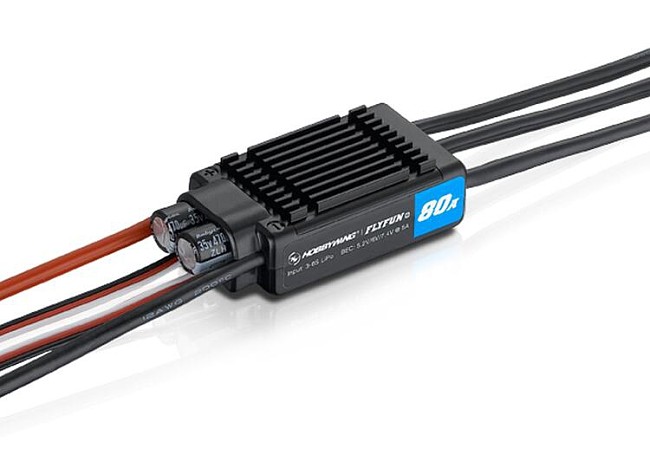

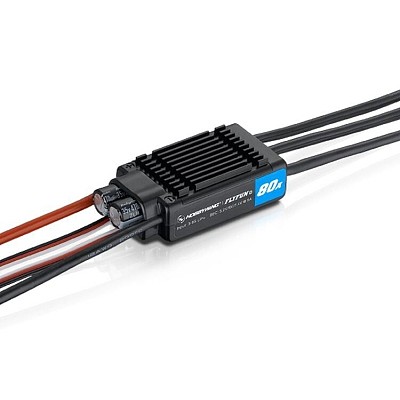

Hobbywing FlyFun V5 80A/60A Speed Controller Brushless ESC 3-6S Lipo with DEO Function for RC Aircraft Quadcopter Drone F20367/8

This is newest Hobbywing Speed Controller , Throttle more linear, lower temperature, longer flight time

Specifications :

80A V5 Speed Controller ESC :

Current :80A (Peak.Current :100A )

Size : 69.8x34.6x19.2mm

Battery : 3-6S Lipo

Weight : 92g

Swithch BEC 5.2V/6V/7.4V to options

Output Current : 8A(Peak.Current 20A)

Programing Card : LED digital Or Remote control to Programing

60A V5 Speed Controller ESC :

Current :60A (Peak.Current :80A )

Size :68.8x34.6x18mm

Battery : 3-6S Lipo

Weight :73.5g

Swithch BEC 5.2V/6V/7.4V to options

Output Current : 8A(Peak.Current 20A)

Programing Card : LED digital Or Remote control to Programing

Functions :

1. DEO - Driving Efficiency Optimizati

Bringing faster and more linear throttle response, flight stability and flexibility to be strengthened at the same time; lower temperature rise,

Electric transfer work ; higher drive efficiency, extend the flight time.

Slow start technology, adapter duct motor, reverse thrust function,

More like real, fixed wing flight to add more fun

2. New design of the multi-file slow start function, in addition to adapt to the general propeller , the more suitable for different sizes aircraft

Ducted aircraft; with anti-push function (ESC on the reverse brake function), the aircraft landed open

Can effectively reduce the aircraft taxi distance, simulate the real aircraft of the ultra-short distance landing mode, in addition to ordinary

Brakes, Proportional Brakes, Brakes Off Three modes, brakes are adjustable in normal brakes,

In the car mode, the brake force is automatically distributed by the accelerator rocker.

3.High power BEC, stable and reliable

Upgrade high-power programmable switch mode BEC, the output voltage 5.2V / 6.0V / 7.4V third gear adjustable

Continuous output current 8A, instant 20A, can load more or more power onboard electronic equipment

(More or more powerful steering gear, flight control, airborne lights, etc)

4. Multiple protection, double security

With start protection, current protection, temperature protection, capacitor temperature protection

Overload protection, throttle signal loss protection, input voltage exception protection

Multi-protection function, effectively extend the electrical life
