HobbyEagle A3 Super4 A3S4 Fixed Wing 6-axis Airplane Gyro stabilizer Flight Control balancer Programming card for RC Wing

US$ 48.15

model

Estimate Shipping Cost

Detail
- Product Name: HobbyEagle A3 Super4 A3S4 Fixed Wing 6-axis Airplane Gyro stabilizer Flight Control balancer Programming card for RC Wing
- Item NO.: F47117-D1/F47117-D2F47117-D3
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: HOBBYEAGLE
- Creation Time: 2022-04-15

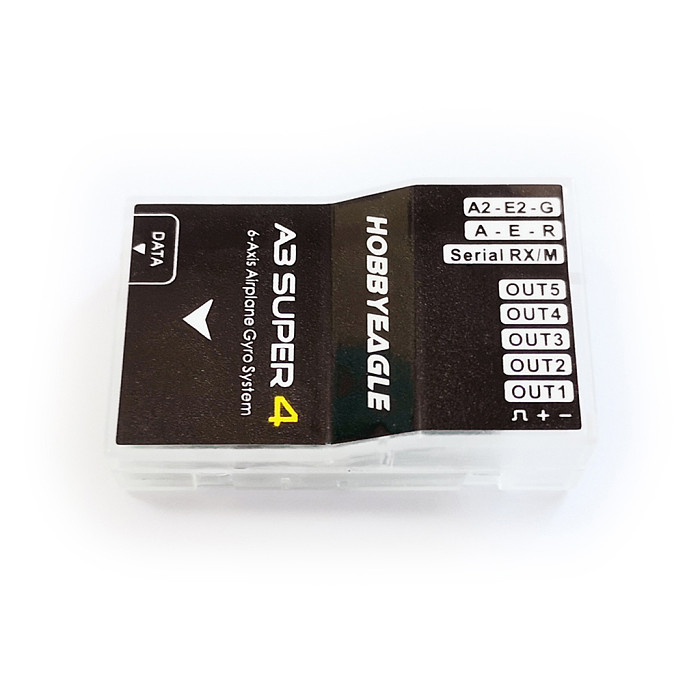

A3 Super 4 is a high-performance and functional 6-axis gyro and stabilizer designed for R/C airplanes. The hardware has been improved yet again based on the successful previous generation. Multi-protocol serial digital receiver support and customizable output channels added to make the gyro more user-friendly and reliable.

32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware and stable firmware provide more reliable performance.

6 flight modes and 6-position switching, including GYRO-OFF, NORMAL, LOCK, ANGLE, LEVEL and HOVER modes.

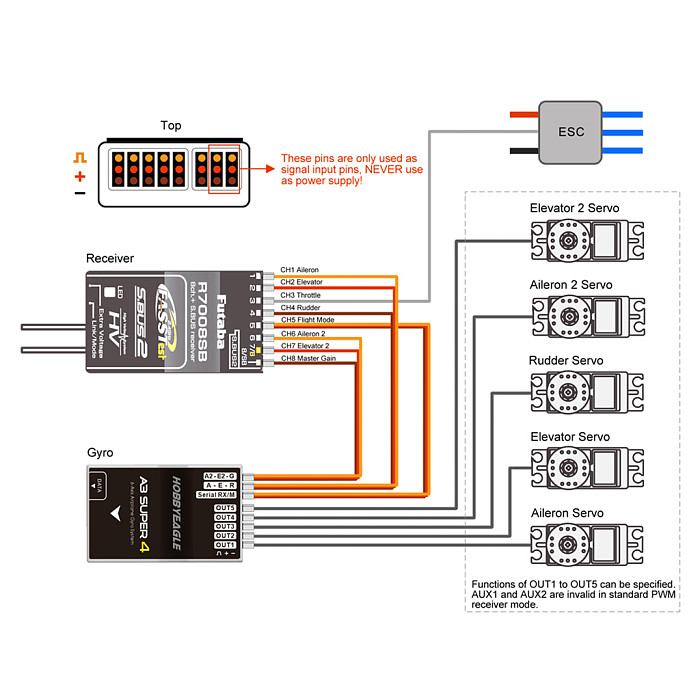

PWM, PPM and multi-protocal serial digital receiver supported.

Customizable output channels and 2 pass-through auxiliary channels.

Dual aileron and dual elevator system, flying-wing (delta-wing) and V-tail supported.

Remote master gain supported.

Firmware upgradable and Programming Card supported.

Specification：

Main Controller:32-bit MCU

Sensor:High-precision MEMS 6-axis sensor

Gyroscope Scale Range:±2000dps

Accelerometer Scale Range:±4g

PWM800 ~ 2220uS, Neutral 1500/1520uS, 50Hz ~ 333Hz

Input Voltage:DC 4.8V ~ 8.4V

Operating Temperature:-10℃ ~ 50℃

Size:43×27×14mm (L×W×H)
