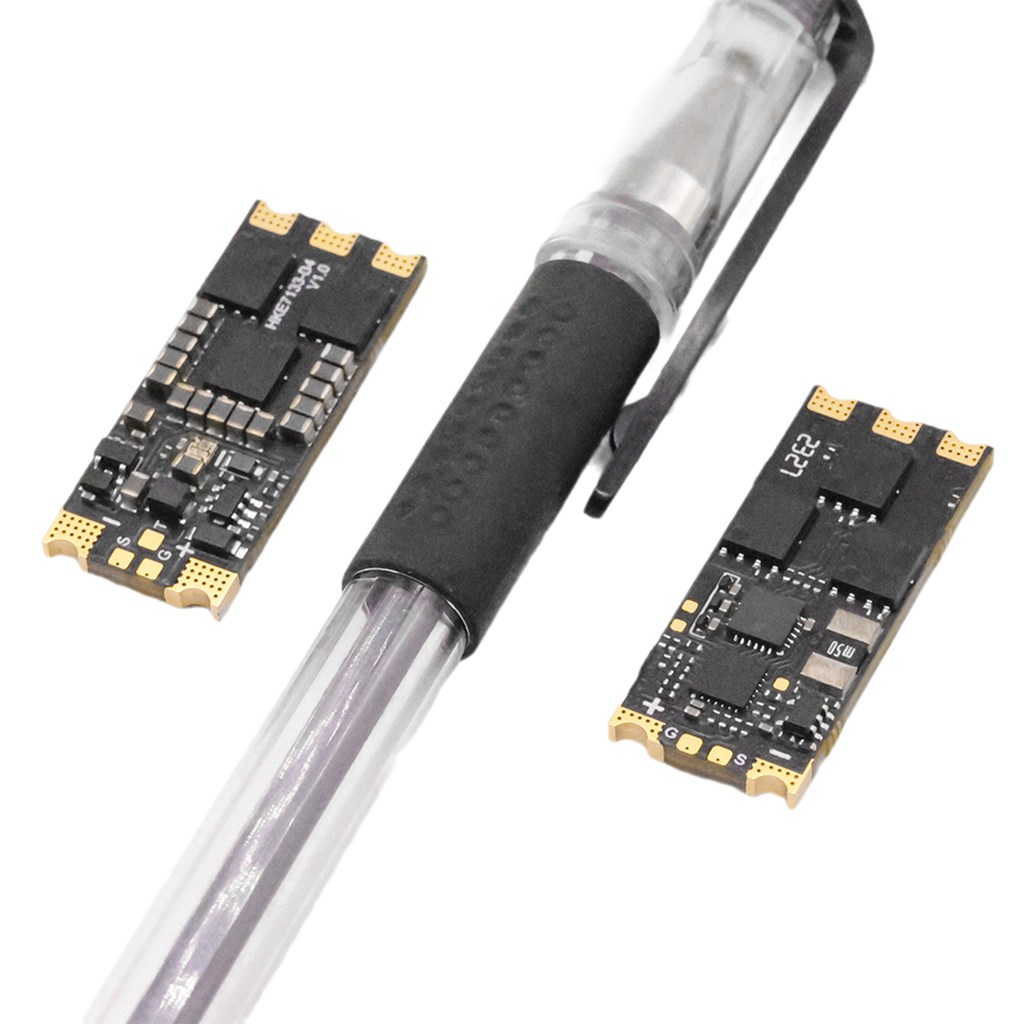

Copy| Product Name | Hakrc 7133 50A Single ESC 2S-6S 3-in-1 IC Driver For FPV RC Drone |
| Item NO. | F52371 |
| Weight | 0.022 kg = 0.0485 lb = 0.7760 oz |
| Category | DIY RC Drone Accessories > ESC |
| Brand | Hakrc |
| Creation Time | 2025-04-11 |
Product Features:
1.PCB adopts high-end 8-layer 3oZ thick copper skin, double pad design, stronger over-current capability, good heat dissipation.
2.MOS adopts imported 40V high current-resistant mos, long life with strong load capacity.
3. High density and compact, built-in ammeter, with programmable LED lights, small size, high integration, simple installation, reasonable wiring.
Reasonable wiring.
4. Adopt industrial grade LDO, high temperature resistance.
5. Adopt high quality Japanese Murata capacitors, strong filtering performance.
6. Support ESC telemetry data transmission.
ESC parameters:
Size: 14*33mm
Package size: 130*190*1.5mm
Product net weight: 5g
Package weight: 12g
Input voltage: 2S-6S Lipo
Current Ratio: 300
Continuous current: 50A
Peak Current: 55A
ESC Firmware: HAKRC_G071-2023_Multi_32_9.Hex
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300.
Dshot600
High quality hardware:
STM32G071G8U6 main controller, running at up to 64MHz. 3-in-1 IC driver, high-frequency ceramic capacitors.
High quality hardware: STM32G071G8U6 main control chip, running frequency up to 64MHz. High-precision PCB production process, the pads are metallized edges, so that you can avoid the pads off when using; 3 ounces of copper thickness, the Dshot600 is a good choice.
High-precision PCB production process, pads are metallized edges, so that you can avoid pads off when using; 3 ounces of copper thickness, 8-layer board, greatly reducing the heat, thus improving efficiency.
Hardware: PWM, Damped Light
Hardware: PWM, Damped Light Hardware: PWM drive, smooth throttle response, Damped Light technology, regenerative braking for sensitive and efficient motor deceleration and precise control
Damped Light technology, regenerative braking function, so that the motor deceleration is sensitive and effective, precise control; active current renewal
Damped Light technology, regenerative braking function for sensitive and effective motor deceleration and precise control; active flow technology, to extend the duration.
