Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter Radio System w/  FS-A8S Receiver for Mini FPV Racing Drone RC Quadcopter

Copy and share this link on social network or send it to your friends

Copy

Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter Radio System w/ FS-A8S Receiver for Mini FPV Racing Drone RC Quadcopter Item NO.: F23184-M

Write a Review
US$ 38.67 (8% Off)
US$ 42.03 Save US$ 3.36
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost
  • Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter Radio System w/ FS-A8S Receiver for Mini FPV Racing Drone RC Quadcopter

Product Name Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter Radio System w/ FS-A8S Receiver for Mini FPV Racing Drone RC Quadcopter
Item NO. F23184-M
Weight 0.7975 kg = 1.7582 lb = 28.1310 oz
Category DIY RC Drone Accessories > Remote Control
Brand Flysky
Creation Time 2018-02-02

Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter Radio System w/  FS-A8S

Receiver for Mini FPV Racing Drone RC Quadcopter

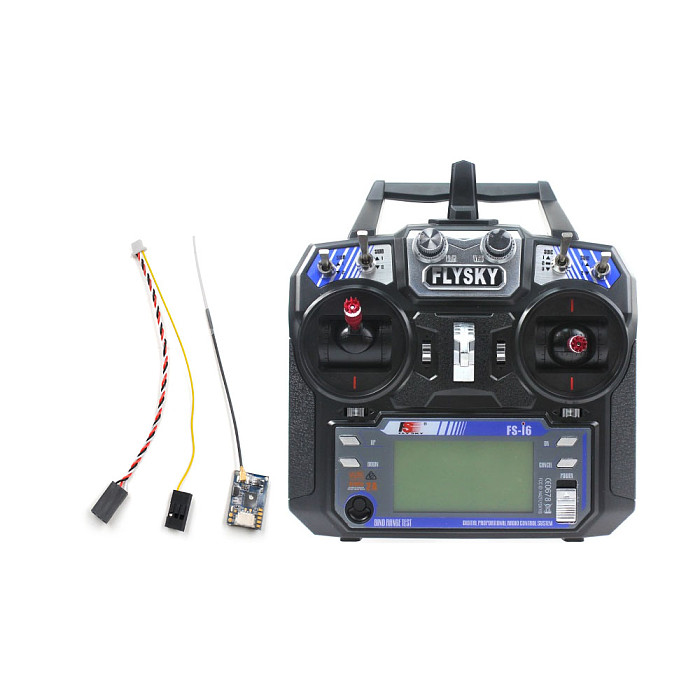

Package list:


1 * FS-i6 transmitter
1 * FS-A8S
Receiver



Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter Radio System for RC Heli Glider Quadcopter DIY Drone

(Mode1 right throttle/Mode2 left throttle for choose.Please inform us which one you need in advance,thanks


Description:


The Flysky FS-i6 is a affordable, 6CH 2.4G radio system and also a very simple setup for your RC vehicle. The automatic frequency hopping digital system provides a strong, reliable 2.4GHz signal, so rest assured you'll always be in control. Included in the package is a 6-channel mini receiver that will fit in most vehicles. The ergonomic feel of the trasnsmitter will feel good in your hands even after long track sessions.


Features:
Reliable, interference free 2.4GHz AFHDS 2A signal operation.
6CH operation.
Use only 4 * AA batteries for transmitter.
Quick and extremely stable in performance.
Simple binding procedure.

Highlights:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

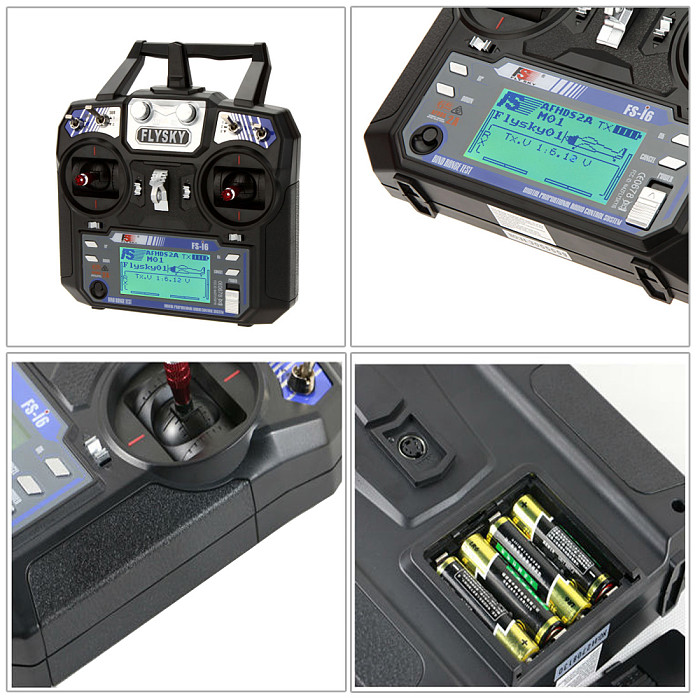

Transmitter Specfications:
Channels: 6
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port: PS2; output: PPM
Charger port: no
ANT length: 26mm * 2(dual antenna)
Power: 6V 1.5AA * 4 (Not included)
Display mode: Transflective STN positive type,
128 * 64 dot matrix VA72 * 39mm, white backlight.
Size:174 * 89 * 190mm
Weight: 392g
Online update: yes
Color: black


aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

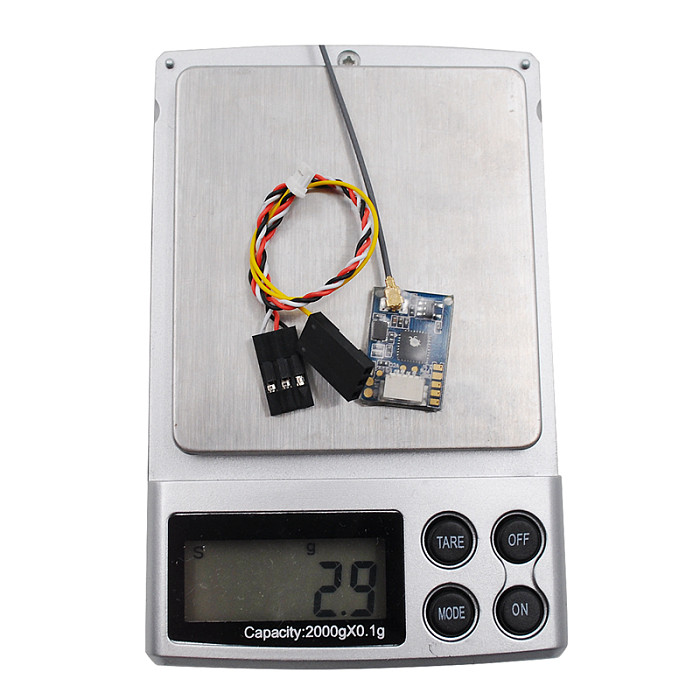

Flysky FS-A8S 2.4G 8CH Mini Receiver w/ PPM Output For RC Helicopter Quadcopter

The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and supports standard PPM output and has i-BUS support for up to 18 channels. It's compact, easy to install and boasts a rich easy to use interface. The FS-A8S supports 8 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface. Sophisticated workmanship based on reliable materials greatly ensures the excellent performance and high quality of this receiver. So, you'd better have a try!




Features:
1. A mini sized receiver module with PPM signal output
2. Precise fit, fairly easy to install
3. Deliver a high performance signal transmission and receiving
4. Bring you a smooth and joyful piloting experience
5. Stable performance, high reliability
6. Lightweight design won't add extra burden
7. Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

Specifications:
1. Brand Name: Flysky
2. Item Name: FS-A8S Receiver
3. Channels: PPM 8CH, i-BUS 18CH
4. Model Type: Multi-rotor
5. Frequency Range: 2.408-2.475GHz
6. Band Width: 500KHz
7. Band Number: 135
8. RX Sensitivity: -92 dBm
9. 2.4GHz System: AFHDS 2A
10. Modulation Type: GFSK
11. DSC Port: PPM/i-BUS/S.BUS
12. Antenna Length: 26mm (Not including brass contacts)
13. Input Power Supply: 4.0-8.4V
14. No Ground Interference ( Transmitting and receiving 1 m from the ground): >300m
15. Working Current: 40mA
16. Channel Delay: <15mS
17. Certificate: CE0678, FCCID: N45ZA8S00
18. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
19. Dimensions: (0.79 x 0.55 x 0.28)" / (2 x 1.4 x 0.7)cm (L x W x H)
