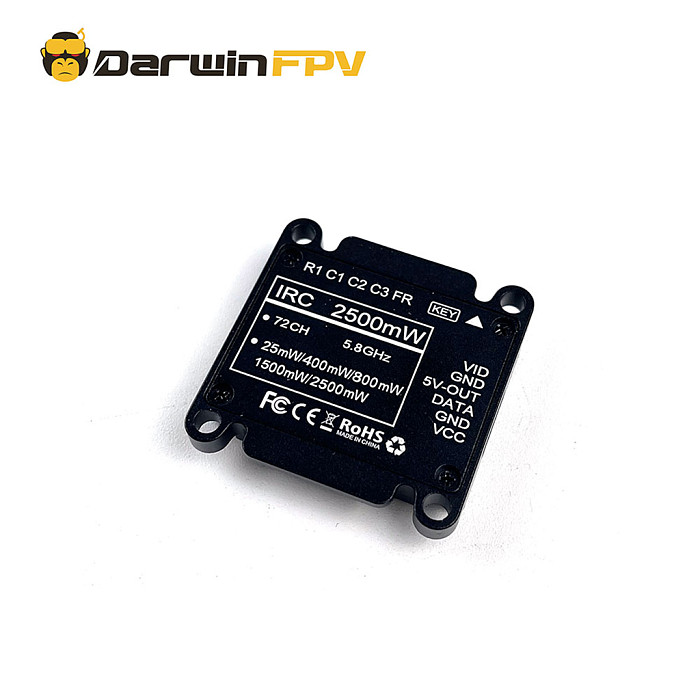

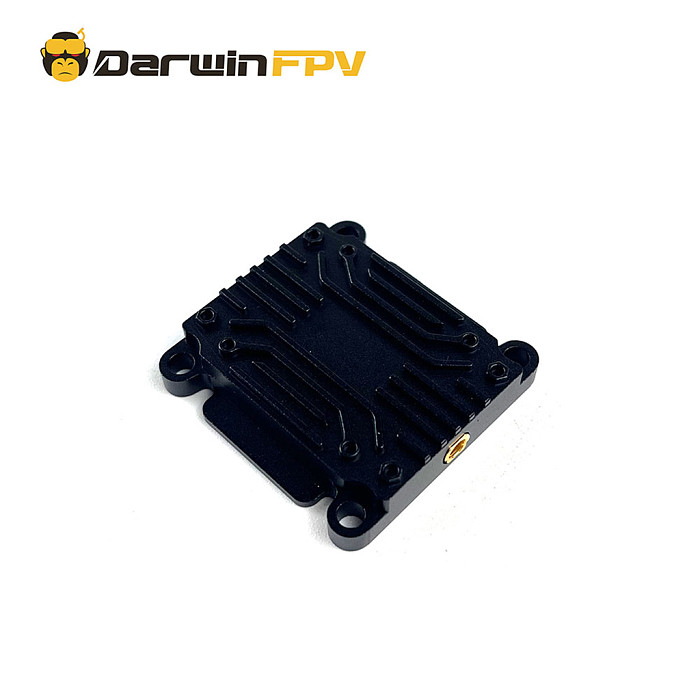

DarwinFPV 2.5W Image Transmission For 5.8G Drone Simulation Image Transmission
-
Detail
- Product Name: DarwinFPV 2.5W Image Transmission For 5.8G Drone Simulation Image Transmission
- Item NO.: F52775
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories > VTX
- Brand: DarwinFPV
- Creation Time: 2024-07-22
- (Darwin FPV) 2.5W Image Transmission For 5.8G Drone Simulation Image Transmission
(Darwin FPV) 2.5W Image Transmission For 5.8G Drone Simulation Image Transmission
2.5W features:
High output power, stable output power, and long transmission distance;
Transmission power 6-speed switching:
PIT/25mW/400mW/800mW/1500mW/2500mW;
Fast frequency locking, no interference with peers when turned on;
Equipped with output power self-test function;
Full standard video format: NTSC/PAL;
All metal CNC shell, dustproof and explosion resistant, good heat dissipation, stable power.
Parameters:
Working voltage/Voltage: 7-36V
Working current/Current: ≤ 450mA@12V ，800mW ≤ 850mA@12V ，2500mW
Usage Environment/Sage Environment: -10~60 ° C
Weight/Weight: 14.5g
Size/Dimension: 36mm x 36mm x 6.5mm
Installation hole spacing/Installation Hole: 30.5x30.5/M3
Antenna Connector: MMCX
Video format/Video format: NTSC/PAL
Output Power: FIT/25mw/400mW/800mW/1500mW/2500mW
VTX Protocol: IRC
