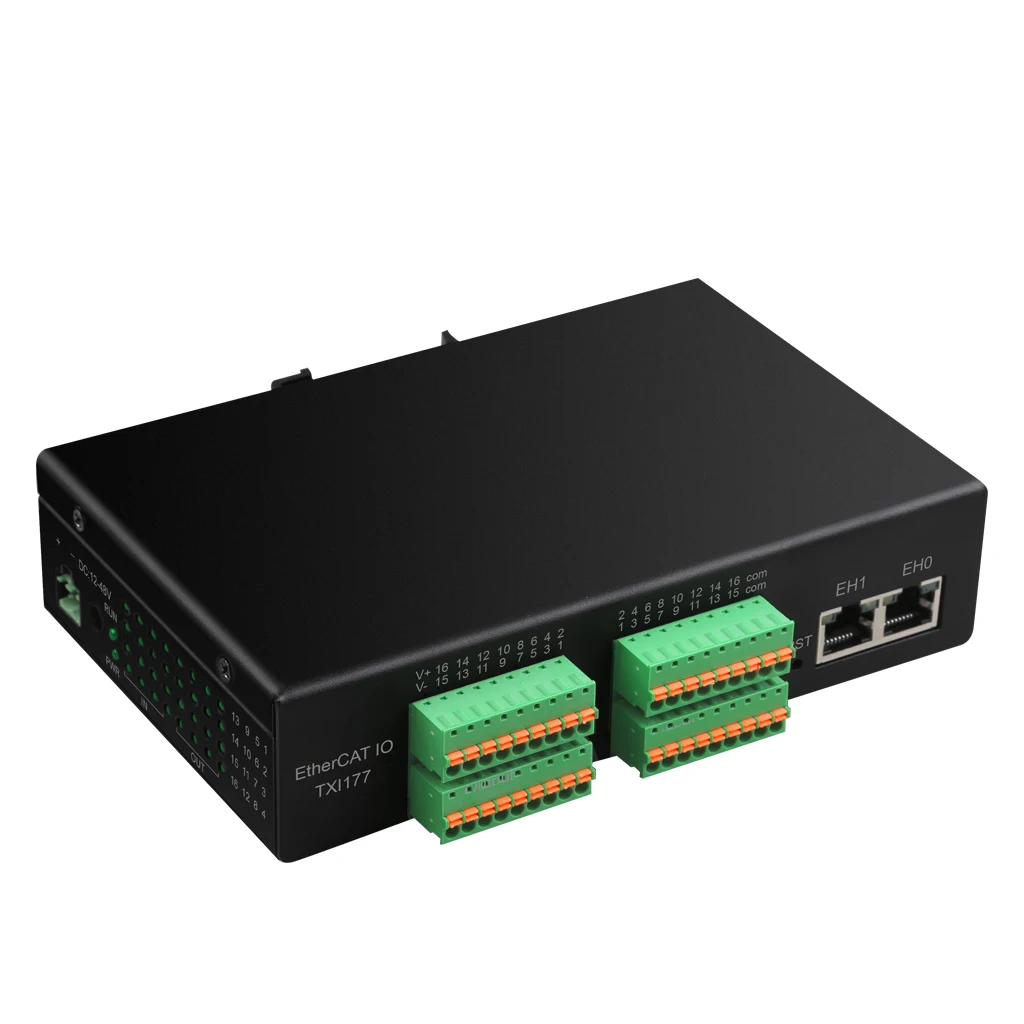

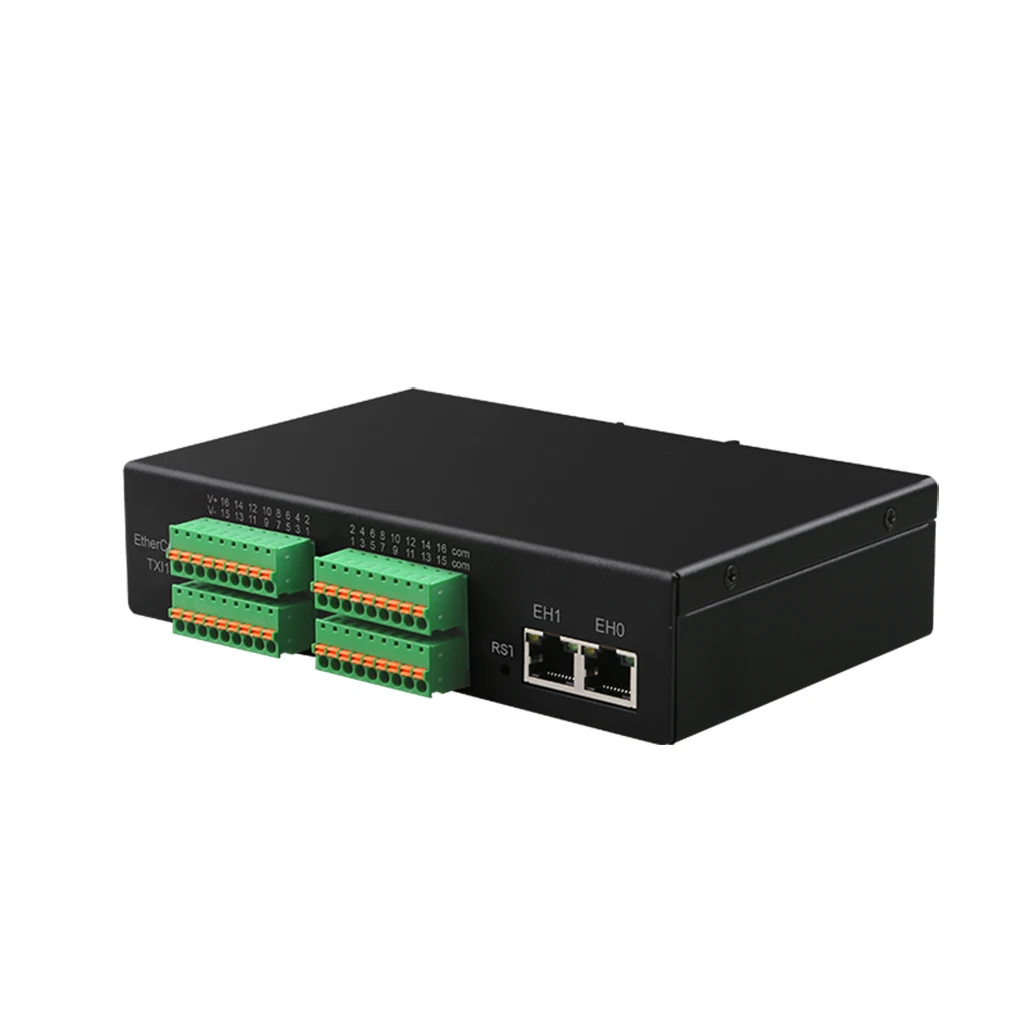

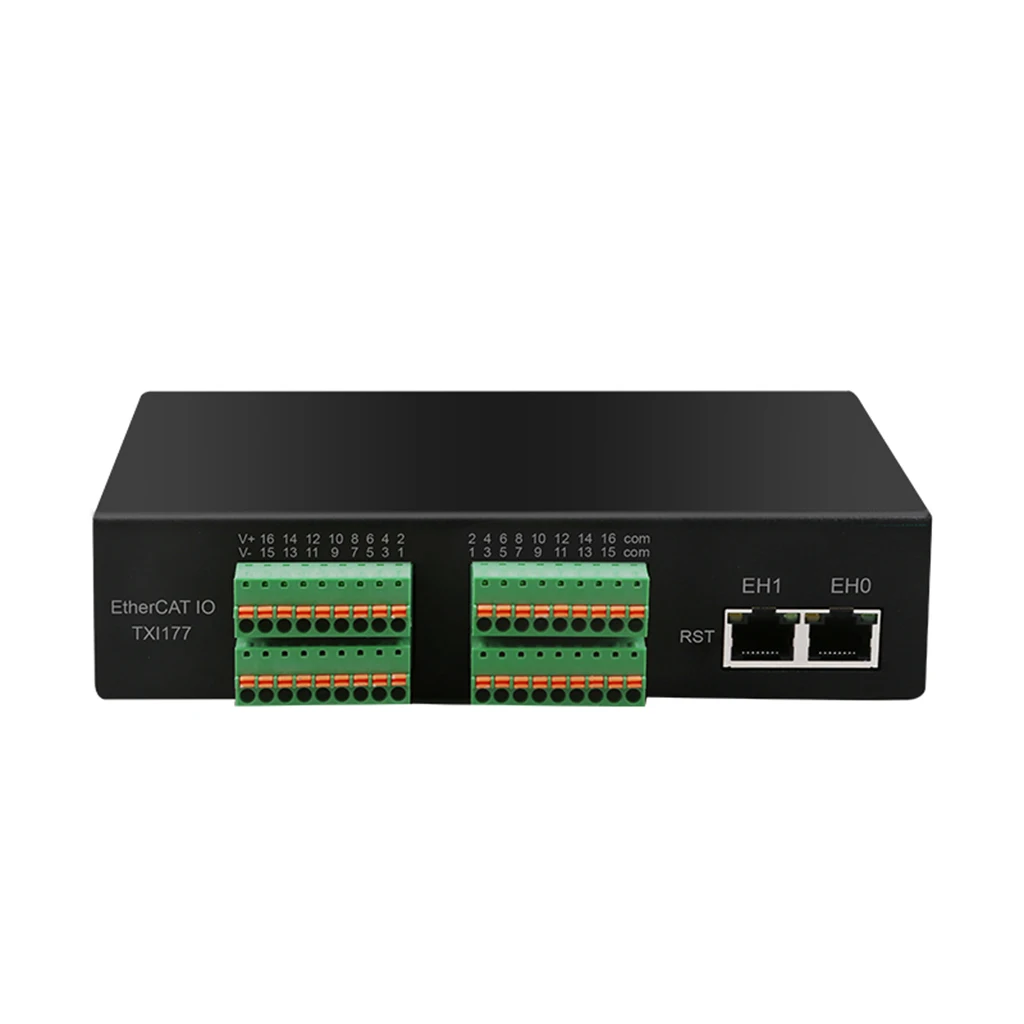

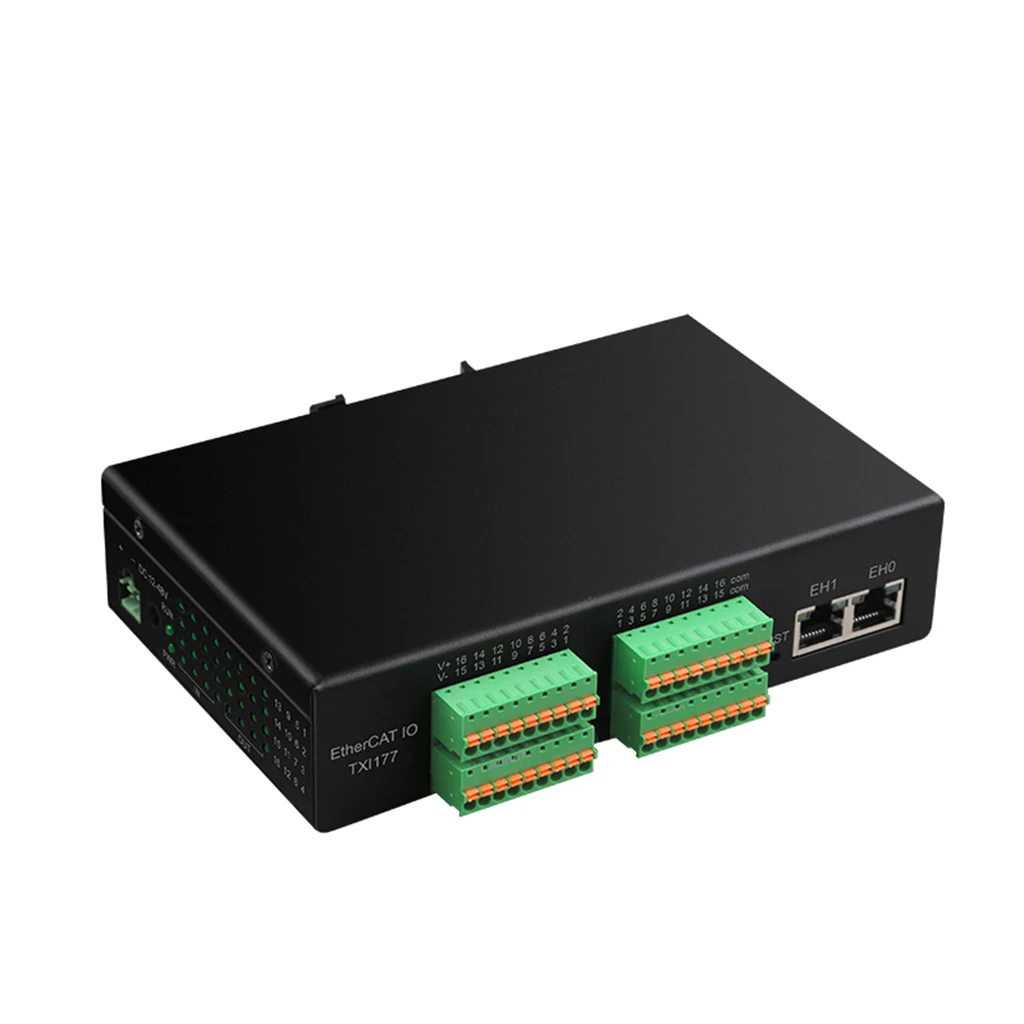

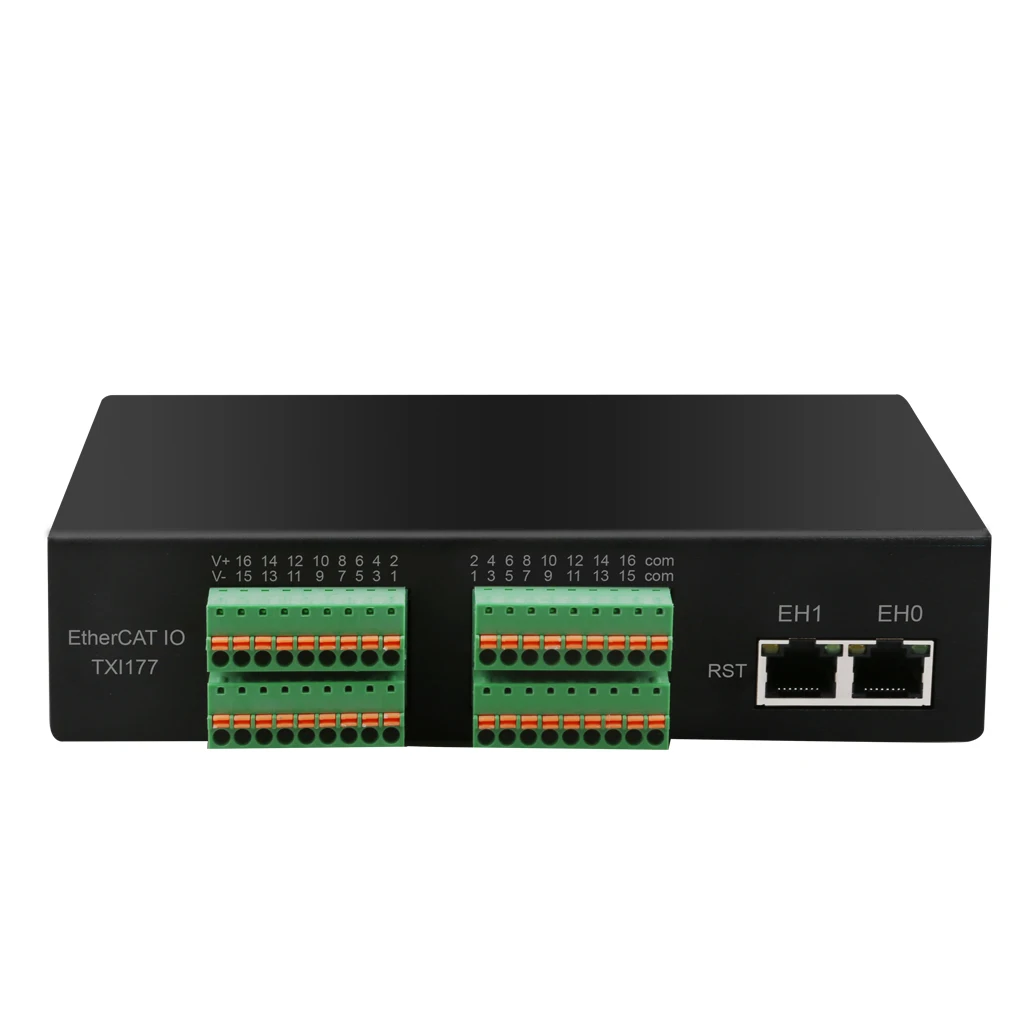

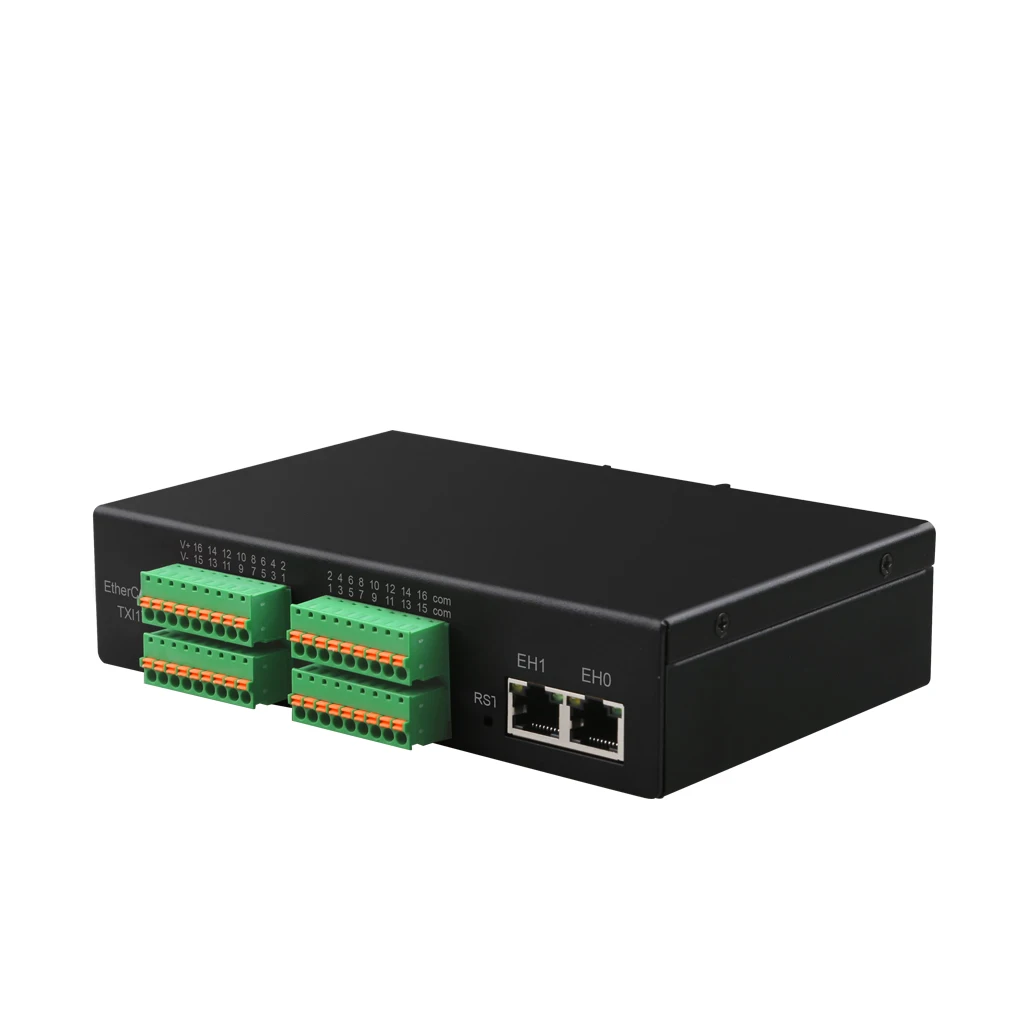

DIEWU EtherCAT Slave IO Module 16DIO Module NPN Input Opto-isolated 100Mbps Dual Network Ports Support Cascade with 2xRJ45 Port

1.Product features.

Input opto-isolation: 2500 Vrms

Each channel indicator shows the input and output status

IO digital input, high level voltage range 9-24V, regardless of positive and negative polarity, with opto-isolation

IO output up to 500mA for each channel

Dual network ports, support cascade

Working voltage 12-48V

2、Product parameters

Network standard: EtherCAT

Network transmission rate: 100Mbps full duplex

Network interface: 2 adaptive RJ45 ports

Indicators: Power, System Status, Link/act, IO Status

System power supply: DC12-48V

IO input voltage ---- digital input: high level voltage range DC9-24V

Output access voltage: DC5-48V

Power consumption: <1W

Operating temperature: -40-85°C

Storage temperature: -40-85°C

Humidity: 10%-90%, no condensation

Dimension :190*91*29mm

Net weight :442g
