XT-XINTE PCIe 3.0 x4 Male to Female Extension Cable PCI Express Gen3 32G/bps Motherboard Graphics SSD RAID Extender Conversion Riser Card Item NO.: F29447-D2 F29449-D2 F29456-B1D2/B2D2 F29460-B1D2/B2D2

Brand: XT-XINTE

Product model: R22 series

Product name: PCI-E adapter board extension cable

Wire length: 3~100cm, support bulk order customization

Bandwidth speed: PCIe 3.0x4 gen3; 32G/bps

Applicable matching cards: high-speed network cards, capture cards, NVMe SSD hard disk cards, USB adapter cards, and other PCIe X4 cards

Restrictions on use:

It is only for professional engineers to purchase.

It is not suitable for general purpose and cannot be used.

Ordinary buyers should not buy.

Procurement Tips:

For bulk orders, be sure to buy 1 to 2 samples first, and then make bulk purchases after testing and verifying that they are correct.

Friendly reminder:

There are many compatibility problems with this product.

Incorrect assembly or improper operation will burn your equipment.

Only designated by professional engineers to purchase.

This product is a customized product and cannot be returned or exchanged.

Please consider and confirm clearly before placing an order for purchase.

Model Description:

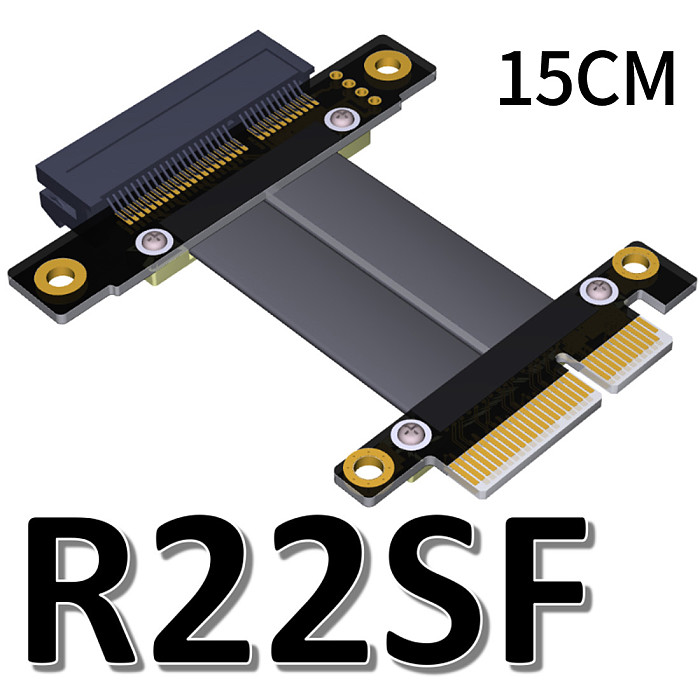

R22SF: PCIe x4 to x4 splint type to 180 degrees, bandwidth PCIe 3.0 x4

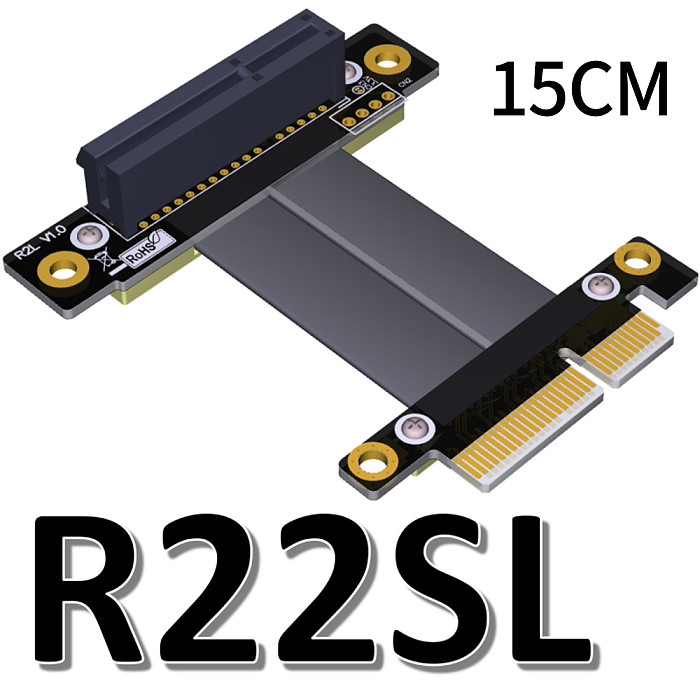

R22SL: PCIe x4 to x4 vertical to 90 degrees, bandwidth PCIe 3.0 x4

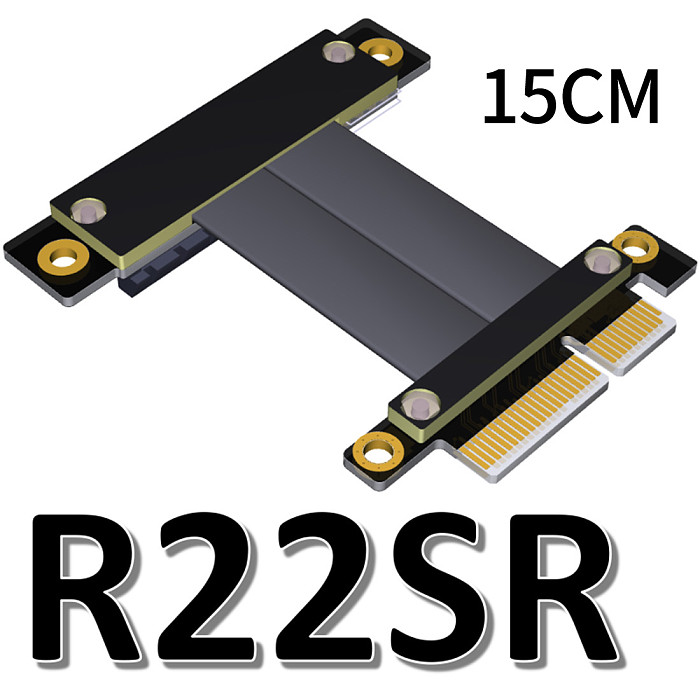

R22SR: PCIex4 to x4 inverted to 270 degrees, bandwidth PCIe 3.0 x4

Line length description:

The length of the wire in our shop does not include the PCB and the connector, please refer to the size label in blue in the picture below.

1.Wire advantages, the use of the German patent imported wire, using Taiwan's imports Lotes connectors, high frequency support PCIe 3.0 32G/Bps stable transfer.
2. Cable length from 5 cm to 1 m can accept custom-made, our sales turn wiring, wire low impedance, wire  within 60 cm long support PCIe3.0 at full speed.
3.Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, durability
4.Product use high quality materials, PCB precision workmanship, thickening to 1 oz copper thickness, content of gold finger plating, gold plated conductive performance is good, can reduce oxidize higher impedance caused by the crash blue screen.Full speed stability, need not to slow down, there is no compatibility problems.
5.Product selection of the wire itself is very durable, used in metal welding point 3 mm in thickness PCB pads to protect, and lock the screws and hex nut fastening, solid and reliable products pulling resistance, anti-interference, there will be no nail wire break off.Wire can be bent can fold, does not affect use.
6.PCB design of dwarf and add fat, dwarf is not card to the graphics card, add fat extended design make the board more easy to install, reduce the damage probability.
