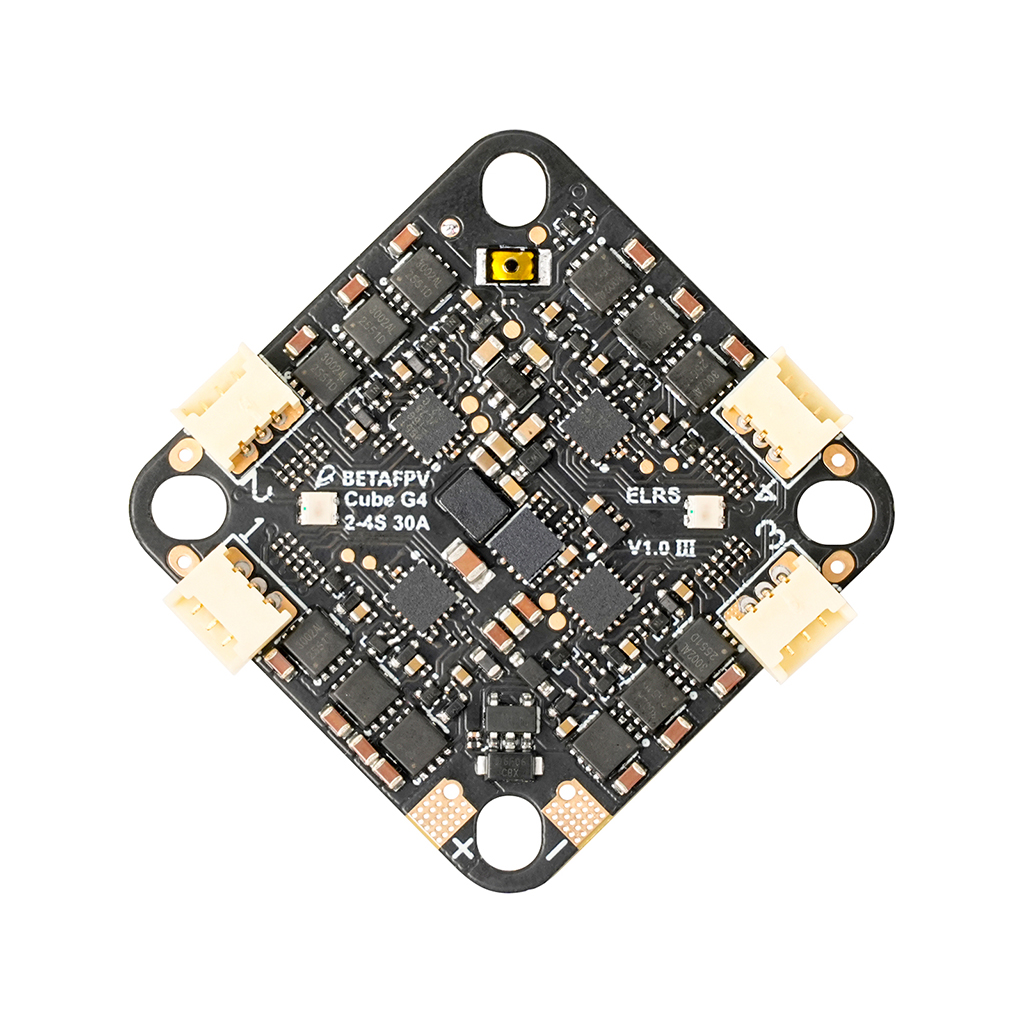

Betafpv Cube G4 2-4S 30A 3In1 Brushless Flight Controller V1

Name: Betafpv Cube G4 2-4S 30A 3In1 Brushless Flight Controller V1
Brand: BETAFPV
SKU: F55729
Price: 83.03 USD
Availability: InStock

US$ 83.03

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: Betafpv Cube G4 2-4S 30A 3In1 Brushless Flight Controller V1
- Item NO.: F55729
- Weight: 0.045 kg = 0.0992 lb = 1.5873 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: BETAFPV
- Creation Time: 2026-07-27

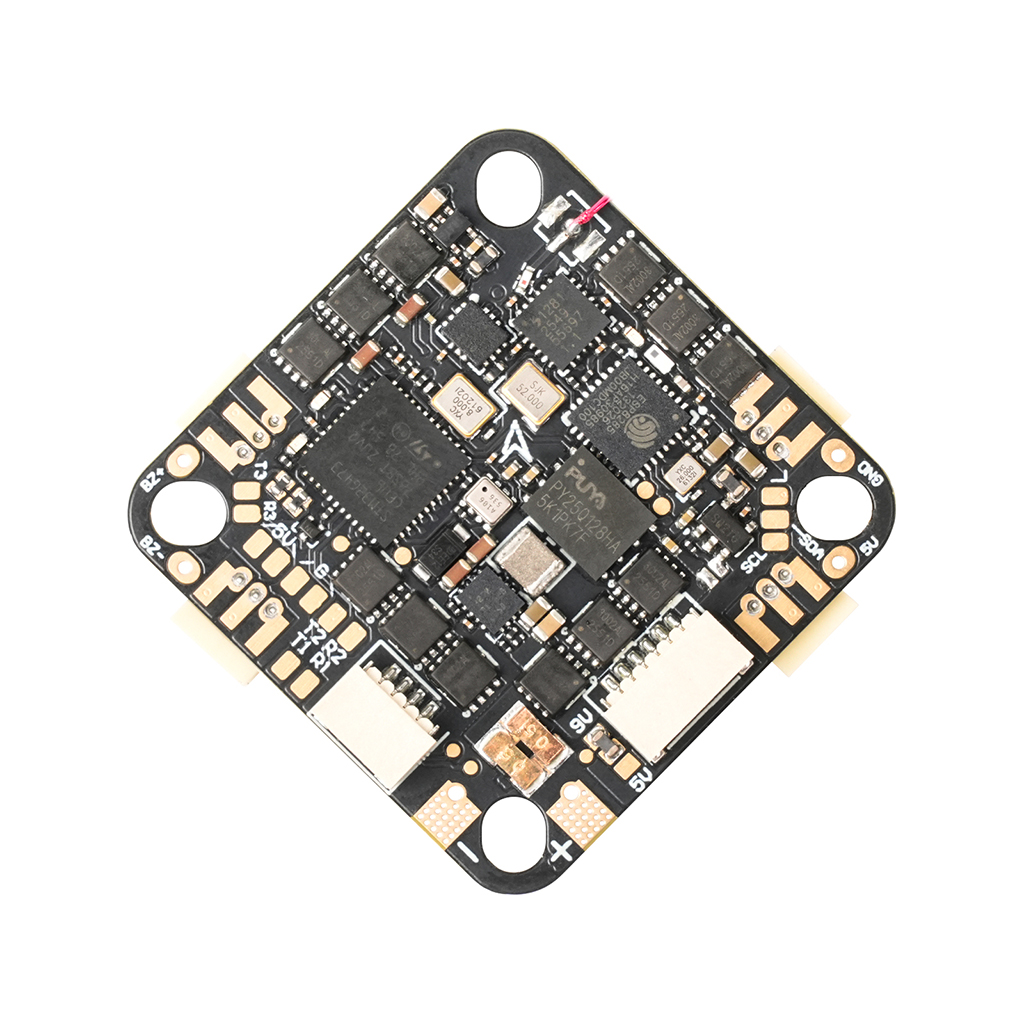

- Betafpv Cube G4 2-4S 30A 3In1 Brushless Flight Controller V1
Betafpv Cube G4 2-4S 30A 3In1 Brushless Flight Controller V1

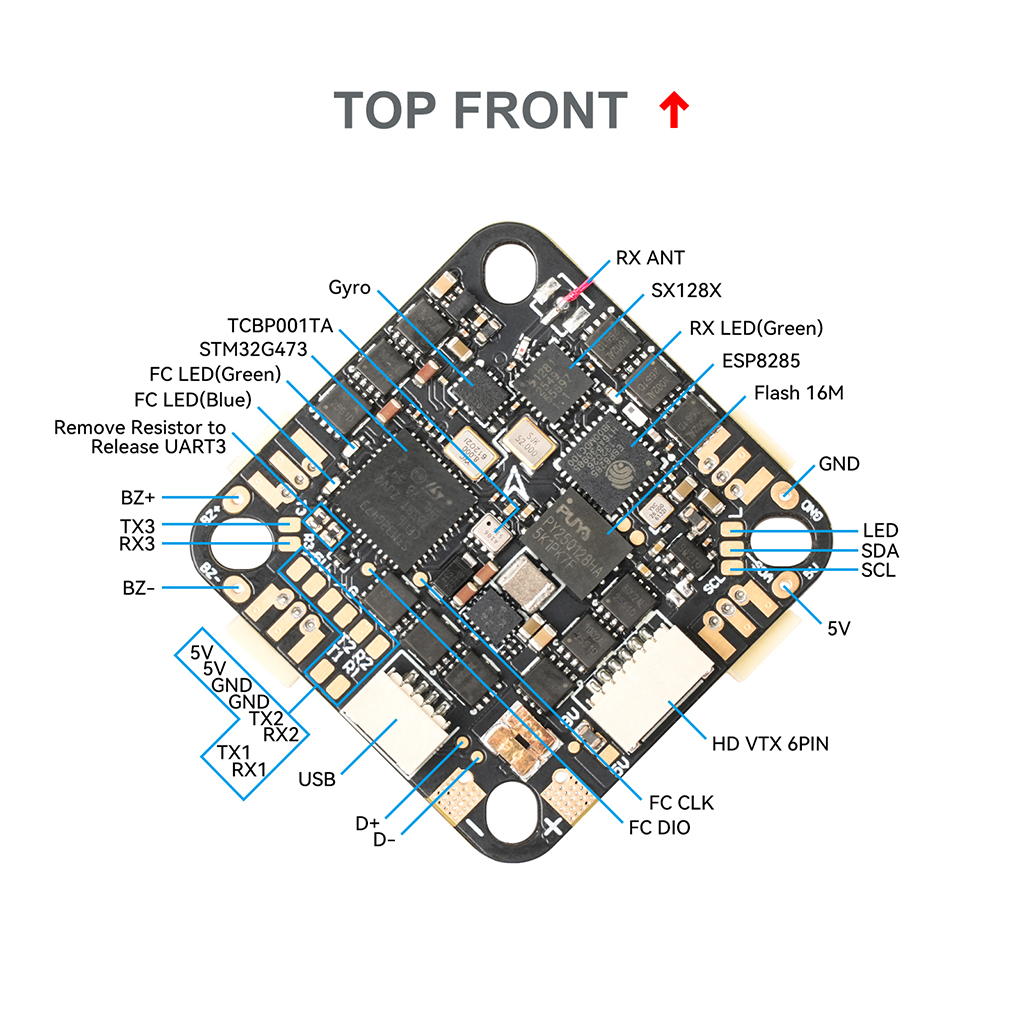

Flight Controller：
MCU: STM32G473CEU6
Gyroscope: ICM42605
Gyro Refresh Rate: 8kHz
Blackbox Storage: 16MB
Sensors: Voltage & Current Monitoring, Barometer (TCBP001TA)
BEC Output: 9V @ 2A, 5V @ 3A

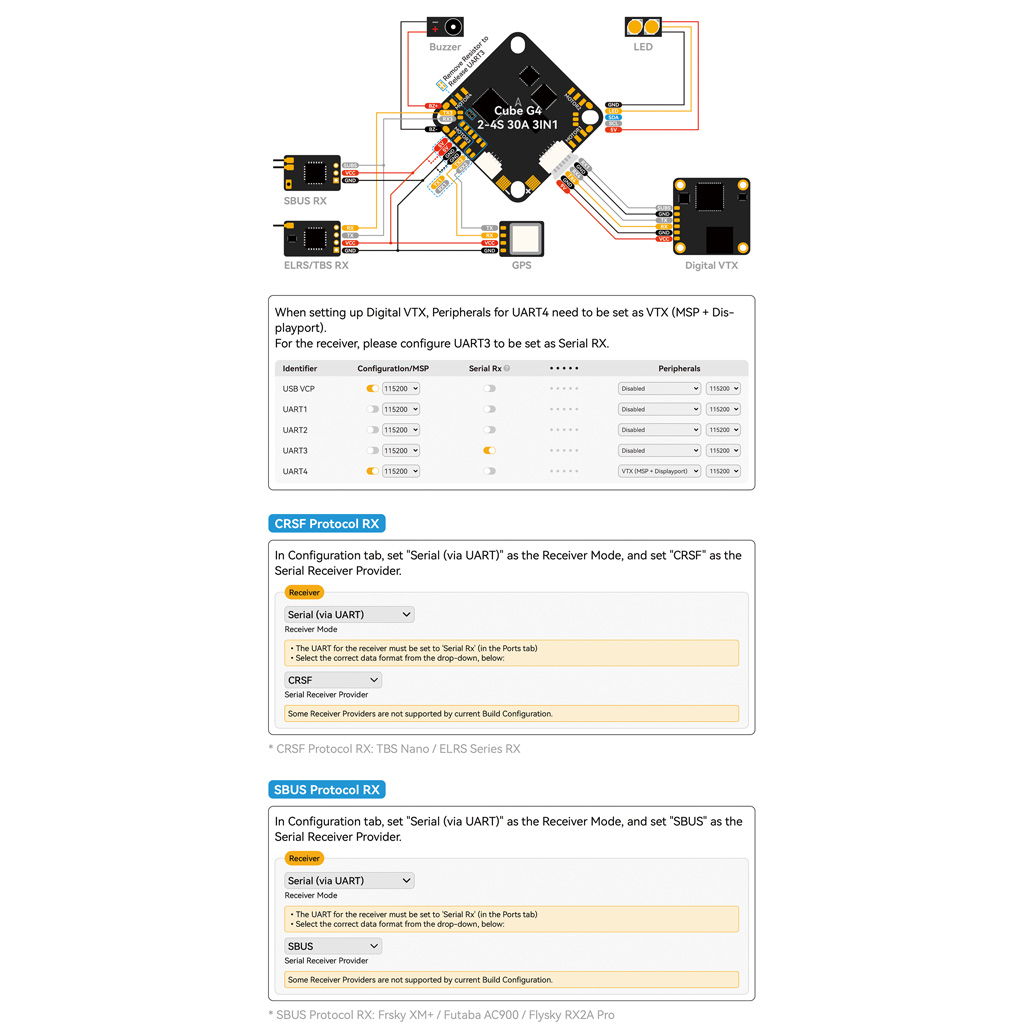

UART Ports: UART1, UART2, UART3 (for Receiver), UART4 (for HD Video Transmitter)
Betaflight OSD: Not Equipped
Continuous ESC Current: 30A
Receiver: Serial ExpressLRS 2.4GHz (V3.5.6)
Flight Controller Firmware: 2025.12.0-beta_BETAFPVG473_V3
USB Port: SH1.0-4Pin

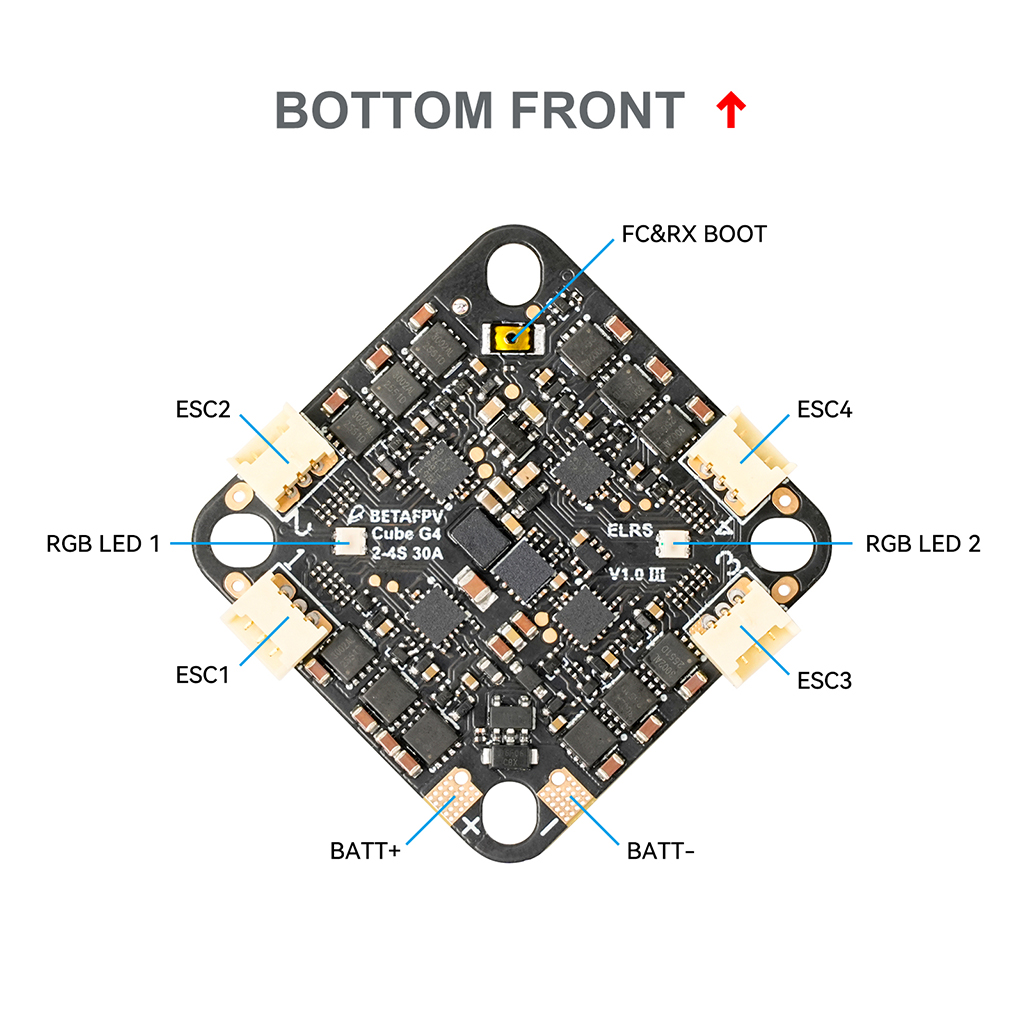

Motor Connector: JST 1.25 Pitch
Battery Connector: XT30
Mounting Hole Spacing: 26mm × 26mm

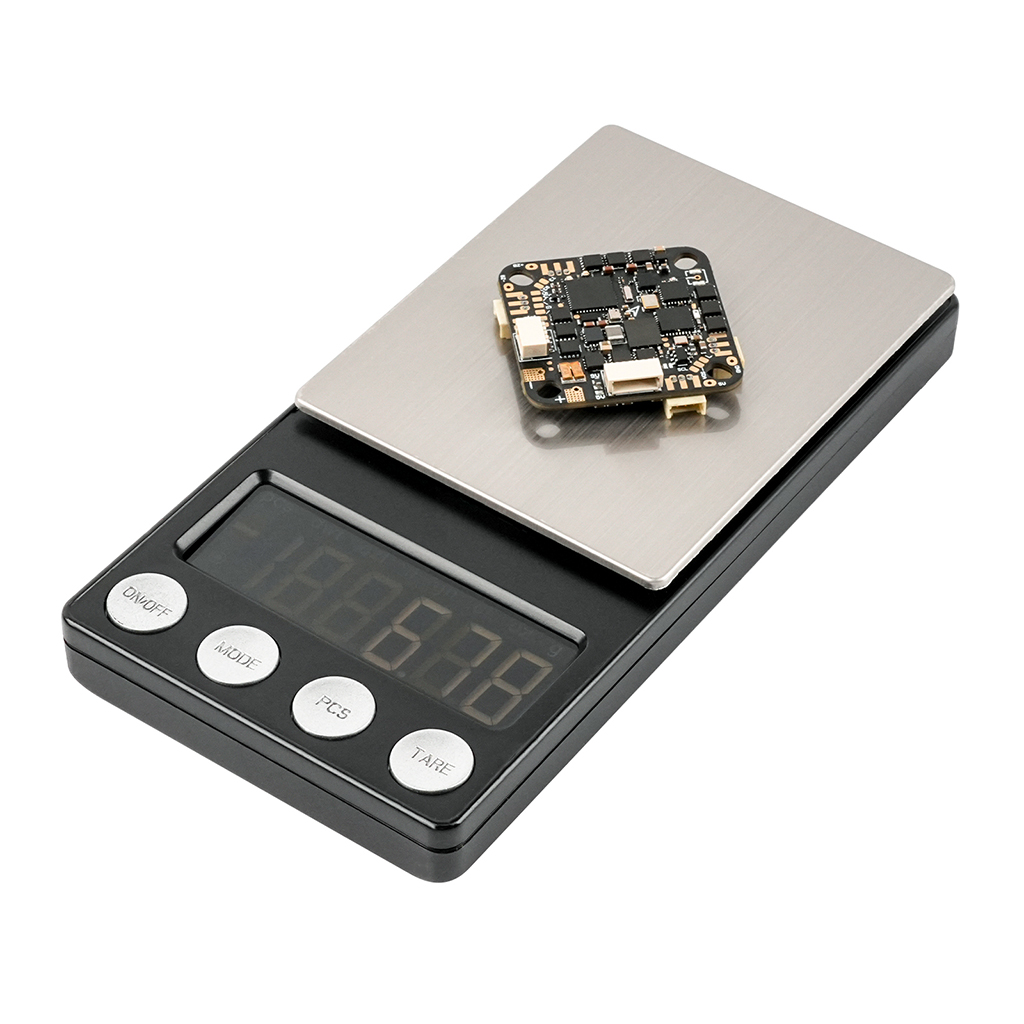

Weight: 6.8±0.2g

Receiver：
Serial ExpressLRS 2.4GHz
Antenna: 31mm Copper Wire Antenna
Firmware Target: BETAFPV 2.4G AIO RX
Telemetry Transmit Power: ＜12dBm
ELRS Firmware Version: 3.5.6
Firmware Update: WiFi Firmware Flashing Supported

ESC Specifications：
Power Input: 2–4S LiPo / LiHV Battery

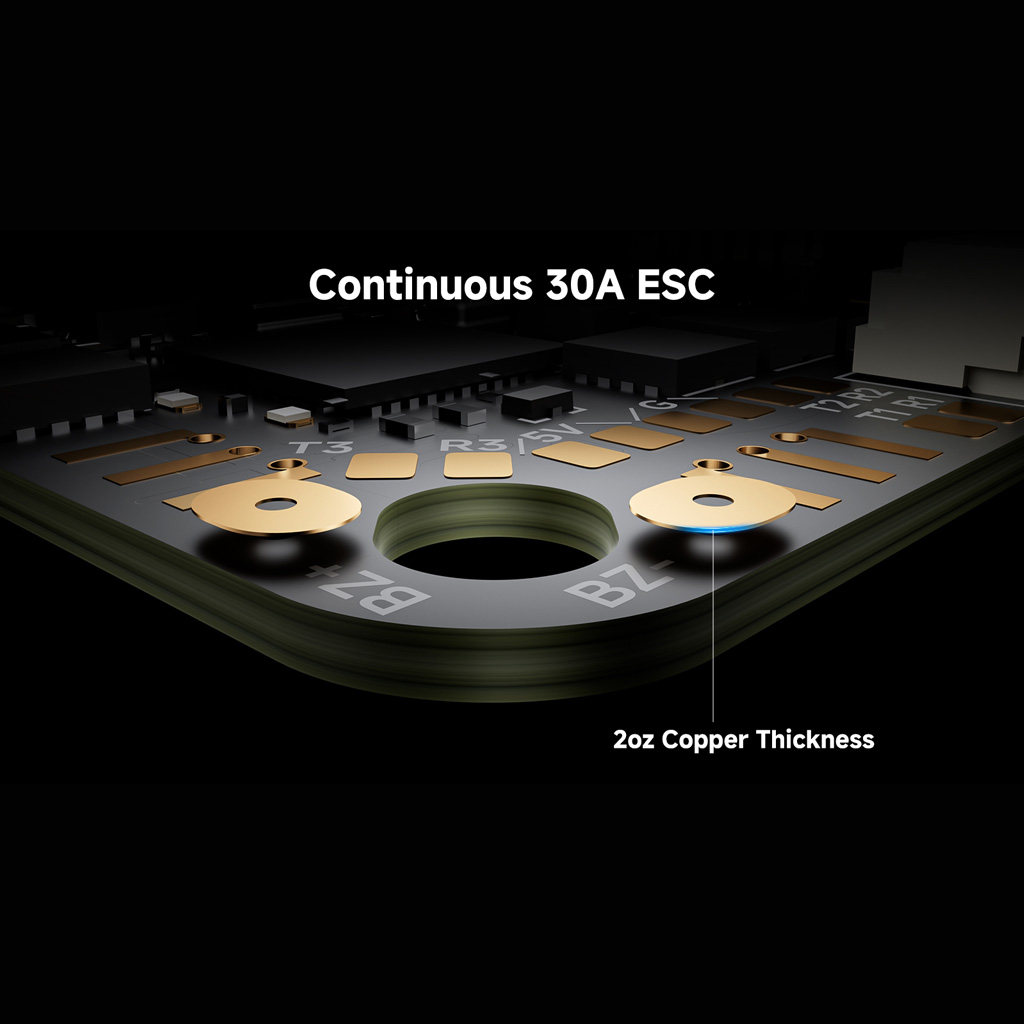

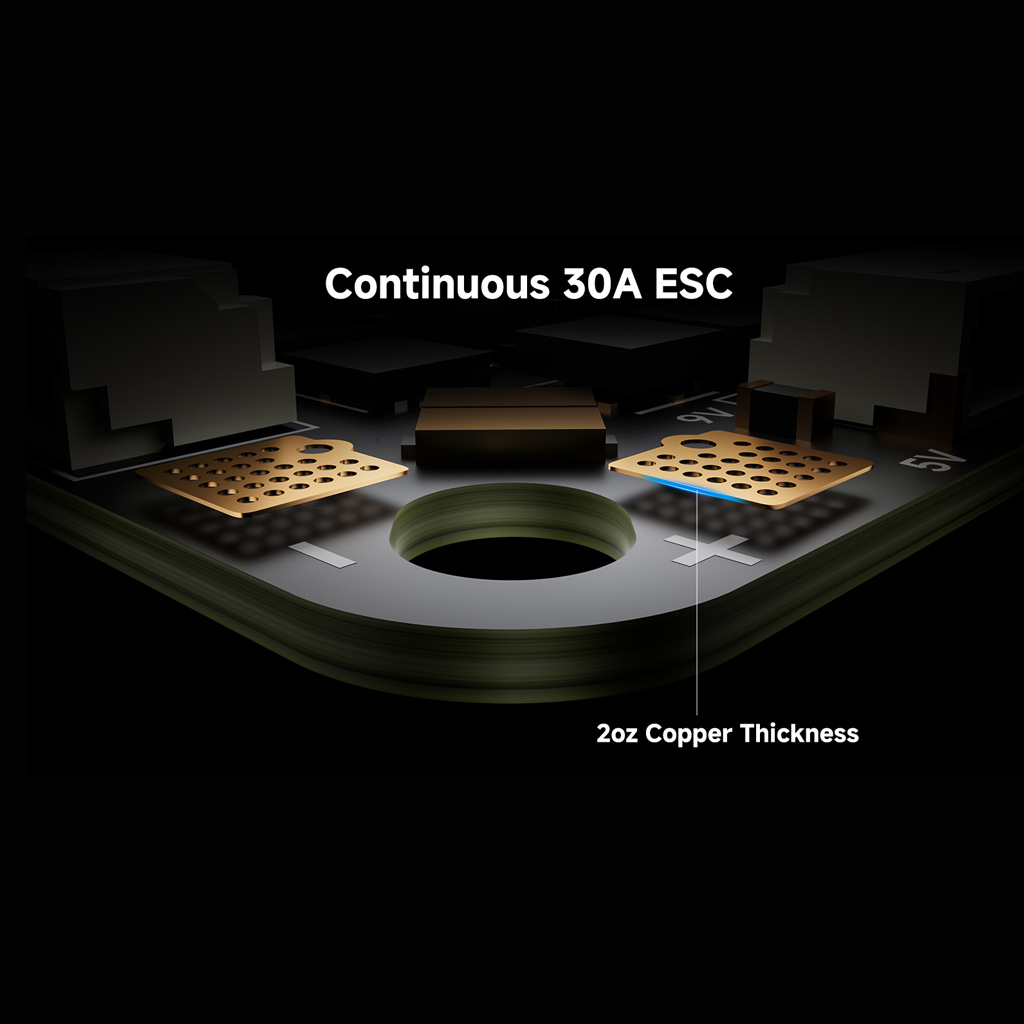

Continuous Current: 30A
ESC Firmware: Bluejay V0.19.2 (48KHz)
Firmware Target File: C-X-70 48KHz.hex
Digital Signal Protocols: DShot150, DShot300, DShot600

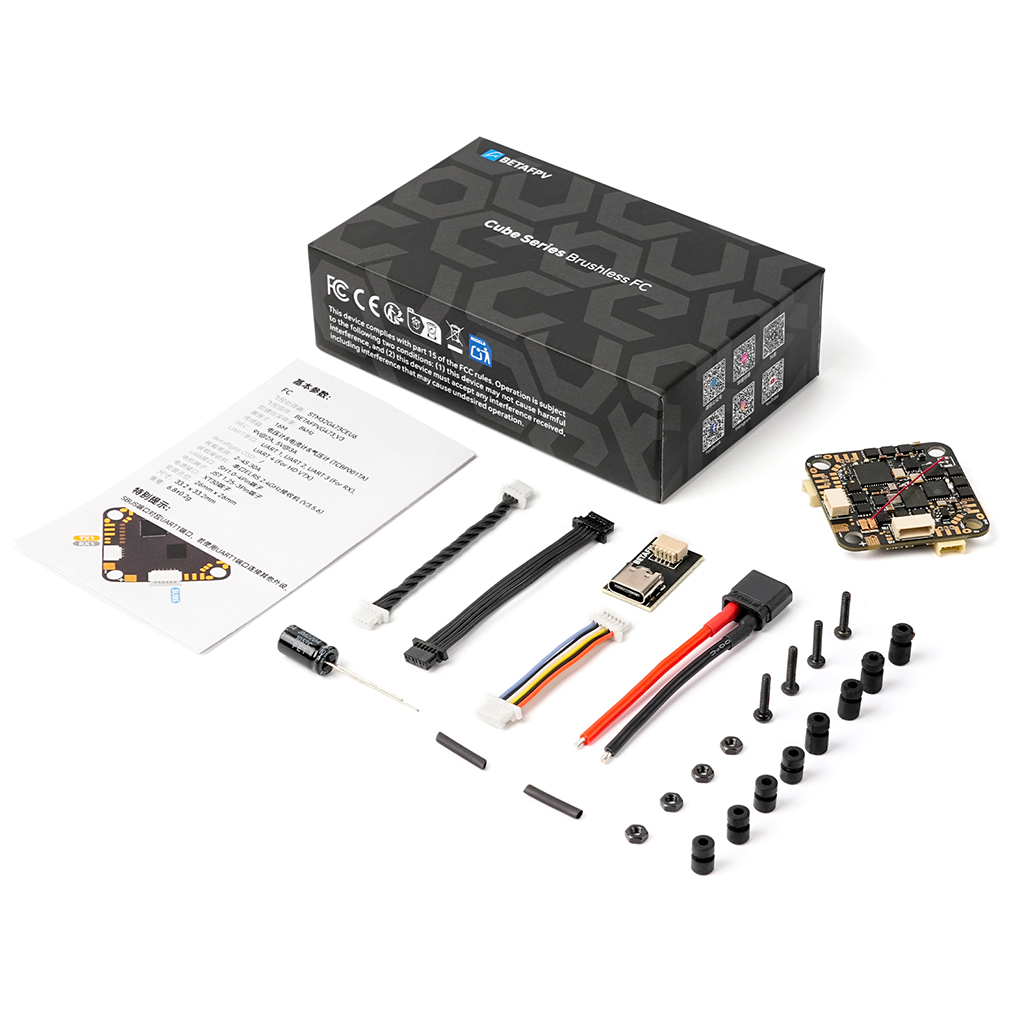

Packing List：
1 × Cube G4 2-4S 30A 3-In-1 Flight Controller
1 × 25V 220uF Capacitor
1 × 30mm Telemetry Cable
1 × 50mm Telemetry Cable
1 × 50mm XT30 Power Cable
1 × USB Adapter Board
1 × USB Extension Cable
4 × 8mm Anti-Vibration Dampers
4 × 6.6mm Anti-Vibration Dampers
4 × M2 Nuts
4 × M2×10 Screws
2 × 0.8mm Heat Shrink Tubing
