3.5MHz/7MHz/1.5MHz BNC-M BNC-F Interface Low-Pass Filter LC Discrete Component Fabrication Flat Passband Compact Design
-
Detail
- Product Name: 3.5MHz/7MHz/1.5MHz BNC-M BNC-F Interface Low-Pass Filter LC Discrete Component Fabrication Flat Passband Compact Design
- Item NO.: F54948 F54949 F54950
- Weight: 0.06 kg = 0.1323 lb = 2.1164 oz
- Category: Consumer Electronics
- Creation Time: 2025-12-19
3.5MHz/7MHz/1.5MHz BNC-M BNC-F Interface Low-Pass Filter LC Discrete Component Fabrication Flat Passband Compact Design
3.5 MHz:
Features:
Compact size, flat passband, high out-of-band rejection
Applications:
Laboratory use
Other high-selectivity applications
Model:
ZFL-3M5
Nominal impedance: 50 Ω
Insertion loss:
≤ 1.5 dB @ DC - 2.5 MHz
≤ 2.0 dB @ 2.5 - 3.5 MHz
>40 dB @ 8.0 MHz
>50 dB @ 10 - 700 MHz
Maximum Power Handling: 5W (37dBm)
Interfaces: BNC-M (Male Connector, Inner Pin), BNC-F (Female Connector, Outer Pin)
For custom dual-female connectors or TNC interfaces, please contact us!

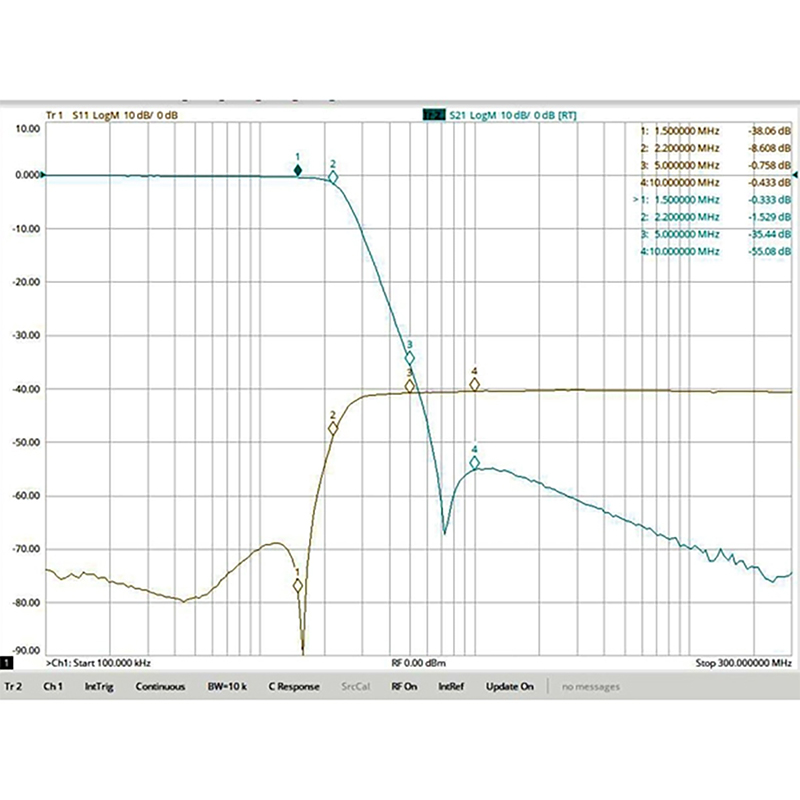

Frequency Response Plot:
(Sweep range: 1-1000MHz logarithmic scale; orange line indicates transmission loss,
brown line indicates reflection loss; vertical scale is 10dB per division)
