ADT-Link PCIE 5.0 x16 to OCP NIC3.0 Gen-Z 4C+/SFF-TA-1002 Lateral Adapter Card Compatible for Gen3/Gen4 Laptop
-
Detail
- Product Name: ADT-Link PCIE 5.0 x16 to OCP NIC3.0 Gen-Z 4C+/SFF-TA-1002 Lateral Adapter Card Compatible for Gen3/Gen4 Laptop
- Item NO.: F54453
- Weight: 0.1188 kg = 0.2619 lb = 4.1905 oz
- Category: Consumer Electronics
- Creation Time: 2025-08-08
ADT PCIe 5.0 x16 to Gen-Z 4C+/SFF-TA-1002 Adapter Card OCP NIC 3.0 High Performance External PCIe x16 Bifurcation Expansion Card for Gen3/Gen4 Laptop
Company Brand: ADT

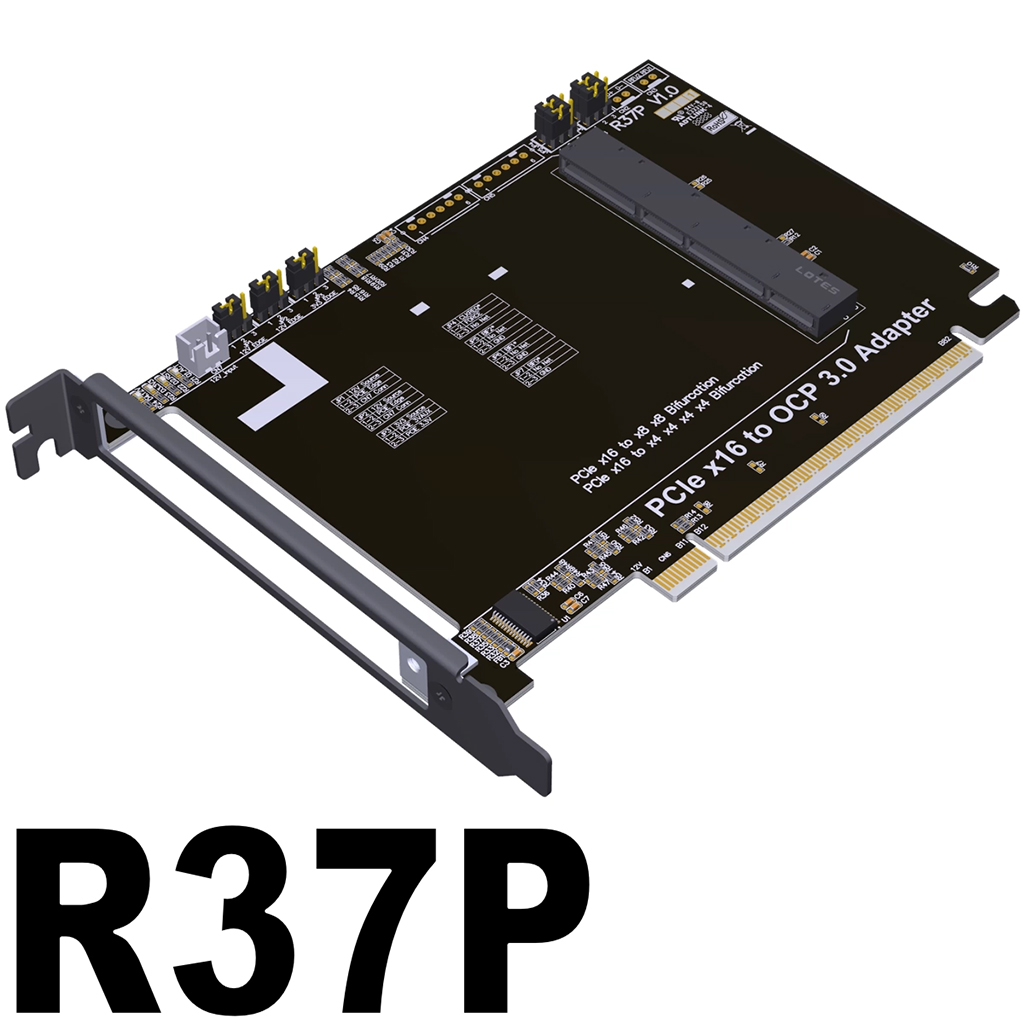

Product Model: R37P
Product Name: PCIe x16 to OCP NIC 3.0 Side-Mount Adapter Card
Speed Bandwidth: PCIe 5.0 x16
Purchasing Tips: Be sure to purchase 1-2 samples for testing and verification before purchasing in bulk.
Product Dimensions: All dimensions are maximum values
Length 163.65mm × Height 121mm × Thickness 21.6mm
Product Weight: 73.6g
Colour: Black
Operating Temperature: -40°C to 80°C
Flame Retardant Rating: 94V0

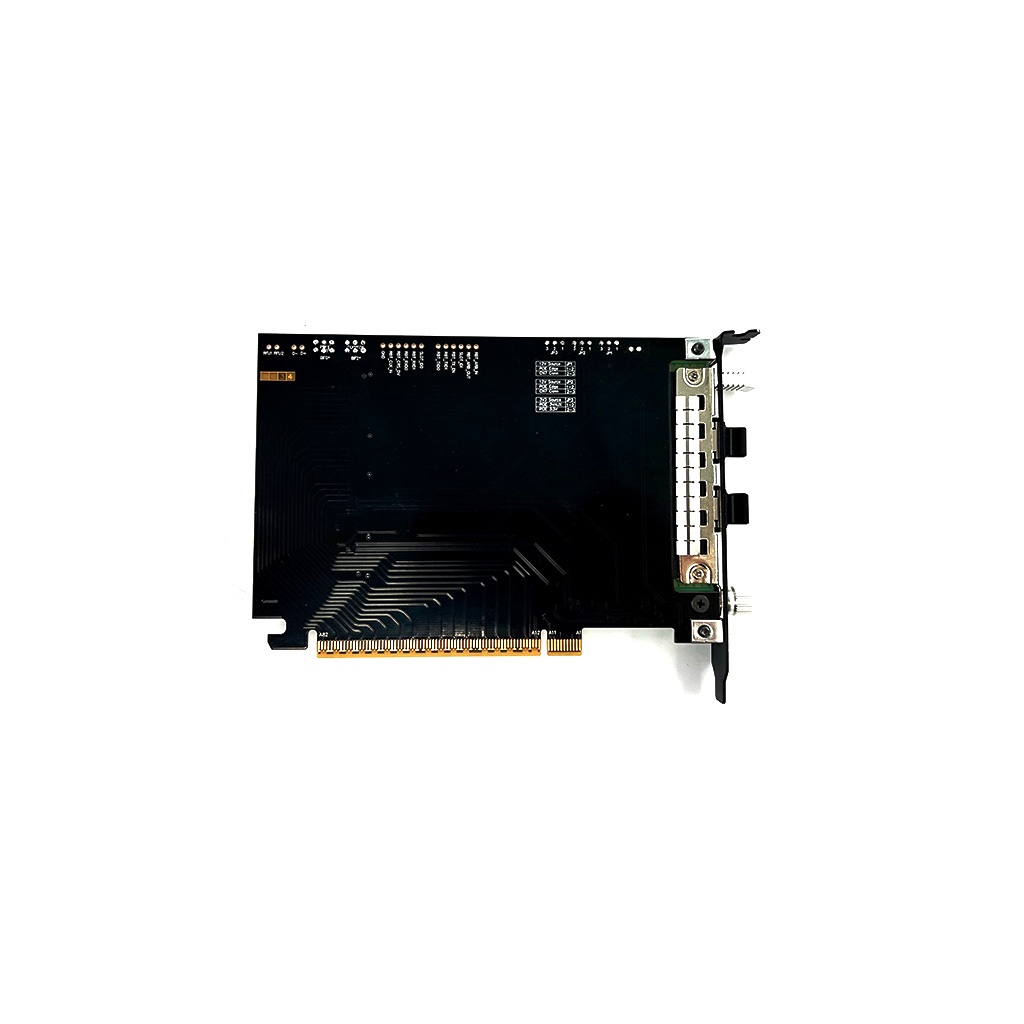

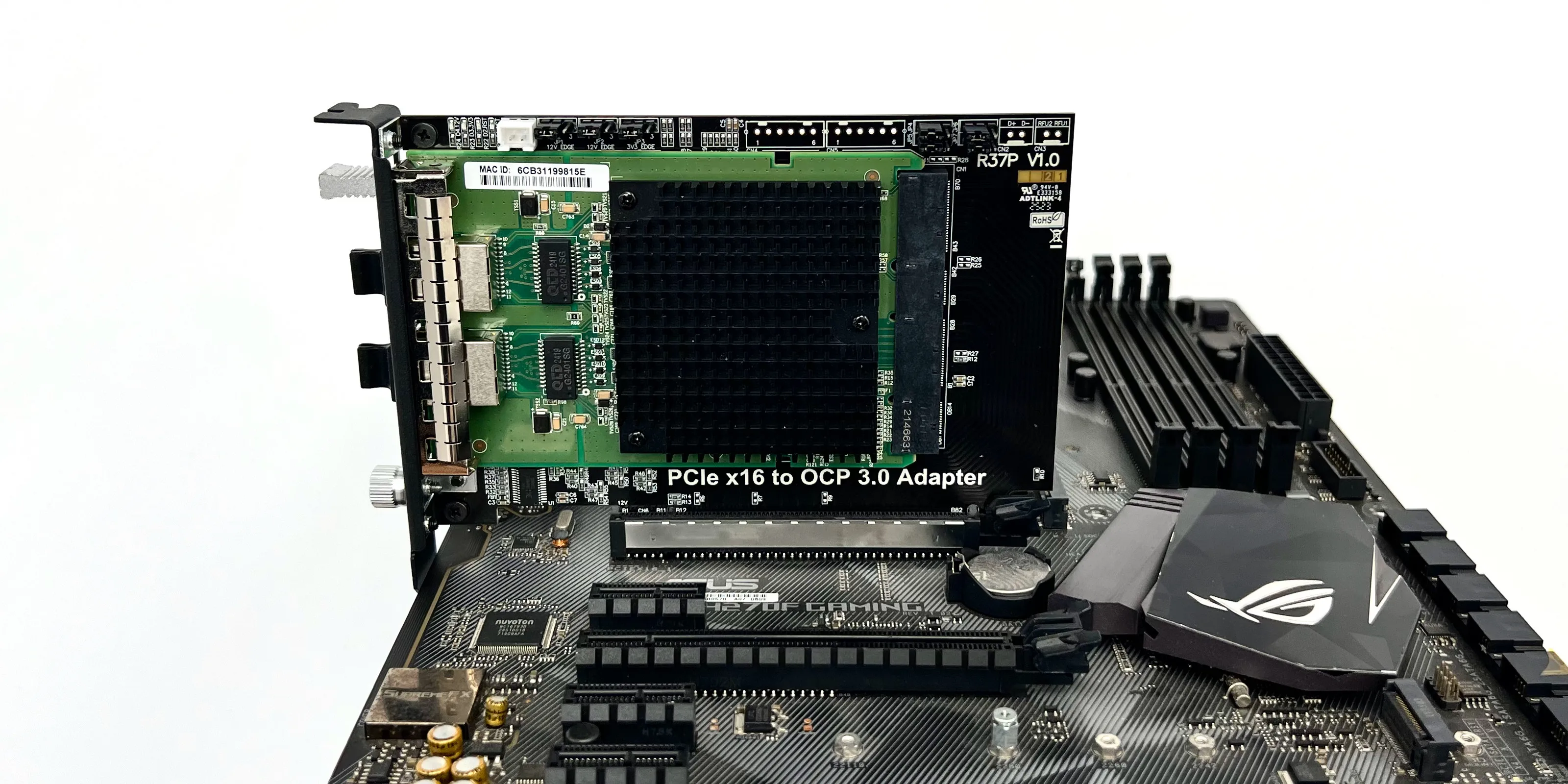

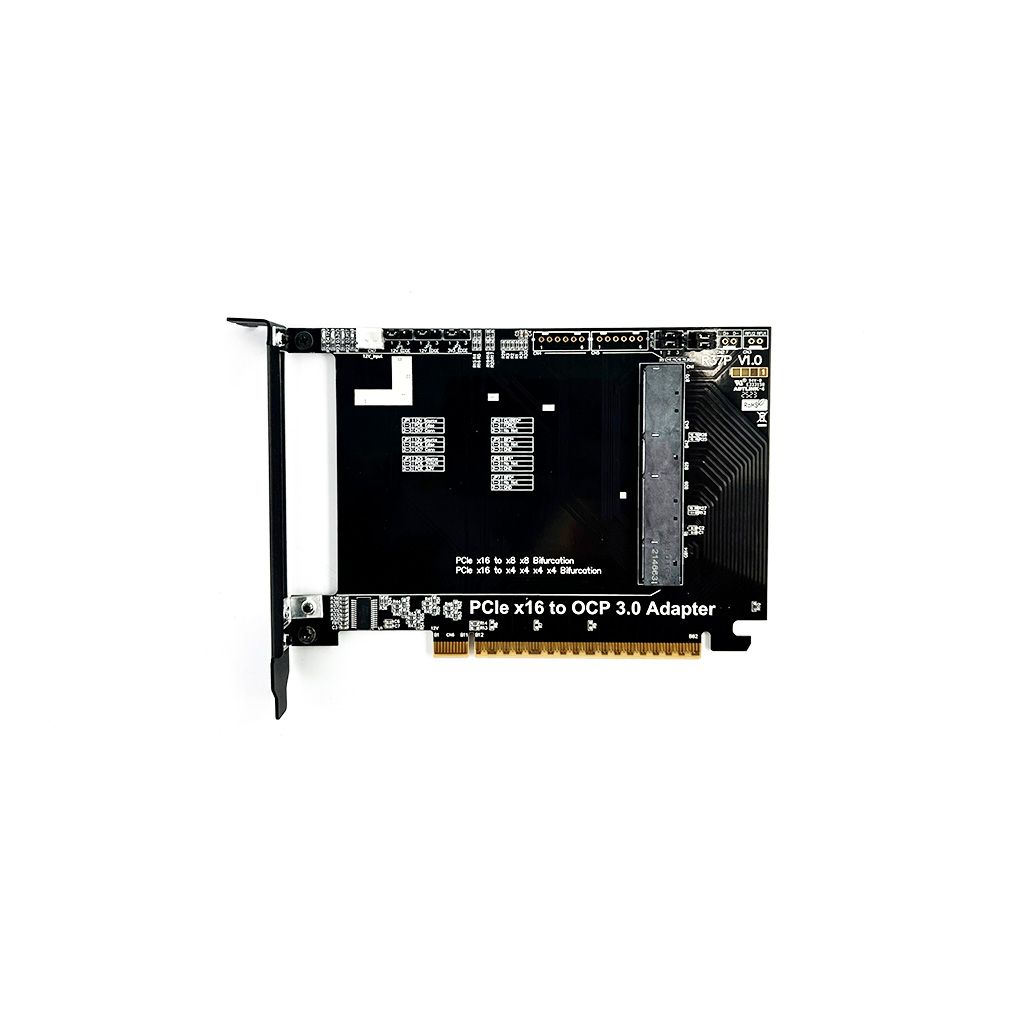

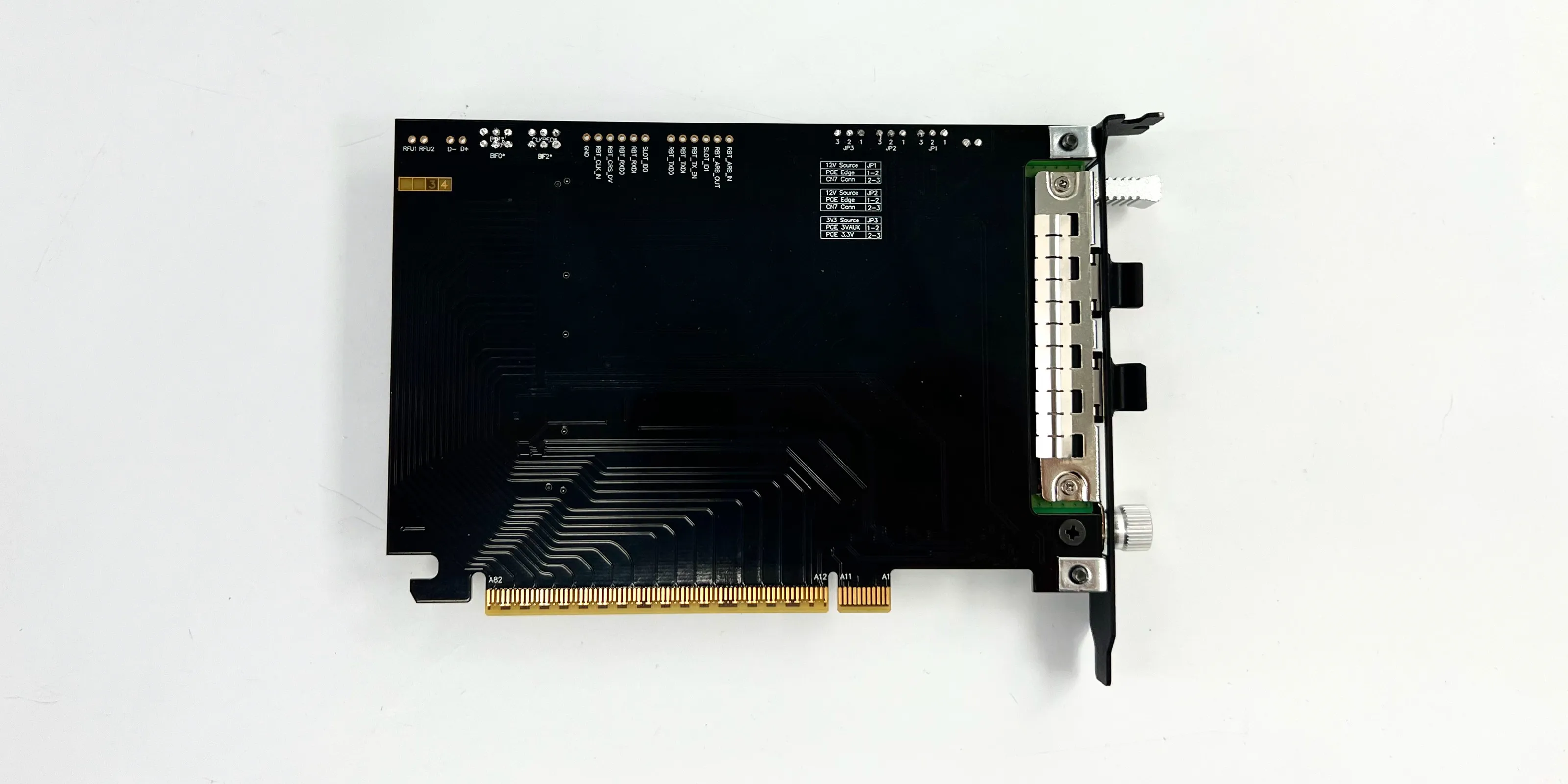

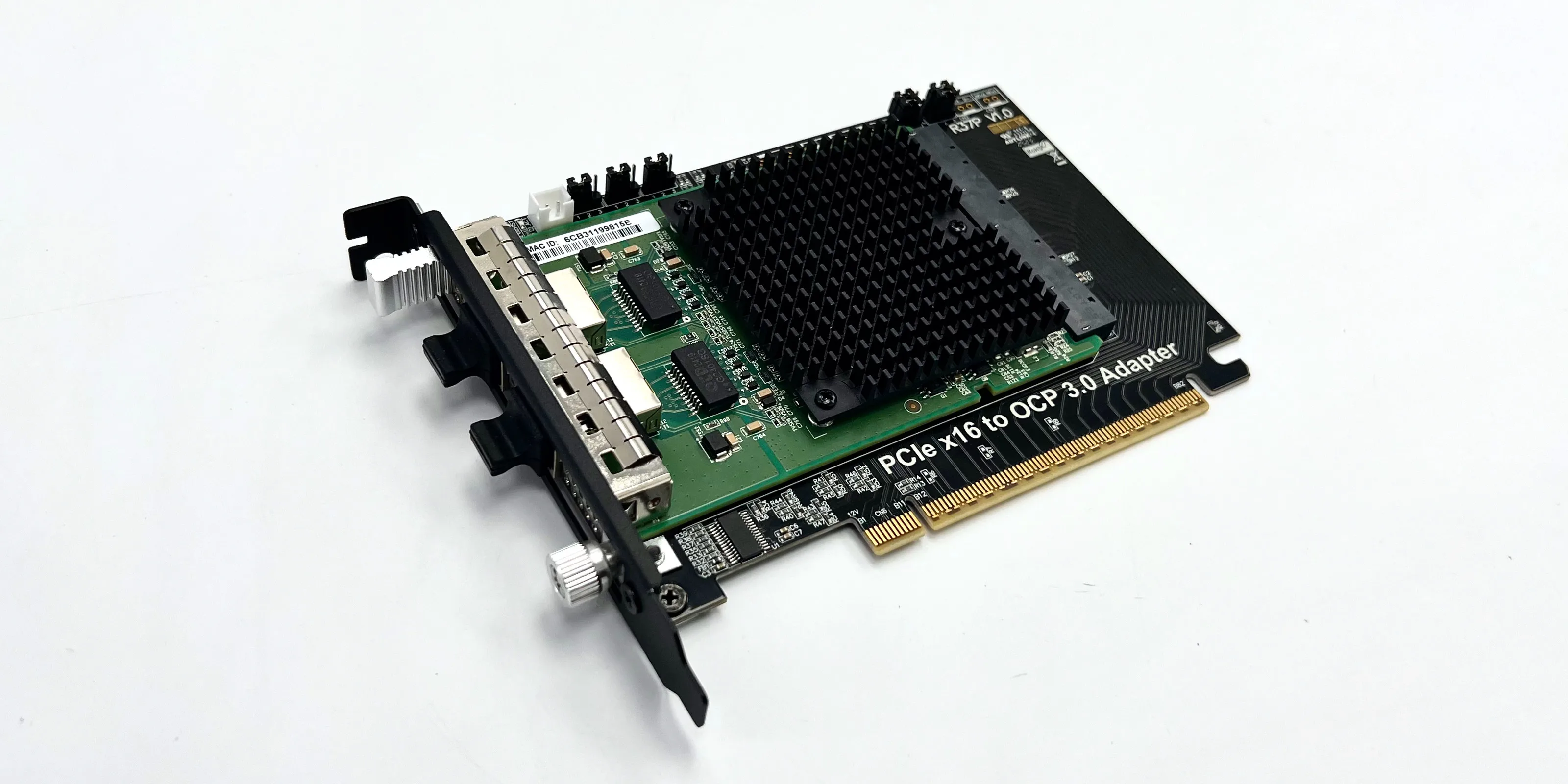

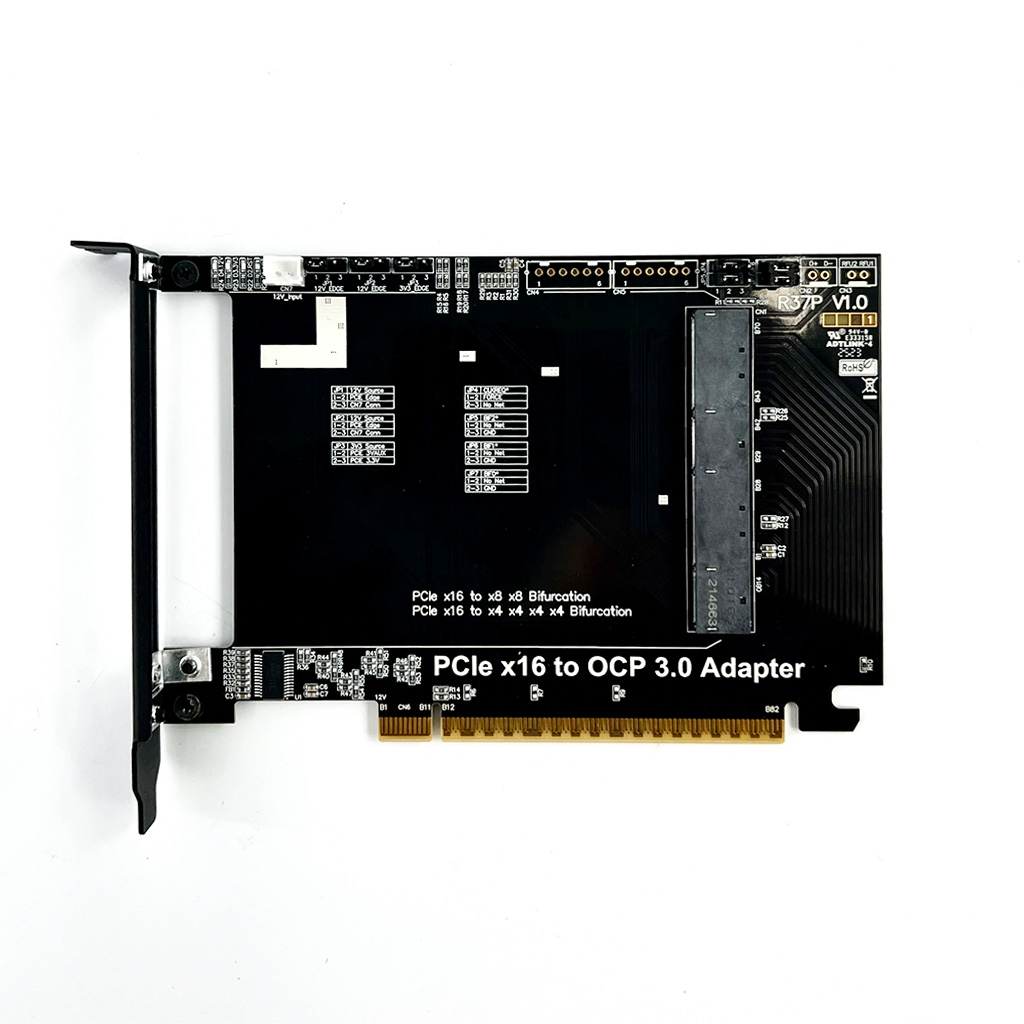

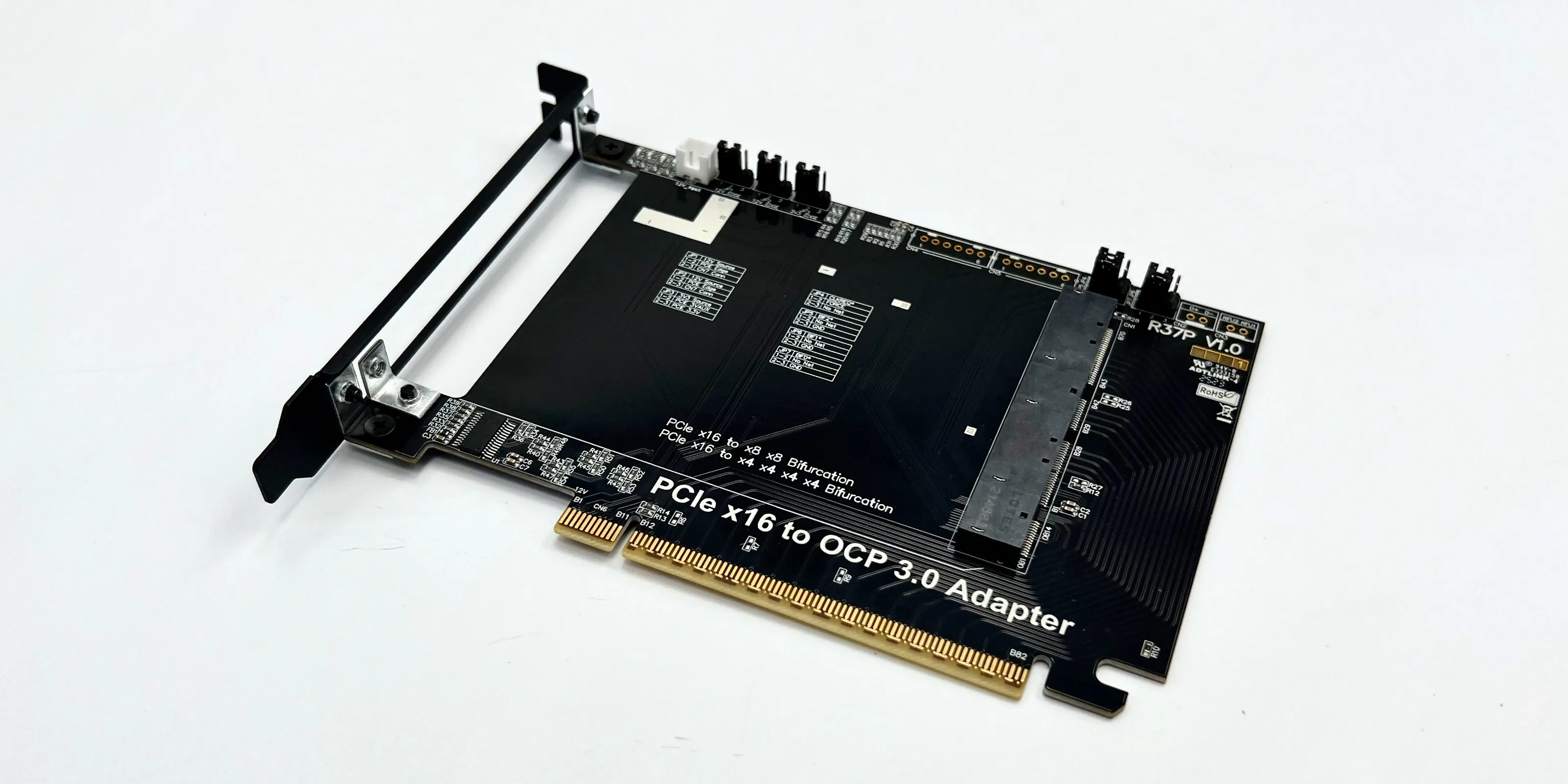

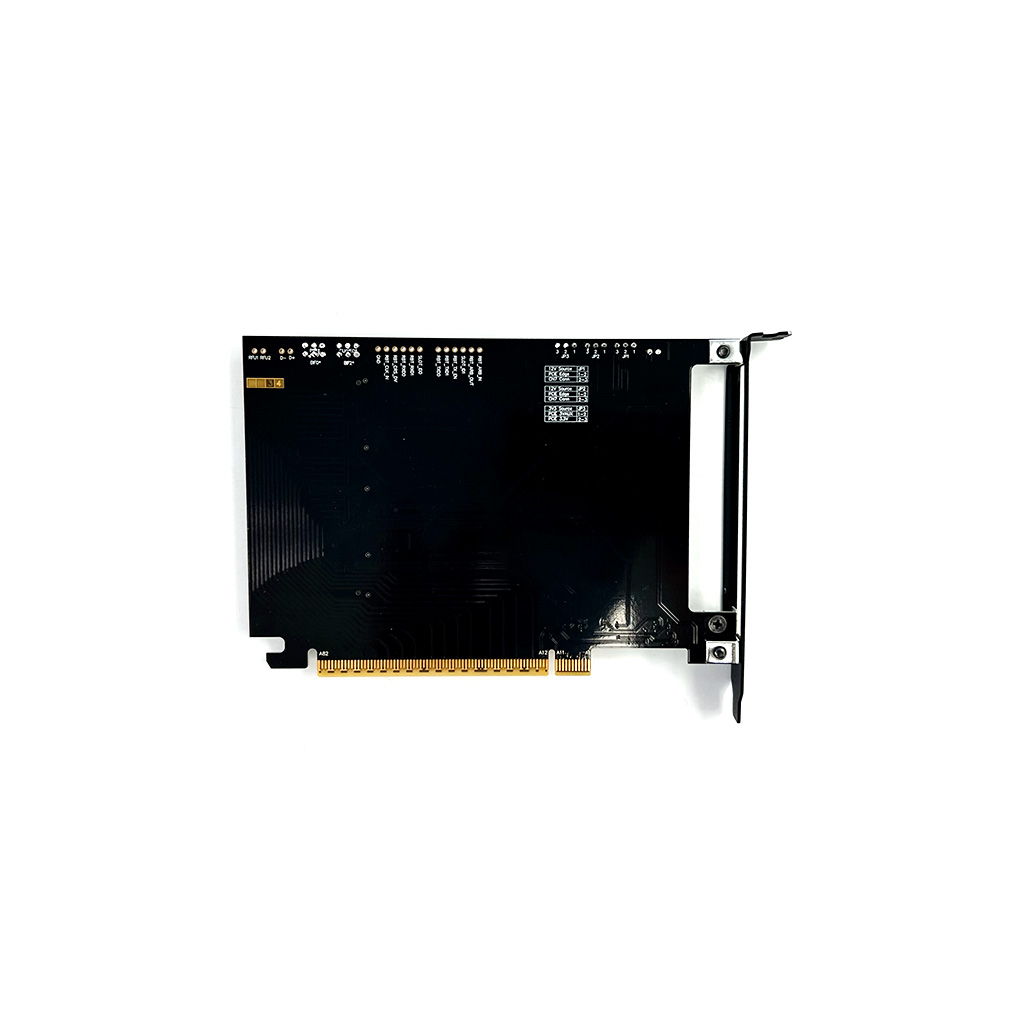

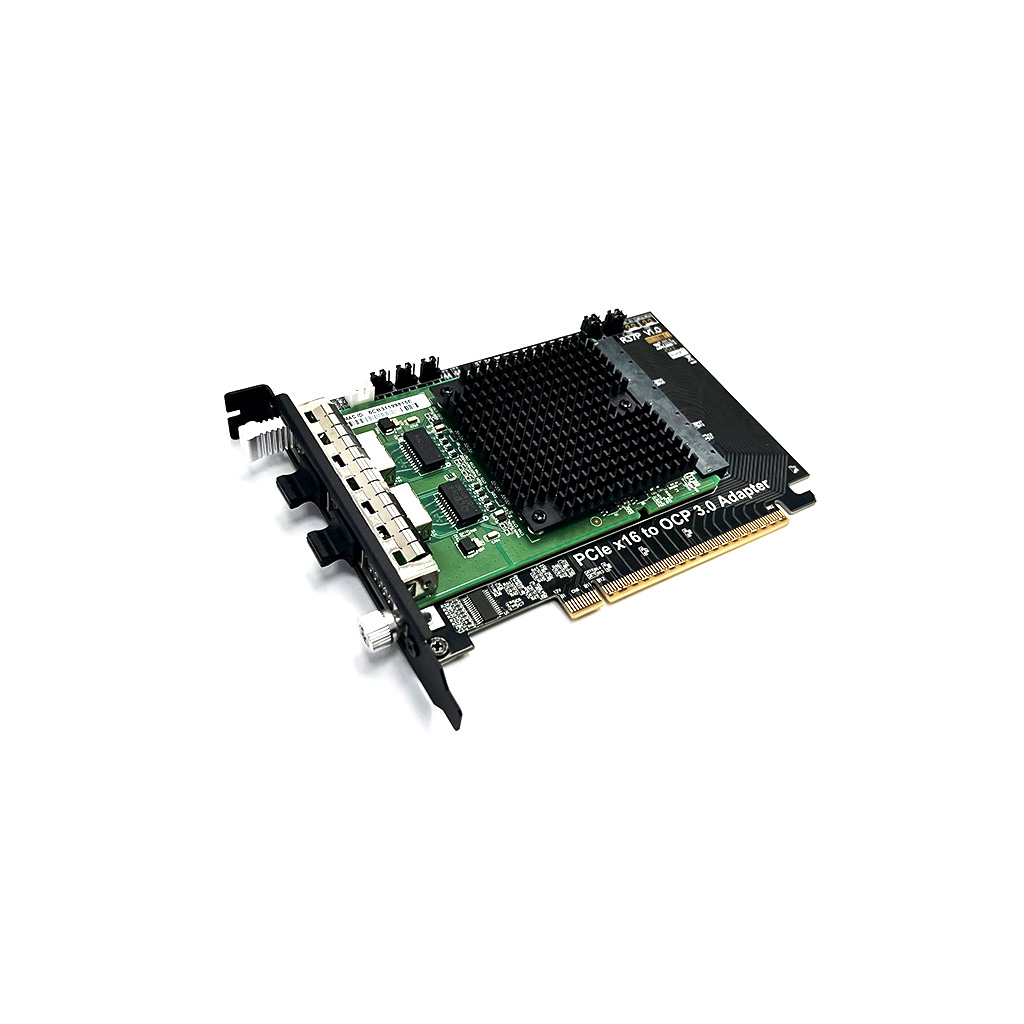

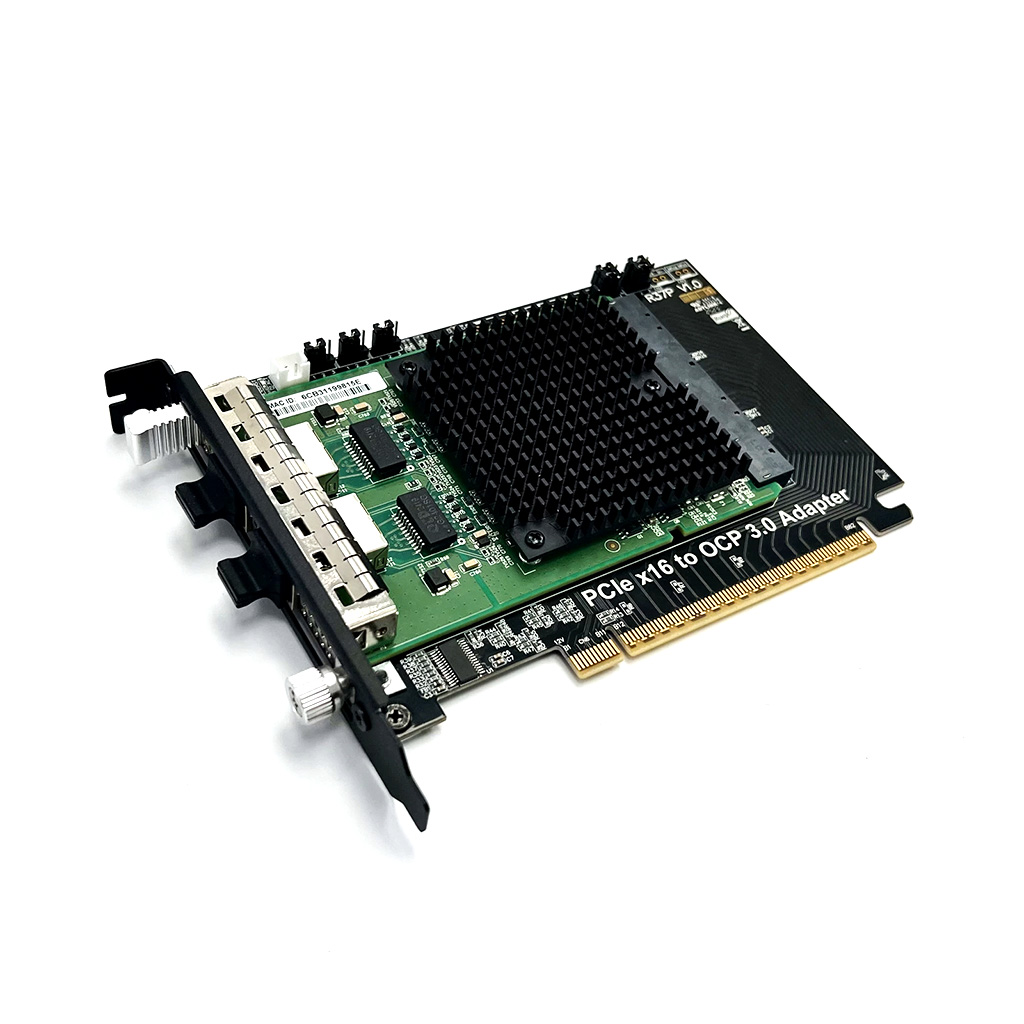

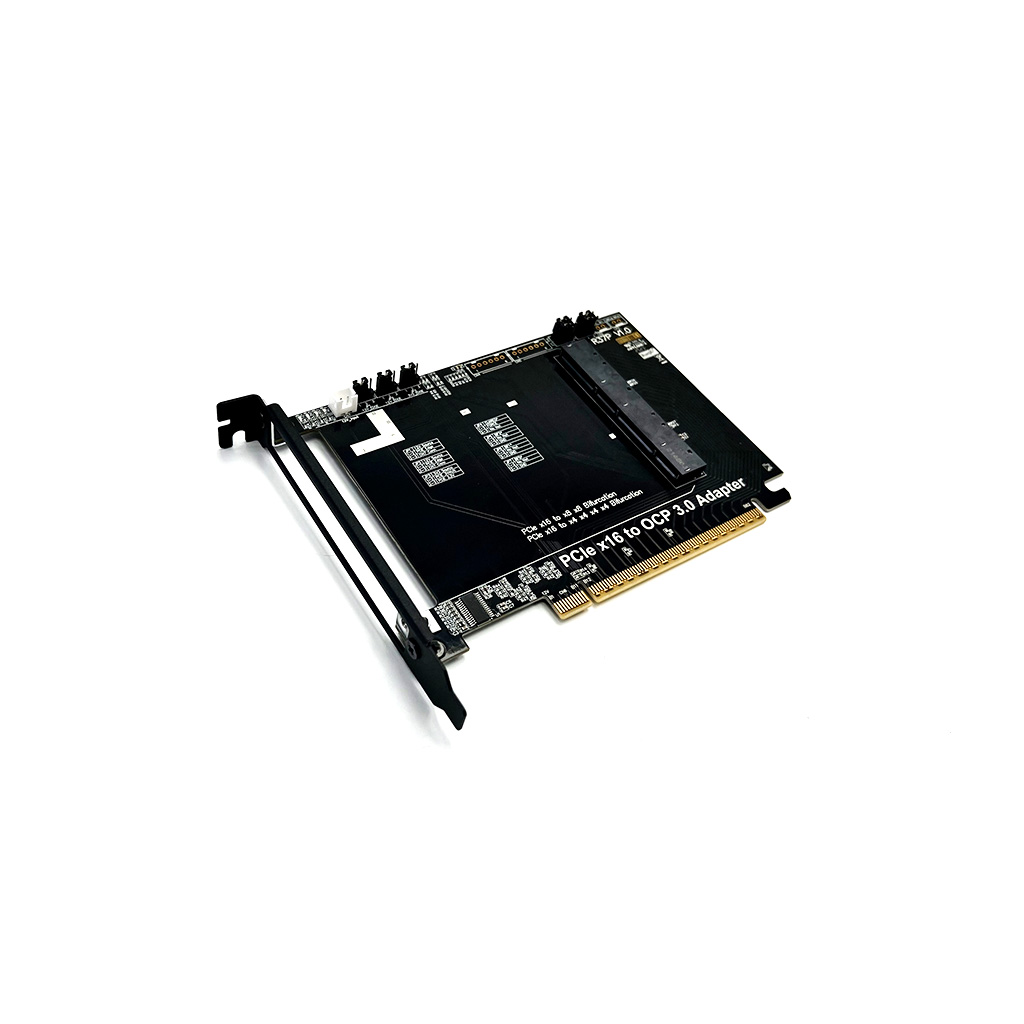

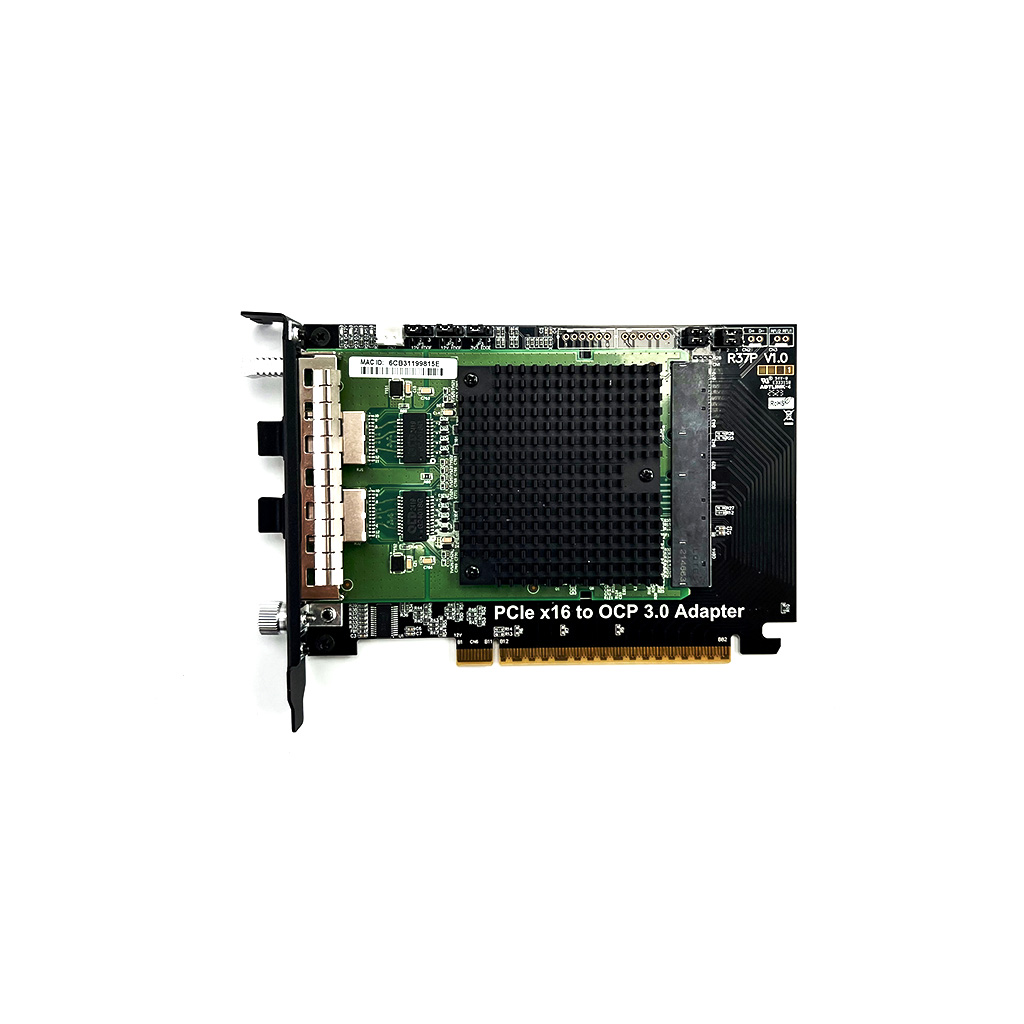

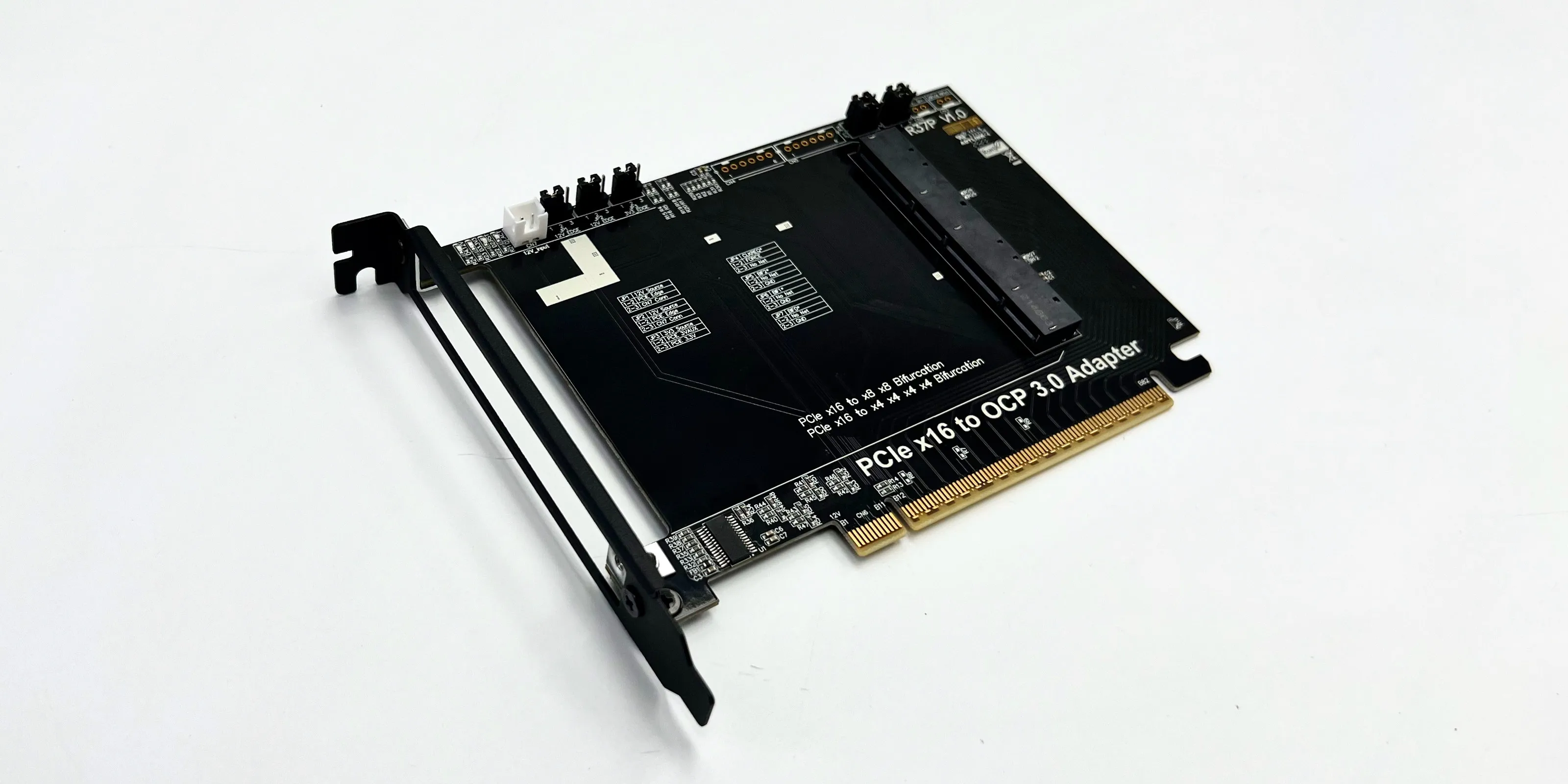

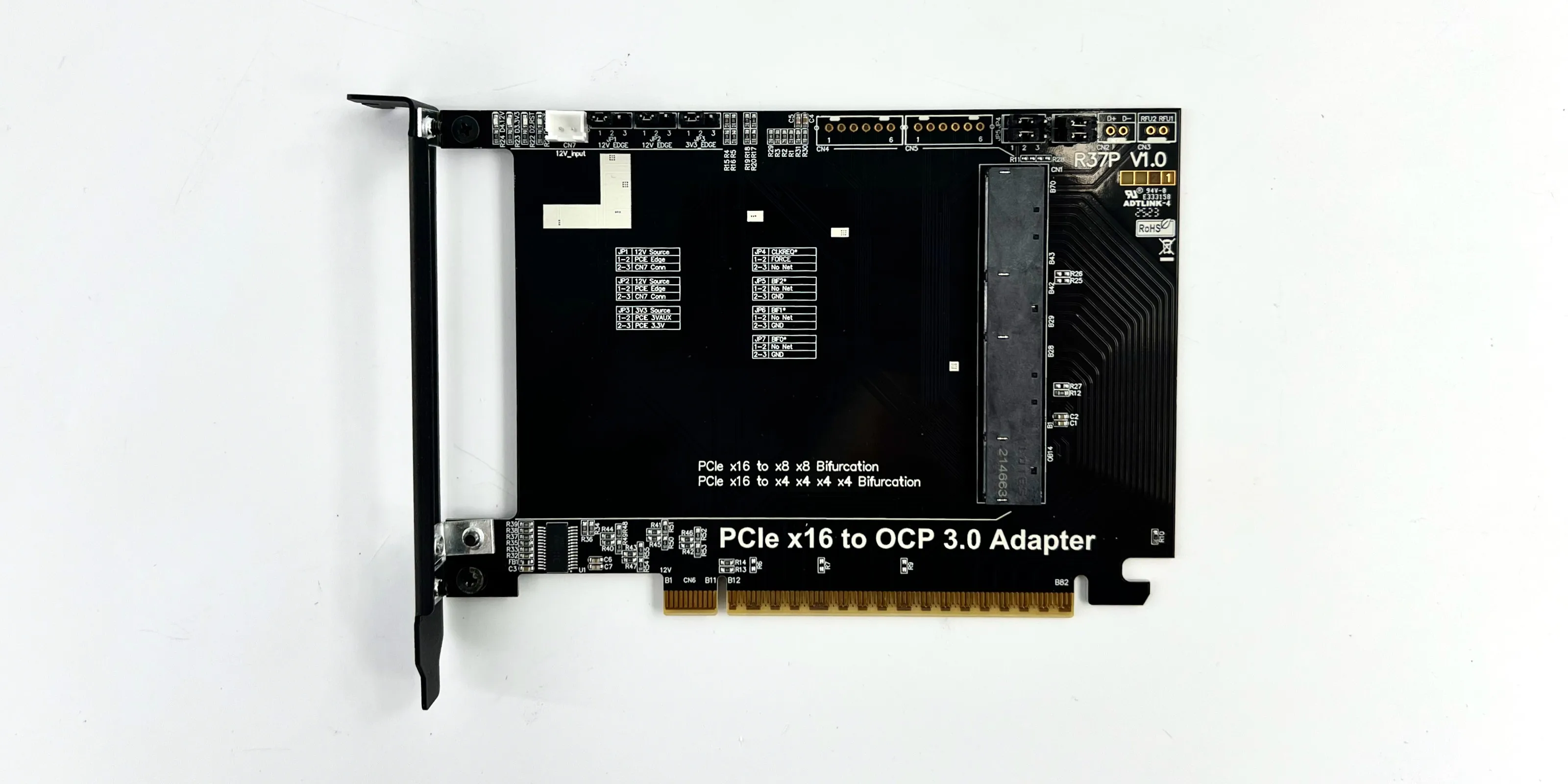

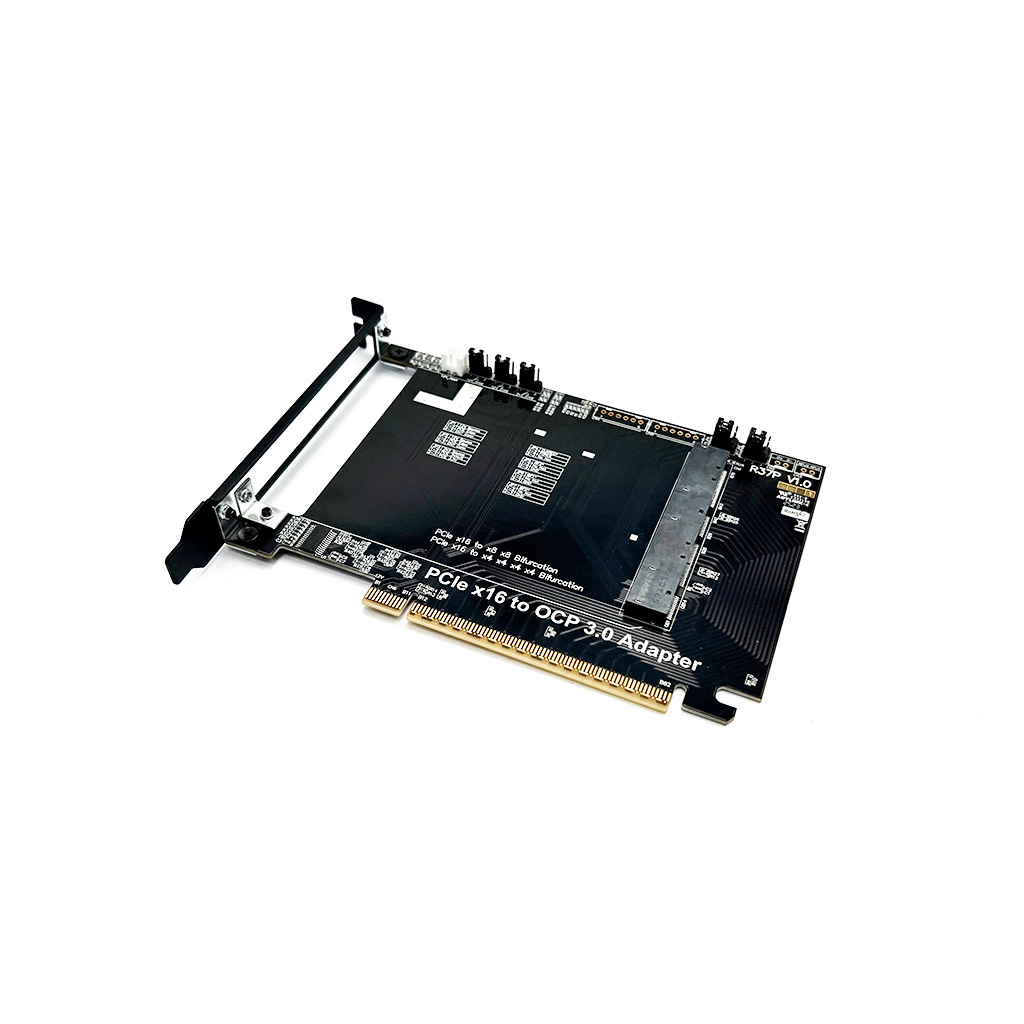

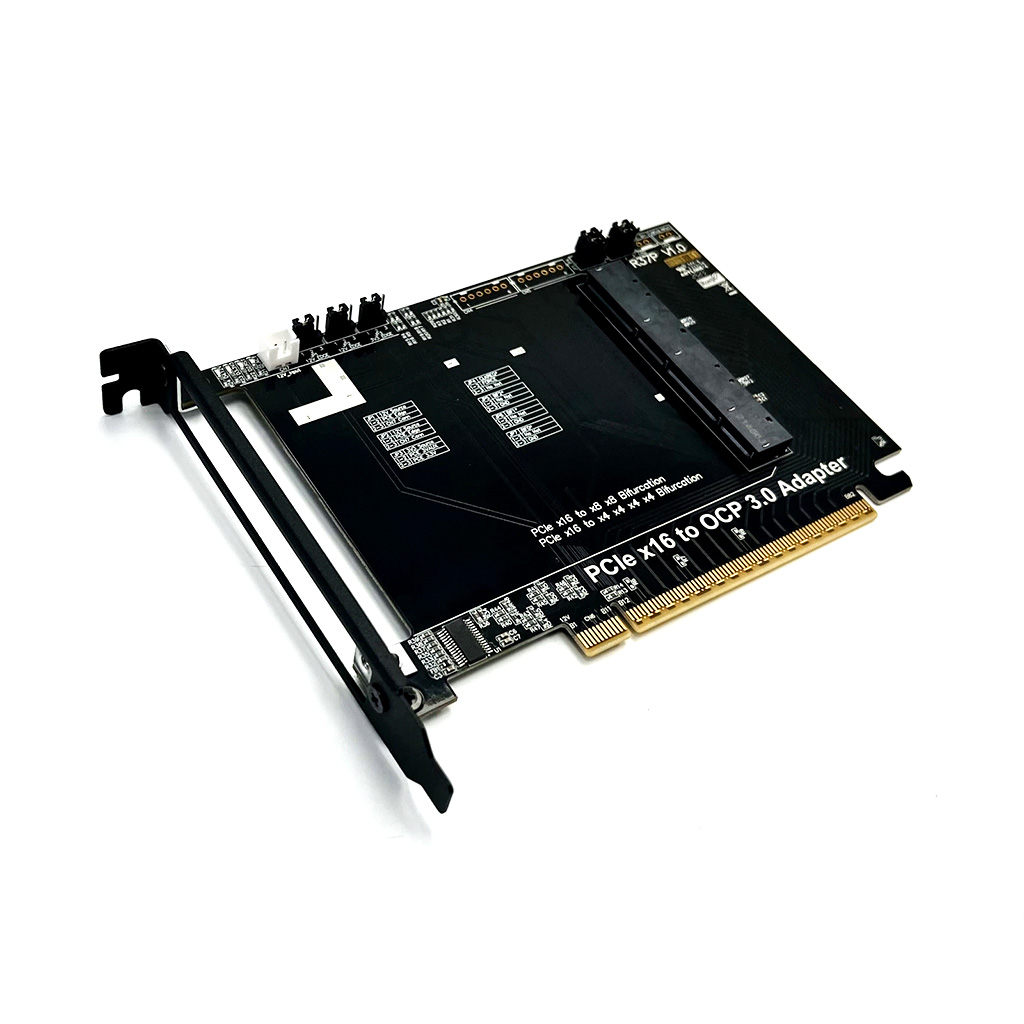

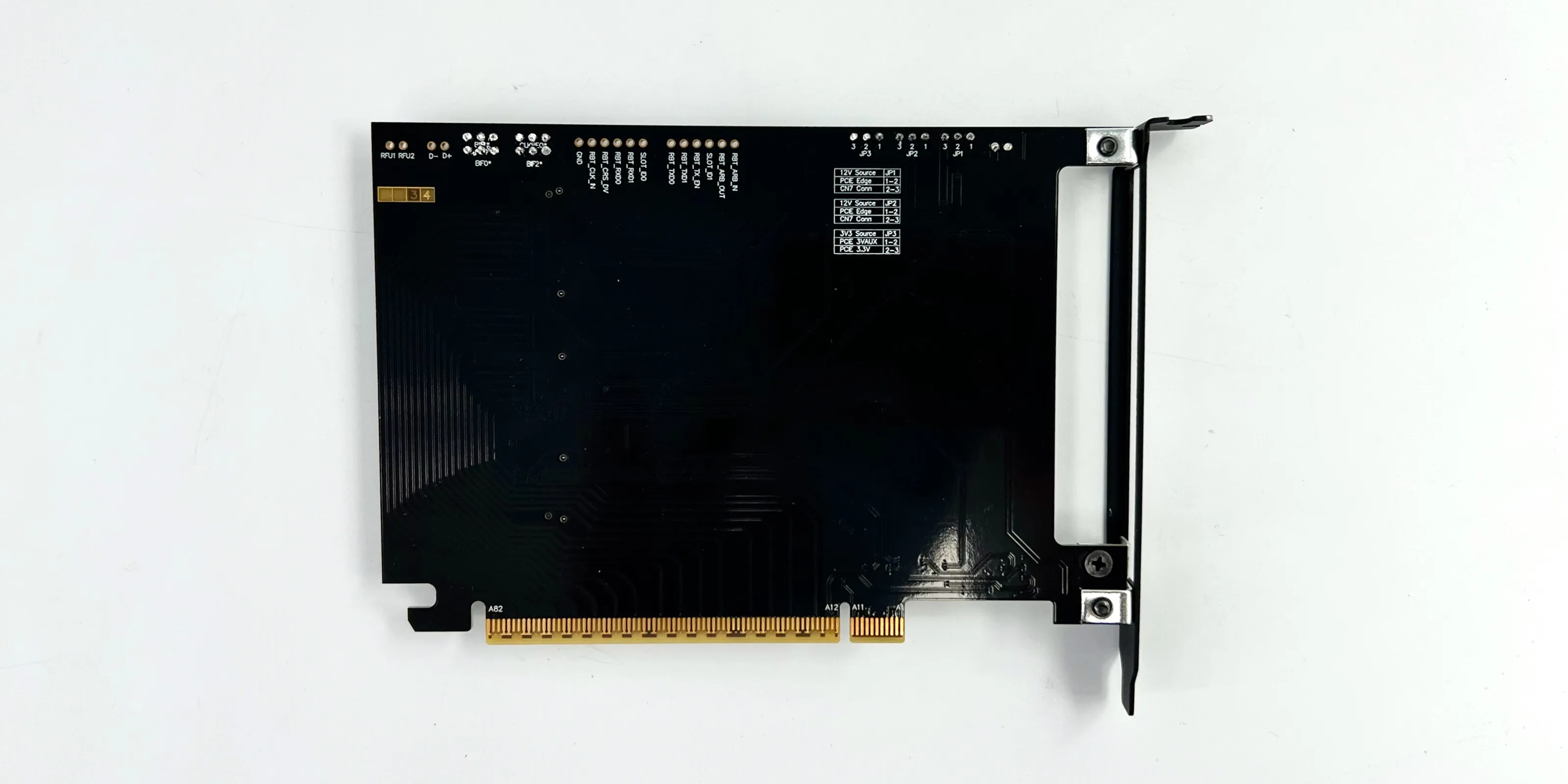

Product photos

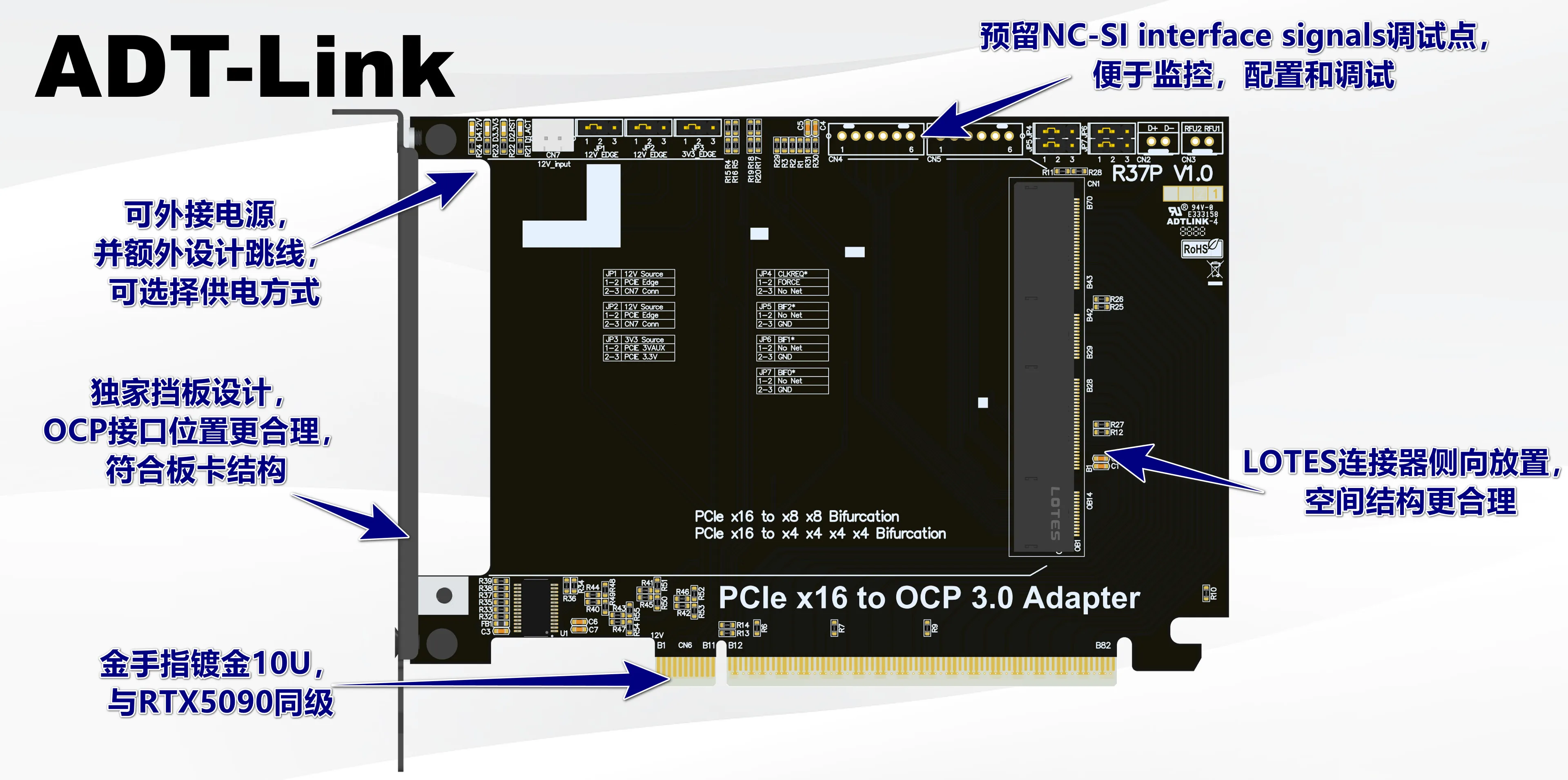

Product advantages:
1. Supports PCIe 4.0 x16, compatible with Gen3/Gen4

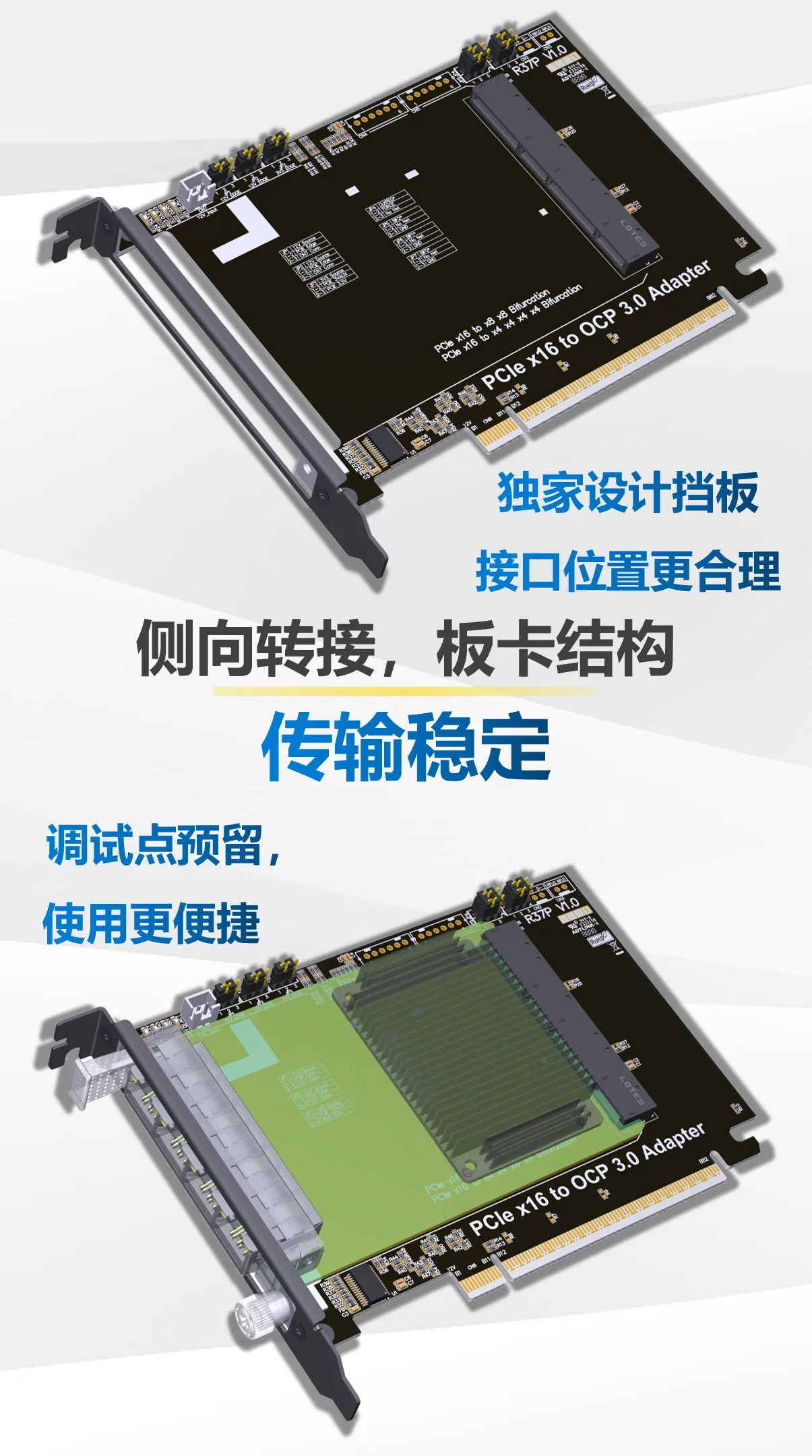

2. Exclusive R37P bracket design, supports OCP network card interface extension to the outside of the chassis
3. Side-mounted connectors for a more rational space structure
4. Optional external power supply design, with the motherboard and external circuitry operating on separate circuits, providing protection for the motherboard circuitry
5. Gold-plated fingers with a gold thickness of 10U, compliant with IPC Class 1 international standards
6. LOTES connectors made of LCP flame-retardant, high-temperature-resistant plastic steel material
7. High-frequency, low-resistance, high-temperature-resistant, anti-oxidant PCB board material, which does not deform, has a yellow crystal semi-transparent colour, and does not turn white or black
Technical FAQ:
Does the R37P model support PCIe 4.0?
Laboratory testing shows that it can still achieve PCIe 4.0 after daisy-chaining

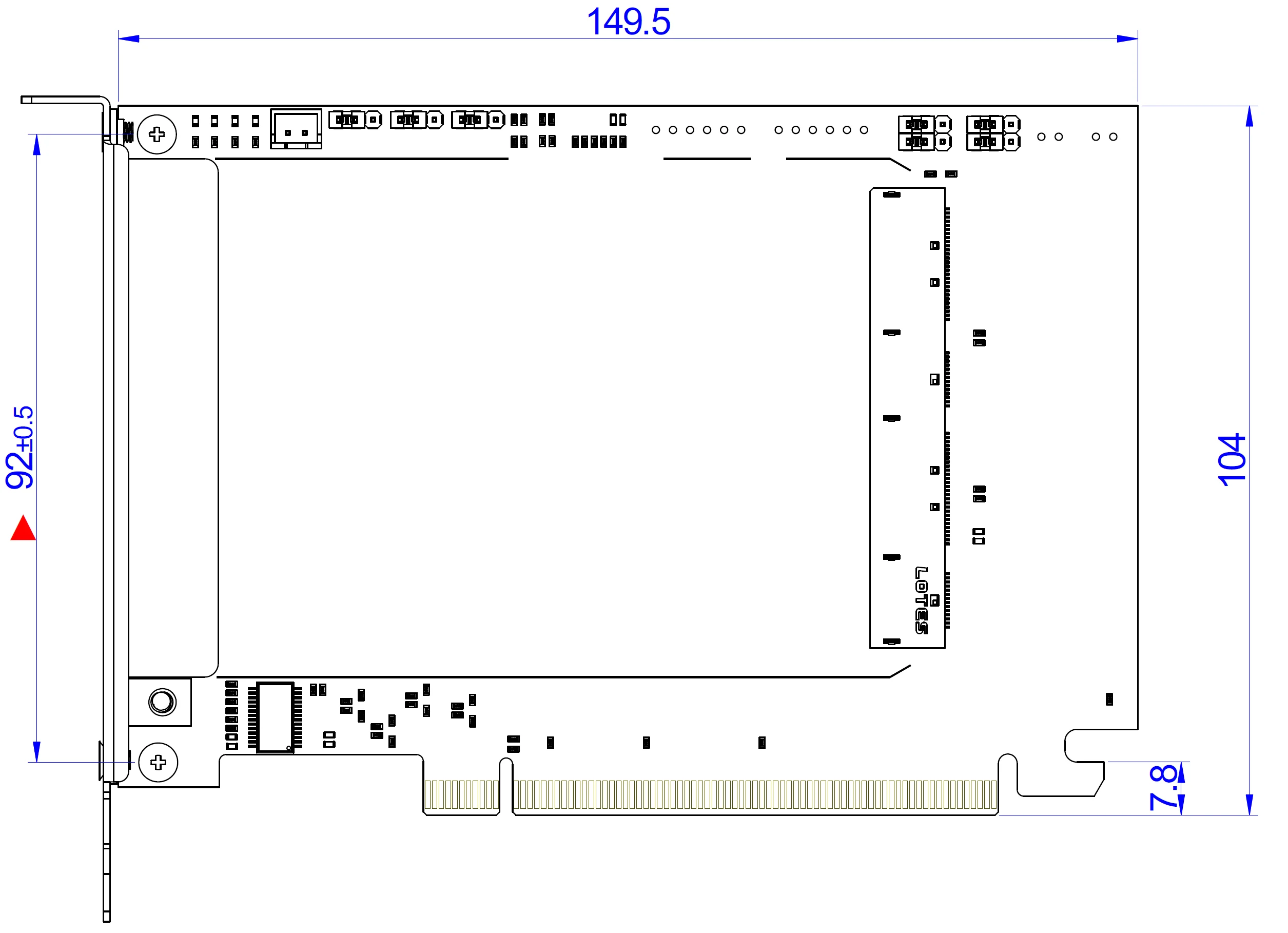

Dimension diagram of the R37P model:

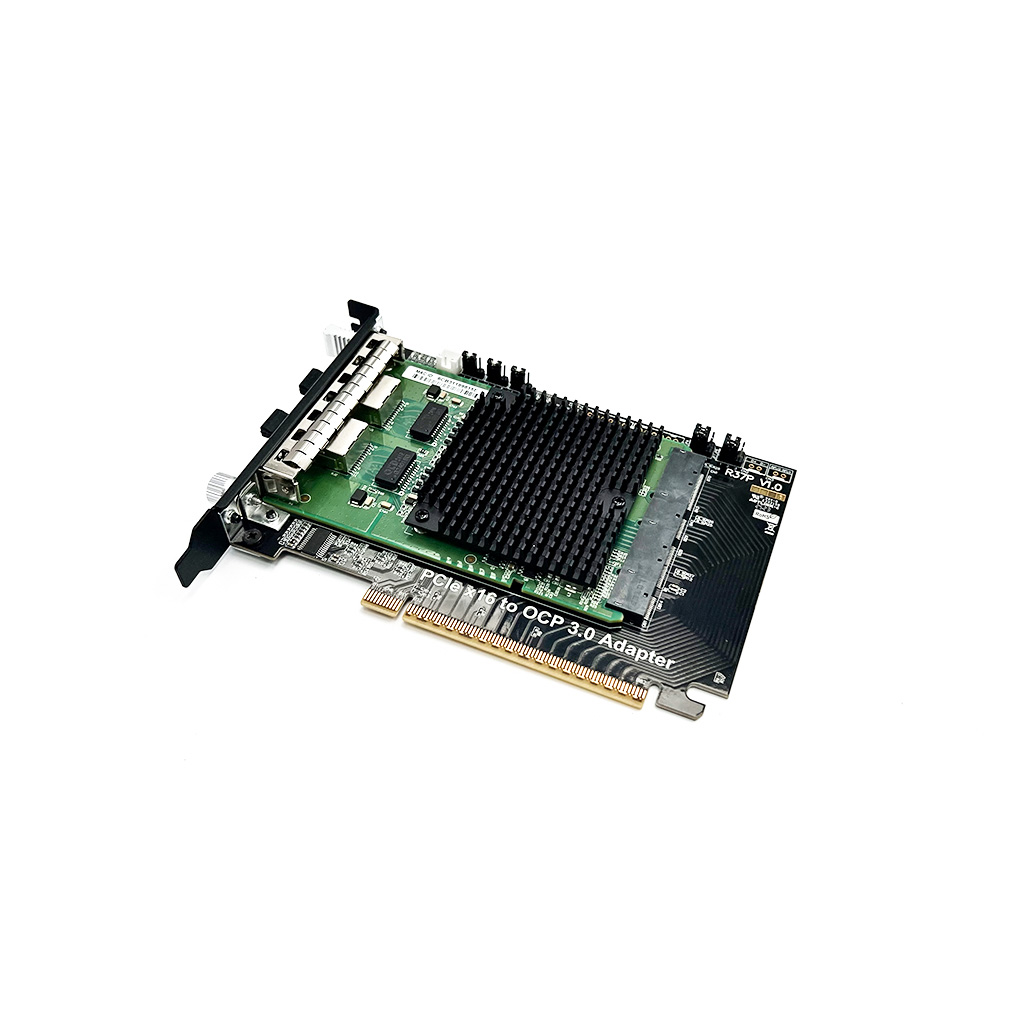

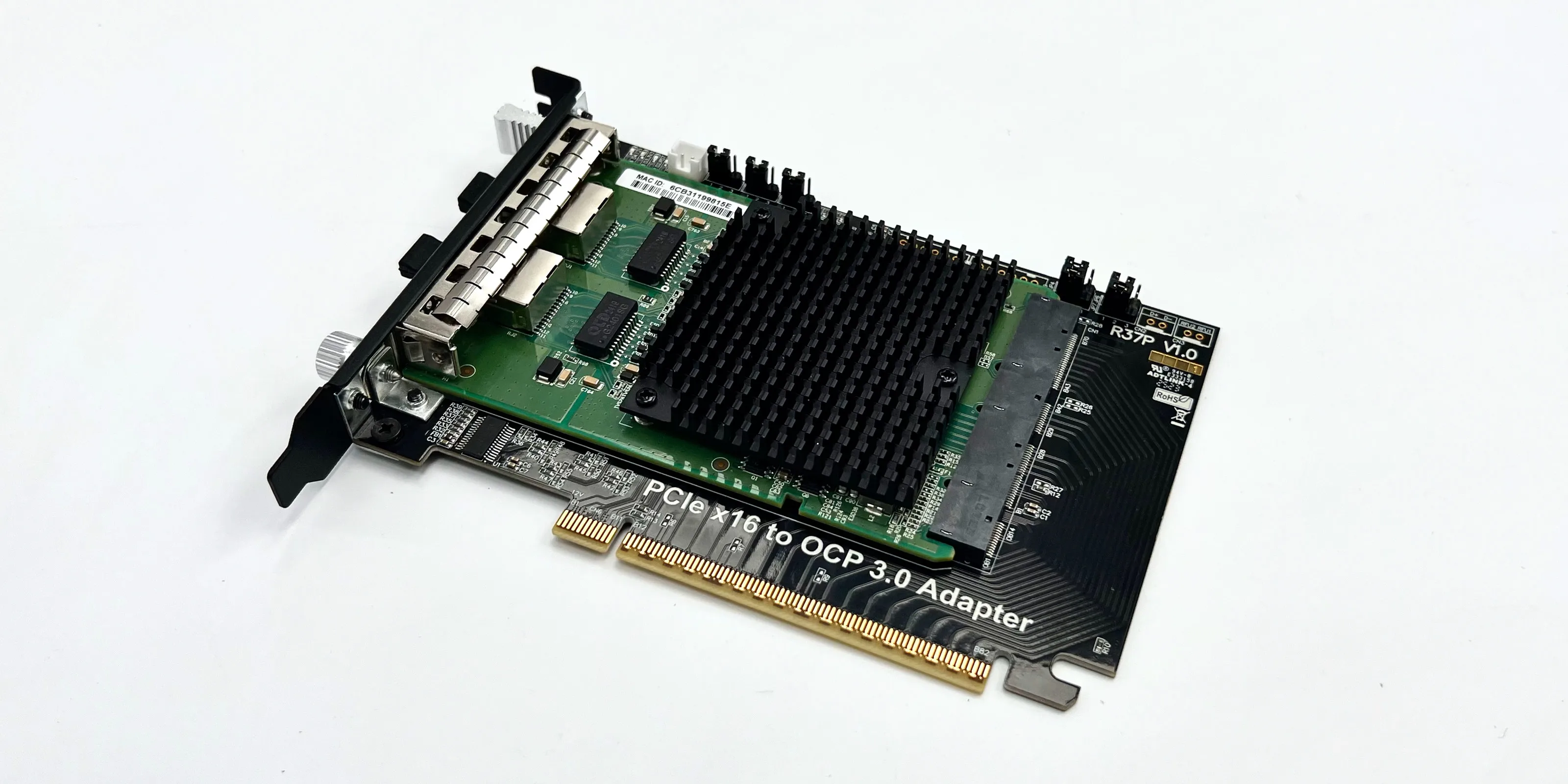

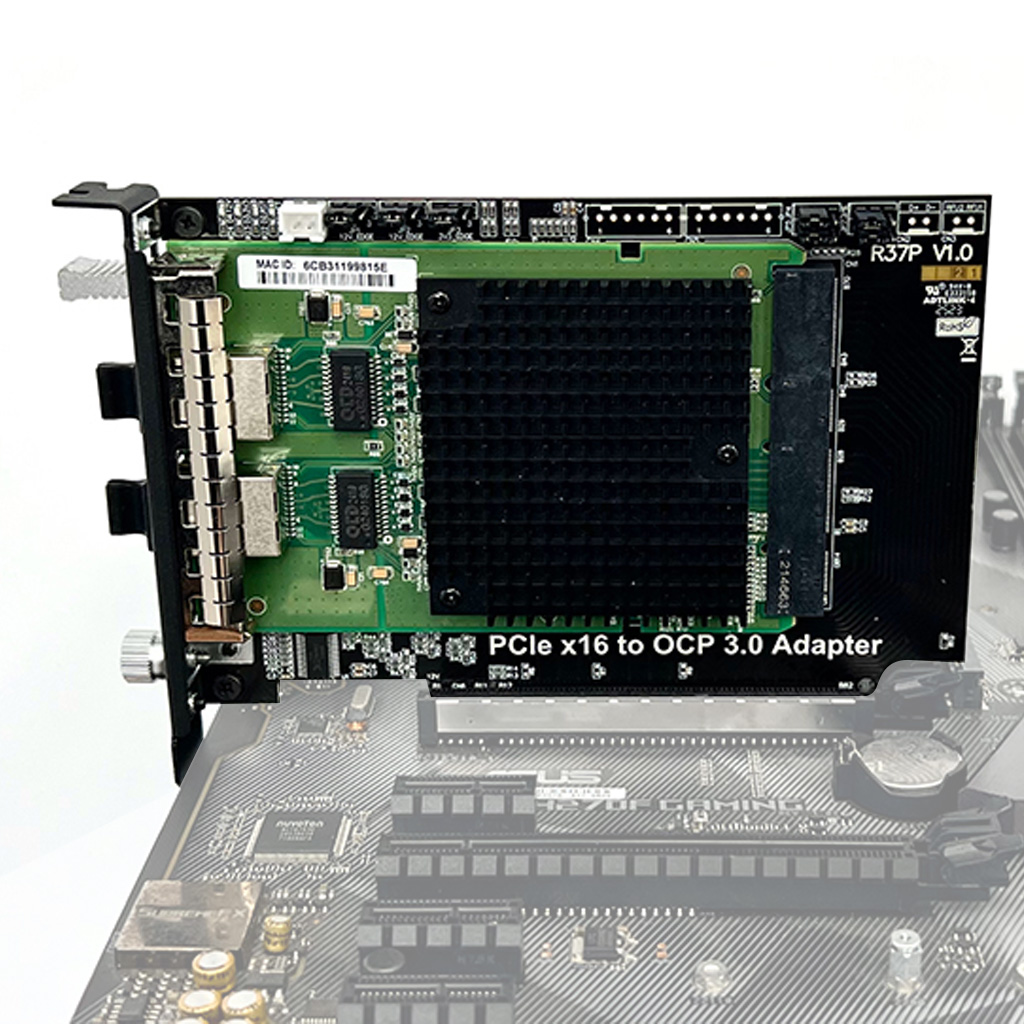

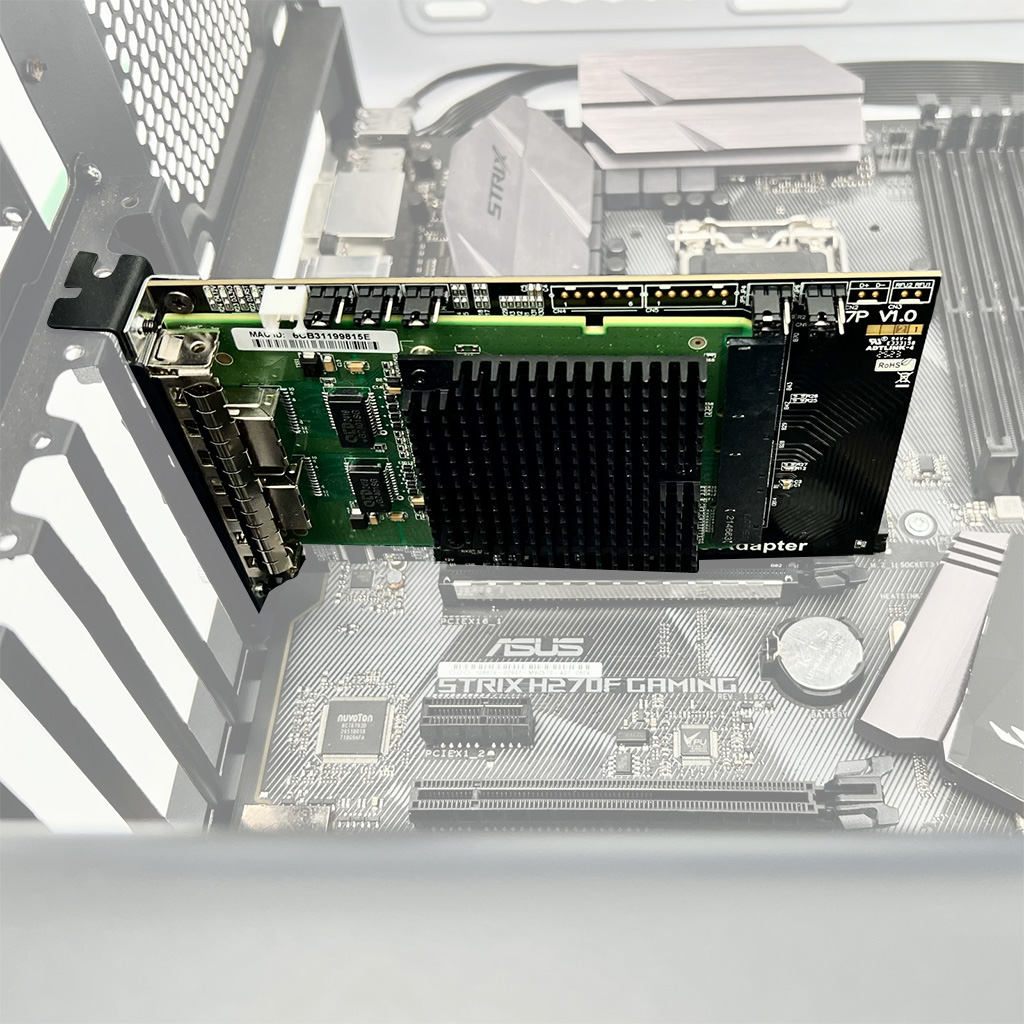

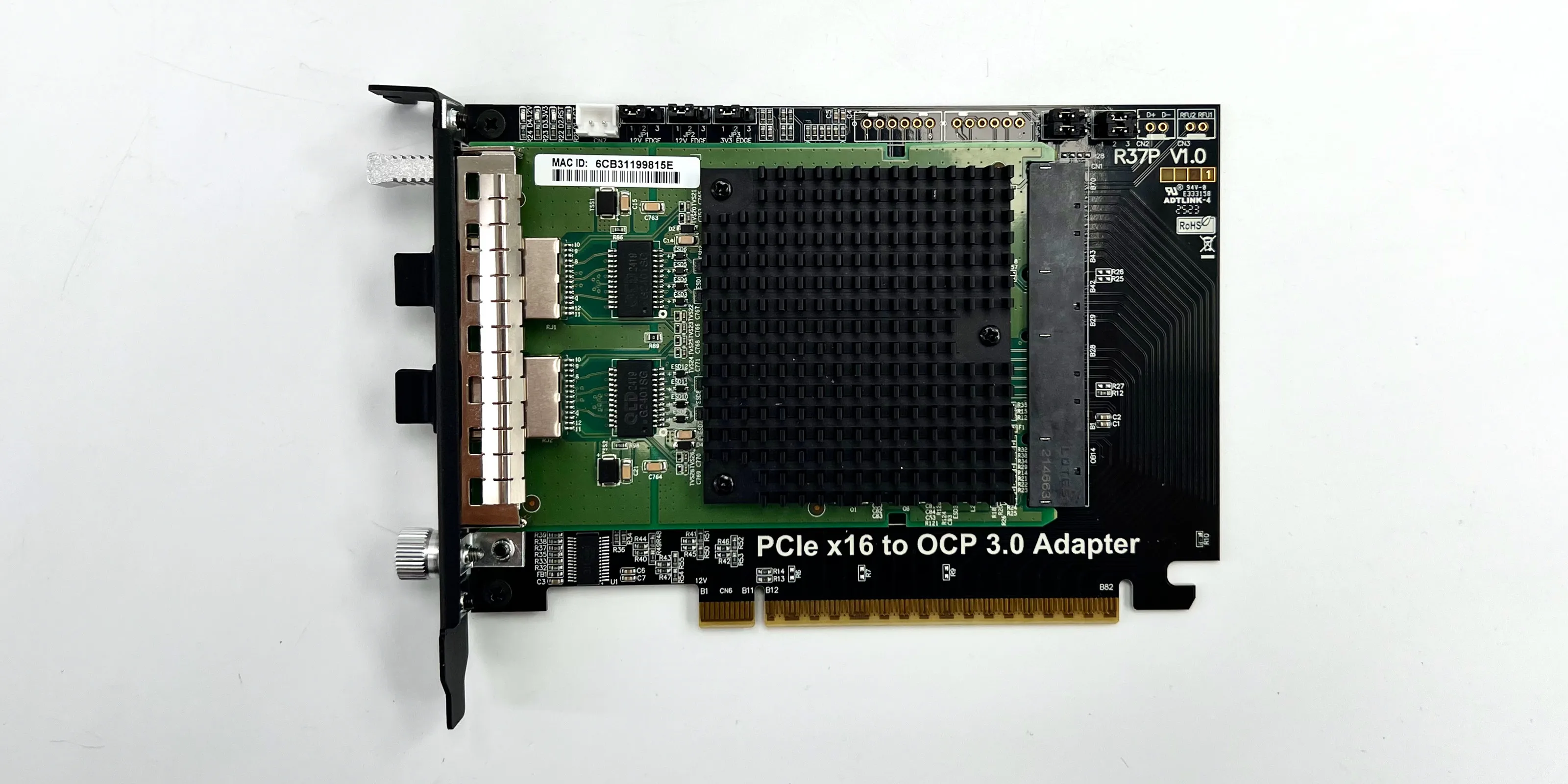

Can the OCP 3.0 network card module be recognised and used to access the Internet?

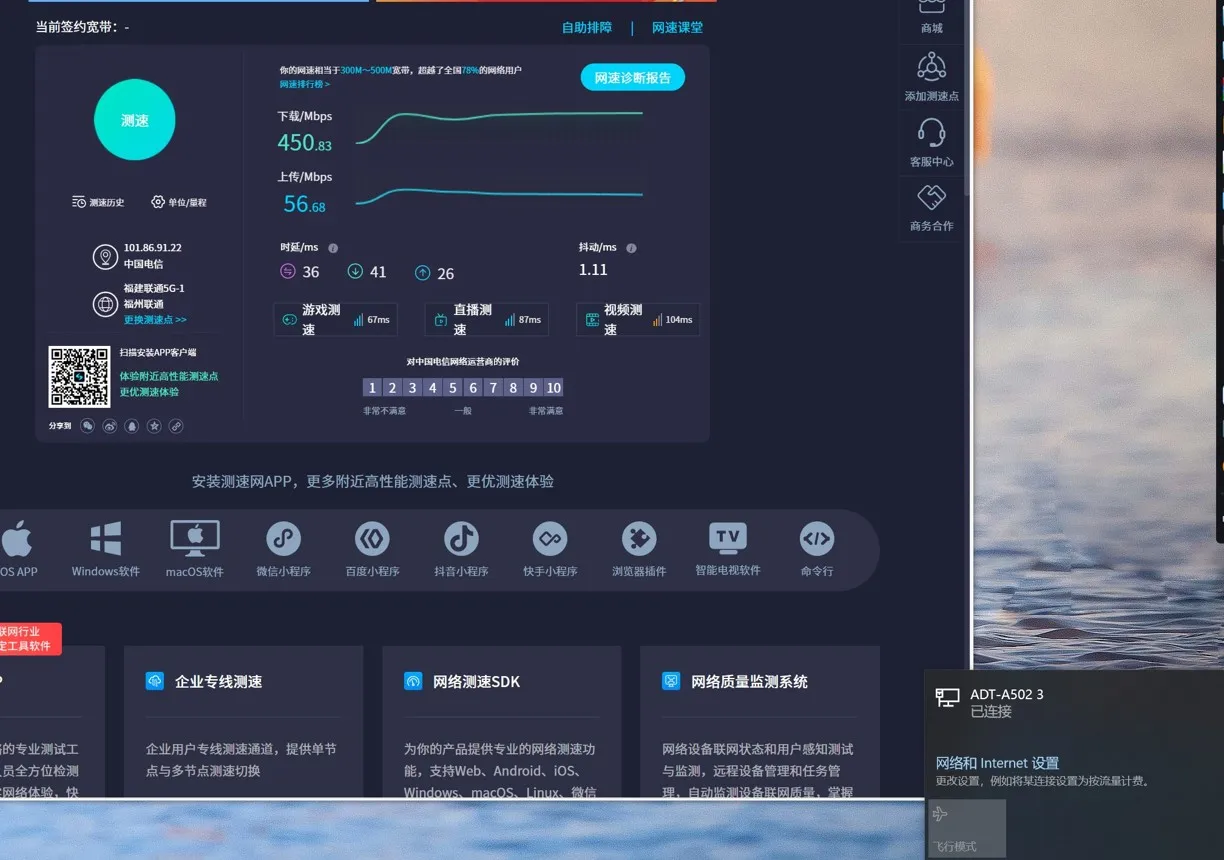

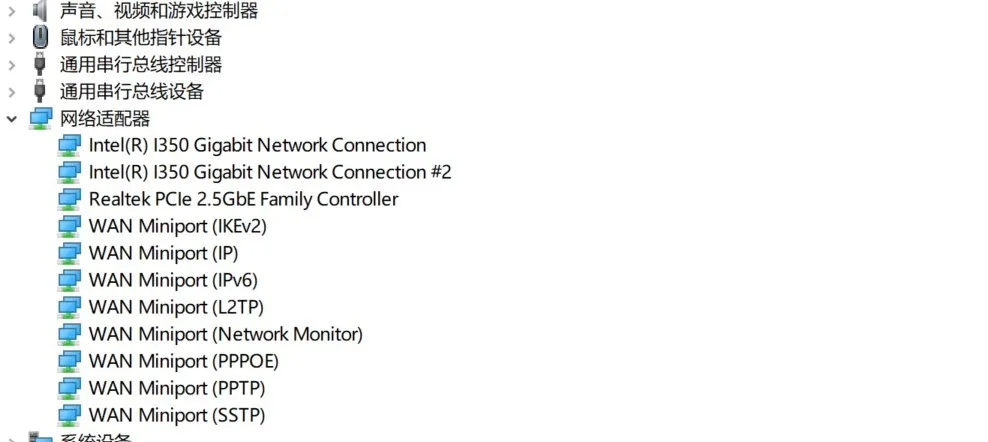

The device manager can recognise the network port, and after connecting the network cable, it can access the Internet normally (the network speed only reaches 450Mbps due to the network speed limitation of the test device).
Download link:
Open the 3D PDF file. Please use Adobe Reader DC software.
3D Step & 3D PDF files download:
https://www.adtlink.cn/download/ADT_R37P_3D.zip
Specification file download:
https://www.adtlink.cn/download/ADT R37P Adapter Card specification 20250624.pdf
Schematic file download:
https://www.adtlink.cn/download/ADT R37P Adapter Card Schematic 20250624.pdf
