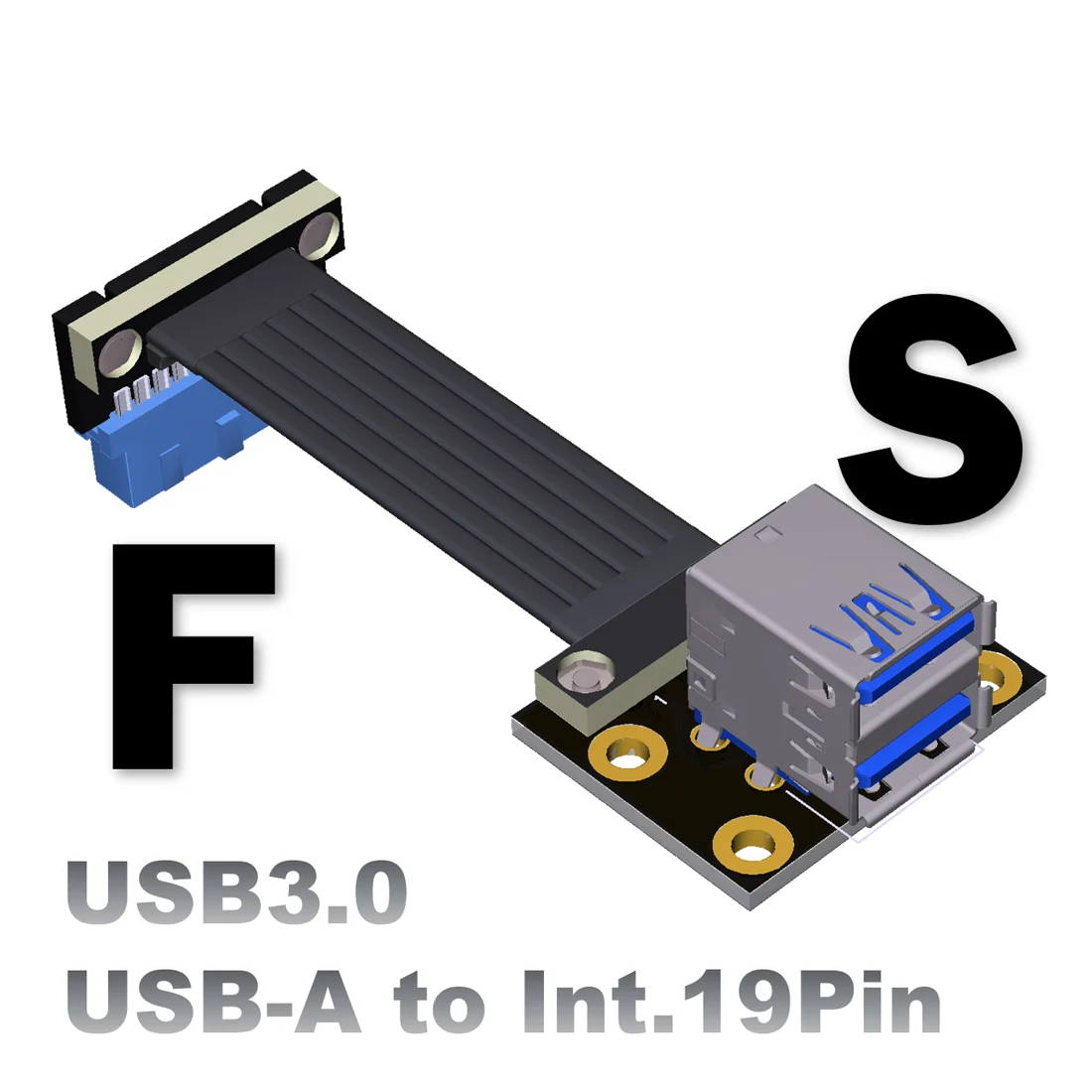

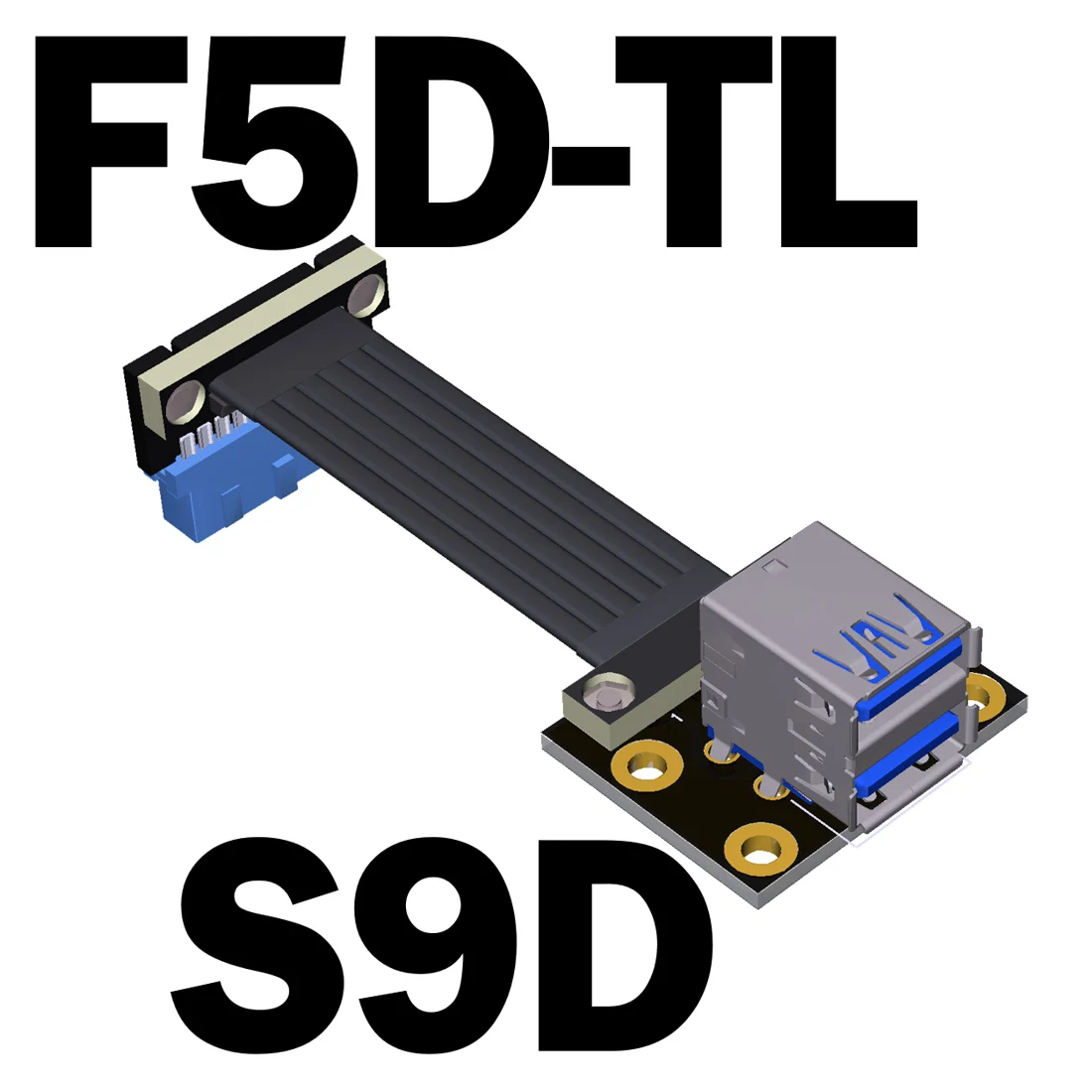

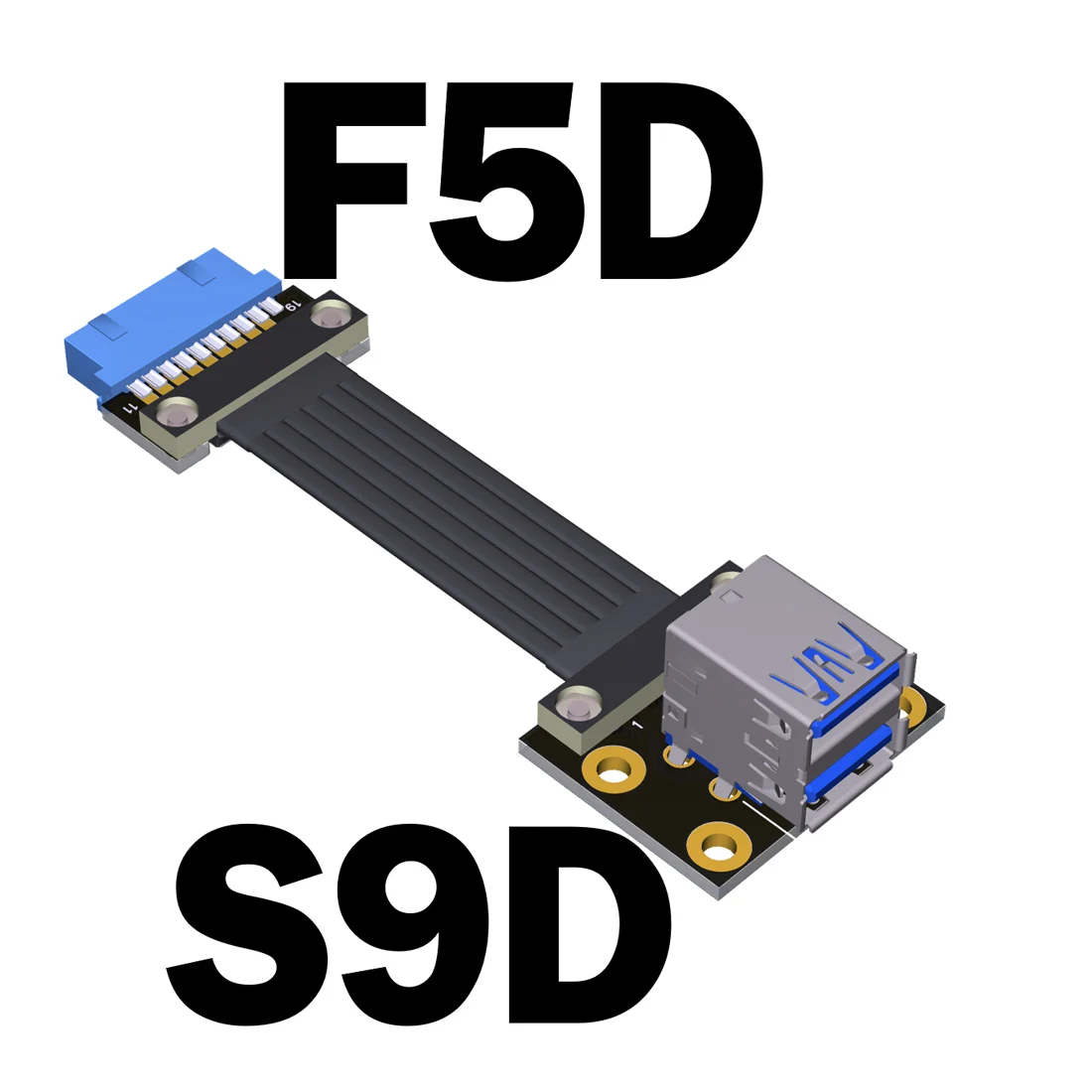

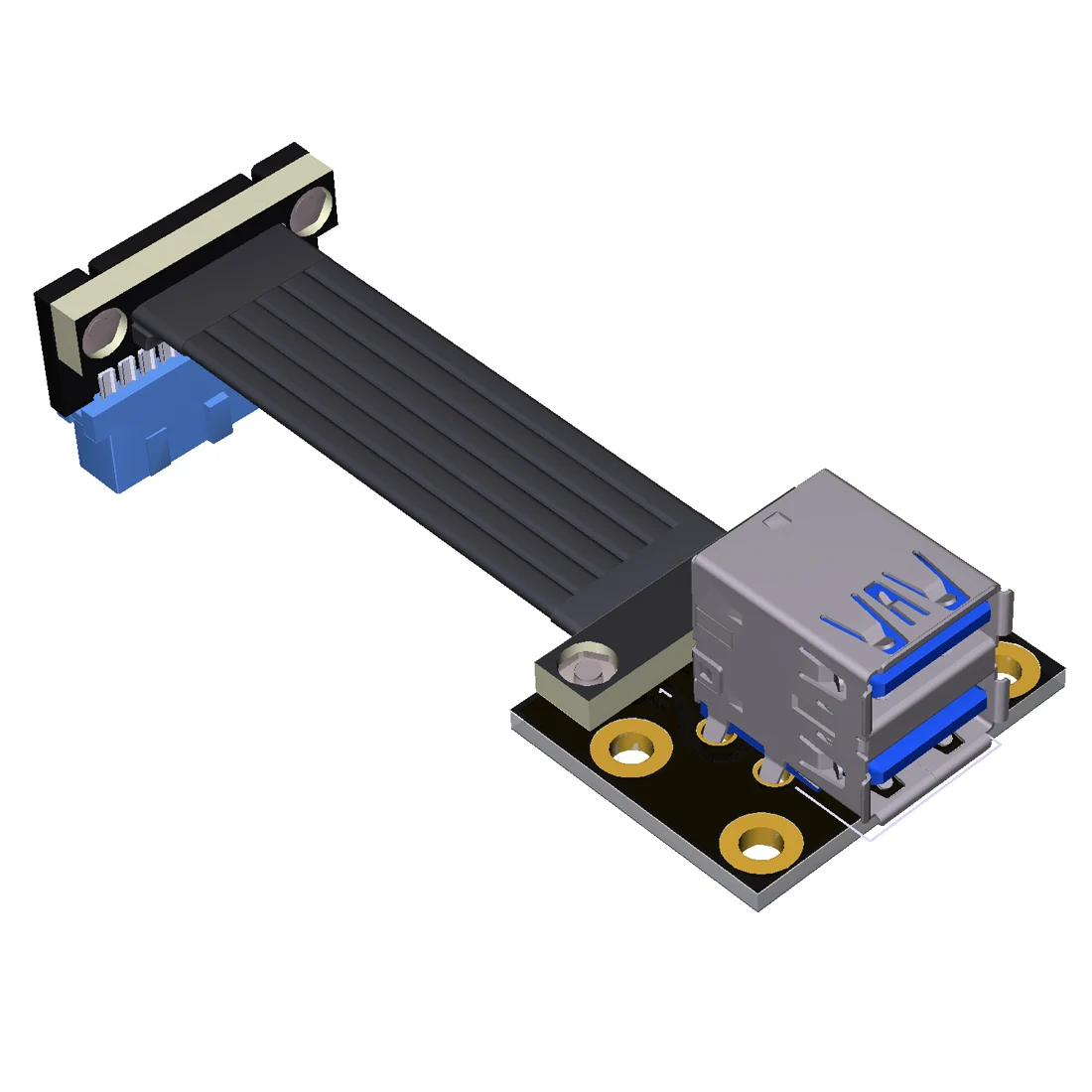

USB3.0 Dual USB-A Female to Built-in 19/20P Motherboard Extension Cable USB 3.0 Type-A 5G/bps Adapter Cable with Screw Holes

Brand: XT-XINTE

Product model: USF series of goods

Product name: USB3.0 dual USB-A female to built-in 19/20P extension cable

Wire length: 3cm-3m (support length customization, if you need other lengths, please contact us to change the price, thank you!)

Speed bandwidth: USB3.0 standard (support 5G/bps within 1 meter)

Current capacity: 3A (Actually, it supports 3A within 50cm and 1.5A within 1 meter.)

Product application: USB type-A female adapter motherboard built-in USB3.0 19/20-pin blue port extension adapter cable.

Purchase restriction: This product is designed to be connected to built-in USB devices. It is not suitable for general external use. It is limited to the engineer's designated purchase. Individual buyers should not place an order for purchase. This product has a fragile and fragile structure, is not suitable for civilian use, and is not easy to use for general purposes. It does not support returns and exchanges. Please consider carefully before placing an order.

Procurement Tips: Be sure to buy 1~2 samples first, and then buy them in bulk after testing and verifying that they are correct.

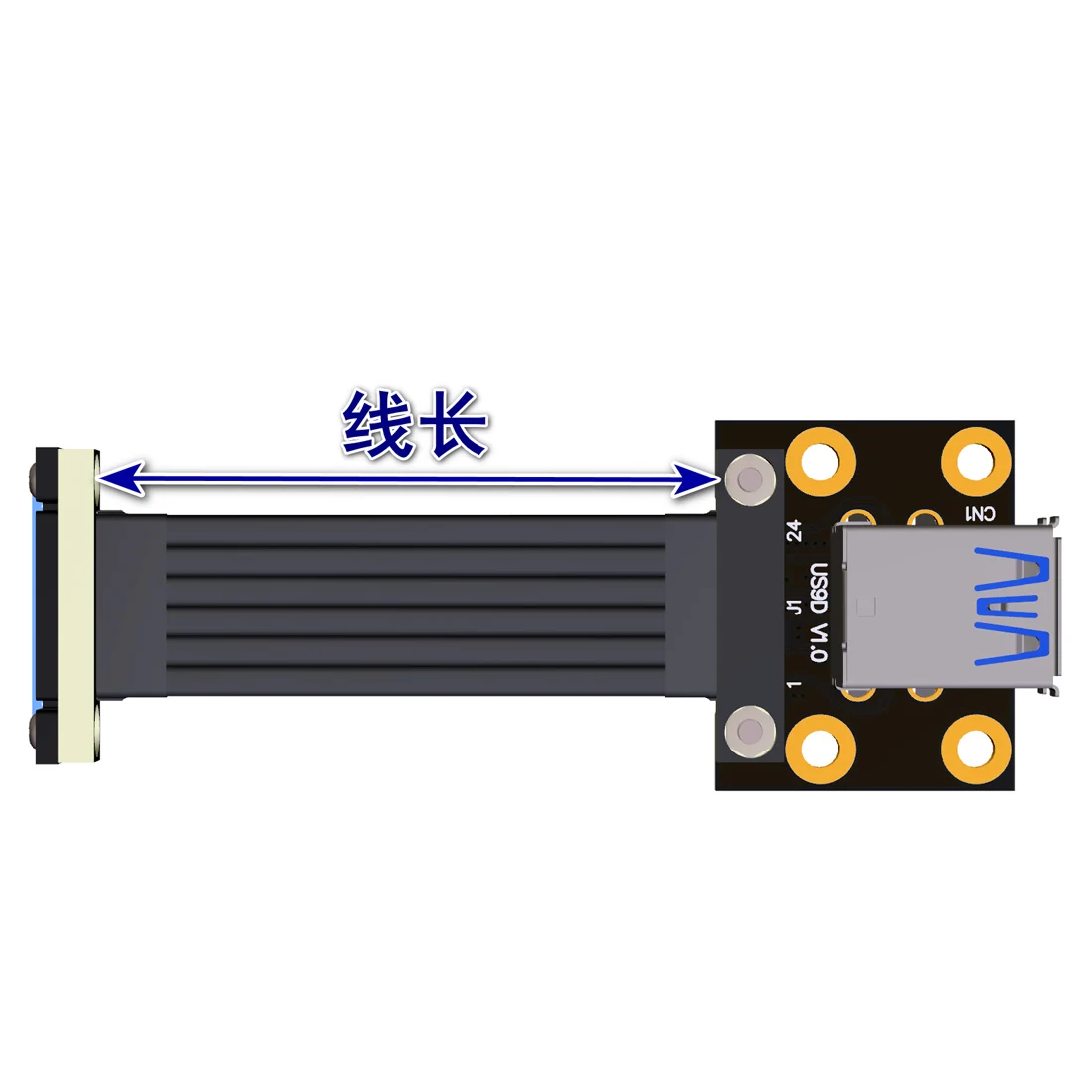

Description of wire length:

The length of the wire refers to the part of the visible wire, excluding PCB and connectors.

Product advantages:

1. Support USB3.0 5G/bps speed.

2. Cable length advantage, from 3 cm to 3 meters can be customized.

3. The differential signal has no via design and the signal is pure. There is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.

4. The PCB is made of high-quality materials with high frequency and low resistance, and the PCB has a precise workmanship. The PCB uses high TG board, and the copper thickness is thickened to 1oz. The PCB power supply circuit is designed to be strengthened, and the use of 2 5V power core wires is strengthened, so that the transmission current can reach 3A.

Summary of technical issues

What is the quality of the wire? Is there a shield?

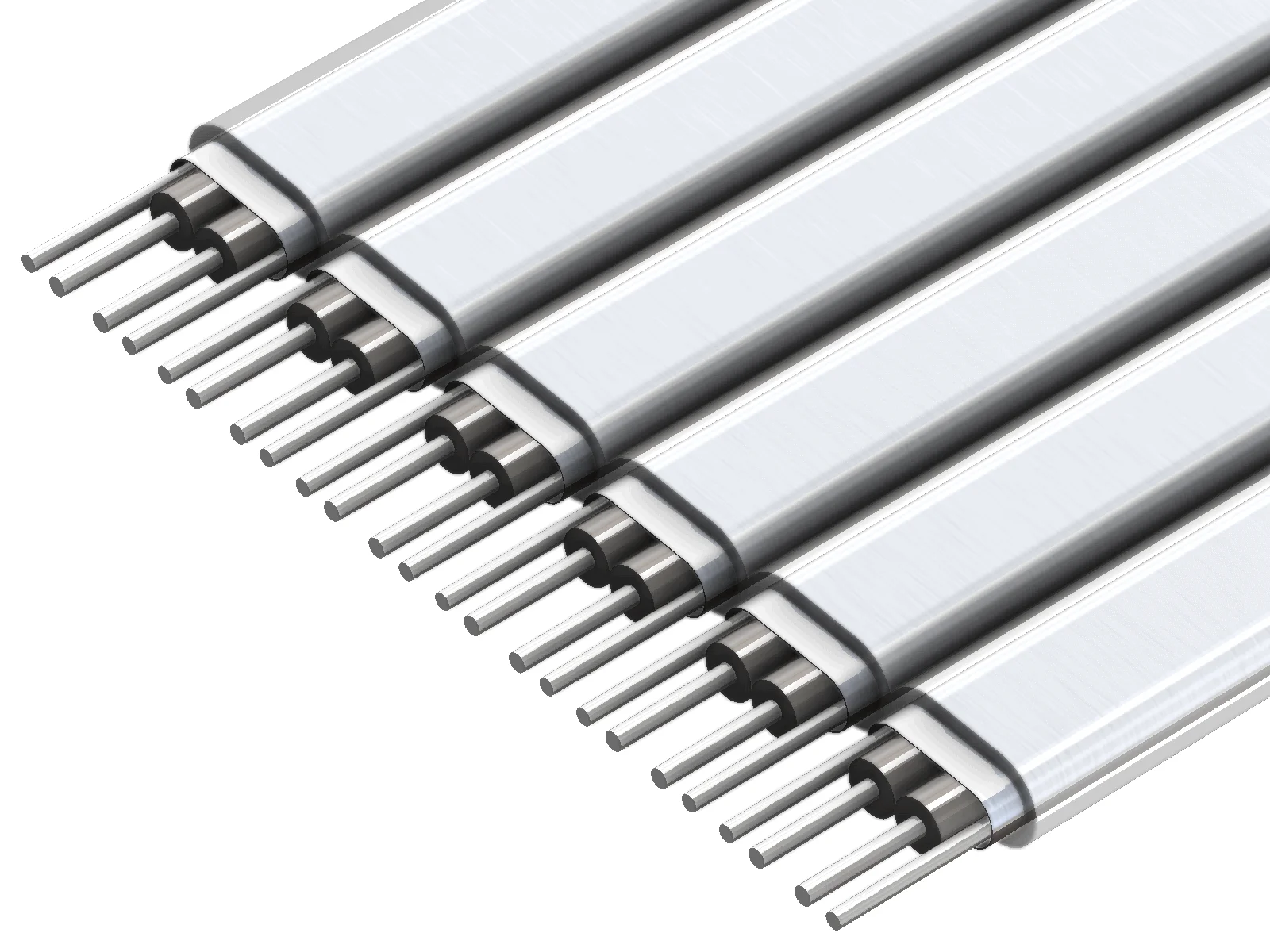

There is a metal layer shielding, the use of advanced EMI shielding conductive polymer, the new type of material for EMI shielding, flat cable design. This technology allows each cable to be completely covered by the electromagnetic interference shielding of conductive polymer to prevent the incidence or emission of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the cable.

Is the wire soft? Can it be bent?

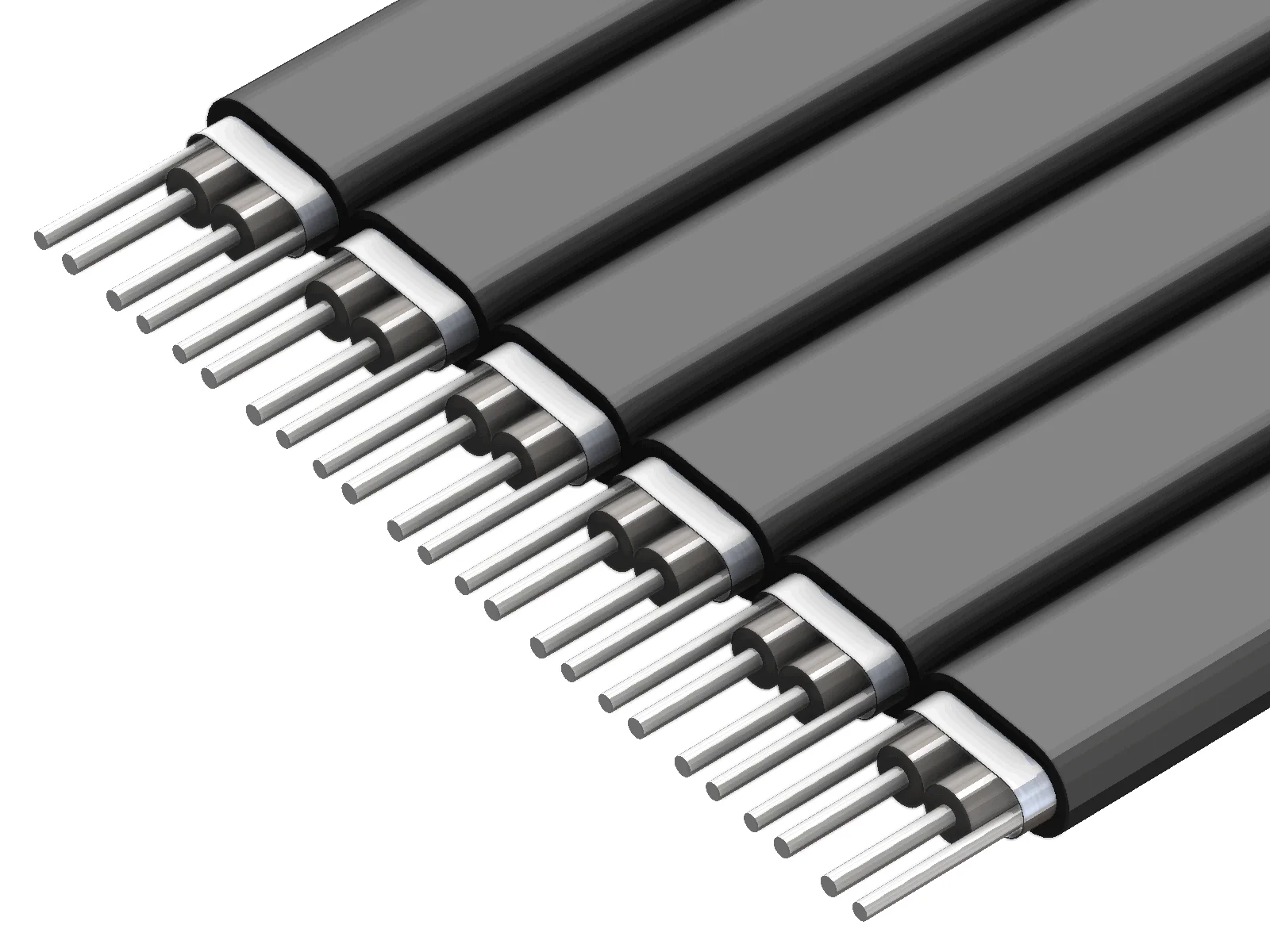

The wire is the fourth-generation differential signal dedicated wire. The black wire has a thickness of 1.3mm, and the silver wire has a thickness of 1.4mm. The wire can be bent or folded without affecting the use.
