Product Name PCIe 3.0x4 Extension Cable PCI Express x4 x8 To M.2 for NVMe M Key 2230 2240 2260 2280 SSD Riser Card Gen3.0 Extender 32G/bps
Item NO. F46080-B1/B2-----F46086-B1/B2
Weight 0.1 kg = 0.2205 lb = 3.5274 oz
Category Consumer Electronics > Computer Accessories
Creation Time 2022-01-07

PCIe 3.0x4 Extension Cable PCI Express x4 x8 To M.2 for NVMe M Key 2230 2240 2260 2280 SSD Riser Card Gen3.0 Extender 32G/bps

Brand: XT-XINTE


Product model: R42 series of goods


Product name: PCI-E adapter board extension cable


Wire length: 10~80cm (support wire length customization, if you need other lengths, please contact us to change the price, thank you!)


Bandwidth speed: PCIe 3.0x4 gen3; 32G/bps


Applicable matching cards: high-speed network card, capture card, NVMe SSD hard disk card, USB adapter card, PCI-E x4 and other interfaces.


Purchase restriction: only designated by professional engineers for purchase, general purpose is not suitable and cannot be used, ordinary buyers do not purchase.


Procurement Tips: Be sure to buy 1~2 samples first, and then buy them in bulk after testing and verifying that they are correct.


Friendly reminder: There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. This product is a customized product and is not refundable or exchangeable. Please consider and confirm clearly before placing an order.


Note that this product does not support external use of notebooks!


R4x series product model description:


Product name Product number Speed
for NVMe to PCIE x4 Connector Open cleat type Style Swivel 180 Degree Extension Cable  R42DF PCIe 3.0 x4
for NVMe to PCIE x4 connector open cleat type Swivel 180 degree extension cable bent angle power holder R42DF-DL PCIe 3.0 x4
for NVMe to PCIE x4 Connector Open Upright Slewing 180 Degree Extension Cable R42DL PCIe 3.0 x4
for NVMe to PCIE x4 Connector Opening Inverted Swivel 180 Degree Extension Cable R42DR PCIe 3.0 x4
for NVMe to PCIE x4 Connector Open cleat type Extension Cable R42SF PCIe 3.0 x4
for NVMe to PCIE x4 Connector Opening Inverted Extension Cable R42SL PCIe 3.0 x4
for NVMe to PCIE x4 Connector Opening Upright Extension Cable R42SR PCIe 3.0 x4

Description of wire length:


The length of the wire refers to the part of the visible wire, excluding PCB and connectors.

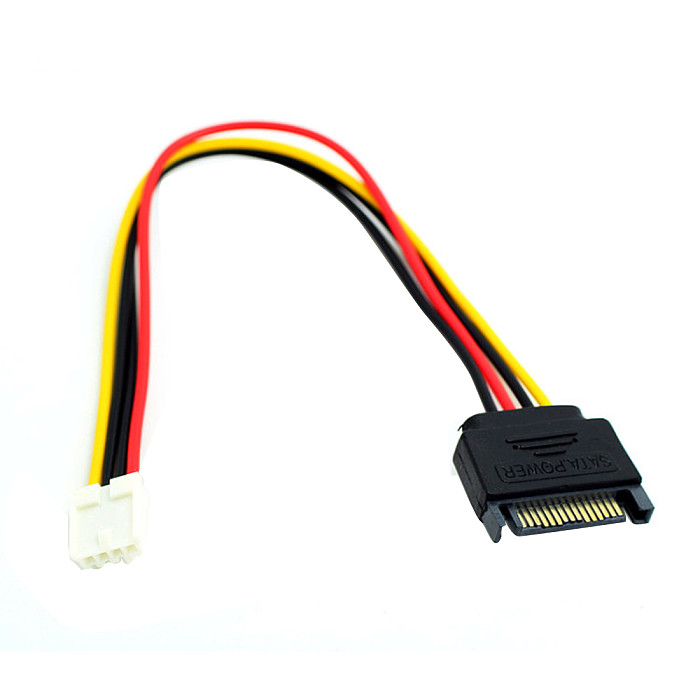

Accessories description: Comes with a SATA power adapter cable, you must connect it to have 12V power supply.


Product advantages:


1. Cable advantage, high frequency supports PCIe 3.0x4 32G/bps stable transmission.


2. Cable length advantage, from 5 cm to 1 meter can be customized, this adapter cable, the cable impedance is low, the cable length within 60 cm supports PCIe3.0 full speed.


3. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there will be no CAF micro short circuit phenomenon, and the product is durable


4. The product is made of high-quality materials, the PCB is made of precision, the thickness of the copper material is thickened to 1oz, the gold plated content is sufficient, and the gold plated foot has good electrical conductivity, which can reduce the blue screen of crash caused by the increase of oxidation and rust resistance.


5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm at the metal welding points, and lock the screws and hexagonal nuts to fasten it. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem. The wire can be bent or folded without affecting the use.


6. The PCB is designed with short and fattening, which will not get stuck on the graphics card. The fattening and long design makes the board easier to install and reduces the chance of damage.

Summary of technical issues:


What is the difference between a vertical connector patch cord and a splint type patch cord?


The same is that they are all PCIe x4 adapter cables, the difference is the connector slot direction. Please select a suitable product according to the internal space of your case.



Do I need an external power supply?


The M.2 interface itself has no 12V power supply capability and requires a 12V power supply. A small 4P to SATA power cord is included with the product. The power cord must be connected for the PCIe card to operate normally.


The PCB length is too long, can it be shortened?


You can follow the white line in the picture below to cut it short.




Why can't the extension cord be too long? Is it possible if I want to use a cord longer than 1 meter?


The shorter the wire, the better the signal. The longer the wire, the more obvious the three major shortcomings of signal attenuation, signal interference, and signal delay. Our engineers spent a year testing various wires and finally completed products with low impedance and anti-interference. The actual test can run at a high speed under 60 cm, and the signal will be attenuated beyond 70 cm. If you want to run within the 1 meter line, you must force the motherboard BIOS to set PCIe1.0 or 2.0 low speed to run normally. But please note that various conditions are different, and the line of more than 2 meters still has a high failure rate.


Suggestion: Choose a suitable wire length and set the BIOS to slow down appropriately.


What is the thickness of the wire? Is it soft?


The thickness of the wire of this product is 1.4mm, so the wire of this product is harder.


What is the quality of the wire? Is there a shield?


EMI shielding conductive polymer is used, new materials are used for EMI shielding, flat cable design. This technology allows each cable to be completely covered by the electromagnetic interference shield of the conductive polymer to prevent the incident or outgoing emission of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the extender.



Precautions for purchase:


1. Be sure to recognize the direction when plugging in, and don't plug it in reverse or offset position to prevent the equipment from being burned. When plugging in, first hold the socket of the device before plugging in to avoid inserting the socket pins with excessive force. It is forbidden to bend or pull within 2cm of the welding place between the two ends of the wire and the circuit board.


2. The signal driving ability of various motherboards and equipment is different. Our test results are not guaranteed to be consistent with your test results. As long as the extension cable is connected, the signal will be lost. If you have high performance requirements, please Do not buy.


3. The graphics card or motherboard is an electronic device that will age and oxidize with time. Connecting an extension cord will only make it more unstable. Old devices are not supported. Over 3 years. Please do not buy.


4. The purchase is restricted to the product engineer's designation. It is only used for product testing. For other purposes, please do not purchase.
