2.4G Micro Flysky Compatible Receiver FS82 AFHDS 2A IBUS PPM For Flysky Transmitter RC Drone Quadcopter Item NO.: F20578

2.4G Micro Flysky Compatible Receiver FS82 AFHDS 2A IBUS PPM For Flysky Transmitter RC Drone Quadcopter

Specification:

Item Name: FS82 Micro 2.4G receiver

Channels: PPM 8CH/IBUS 10CH

Frequency range: 2.408-2.475GHZ

2.4GHZ system: AFHDS 2A

work mode: IBUS or PPM

IBUS connector: 1.0 SH 3Pin Plug

PPM connector: solder pad

Failsafe function: Support (Only IBUS Mode)

Transfer method: FHSS

Antenna lenhth: 30mm
No ground interference (Transmitting and receiving 1 m from the ground): >200m
Working current: 40mA
Size: 20*13*4.5mm
Weight: 1.2g
Compatible Transmitter: Compatible with FS‐i4, FS‐i6, FS‐i6S, FS‐i6X, FS‐i10, FS‐GT2E, FS‐GT2G, FS‐GT2F,Turnigy Evolution

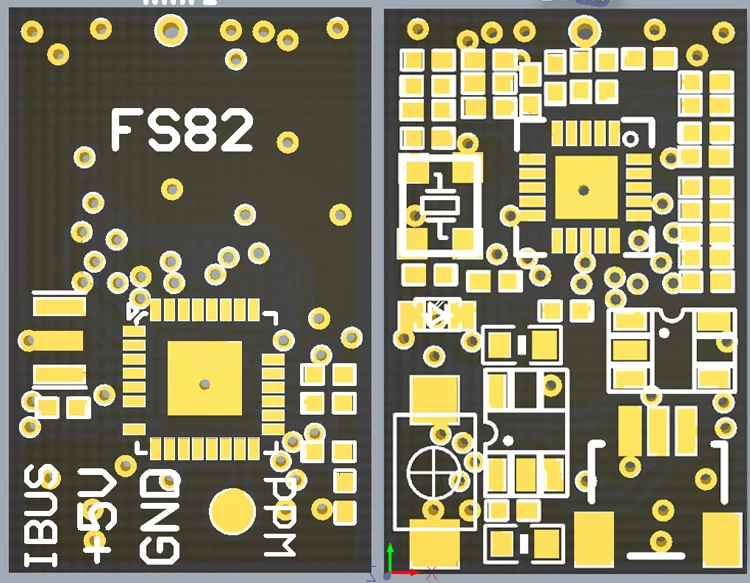

Pin-out Diagram:

            Bottom view                                           Top view

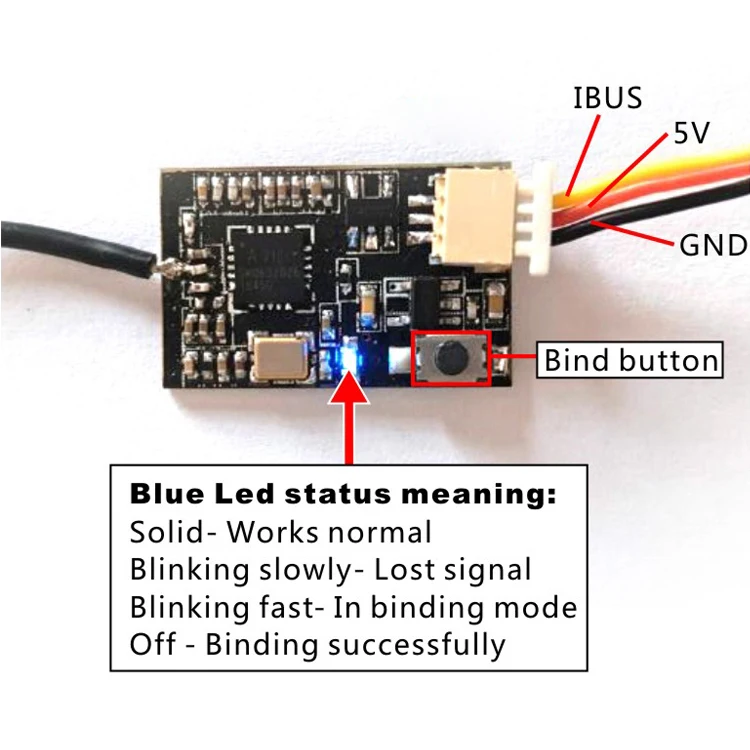

Binding Procedure:
‐Connect the battery to the receiver while holding the binding button on the board ,the Blue LED will blinking fast, this indicates the Receiver is in binding mode. Then release the binding button.
‐Turn on your radio and Set receiver mode to AFHDS 2A, then get your radio into binding mode. The blue LED on the Receiver will turning off for a second and then starting to blinking slowly, this indicates binding successfully.
