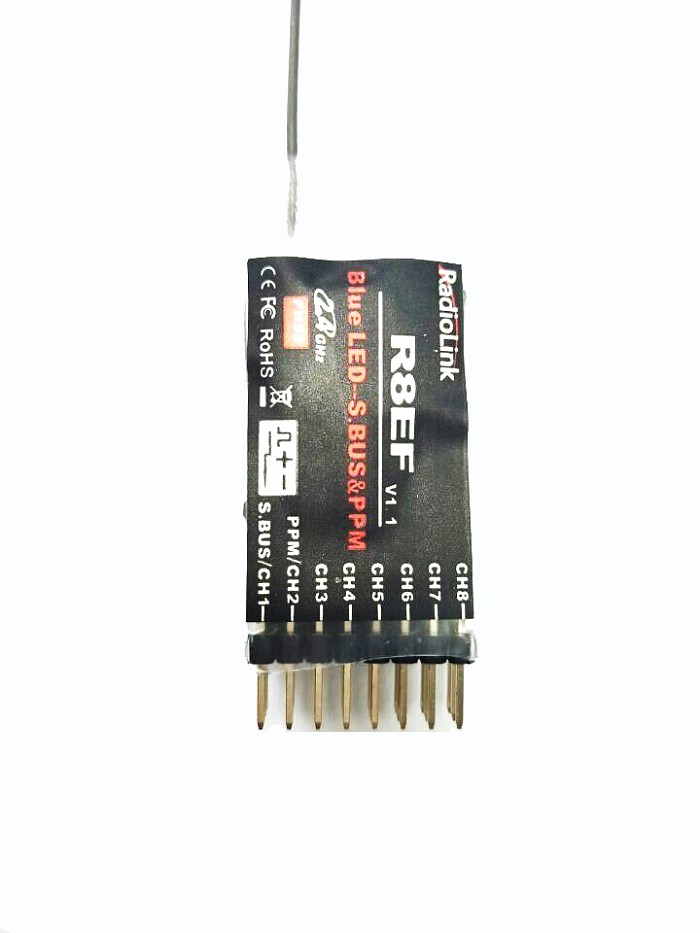

Radiolink R8EF 2.4G 8CH FHSS 8 Channels Receiver for T8FB Support S-BUS PPM PWM Signal Quadcopter Multicopter Airplane

Radiolink R8EF 2.4G 8CH FHSS 8 Channels Receiver for T8FB Support S-BUS PPM PWM Signal Quadcopter Multicopter Airplane Item NO.: F19691

5.0
(1)
US$ 15.30 ~ US$ 17.00
Quantity 0-3 4-50 51-100
Discount 0% OFF 5% OFF 10% OFF
Price US$ 17.00 US$ 16.15 US$ 15.30
Customized Requirements
Quantity
Estimate Shipping Cost
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name Radiolink R8EF 2.4G 8CH FHSS 8 Channels Receiver for T8FB Support S-BUS PPM PWM Signal Quadcopter Multicopter Airplane
Item NO. F19691
Weight 0.022 kg = 0.0485 lb = 0.7760 oz
Category DIY RC Drone Accessories > Receiver
Brand RadioLink
Creation Time 2017-07-25

Radiolink R8EF 2.4G 8 Channels 8CH Receiver FHSS for T8FB Support S-BUS PPM PWM


Descriptions :

Radiolink R8EF 2.4G 8 Channels Receiver FHSS for Radiolink T8FB
Features:
FHSS, follows the technology of wireless spread spectrum used by T7F, makes it possible highly superior and strong multi-path anti-interference and the same band anti-interference ability.

Technical Parameters
1. Channel: 8CH
2. Operating voltage: max 10V.
3. Operating current: 19-25mA(input voltage 5V)
4. Size: 48.5*21*11mm
5. Weight: 7g
6. Section precision: 4096
7. Signal output: S-BUS, PPM and PWM
PWM signal mode: Green LED, output 8 channel PWM signal.
SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.

How to match code with transmitter:
1.Place the transmitter and the receiver close to each other within 1 meters.
2.Turn on the transmitter, then give power to receiver.
3.Connect CH3(R8EF) to ESC.
4.There is a black button near the antenna, hold the ID SET switch of the receiver one second and release, receiver light start blinking, it will automatically find the nearest transmitter to bind, after about 8 times blinking, match code success when receiver signal LED on!

Fail safe:
When receiver can't receive signal from transmitter within 1 second, receiver will output signal:throttle zero, other channels keep the last signal from transmitter.

Package included:
1pcs R8EF Receiver










12








2020-01-25

K****m

OK
