2.4G 8CH 310 330 360 Mini RC Quadcopter ARF RTF Unassemble DIY Drone FPV Upgradable w/ Radiolink Mini PIX M8N GPS Altitude Hold

2.4G 8CH 310 330 360 Mini RC Quadcopter ARF RTF Unassemble DIY Drone FPV Upgradable w/ Radiolink Mini PIX M8N GPS Altitude Hold Item NO.: F02471-M-F14892-N-F14891-M

Write a Review
US$ 194.64
US$ 228.99 Save US$ 34.35 (15% Off)
type
330 ARF Unassemble 360 ARF Unassemble 310 ARF Unassemble
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name 2.4G 8CH 310 330 360 Mini RC Quadcopter ARF RTF Unassemble DIY Drone FPV Upgradable w/ Radiolink Mini PIX M8N GPS Altitude Hold
Item NO. F02471-M-F14892-N-F14891-M
Weight 1.962 kg = 4.3255 lb = 69.2075 oz
Category DIY RC Drone Accessories > Motor
Brand JMT
Creation Time 2017-11-23

Professional JMT 2.4G 8CH 310 330 360 Mini RC Quadcopter ARF RTF Unassemble DIY Drone FPV Upgradable with Radiolink Mini PIX M8N GPS Altitude Hold

Package included:
F02471-M F330 Quadcopter:
F330 Frame Kit * 1,
1400KV A2212 10T Brushless Motor * 4,
Simonk firmware 30A ESC with BEC 5V * 4,
8045 Plastic CW CCW Propellers * 2,
Radiolink MINI PIX + MINI GPS * 1,
GPS Folding Antenna Mount * 1,
Radiolink T8FB Remote controller * 1,
11.1V 2200MAH 25C Lipo Battery * 1,
B3PRO Charger * 1,
Buzzer Alarm * 1,
Accessories bag * 1

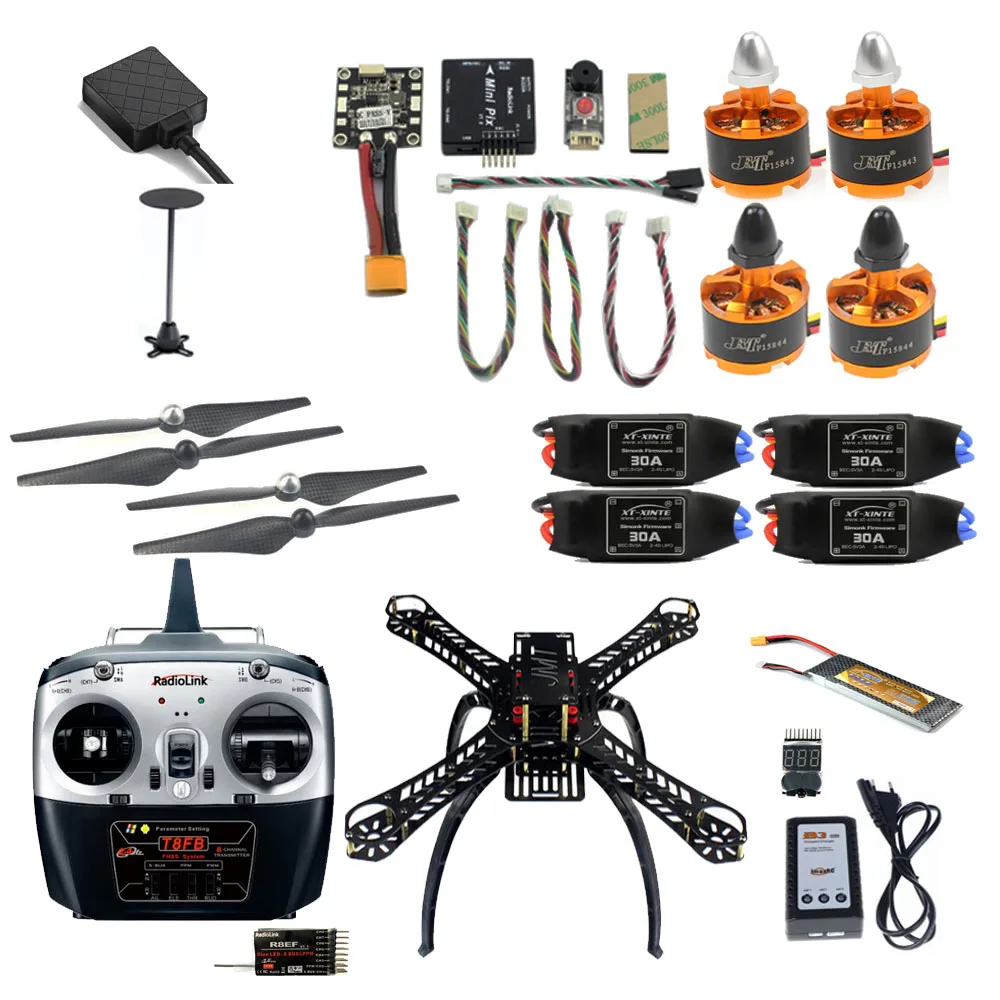

F14892-N 360mm Quadcopter:
X4M360L Glassfiber Frame Kit * 1,
920KV CW Brushless Motor * 2,
920KV CCW Brushless Motor * 2,
Simonk firmware 30A ESC with BEC 5V * 4,
8443 Carbon Fiber Propeller Self-locking * 2,
Radiolink MINI PIX + MINI GPS * 1,
GPS Folding Antenna Mount * 1,
Radiolink T8FB Remote controller * 1,
11.1V 3300Mah 25C Lipo Battery * 1,
B3PRO Charger * 1,
Buzzer Alarm * 1,
Accessories bag * 1

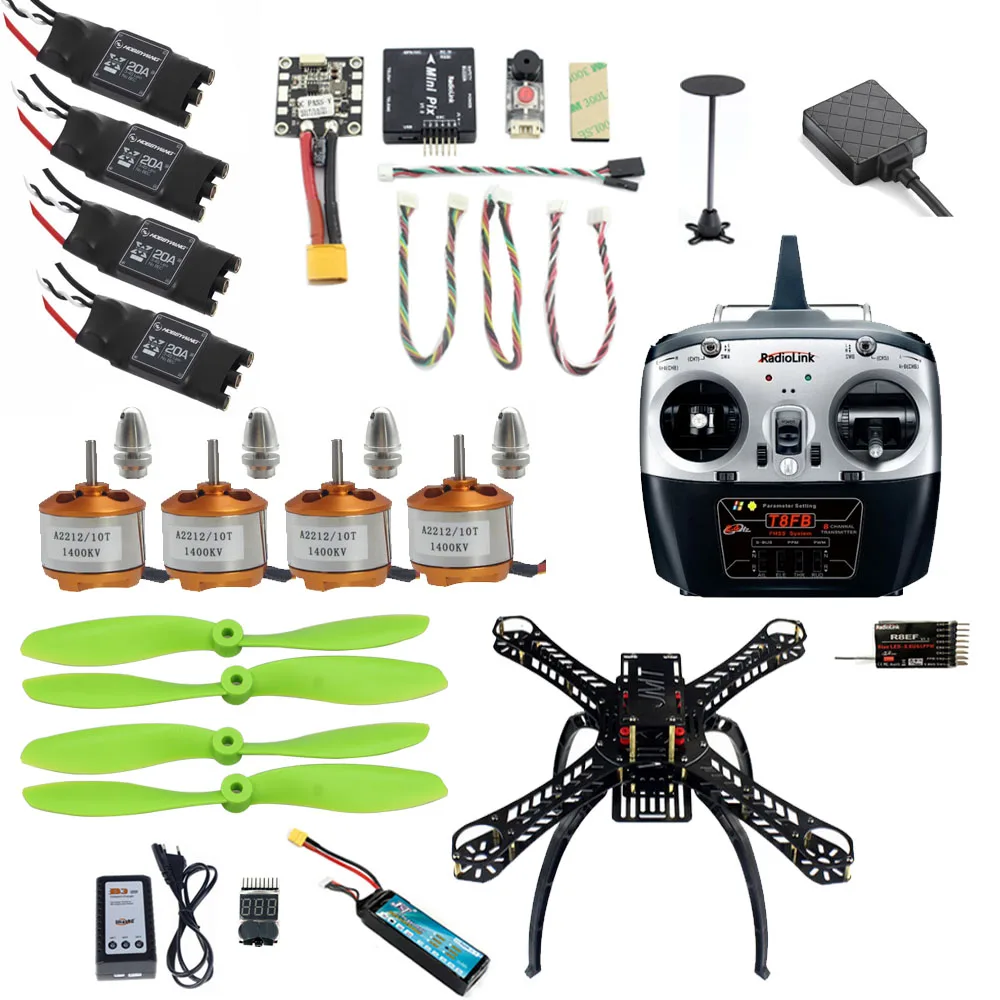

F14891-M 310mm Quadcopter:
X4M310L Glassfiber Frame Kit * 1,
1400KV A2212 10T Brushless Motor * 4,
Hobbywing XRotor 20A ESC * 4,
8x4.5 2-Blade Propellers * 2,
Radiolink MINI PIX + MINI GPS * 1,
GPS Folding Antenna Mount * 1,
Radiolink T8FB Remote controller * 1,
11.1V 2200MAH 25C Lipo Battery * 1,
B3PRO Charger * 1,
Buzzer Alarm * 1,
Accessories bag * 1


Function:
1. Forward/backward,Sideward flight,Turn left/right,Up/down,Hover,One Key Taking Off,Self-stability,Altitude Hold,Fixed point,A key landing (The above functions have been set before shipment, the following functions need to be set by buyer): Ratio control Acro (caution to beginner), automatic mode (AUTO), around, guide, following model, Improve the barometer set high, More stable than APM Flight controller.
2. RadioLinK T8FB support mobile phone APP setting parameters, support for USB online upgrade, keep leading .
3. The aircraft frame is using high-strength drop-resistant plastic material, durable.
4. Radiolink MINI PIX with M8N GPS, 50cm positioning accuracy, beyond the u-box M8 chip, achieve 1M positioning accuracy, can search 20 Pieces Star within 6 seconds in open place, very strong valley positioning capabilities,support a variety of positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou b1, can dual-mode work at the same time.
5. Simple operation with manuals, do not need to make tedious setup and debugging to the Flight controller, simply assembled to fly.
6. When using the charger, please do not simultaneously charge the 2S and 3S batteries on the charger.
7. Do not understand the flight control and remote control, please do not modify any parameters and wiring.

Flight Controller:
Software: Mission Planner
Official website address: http://ardupilot.org/planner/index.html                     MINI PIX is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.


Remote Controller:

T8FB Technical Parameters

R8EH Receiver:
Channel: 8CH
Operating voltage: max 10V.
Operating current: 19-25mA(input voltage 5V)
Size: 48.5*21*11mm
Weight: 7g
Section precision: 4096
Signal output: S-BUS, PPM and PWM PWM
signal mode: Green LED, output 8 channel PWM signal.
SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time

Specification:


Q & A:
1. How to connect the Flight control, GPS, receiver? How to calibrate GPS and flight control?
A: They are connected when you open the package. The GPS, Flight Control, and Remote Control (transmitter) are calibrated and tested. You only need to follow the instructions to assemble them.
2. Can we use other kinds of Motor and ESC? If yes, What kinds of Motor and ESC recommend? Can we change the Propellers?
A: Of course, we recommend the motor 1400kv-2300kv, ESC 20A-35A, 6-inch to 8-inch Propellers.
3. Can I add PTZ and FPV equipment?
A: Our products can be modified to upgrade, sports camera with two-axis stabilized PTZ is a good choice.
4. Is the product welded? Can RTF (Ready To Fly)?
A: Our products default motor, ESC are welding the banana head and ESC and sub-board welding together, do not need your hands-on welding. And Of course you can do RTF. But For RTF version, The shipping fee is more expensive, if you can pay the extra shipping cost and Pay a small service fee, we can give you RTF. Please message us if you need this service.
5. Can be used with larger capacity battery?
A: ESC support voltage in 3-4s, the maximum recommended capacity 4000mah.
6. I do not like your remote control, can you change the remote control?
A: Yes, replace the remote control, the same set for you all the auxiliary flight mode, but will be little different with the instructions, After setting,we will inform you about the setting information in time.We will mostly brand of remote control and this flight control settings.
7. What kinds of flight environment is applicable to this quadcopter? Can I fly indoors?
A: This quadcopter is not suitable for indoor flight, it is recommended to fly outdoors and open areas, but please avoid interference with the crowd and the surrounding areas.


Notice:
This RC model is not a toy and is not suitable for children under 14 years old.
Carefully read the instruction before any use, if you are a beginner, it's advisable to be assisted by an experienced adult
