100MHz 7th Order High Pass Filter SMA Interface Discrete LC Components With Small Volume
-
Detail
- Product Name: 100MHz 7th Order High Pass Filter SMA Interface Discrete LC Components With Small Volume
- Item NO.: F51051
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-11-02
100MHz 7th order high pass filter SMA interface discrete LC components with small volume
Characteristics:
Small volume, flat passband, high out of band suppression
Application:
Laboratory Applications
Other highly selective applications
Model: FHP7s-100
Impedance: 50 Ohms
Insertion loss:<=1.5 dB @ 200-3000 MHz
≈ 1.5 dB @ 100 MHz
>50dB @<50 MHz
Maximum carrying capacity: 1 W (30 dBm)
Interface: SMA-M, SMA-F

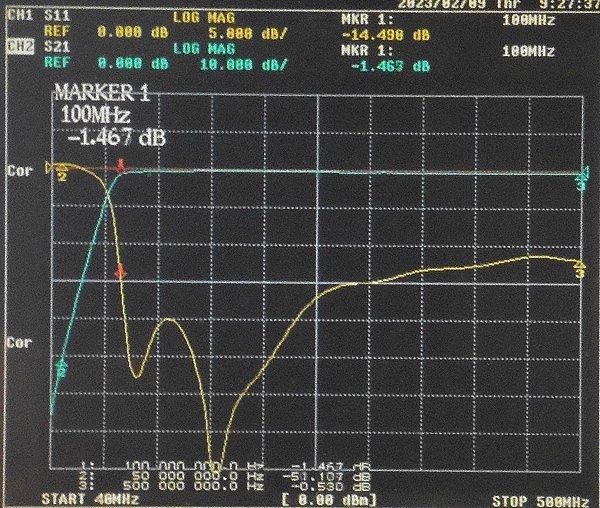

Frequency response diagram 1:
(Sweep frequency range: 40-500MHz, blue line for transmission loss, vertical scale 10dB per grid. Yellow line for reflection loss, vertical scale 5dB per grid)
Frequency response diagram II: (Sweep frequency range: 40-4000MH
