Tarot-RC 1.2G 1.3G FPV 1600MW 800MW TX Transmission RX Receiver 1.3ghz 8CH For VRX-1G3-V2 /VTX-1G3SE Long Rang RC Drone Airplane Item NO.: F51933-D1/D2/D3

Product Description:

　　Tarot's 8-channel, 1.2G audio and video transmission system receiver has an ultra-small form factor and ultra-light weight, which can be seamlessly used with the company's 800mW and 1600mW transmitters.

Specifications:

Receiver (Ground):

Input voltage: 12V

Weight: 17g (without antenna)

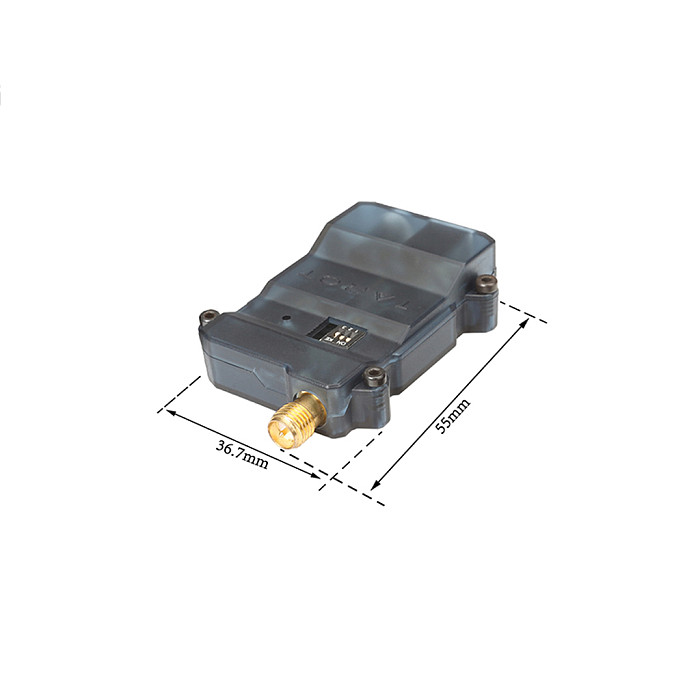

Size (length, width and height): 55mm*36.7*mm*13.4mm

Number of channels: 8 channels

Channel Selection: 3-Position Mini DIP Switch (Position 1-3)

Receiving Frequency:

1080MHZ/1120MHz/1160MHz/1200MHz/1240MHz/1280MHz/1320MHz/1360MHz

Antenna interface: RP-SMA (male thread internal pin) 50Ω

Operating ambient temperature: -10 to 60 degrees Celsius

Modulation Type: FM

Notes:

1. Please install the antenna first and then turn on the power to avoid equipment failure;

2. Select the appropriate working frequency, and set the transmitter and receiver to the same frequency (see frequency table for details);

Package Listing:

1.2G video transmission receiver ×1

Receiver power cord ×1

Receiver video cable ×1

1.2G Antenna/Type Y ×1

Features:

1.8 channel output, DIP switching, compatible with conventional frequency;

2. Provide 1 video signal, 2 audio signal input;

3. Provide 1 channel 5V/0.5A power output for conventional camera power supply (please confirm the voltage and current of related equipment first to avoid burning);

4. Compared with the previous generation of 800mW image transmission equipment, the transmission power is increased, and the transmission distance is greatly increased, which is more suitable for long-distance image transmission;

5.6061T6 aluminum alloy shell heat dissipation, more stable performance.

Specifications:

Transmitter (Air Terminal):

Input voltage: 7-26V DC(2-6S)

Output voltage: including one 5V/0.5A

Weight: 8.2g (without metal case), 16g (without case, without antenna)

Dimensions (length, width and height): 45mm*26*mm*8.5mm

Number of channels: 8 channels

Channel Selection: 3-Digit Mini DIP Switch Switching (Position 1-3)

Transmit Frequency:

1080MHZ/1120MHz/1160MHz/1200MHz/1240MHz/1280MHz/1320MHz/1360MHz

Transmit power: 32dBm±1dBm (1600mW)

Power adjustment: 2-digit mini DIP switch switching (position 4-5)

Power number: four gears, micro power/25mW/200mW/1600mW

Antenna interface: RP-SMA (male thread internal pin) 50Ω

Operating ambient temperature: -10 to 60 degrees Celsius

Modulation Type: FM

Package Listing:

1.2G 1600mW image transmitter ×1

Transmitter Cable/7P(200mm) ×1

1.2G Antenna/Type Y ×1

Features:

1.8 channel output, DIP switching, compatible with conventional frequency;

2. Provide 1 video signal, 2 audio signal input;

3. Provide 1 channel 5V/1A power supply output for conventional camera power supply (please confirm the voltage and current of the relevant equipment first to avoid burning);

4.800mW image transmission transmitter, more suitable for long-distance image transmission;

5.6061T6 aluminum alloy shell heat dissipation, more stable performance.

Specifications:

Transmitter (Air Terminal):

Input voltage: 7-26V DC(2-6S)

Output voltage: including one 5V/1A

Weight: 8.2g (without metal case), 16g (without case, without antenna)

Dimensions (length, width and height): 45mm*26*mm*8.5mm

Number of channels: 8 channels

Channel Selection: 3-Digit Mini DIP Switch Switching (Position 1-3)

Transmit Frequency:

1080MHZ/1120MHz/1160MHz/1200MHz/1240MHz/1280MHz/1320MHz/1360MHz

Transmit power: 28dBm±1dBm (800mW)

Power adjustment: 2-digit mini DIP switch switching (position 4-5)

Power number: four gears, micro power/25mW/200mW/800mW

Antenna interface: RP-SMA (male thread internal pin) 50Ω

Operating ambient temperature: -10 to 60 degrees Celsius

Modulation Type: FM

Package Listing:

1.2G 800mW image transmitter ×1

Transmitter Cable/7P(200mm) ×1

1.2G Antenna/Type Y ×1
