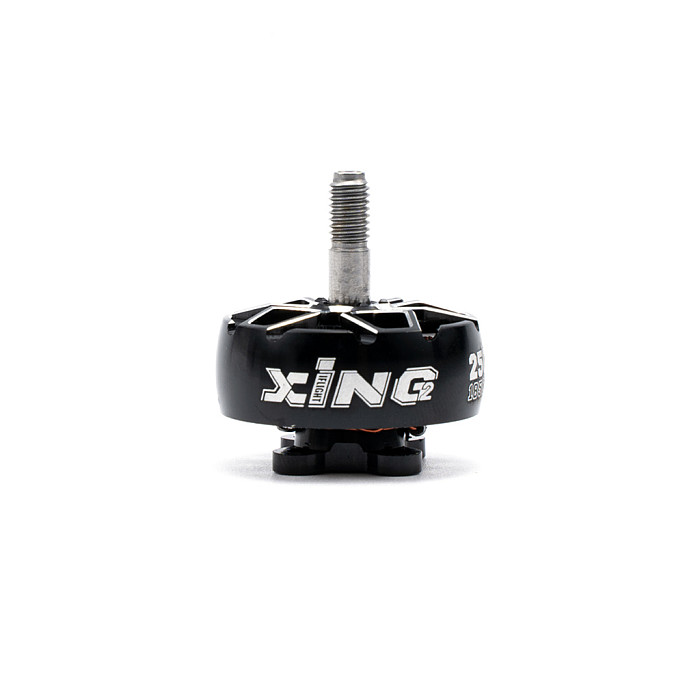

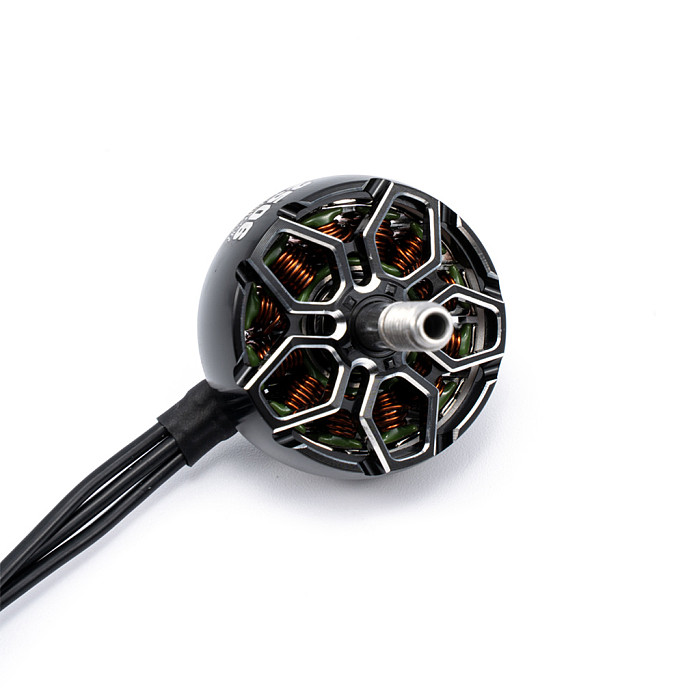

iFlight XING2 2506 1500KV/1850KV FPV Long Range Motor

iFlight XING2 2506 1500KV/1850KV FPV Long Range Motor Item NO.: F47577-D1 F47577-D2

Write a Review
US$ 21.24
US$ 24.99 Save US$ 3.75 (15% Off)
Version
1500KV 1850KV
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • iFlight XING2 2506 1500KV/1850KV FPV Long Range Motor
Product Name iFlight XING2 2506 1500KV/1850KV FPV Long Range Motor
Item NO. F47577-D1 F47577-D2
Weight 0.06 kg = 0.1323 lb = 2.1164 oz
Category DIY RC Drone Accessories > Motor
Brand iFlight
Creation Time 2022-06-23

iFlight XING2 2506 1500KV/1850KV FPV Long Range Motor

PRODUCT DESCRIPTION

Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on

the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher

quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these

years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!


The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our

manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were

introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight

controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster

response to translate your PID loop quicker and get that locked-in feeling you were always looking for!


Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet

air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher

the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!


Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an

absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those

vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth

and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features

you've just seen on your original XING series are still inbuilt in a new shape and design!


Features:

- 5mm titanium alloy shaft, our strongest prop shaft ever!

- Smooth and long-lasting NSK 10x4x4 bearings

- Center slotted N52H curved arc magnets

- XING O-ring bearing gap protection

- Crash resistant 7075 aluminum bell

- Motor wires protector

- Dynamically balanced


Specifications:

Motor Dimensions (Dia.*Len): Φ31.7×19.6mm

Internal Resistance: 74.88mΩ

Cable length: 160mm/20AWG

Weight with wires(g): 38.2g

Configuration: 12N14P

Stator Diameter: 25mm

Shaft Diameter: 5mm

Stator length: 6mm

KV: 1500/1850

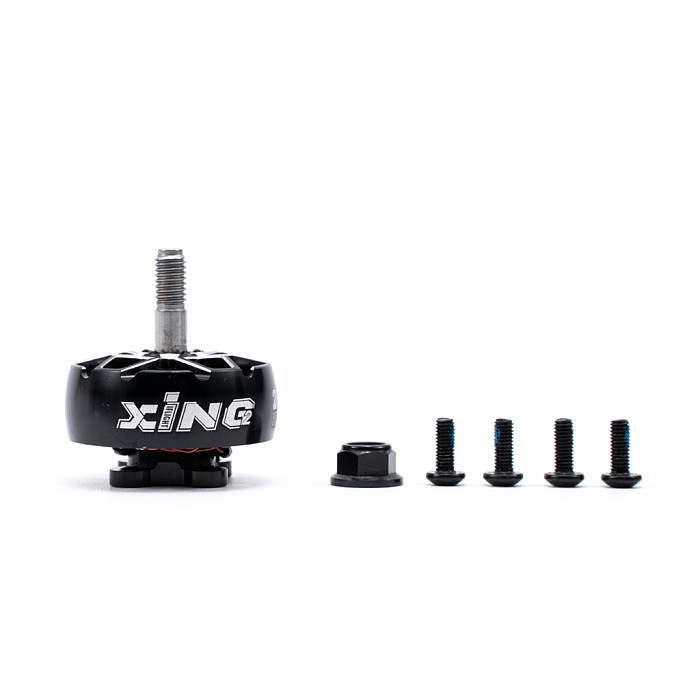

Package includes:

- 1 x M5 Flanged Nylon Insert Lock Nut

- 1 x XING2 2506 Motor Black

- 4 x M3*8mm screws
