Tarot 4pcs TAROT 5008 340KV 4kg Efficiency Motor TL96020 with 4pcs Hobbywing XRotor Pro 40A ESC for DIY RC Drone Quadcopter
4pcs TAROT 5008 340KV 4kg Efficiency Motor TL96020 with 4pcs Hobbywing XRotor Pro 40A ESC for DIY RC Drone Quadcopter

4pcs TAROT 5008 340KV 4kg Efficiency Motor TL96020 with 4pcs Hobbywing XRotor Pro 40A ESC for DIY RC Drone Quadcopter Item NO: F11284-A

US$ 209.63 (15% Off)
US$ 246.62 Save US$ 36.99
Remark:
Customized Requirements
Shipping Cost:
Estimate Shipping Cost
Quantity:
  • 4pcs TAROT 5008 340KV 4kg Efficiency Motor TL96020 with 4pcs Hobbywing XRotor Pro 40A ESC for DIY RC Drone Quadcopter
Specifications
Product Name 4pcs TAROT 5008 340KV 4kg Efficiency Motor TL96020 with 4pcs Hobbywing XRotor Pro 40A ESC for DIY RC Drone Quadcopter
Item NO F11284-A
Weight 1.3550 Kg
Category DIY RC Drone Kit / RC Drone Accessories > Motor
Tag
Brand Tarot
Creation time 2018-06-13

Detail

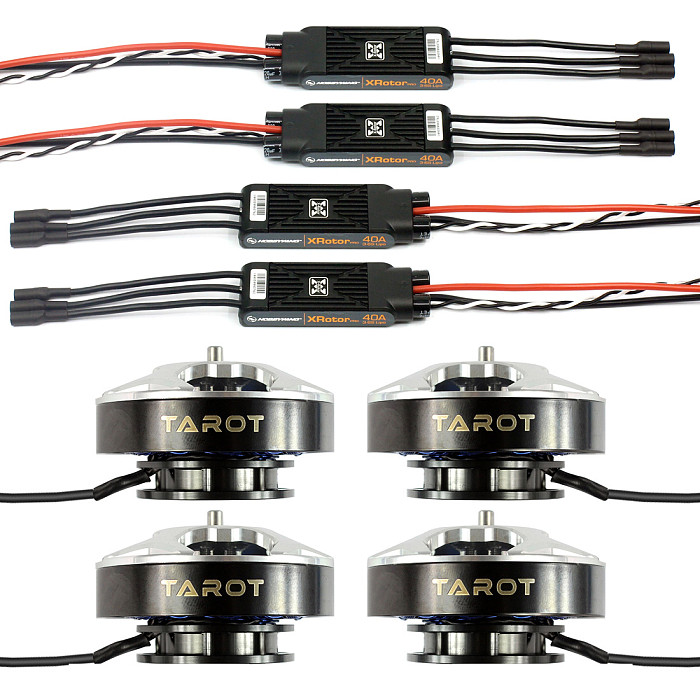

4pcs TAROT 5008 340KV 4kg Efficiency Motor TL96020 with 4pcs Hobbywing XRotor Pro 40A ESC for DIY RC Drone Quadcopter


product description:
The 5008/340KV high-efficiency multi-rotor brushless motor is designed for multi-rotor aircrafts and is suitable for the racks of 17-18-inch rotors such as the 960-folding six-rotor frame 960 and the T18 folding eight-rotor frame. All CNC machining, appearance of the flat table is smooth and seamless, excellent balance. The newly designed high-efficiency turbofan cover provides powerful cooling airflow. The rotor is made of high magnetic material NdFeB. The stator is reinforced with high-strength epoxy resin to protect against high temperature, and the high-flux external rotor motor is specially balanced. The correction has improved the vibration problem caused by the poor balance of ordinary external rotating motors. The motor shaft is made of high-speed alloy steel. The upper and lower covers of the motor adopt large-size high-speed precision bearings, which have the advantages of low frictional torque, low power loss, impact resistance, and strong radial support at high speeds. 5008/340KV new generation of brushless motors have passed strict dynamic, static, magnetic field characteristics, strong magnetic high temperature, demagnetization loss, motion vibration, noise, load performance and other engineering technology demonstration.
Continuation and succession of the Taro brushless motor: long life, high efficiency, low power consumption, low noise, stable control of the superior characteristics.

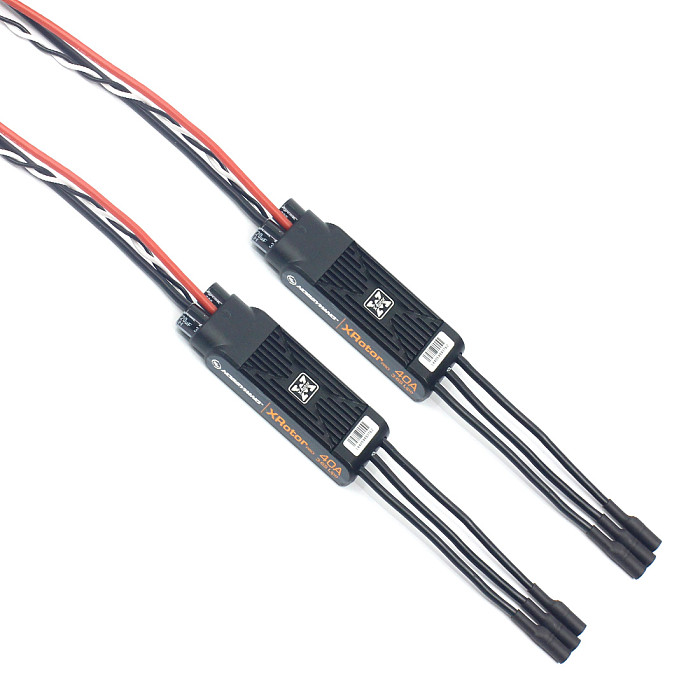

 The new shape design adopts exquisite and sturdy plastic shell, giving the ESC a complete and reliable security protection. Its slim shape allows it to be easily inserted into a carbon fiber tube with an inner diameter of 23mm. The multi-rotor special core program significantly increases the throttle response speed. Faster response speeds More stable hover and cruising performance, as well as more rapid sports performance, calmly deal with various challenges. Automatically adjust the angle, highly intelligent, without any parameter settings, the factory default settings can satisfy most applications, greatly simplify the operation process, optimize the user experience. EDO technology, using synchronous rectification technology, has higher drive efficiency, effectively reduces the operating temperature of the ESC, improves the flight time of the aircraft, and has a better throttle curve. The use of aluminum alloy heat sinks with excellent thermal conductivity combined with a specially designed heat sink structure results in more efficient heat dissipation.
Product parameters:
Motor
Applicable rotor specifications: 17-18 inches
Peripheral diameter of the motor : 58.50mm
Stator diameter : 50.0 mm
Stator end thickness : 8.0 mm
Number of stators : 12N
Number of motor poles: 14P
Speed per volt: 340 RPM / Volt
25.2V Empty Load Current : 1.1 Amps
Motor Weight : 168 Grams
Gear shaft installation diameter : ¢4.0 mm
Motor length : 35.0 mm
Motor shaft length : 42.0 mm
ESC
Size: 66x21.8x11mm
Weight:50g
Battery section: 2-6S
BEC: None
Parameter Options DEO: On/Off
Continuous output current: 40A
Instantaneous maximum current (10 seconds): 60A motor mounting hole distance: 25MM

Measure no-load

voltage (V) Current (A) Speed (KV)
10              0.6             3428

22.2            1               N/A
25.2          1.1             8500

Product specification:
5008/340KV *4
XRotor-Pro-40A ESC *4
