6pcs RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

6pcs RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

US$ 6.09
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: 6pcs RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter
    • Item NO.: F17711-A
    • Weight: 0.73 kg = 1.6094 lb = 25.7500 oz
    • Category: DIY RC Drone Accessories > Motor
    • Brand: JMT
    • Creation Time: 2018-06-13
    • 6pcs RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

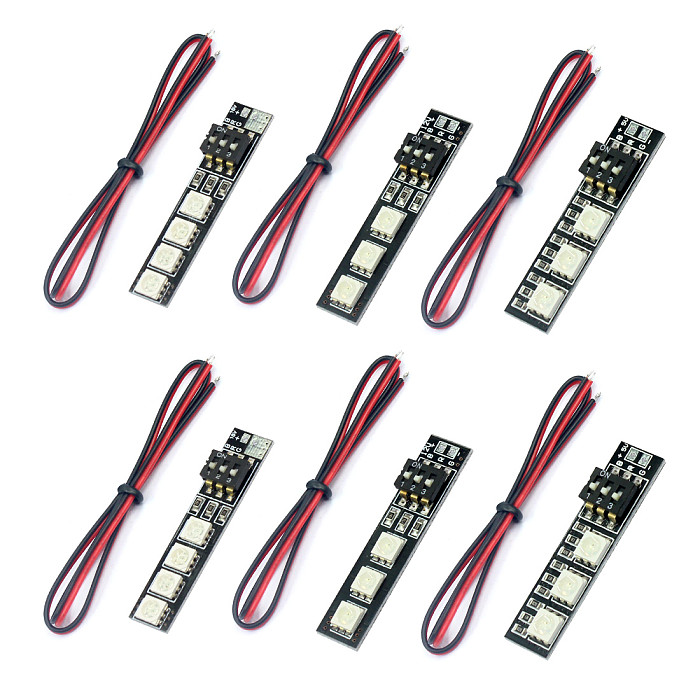

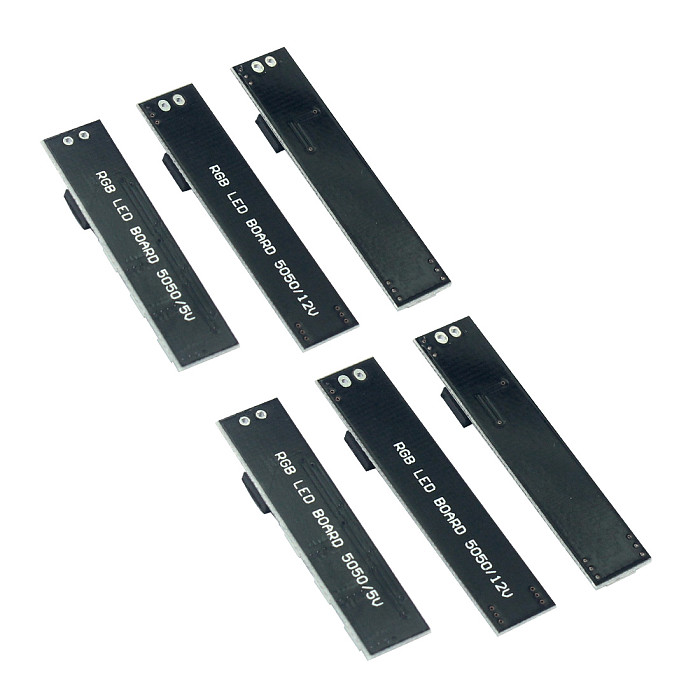

    • 2pcs 5v RGB 5050 LED Light Board
    • 2pcs 12v RGB 5050 LED Light Board
    • 2pcs 16v RGB 5050 LED Light Board

    6pcs RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

    Package includes:

    2pcs 5v RGB 5050 LED Light Board
    2pcs 12v RGB 5050 LED Light Board

    2pcs 16v RGB 5050 LED Light Board


     Input:4~6V ,10~13V, DC14~17V, 3S  4S LiPo battery
        DIP switch color selection
        Size: 42*10mm, 47*10mm,47*10mm
        Weight: 2g
        The LED is suitable for light DIY on mutirotor, airplane, helicopter, RC car etc.
        This LED adopts RGB 5050 lamp beads, with DIP switch on board. According to toggle different switch combination, the LED can switch among

    Function

        The parcel comes with a 30cm black and red power wire. User can cut it to the proper length according to real use.
        Pay attention to the “+” and “-” and insulation
        Toggle the switch on to different channel to choose 7 color
        We suggest use double side tape to paste the LED lights on frame
        The output voltage of the 12V version is between 10-13V, either 3S lipo battery or 12V BEC can power it.
        When the output is 12V, the power and current of the LED:

          B ON = Blue     0.35W, 0.03A
          R ON = Red      0.35W, 0.03A
          G ON = Green    0.35W, 0.03A
          B + R ON = Purple 0.70W, 0.06A
          B + G ON = Cyan  0.70W, 0.06A
          R + G ON = Yellow 0.70W, 0.06A
          B + R+G ON = White 1.05W, 0.09A

    When the output is 5V, the power and current of the LED:
      B ON = Blue     0.35W,
      R ON = Red      0.35W
      G ON = Green    0.35W
      B + R ON = Purple 0.70W
      B + G ON = Cyan  0.70W
      R + G ON = Yellow 0.70W
      B + R+G ON = White 1.05W
