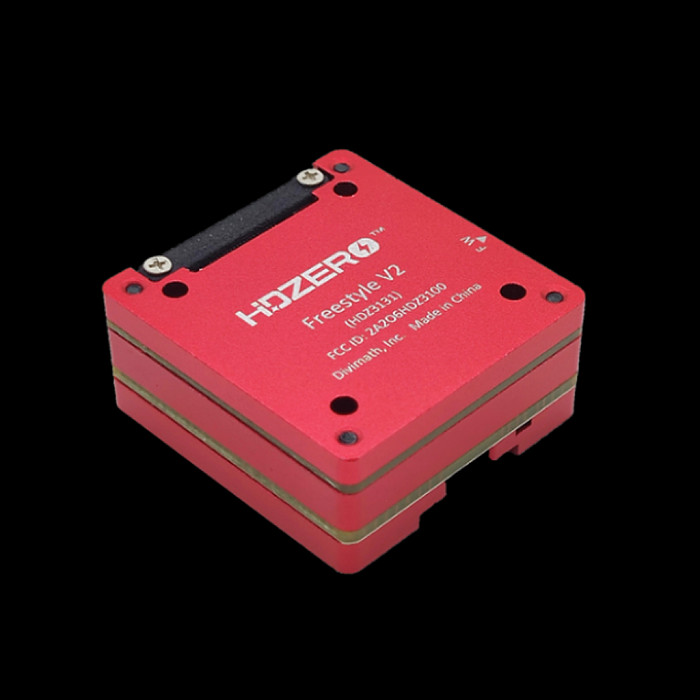

HDZero Freestyle V2 VTX 5.8GHz Digital Video Transmitter for 3-5-inch HD FPV Drone Quadcopter Accessory
-
Detail
- Product Name: HDZero Freestyle V2 VTX 5.8GHz Digital Video Transmitter for 3-5-inch HD FPV Drone Quadcopter Accessory
- Item NO.: F51457
- Weight: 0.04 kg = 0.0882 lb = 1.4110 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-12-20
HDZero Freestyle V2 VTX 5.8GHz Digital Video Transmitter for 3-5-inch HD FPV Drone Quadcopter Accessory
Specification:
The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.
The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.
The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.
Descriptions:
Model：HDZero Freestyle V2 VTX
Weight：22.3 g
Dimensions：29x30x14mm
Operating Frequency：5.725-5.850GHz
Transmitter Power：25mW,200mW
Mounting Pattern：20x20mm M2 holes
Antenna Interface：Secured U.FL
Video In：Secured MIPI
SmartAudio：Yes
MSP Canvas Mode：Yes
Input Power：7-25V
Operating Temperature：32˚F-104 ˚F (0˚-40˚C)
Power Consumption：6-15W
VTX Package Includes:
1x Freestyle V2 VTX
1x Power Cable
1x SA Cable
1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
1x Double Sided Tape (29 x 30 x 1mm)
