BETAFPV ArtLynk Protocol 1080p@60fps HD Video transmission 1000‑nit 4.5 LCD Display Monitor

BETAFPV ArtLynk Protocol 1080p@60fps HD Video transmission 1000‑nit 4.5" LCD Display Monitor

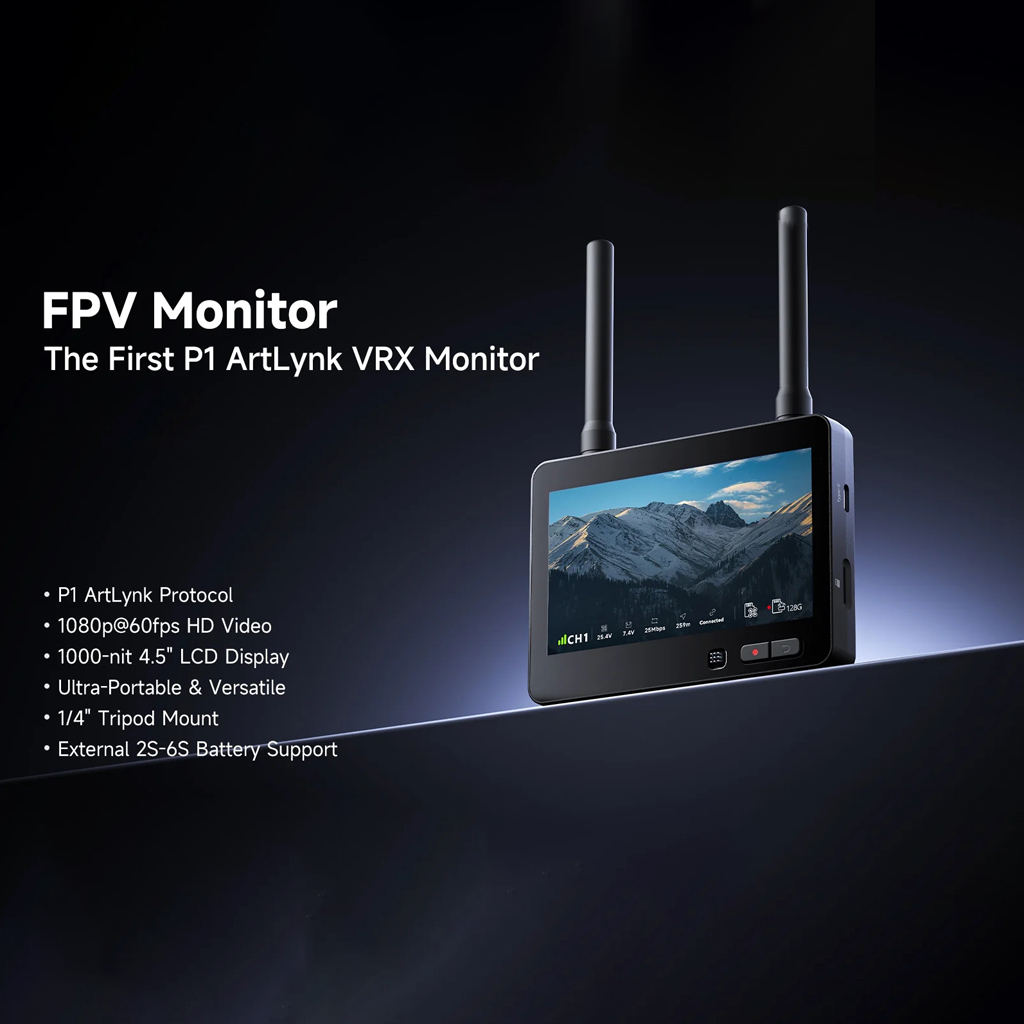

The Monitor is a new addition to the ArtLynk ecosystem, bringing crystal clear HD video to a dedicated 4.5 inch display. Featuring a built in 1080p@60fps video receiver, and a high brightness 1000 nit LCD, it delivers vibrant, detailed visuals even in bright outdoor conditions. With integrated DVR recording, lightweight portability, and flexible 2-6S power options, the Monitor is the perfect companion for FPV flying, field configuration, and professional monitoring.

Bullet Points

· ArtLynk Protocol Compatible: Seamlessly integrates with the ArtLynk ecosystem

· 1080p@60fps HD Video: Smooth, low latency video transmission

· 1000 nit 4.5" LCD Display: Bright, clear viewing even in direct sunlight

· All in One Design: Receiver, display, and DVR recording in one compact unit

· Ultra Lightweight: Weighs just 143g, easy to carry and store

· Flexible Power Input: Supports DC5.5 and XT30 connectors for external power

· Tripod Mountable: 1/4" nut for stable setup in the field

Specifications

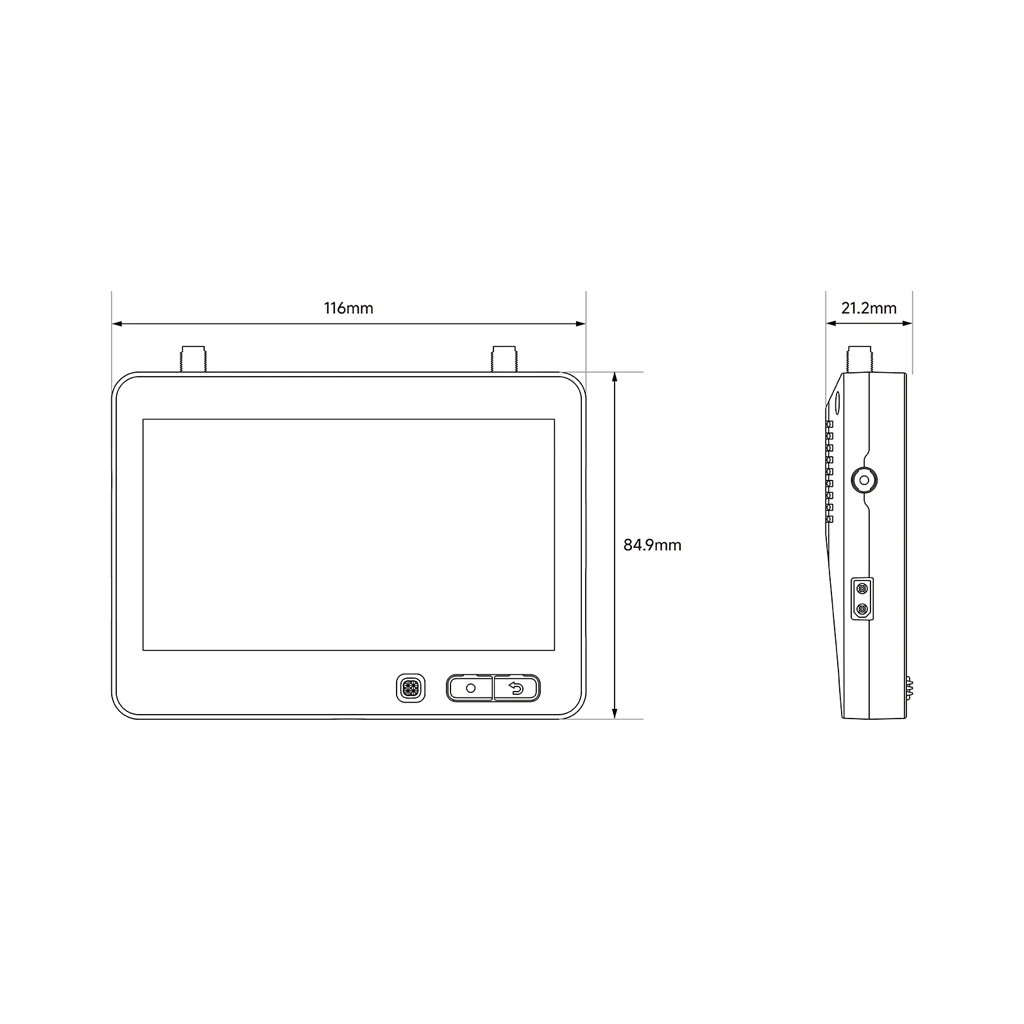

Diagram
Bright, Clear Display for Any Environment
Lightweight & Portable
Know More About ArtLynk Protocol
· HGLRC Draco

Package

· Screen size: 4.5 inch

· Resolution: 1920*1080@60Hz

· Brightness: 1000 nits

· Display: LCD

· SD card slot: Support max 1TB

· Frequency: 5.3-5.8GHz

· Effective Isotropic Radiated Power (EIRP): <23dBm (FCC) / <14dBm (CE)

· Ports: USB-C, micro SD card slot, DC 5.5x2.1mm, XT30

· Antenna port: RP-SMA female (external thread, inner hole)

· Transmission resolution: 1080p@60fps

· Bitrate: 25Mbps

· Transmission range: ＞400m

· Input voltage: 5.5-26.4V

· Dimensions: 116*84.9*21.2mm (antennas excluded)

· Weight: 143g (antennas excluded)

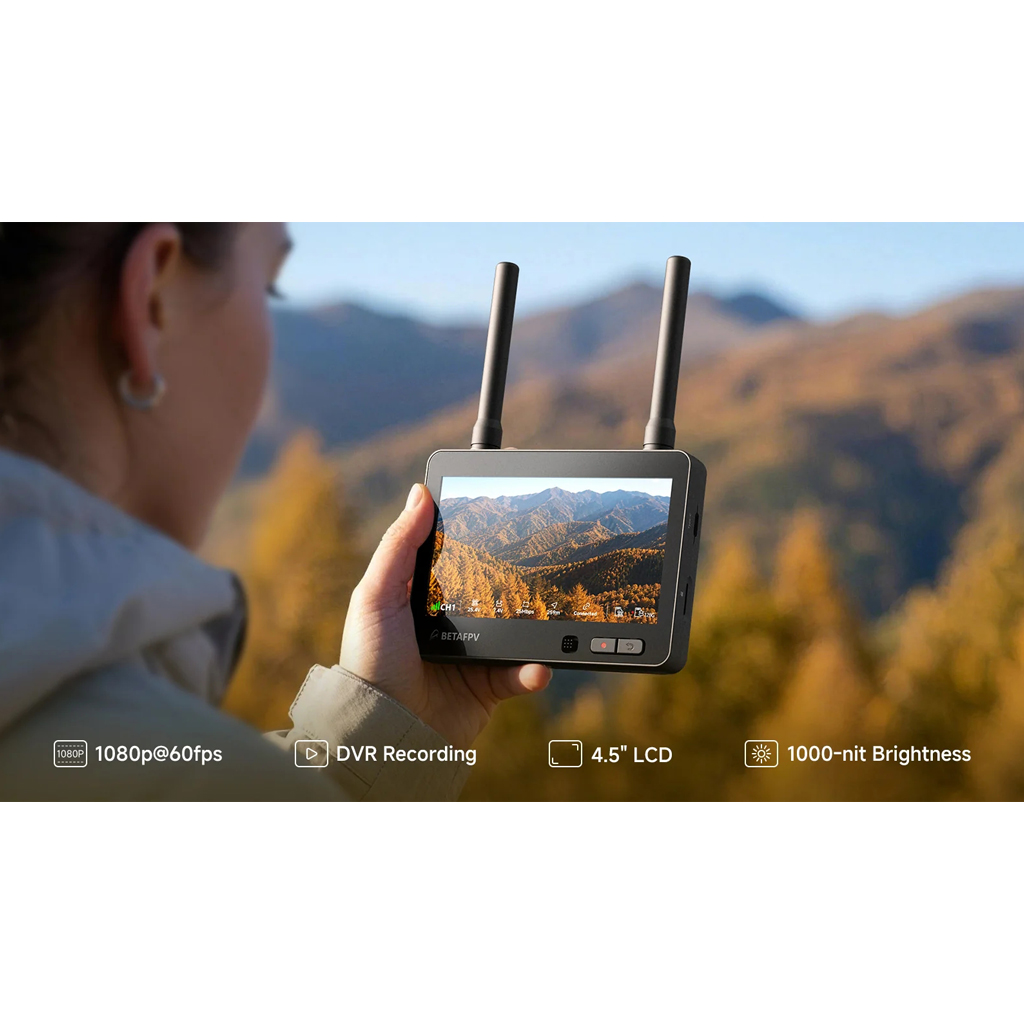

The Monitor integrates the P1 HD VRX and a 4.5 inch LCD with 1000 nit brightness, delivering vivid, detailed visuals even under bright sunlight. Whether you're flying outdoors or configuring your drone on the field, the high brightness screen ensures you never miss a detail.

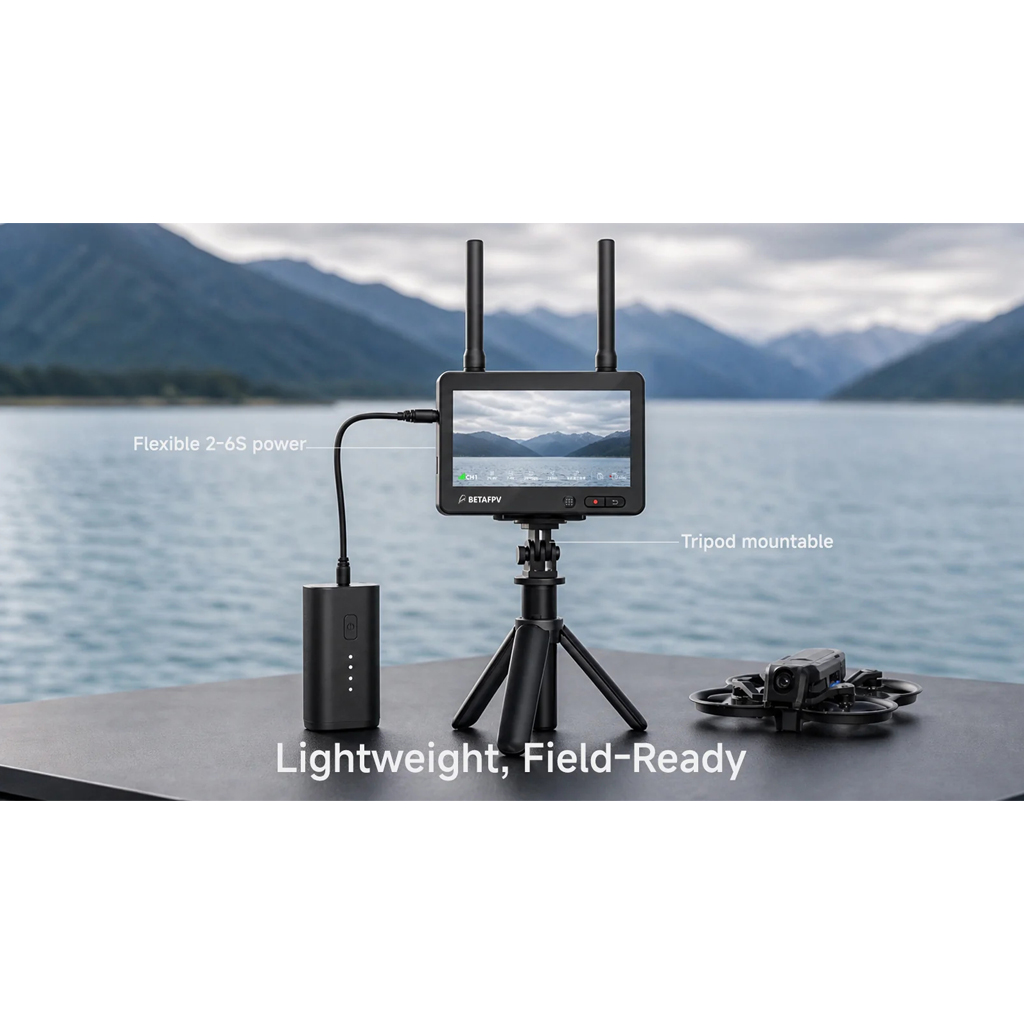

Weighing just 143g, the Monitor is compact and easy to carry, store, or mount on a tripod via its built in 1/4" nut. With DC5.5 and XT30 connectors, it offers flexible 2–6S external power options – whether you're using a standard supply or connecting directly to your drone battery for extended field sessions.

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

· Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).

· Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

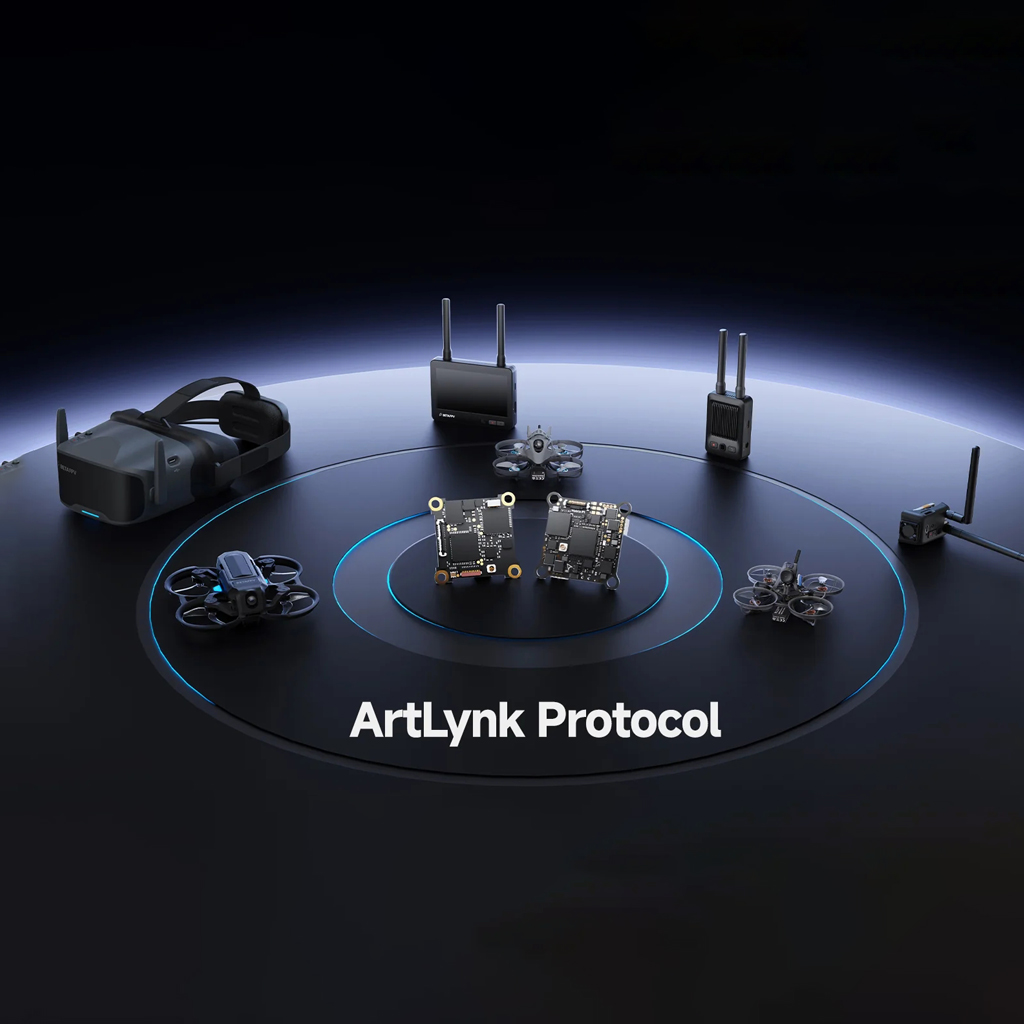

The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:

· BETAFPV P1 Air Unit, VR04 HD Goggles, Aquila20 P1, Meteor75 Pro P1, Monitor, P1 HD VRX (Standard), P1 HD VRX (Nano) [Beta Test], Matrix 1S AIO P1 HD FC [Beta Test]

· TJRC VTX, XJRC XJ3D Goggles, XJRC 02L Goggles

· More coming soon!

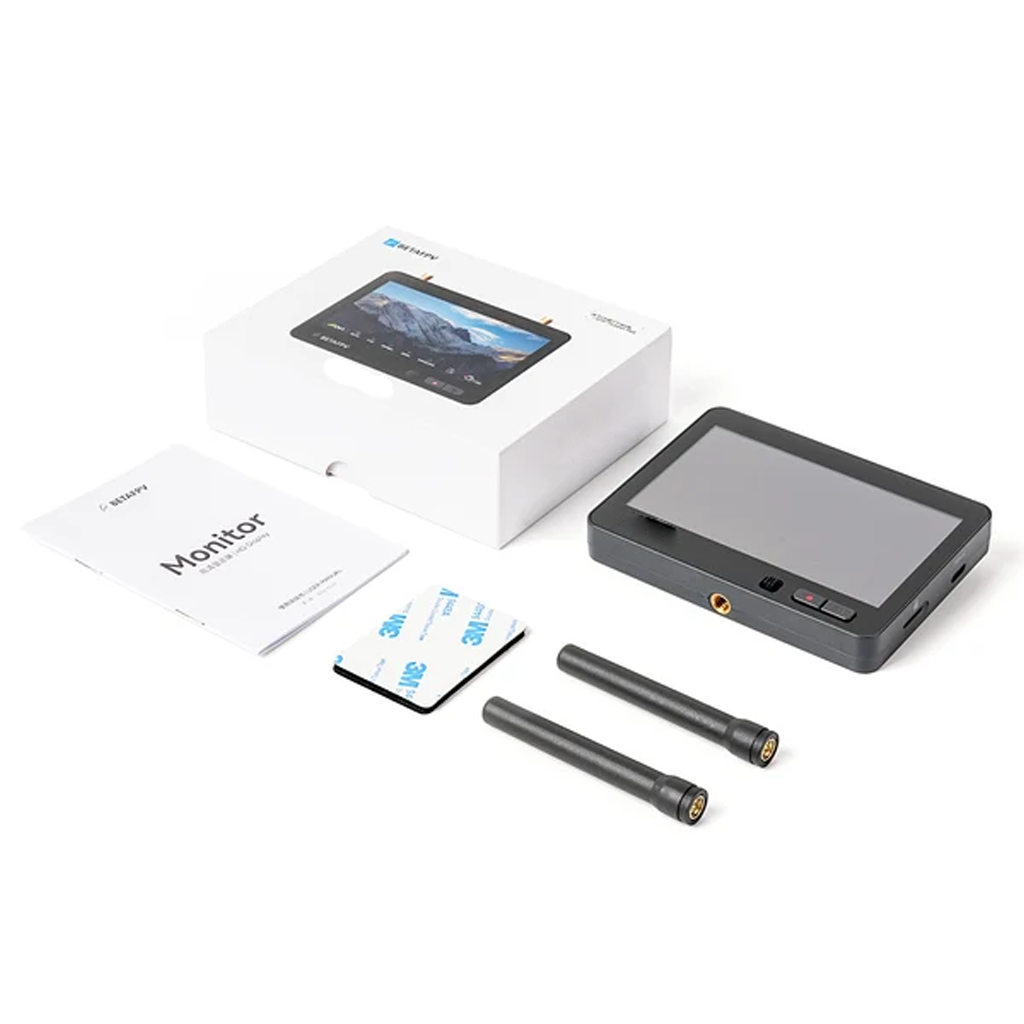

· 1 * Monitor

· 2 * 5.8G Antenna

· 1 * Hook and Loop Fastener with 3M Adhesive Backing

· 1 * User Manual
