RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter Item NO: F16184/F16185/F17711

US$ 0.77 (15% Off)
US$ 0.90 Save US$ 0.14
type:
5v 12v 16v
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost
Product Name RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter
Item NO F16184/F16185/F17711
Weight 0.0200 kg = 0.0441 lb = 0.7055 oz
Category DIY RC Drone Kit / RC Drone Accessories > Flight Control
Brand XT-XINTE
Creation time 2017-07-25

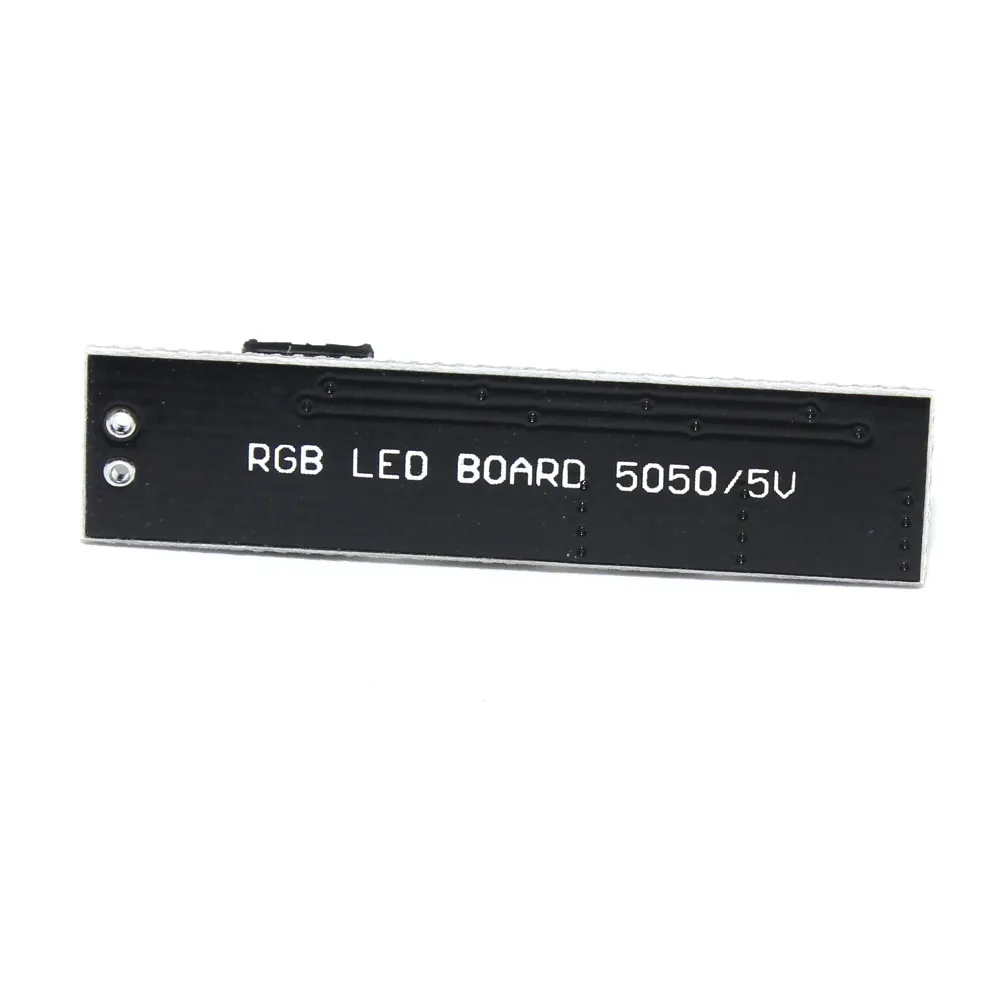

RGB 5050 LED Light Board 5V 12V 16V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

RGB 5050 LED Light Board 5V 12V 3S 4S 7 Colors Switch for RC 250 QAV250 FPV Quadcopter Multicopter

Specification


    100% Brand New
    Input:4~6V ,10~13V, DC14~17V, 3S  4S LiPo battery
    DIP switch color selection
    Size: 42*10mm, 47*10mm,47*10mm
    Weight: 2g
    The LED is suitable for light DIY on mutirotor, airplane, helicopter, RC car etc.

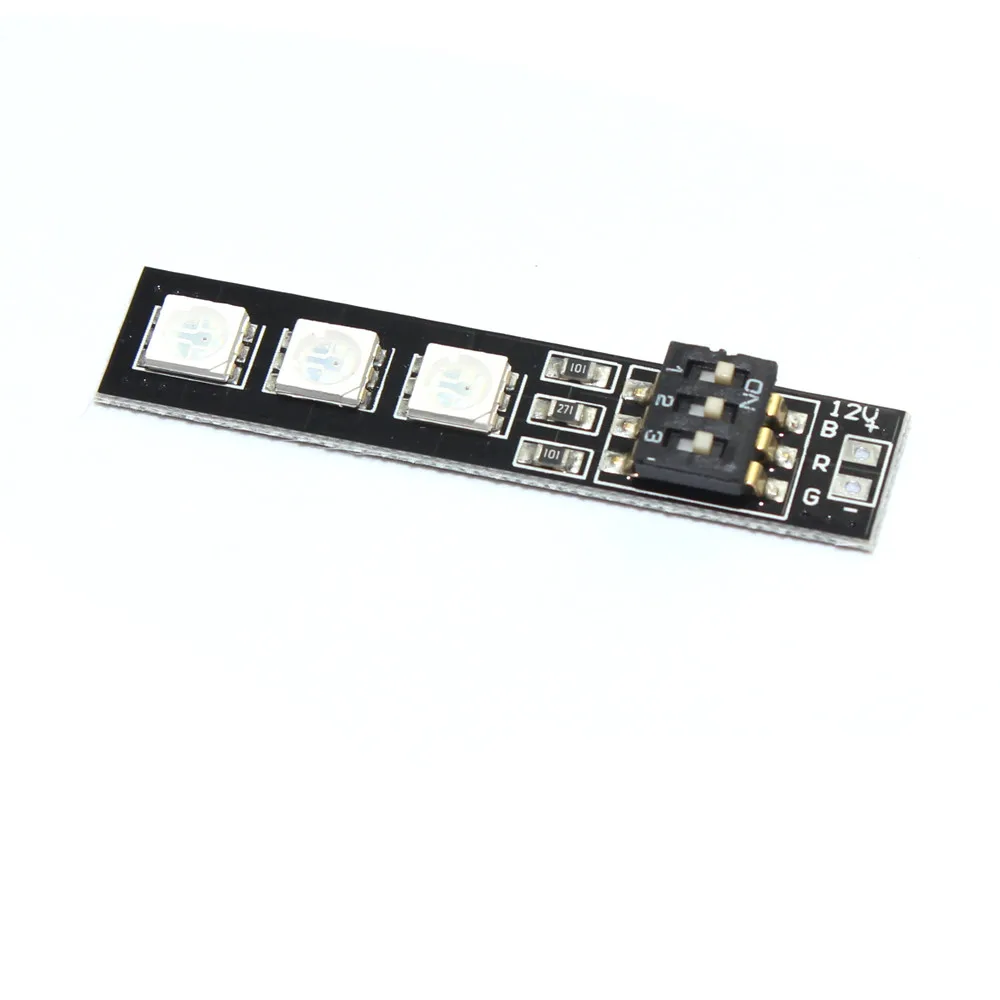

    This LED adopts RGB 5050 lamp beads, with DIP switch on board. According to toggle different switch combination, the LED can switch among

Function

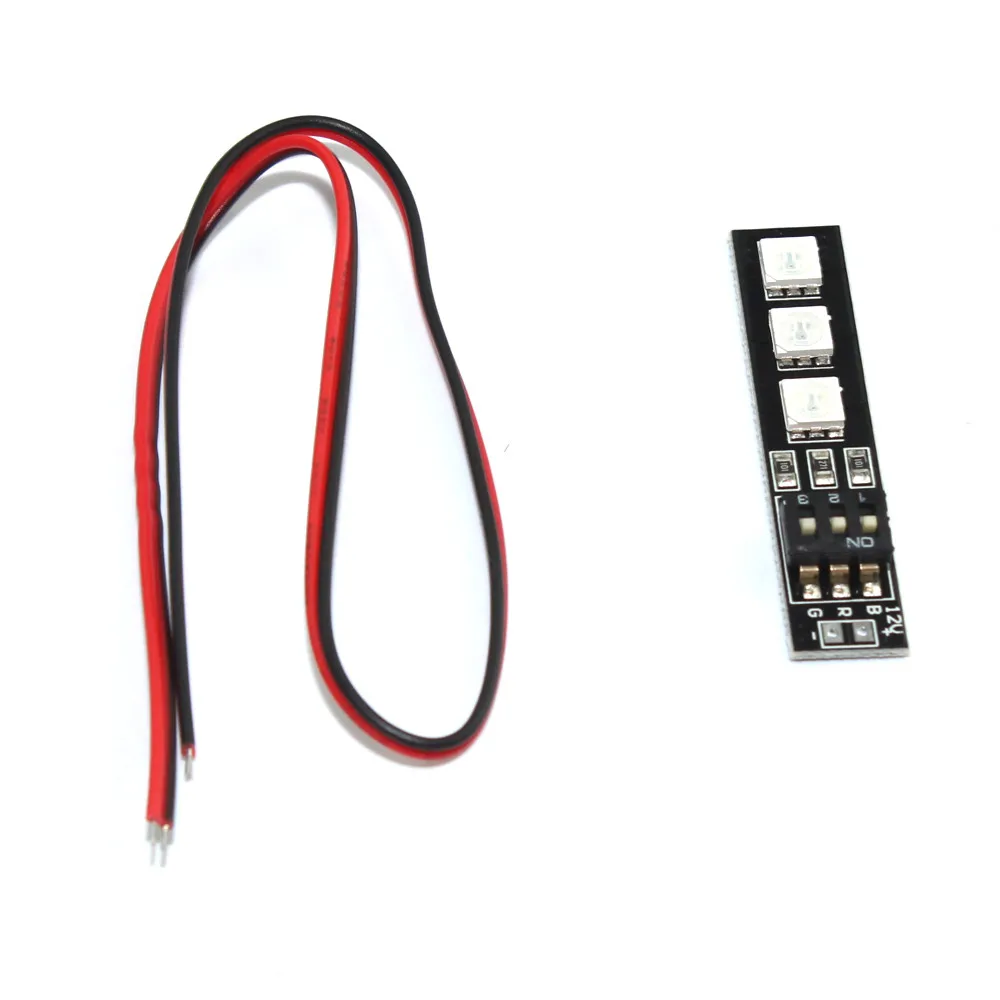

    The parcel comes with a 30cm black and red power wire. User can cut it to the proper length according to real use.
    Pay attention to the “+” and “-” and insulation
    Toggle the switch on to different channel to choose 7 color
    We suggest use double side tape to paste the LED lights on frame
    The output voltage of the 12V version is between 10-13V, either 3S lipo battery or 12V BEC can power it.
    When the output is 12V, the power and current of the LED:

      B ON = Blue     0.35W, 0.03A
      R ON = Red      0.35W, 0.03A
      G ON = Green    0.35W, 0.03A
      B + R ON = Purple 0.70W, 0.06A
      B + G ON = Cyan  0.70W, 0.06A
      R + G ON = Yellow 0.70W, 0.06A
      B + R+G ON = White 1.05W, 0.09A

When the output is 5V, the power and current of the LED:
  B ON = Blue     0.35W,
  R ON = Red      0.35W
  G ON = Green    0.35W
  B + R ON = Purple 0.70W
  B + G ON = Cyan  0.70W
  R + G ON = Yellow 0.70W
  B + R+G ON = White 1.05W
Package Content

    1 x RGB 5050 LED Board 7 Colors with DIP Switch
IMG_9465IMG_9466IMG_9467IMG_9470IMG_9471IMG_9472
